Honda XR75 Motorcycles

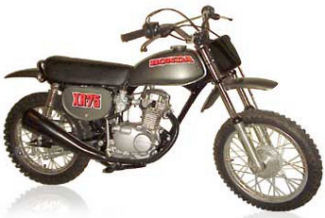

1973 Honda XR75K0

Engine

Engine Type 72cc OHC single cylinder
Spark plug C7HSA
Plug gap .028

DRIVETRAIN

Transmission 4-speed with manual clutch
Chain #420 x 100
Front sprocket 14 T
Rear sprocket 44 T

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

  • Available color: Rubber Gray Metallic
  • The “HONDA” fuel tank decal and top stripes were red
  • The “XR75” number plate decals were red
  • Fenders were metallic gray
  • Serial number began: XR75-1000001

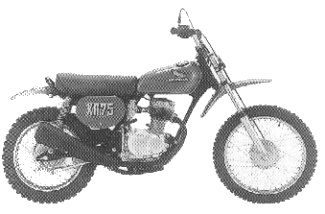

1974 Honda XR75K1

Engine

Engine Type 72cc OHC single cylinder
Spark plug C7HSA
Plug gap .028

DRIVETRAIN

Transmission 4-speed with manual clutch
Chain #420 x 100
Front sprocket 14 T
Rear sprocket 44 T

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

  • Color: Rubber Gray Metallic
  • Fuel tank decal was a Honda wing
  • Fuel tank had a new shape
  • The “XR75” number plate decals were yellow
  • Fenders were metallic gray
  • Serial number began XR75-1100001

1975 Honda XR75K2

Engine

Engine Type 72cc OHC single cylinder
Spark plug C7HSA
Plug gap .028

DRIVETRAIN

Transmission 4-speed with manual clutch
Chain #420 x 100
Front sprocket 14 T
Rear sprocket 44 T

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

  • Available color: Tahitian Red with Special Silver Metallic
  • Fuel tank: red
  • Fenders: silver
  • Tank decal was still a Honda wing
  • The “XR75” number plate decals were black, outlined in yellow
  • The side plates themselves were black while the front plate was white
  • Serial number began XR75-1200002

1976 Honda XR75-76

Engine

Engine Type 72cc OHC single cylinder
Spark plug C7HSA
Plug gap .028

DRIVETRAIN

Transmission 4-speed with manual clutch
Chain #420 x 100
Front sprocket 14 T
Rear sprocket 44 T

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

  • Available color: Tahitian Red
  • Fuel tank and fenders were red
  • Tank decal was still a Honda wing
  • The “XR75” number plate decals were black, outlined in yellow
  • The side plates themselves were black while the front plate was white
  • Serial number began: XR75-1300001

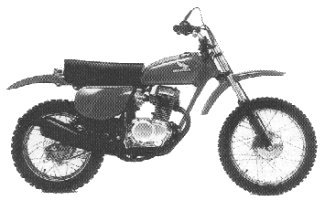

1977 Honda XR75-77

Engine

Engine Type 75cc OHC single cylinder
Spark plug C7HSA
Plug gap .028

DRIVETRAIN

Transmission 5-speed with manual clutch
Chain #420 x 100
Front sprocket 14 T
Rear sprocket 46 T

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

  • Available color: Tahitian Red
  • The fuel tank and fenders were red
  • The frame and side covers were red
  • The front fork legs were black
  • The hubs were silver
  • The tank decal was still a Honda wing
  • The “XR” number plate decals were red; but the “75” was white
  • The top of the rear shocks were moved forward
  • The side covers were of a different shape
  • The fenders were larger
  • Serial number began: XR75-1400013

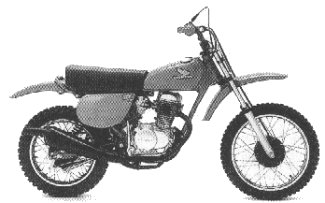

1978 Honda XR75-78

Engine

Engine Type 75cc OHC single cylinder
Spark plug C7HSA
Plug gap .028

DRIVETRAIN

Transmission 5-speed with manual clutch
Chain #420 x 100
Front sprocket 14 T
Rear sprocket 46 T

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

  • Available color: Tahitian Red
  • The fuel tank and fenders were red
  • The frame and side covers were red
  • The front fork legs were silver
  • The hubs were black
  • The tank decal was still a Honda wing
  • The “XR” number plate decals were blue; but the “75” was white
  • The front number plate and handlebar grips were red
  • Serial number began: XR75-1500013

XR75 Image Gallery
