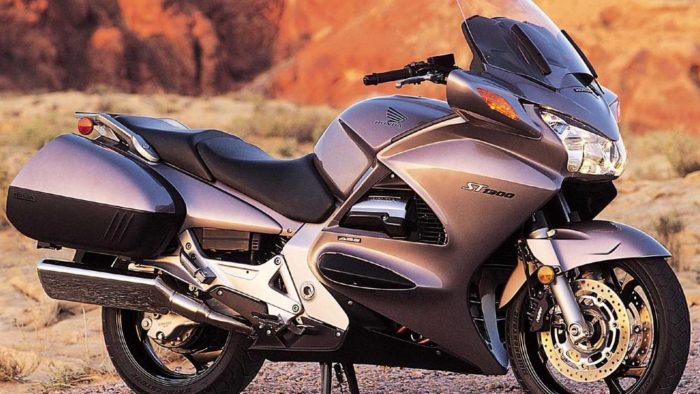

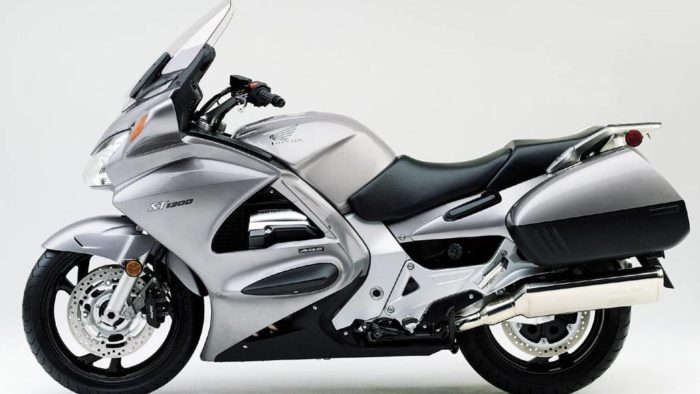

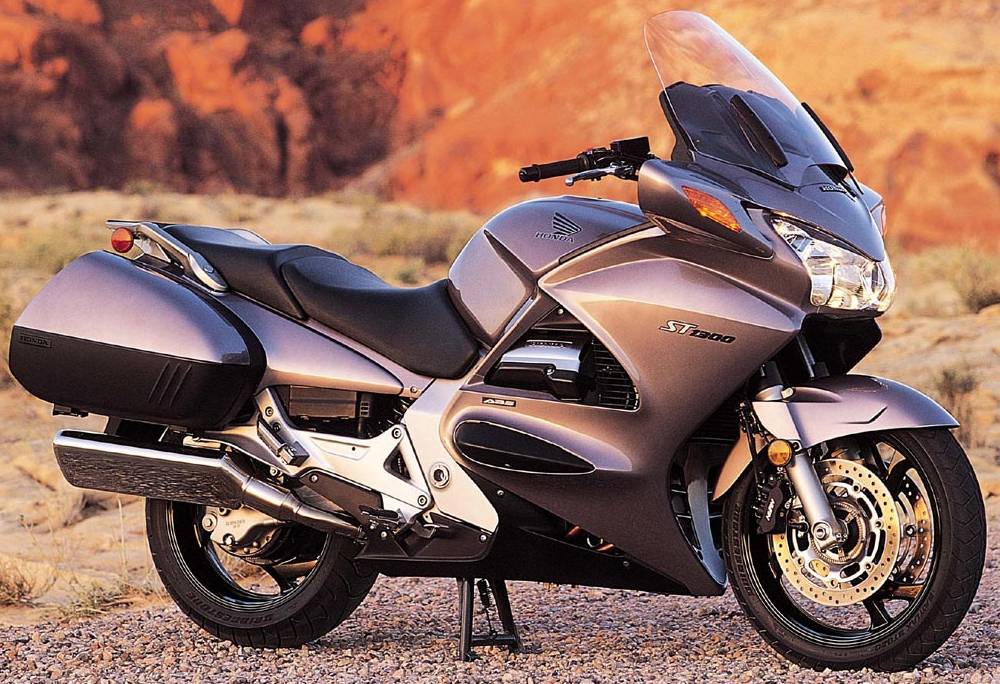

2003 ST1300 Pan European
Engine |
|
Engine | 1261cc liquid-cooled longitudinally mounted 90-degree V-4 |
Bore and Stroke | 78.0 x 66.0 mm |
Compression Ratio | 10.8:1 |
Fuel Delivery | PGM-FI with automatic enricher circuit |
Valve Train | DOHC; four valves per cylinder |
Drivetrain |
|
Transmission | Five-speed |
Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
Suspension Fron | 45mm HMAS cartridge fork; 116 millimetres travel |
Suspension Rear | Pro-Link single HMAS gas-charged shock with five-position spring preload adjustability; 122 millimetres travel |
Brakes Front | Linked Braking System; dual 310mm full-floating discs with three-piston calipers (optional ABS) |
Brakes Rear | Linked Braking System; single 316mm disc with three-piston caliper (optional ABS) |
Front Tires | 120/70ZR-18 radial |
Rear Tires | 170/60ZR-17 radial |
DIMENSION |
|
Seat Height | 790mm (+/- 15mm ); 31.1 in. (+/- 0.6 in.) |
Wheelbase | 1491mm (58.7 in.) |
Fuel Capacity | 29 liters (7.7 GalUS) |
Dry weight |
|
OTHER |
|

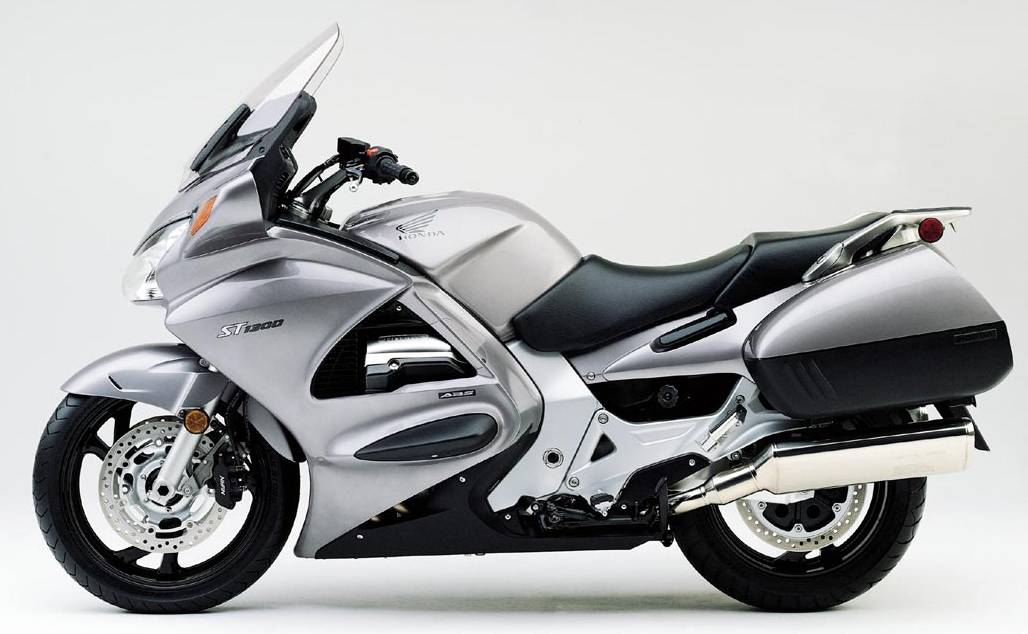

Colors | Metallic Dark Silver |

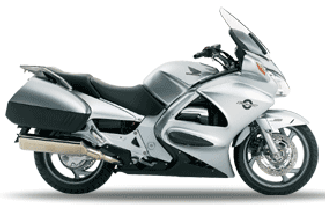

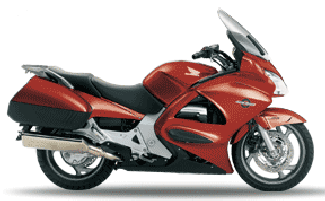

2004 ST1300 Pan European
Engine |
|
Engine | 1261cc liquid-cooled longitudinally mounted 90-degree V-4 |
Bore and Stroke | 78.0mm x 66.0mm |
Compression Ratio | 10.8:1 |
Fuel Delivery | Programmed Fuel Injection (PGM-FI) with automatic enricher circuit |
Valve Train | DOHC; four valves per cylinder |
Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
Drivetrain |
|
Transmission | Five-speed |
Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
Suspension Fron | 45.0mm HMAS cartridge fork; 4.6-inch travel |
Suspension Rear | HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel |
Brakes Front | Dual full-floating 310.0mm discs with LBS three-piston calipers (Optional: Anti-lock Braking System (ABS)) |
Brakes Rear | Single 316.0mm disc with LBS three-piston caliper (Optional: Anti-lock Braking System) |
Front Tires | 120/70ZR-18 |
Rear Tires | 170/60ZR-17 |
DIMENSION |
|
Seat Height | 31.1 inches (+/- 0.6 inches) |
Wheelbase | 58.7 inches |
Fuel Capacity | 7.7 gallons |
Dry weight | 637.0 pounds (648.0 pounds ABS) |
OTHER |
|
Colors |
|
Emissions | This model meets CARB 2008 emissions standards. |
Model ID | ST1300 |
Warranty | 3 years |
2005 ST1300 Pan European
Engine |
|
Engine | 1261cc liquid-cooled longitudinally mounted 90-degree V-4 |
Bore and Stroke | 78.0mm x 66.0mm |
Compression Ratio | 10.8:1 |
Fuel Delivery | Programmed Fuel Injection (PGM-FI) with automatic enricher circuit |
Valve Train | DOHC; four valves per cylinder |
Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
Drivetrain |
|
Transmission | Five-speed |
Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
Suspension Fron | 45.0mm HMAS cartridge fork; 4.6-inch travel |
Suspension Rear | HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel |
Brakes Front | Dual full-floating 310.0mm discs with LBS three-piston calipers (Optional: Anti-lock Braking System (ABS)) |
Brakes Rear | Single 316.0mm disc with LBS three-piston caliper (Optional: Anti-lock Braking System) |
Front Tires | 120/70ZR-18 |
Rear Tires | 170/60ZR-17 |
DIMENSION |
|
Rake | 26.0 degrees |
Trail | 98.0mm (3.9 inches) |
Seat Height | 31.1 inches (+/- 0.6 inches) |
Wheelbase | 58.7 inches |
Fuel Capacity | 7.7 gallons |
Dry weight | 631 pounds |
OTHER |
|
Colors |
|
Emissions | This model meets CARB 2008 emissions standards. |
Model ID | ST1300 |
Warranty | 3 years |
2005 ST1300 ABS Pan European
Engine |
|
Engine | 1261cc liquid-cooled longitudinally mounted 90-degree V-4 |
Bore and Stroke | 78.0mm x 66.0mm |
Compression Ratio | 10.8:1 |
Fuel Delivery | Programmed Fuel Injection (PGM-FI) with automatic enricher circuit |
Valve Train | DOHC; four valves per cylinder |
Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
Drivetrain |
|
Transmission | Five-speed |
Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
Suspension Fron | 45.0mm HMAS cartridge fork; 4.6-inch travel |
Suspension Rear | HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel |
Brakes Front | Dual full-floating 310.0mm discs with LBS three-piston calipers (Optional: Anti-lock Braking System (ABS)) |
Brakes Rear | Single 316.0mm disc with LBS three-piston caliper (Optional: Anti-lock Braking System) |
Front Tires | 120/70ZR-18 |
Rear Tires | 170/60ZR-17 |
DIMENSION |
|
Rake | 26.0 degrees |
Trail | 98.0mm (3.9 inches) |
Seat Height | 31.1 inches (+/- 0.6 inches) |
Wheelbase | 58.7 inches |
Fuel Capacity | 7.7 gallons |
Dry weight | 637 pounds |
OTHER |
|
Colors |
|
Emissions | This model meets CARB 2008 emissions standards. |
Model ID | ST1300A |
Warranty | 3 years |

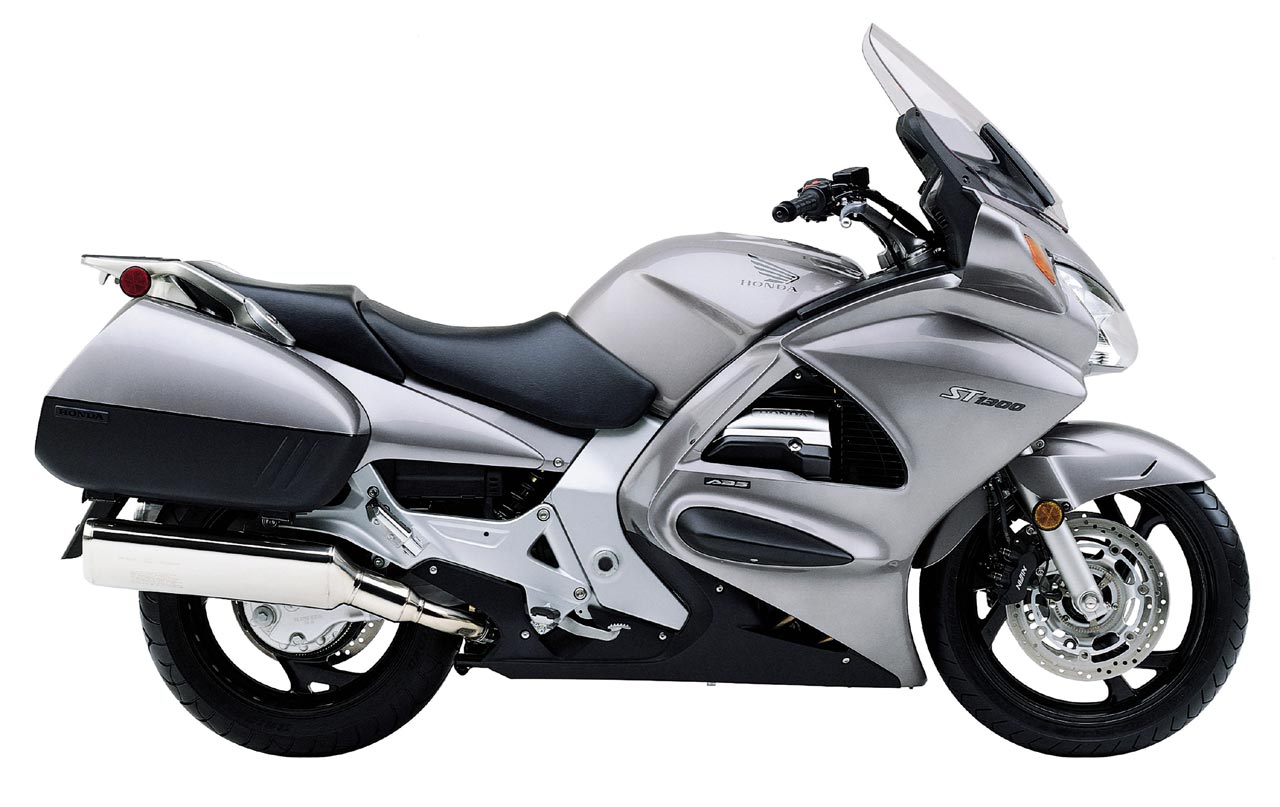

2006 ST1300
OVERVIEW
- Honda’s Gold Wing and CBR sportbikes represent the gold standards of their classes, so it only follows that we’d build a sport-tourer blending the best of both worlds. Enter the ST1300, with its smooth V-4, sporty yet comfortable suspension, sleek bodywork and removable luggage. Translation? A sport-touring experience like no other.
Engine |
|
Engine | 1261cc liquid-cooled longitudinally mounted 90-degree V-4 |
Bore and Stroke | 78mm x 66mm |
Compression Ratio | 10.8:1 |
Fuel Delivery | Programmed Fuel Injection (PGM-FI) with automatic enricher circuit |
Valve Train | DOHC; four valves per cylinder |
CarburetionProgrammed | Fuel Injection (PGM-FI) with automatic enricher circuit |
Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
Drivetrain |
|
Transmission | Five-speed |
Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
Suspension Fron | 45mm HMAS cartridge fork; 4.6-inch travel |
Suspension Rear | HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel |
Brakes Front | Dual full-floating 310mm discs with LBS three-piston calipers |
Brakes Rear | Single 316mm disc with LBS three-piston caliper |
Front Tires | 120/70ZR-18 |
Rear Tires | 170/60ZR-17 |
DIMENSION |
|
Rake | 26.0 degrees |
Trail | 98mm (3.9 inches) |
Seat Height | 31.1 inches (+/- 0.6 inches) |
Wheelbase | 58.7 inches |
Fuel Capacity | 7.7 gallons |
Dry weight | 650 pounds |
OTHER |
|
Emissions | This model meets CARB 2008 emissions standards. |
Colors | Light Silver Metallic |
Model ID |
|

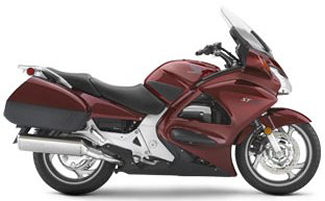

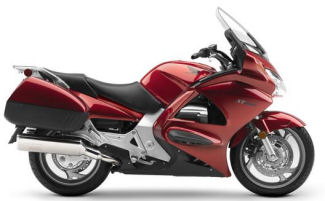

2008 ST1300
OVERVIEW
- Call it the bike that perfectly fills the gap between Honda’s flagship Gold Wing tourer and our stable of championship winning sportbikes. The ST1300 is designed for the long haul. With sleek, full-coverage bodywork, an adjustable windscreen and removable luggage, this smooth, agile, V-4-powered machine is also built to make getting to your destination fun.
Engine |
|
Engine | 1261cc liquid-cooled longitudinally mounted 90° V-4 |
Bore and Stroke | 78mm x 66mm |
Compression Ratio | 10.8:1 |
Fuel Delivery | PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8-holes per injector |
Valve Train | DOHC; four valves per cylinder |
Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
Drivetrain |
|
Transmission | Five-speed |
Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
Suspension Fron | 45mm HMAS cartridge fork; 4.6-inch travel |
Suspension Rear | HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel |
Brakes Front | Dual full-floating 310mm discs with LBS three-piston calipers |
Brakes Rear | Single 316mm disc with LBS three-piston caliper |
Front Tires | 120/70ZR-18 |
Rear Tires | 170/60ZR-17 |
DIMENSION |
|
Rake | 26.0 ° |
Trail | 98mm (3.9 inches) |
Seat Height | 31.1 inches (+/- 0.6 inches) |
Wheelbase | 58.7 inches |
Fuel Capacity | 7.7 gallons |
Curb weight | 719 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) (ABS add 11 lbs) |
OTHER |
|
Warranty | 3 years Unlimited mileage |

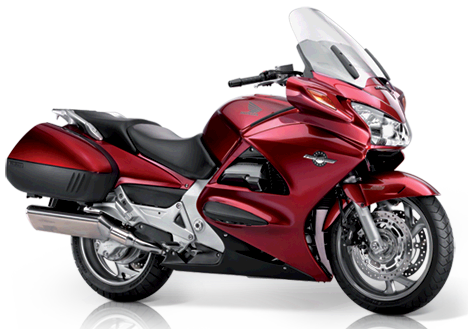

Colors | Candy Dark Red |
Model ID | ST1300 |

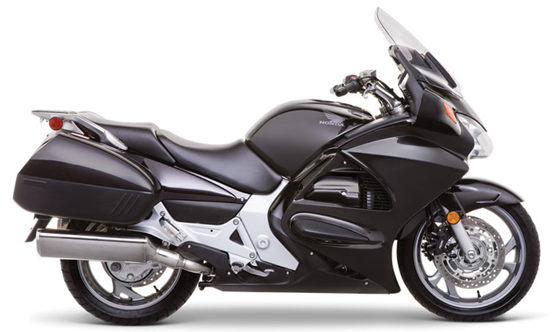

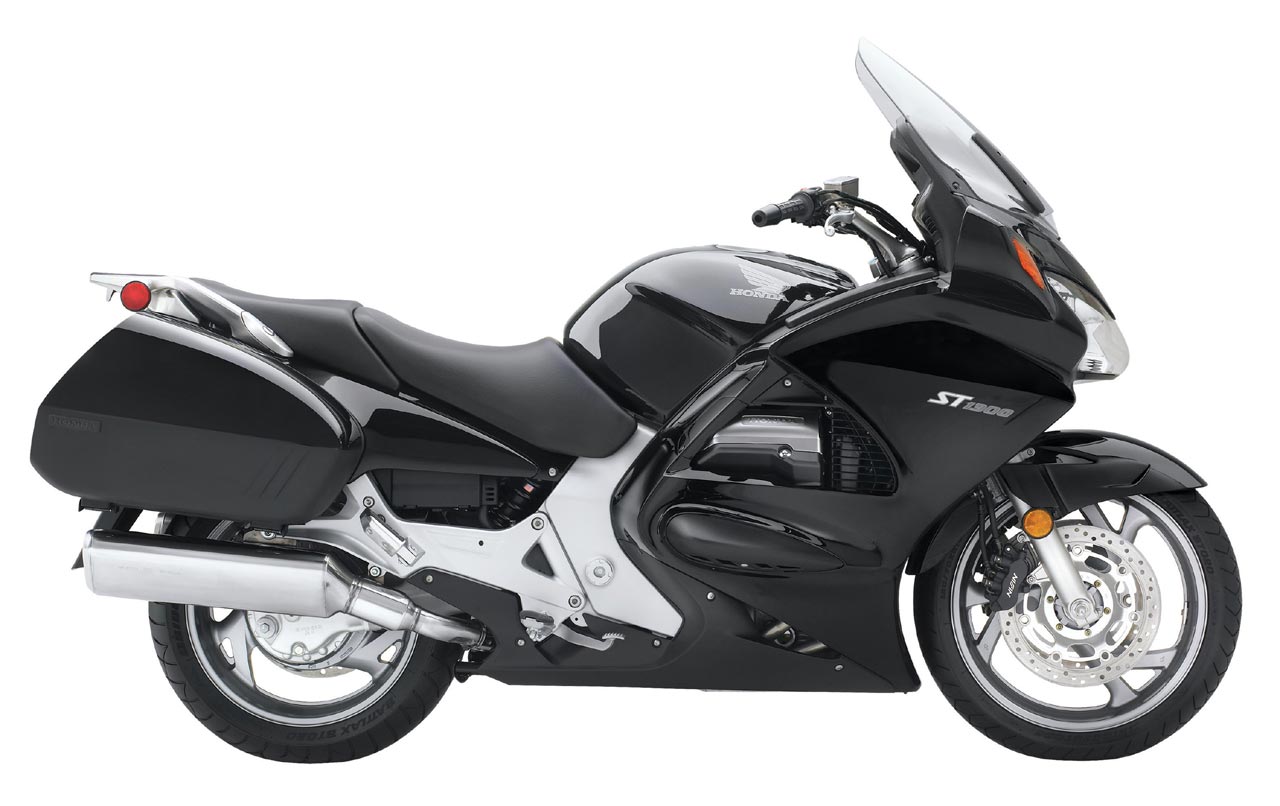

2010 ST1300
Engine |
|
Engine | 1261cc liquid-cooled longitudinally mounted 90° V-4 |
Displacement | 1261 cc |
Bore and Stroke | 78mm x 66mm |
Compression Ratio | 10.8:1 |
Fuel Delivery | PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector |
Valve Train | DOHC; four valves per cylinder |
Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
Drivetrain |
|
Transmission | Five-speed |
Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
Suspension Fron | 45mm HMAS cartridge fork; 4.6-inch travel |
Suspension Rear | HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel |
Brakes Front | Dual full-floating 310mm discs with LBS three-piston calipers |
Brakes Rear | Single 316mm disc with LBS three-piston caliper |
Front Tires | 120/70ZR-18 |
Rear Tires | 170/60ZR-17 |
DIMENSION |
|
Rake | 26.0 ° |
Trail | 98mm (3.9 inches) |
Seat Height | 790 mm (31.1 in.) adjustable +/- 15 mm (0.6 in.) |
Wheelbase | 1491 mm (58.7 in.) |
Fuel Capacity | 29 litres (7.7 GalUS) |
Curb weight | 331 kg (760 lb) including required fluids and full tank of gas – ready to ride |
OTHER |
|
Warranty | Three Years: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |

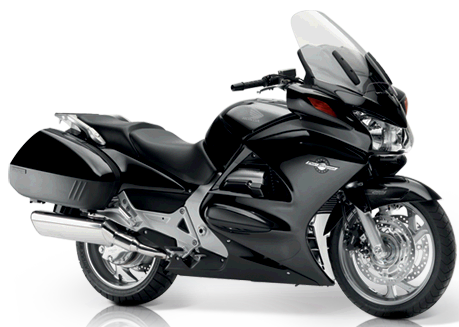

Colors | Graphite Black |
Model ID | ST1300 |
Fuel consumption | 6.7 L/100km (35 mpgUS) |
MSRP | $19,999 |

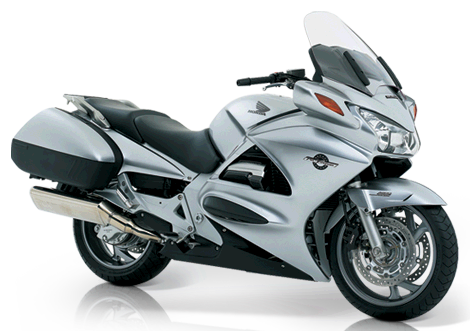

2012 ST1300
Engine |
|
Engine | 1261cc liquid-cooled longitudinally mounted 90° V-4 |
Displacement | 1261cc |
Bore and Stroke | 78mm x 66mm |
Compression Ratio | 10.8:1 |
Fuel Delivery | PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector |
Valve Train | DOHC; four valves per cylinder |
Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
Max. Power Output | 117 bhp at 8,000 rpm |
Max. Torque | 117Nm at 6,500 rpm |
Starter | Electric |
Drivetrain |
|
Transmission | Five-speed |
Final Drive | Enclosed shaft with integrated dampers |
Front Wheels | Hollow-section triple-spoke cast aluminium |
Final Drive | Rear Wheels: |
CHASSIS / SUSPENSION / BRAKES |
|
Suspension Fron | 45mm telescopic HMAS cartridge fork, 117mm (4.6 in.) axle travel |
Suspension Rear | Single-side conventional shock/damper HMAS gas-charged with five-position adjustable spring-preload and rebound damping, 120mm (4.8 in.) axle travel |
Brakes Front | Dual full-floating 310mm hydraulic discs with CBS Combined three-piston calipers, (ABS) and sintered metal pads |
Brakes Rear | Single 316mm hydraulic disc with CBS Combined three-piston caliper, (ABS) and sintered metal pads |
Front Tires | 120/70 ZR18M/C |
Rear Tires | 170/60 ZR17M/C |
DIMENSION |
|
Rake | 26.0 degree (Caster Angle) |
Trail | 98mm (3.9 inches) |
Curb Weight | 332 kg (730 lb) (Includes all standard equipment, required fluids and full tank of fuel ready to ride. |
Wheelbase | 1500mm (58.7 inches) |
Fuel Capacity | 29 Litres (7.7 GalUS) (with 4 Litre (1 Gal) LCD-indicated reserve) |
Overall Length | 2282mm (89.8 inches) (with panniers) |
Overall Width | 935mm (36.8 inches) (with panniers) |
Overall Height | 1332mm (52.4 inches) (with panniers) |
Seat Height | 790mm (31.1 inches) (±15mm (0.6 inch) adjustable) |
Ground Clearance | 145mm (5.7 inches) |
Weight | 283 kg (623 lb) |
OTHER |
|
Warranty | Three Years; Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |
Colors |
|
Model ID | ST1300A |
Fuel consumption | 6.7 L/100km (35 mpgUS) |
MSRP | $19,999 |
