Honda Spree 50 (NQ50) Motorcycles


1984 SPREE 50 NQ50

Engine

Engine Type Forced-air-cooled two-stroke single cylinder
Oiler automatic oil injection
Displacement 49cc
Bore & Stroke 41 x 37.4mm
Compression ratio 7.2:1
Spark plug BPR6HS
Plug gap .028
Fuel Delivery 14mm piston-valve type
Starter Electric

DRIVETRAIN

Transmission Single-speed
Clutch automatic centrifugal
Drive line Belt primary drive with gear final drive

CHASSIS / SUSPENSION / BRAKES

Brakes Front and Rear drum
Front suspension Telescopic fork
Rear suspension Single shock
Tire size 2.50-10 front and rear
Wheels pressed steel

DIMENSION

Wheelbase 1065mm (41.9 in.)
Dry weight 38.8 kg (85.5 lb)
Overall length 1490mm (58.6 in.)
Overall width 590mm (23.2 in.)
Seat height 693mm (27.3 in.)
Fuel capacity 2.5 liter (.66 US gal.) (.55 Imp. gal.)

OTHER

Accessory Rear carrier
Colors

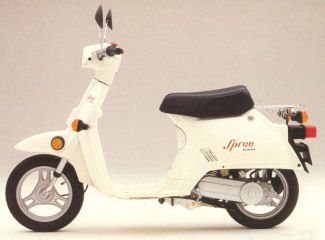

  • Cortina White with red “Spree” logo

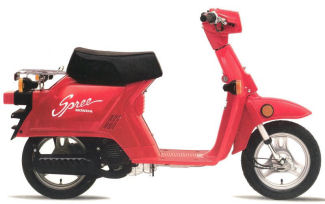

  • Sparkling Red with white “Spree” logo

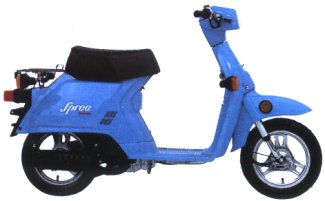

  • Vista blue with white “Spree” logo
V.I.N. JH2AF060XES000004
Engine AF05E-2000005

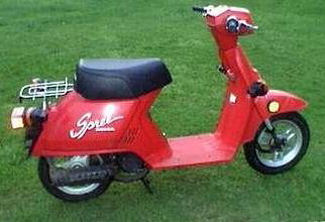

1985 SPREE 50 NQ50

Engine

Engine Type Forced-air-cooled two-stroke single cylinder
Oiler automatic oil injection
Displacement 49cc
Bore & Stroke 41 x 37.4mm
Compression ratio 7.2:1
Spark plug BPR6HS
Plug gap .028
Fuel Delivery 14mm piston-valve type
Starter Electric

DRIVETRAIN

Transmission Single-speed
Clutch automatic centrifugal
Drive line Belt primary drive with gear final drive

CHASSIS / SUSPENSION / BRAKES

Brakes Front and Rear drum
Front suspension Telescopic fork
Rear suspension Single shock
Tire size 2.50-10 front and rear
Wheels pressed steel

DIMENSION

Wheelbase 1065mm (41.9 in.)
Dry weight 39 kg (85.9 lb)
Overall length 1530mm (60.2 in.)
Overall width 590mm (23.2 in.)
Seat height 710mm (27.9 in.)
Fuel capacity 2.5 liters (.66 US gal.) (.55 Imp. gal.)

OTHER

Accessory Rear carrier
Colors
  • Black with lavender “Spree” logo
  • Sparkling Red with white “Spree” logo
  • Cortina White
  • Vista Blue
V.I.N. JH2AF060XES000004
Engine AF05E-2000005

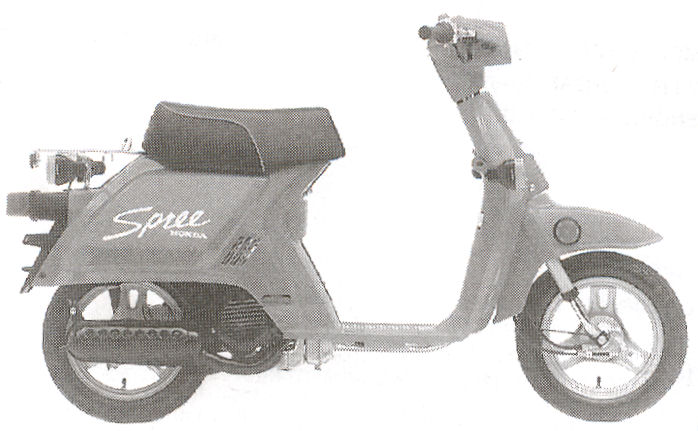

1986 SPREE 50 NQ50

Engine

Engine Type Forced-air-cooled 49cc two-stroke single cylinder with automatic oil injection
Spark plug BPR6HS
Plug gap .028
Starter Electric

DRIVETRAIN

Transmission Single-speed with automatic clutch

CHASSIS / SUSPENSION / BRAKES

Brakes Front and Rear drum
Front suspension Telescopic fork
Rear suspension Single shock
Tire size 2.50-10 front and rear
Wheels pressed steel

DIMENSION

Wheelbase 1065mm (41.9 in.)
Dry weight 39 kg (86 lb)
Seat height 700mm (27.6 in.)

OTHER

Accessory Rear carrier
Colors
  • lack with lavender “Spree” logo and seat trim
  • Sparkling Red with white “Spree” logo
V.I.N. JH2AF0603GS200001
Engine AF05E-2200001

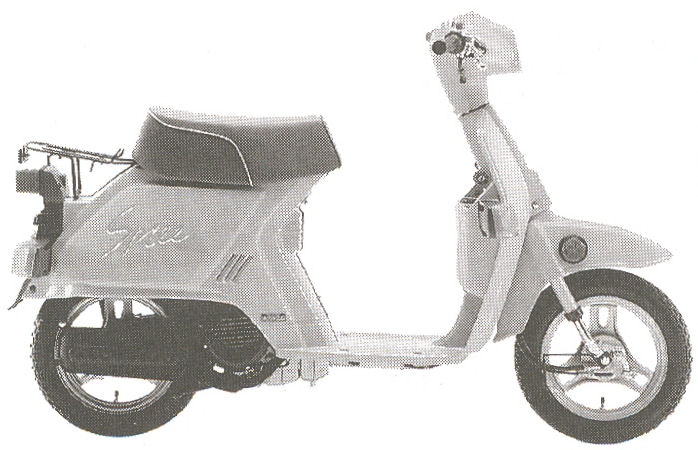

1987 SPREE 50 NQ50

Engine

Engine Type Forced-air-cooled 49cc two-stroke single cylinder with automatic oil injection
Spark plug BPR6HS
Plug gap .028
Starter Electric

DRIVETRAIN

Transmission Single-speed with automatic clutch

CHASSIS / SUSPENSION / BRAKES

Brakes Front and Rear drum
Front suspension Telescopic fork
Rear suspension Single shock
Tire size 2.50-10 front and rear
Wheels pressed steel

DIMENSION

Wheelbase 1065mm (41.9 in.)
Dry weight 39 kg (86 lb)
Seat height 700mm (27.6 in.)

OTHER

Accessory Rear carrier
Colors
  • Black with lavender “Spree” logo and seat trim
  • Sparkling Red with white “Spree” logo and red seat trim
  • Kriti Blue with pink “Spree” logo and seat trim
V.I.N. JH2AF0603GS200001
Engine AF05E-2200001

Spree 50 Image Gallery
