Honda VTR1000 SP-2 Motorcycles


2004 VTR1000 SP-2

Engine

Engine Type Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Displacement 999cc
Bore and Stroke 100 x 63.6mm
Compression Ratio 10.8:1
Max. Power Output 133 bhp at 10,000 rpm
Max. Torque 102Nm at 8000 rpm
Ignition Computer-controlled digital transistorised with electronic advance
Starter Electric
Transmission 6-speed
Final Drive ‘O’-Ring sealed chain
Length x Width x Height 2025 x 725 x 1120mm
Wheelbase 1420mm
Seat Height 820mm
Ground Clearance 140mm
Fuel Capacity 18 litres (including 2.5 litre warning light reserve)
Dry Weight 194kg
Front Wheel 17 x MT3.50 ‘U’-section 5- spoke cast aluminum
Rear Wheel 17 x MT6.00 ‘U’-section 5- spoke cast aluminum
Front Tire 120/70 ZR17 (58W)
Front Suspension 43mm inverted cartridge-type fork with adjustable spring, preload and compression and rebound damping, 130mm axle travel
Rear Suspension Pro-link with gas-charged integrated remote reservoir damper offering adjustable preload, and compression and rebound damping, 120mm axle travel
Front Brakes 320 x 5mm dual hydraulic disc with 4-piston calipers, floating rotors and sintered metal pads
Rear Brakes 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads

2007 VTR1000 SP-2

Engine

Engine Type Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Displacement 999cc
Bore and Stroke 100 x 63.6mm
Compression Ratio 10.8:1
Max. Power Output 133 bhp at 10,000 rpm
Max. Torque 102Nm at 8000 rpm
Ignition Computer-controlled digital transistorised with electronic advance
Starter Electric
Transmission 6-speed
Final Drive ‘O’-Ring sealed chain
Length x Width x Height 2025 x 725 x 1120mm
Wheelbase 1420mm
Seat Height 820mm
Ground Clearance 140mm
Fuel Capacity 18 litres (including 2.5 litre warning light reserve)
Dry Weight 194kg
Front Wheel 17 x MT3.50 ‘U’-section 5- spoke cast aluminum
Rear Wheel 17 x MT6.00 ‘U’-section 5- spoke cast aluminum
Front Tire 120/70 ZR17 (58W)
Tires Rear 190/50 ZR17 (73W)
Front Suspension 43mm inverted cartridge-type fork with adjustable spring, preload and compression and rebound damping, 130mm axle travel
Rear Suspension Pro-link with gas-charged integrated remote reservoir damper offering adjustable preload, and compression and rebound damping, 120mm axle travel
Front Brakes 320 x 5mm dual hydraulic disc with 4-piston calipers, floating rotors and sintered metal pads
Rear Brakes 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads

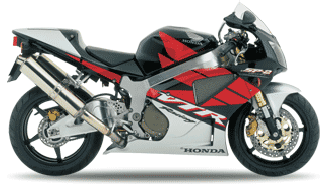

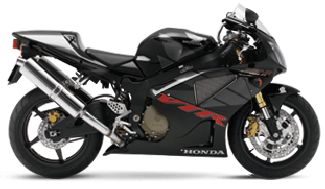

VTR1000 SP-2 Image Gallery
