Honda 50cc NPS50 Ruckus Zoomer Motorcycles

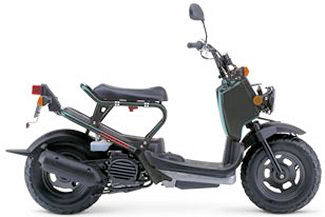

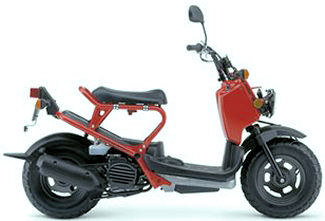

2003 Honda NPS50

Engine

Engine Type 49cc liquid-cooled single-cylinder four-stroke
Bore and Stroke 38mm x 44mm
Compression Ratio 12: 1
Valve Train SOHC
Fuel Delivery 15.0mm CV carburetor with automatic choke
Ignition CD
Spark plug CR8EH-9
Plug gap .036

DRIVETRAIN

Transmission Automatic
Final Drive V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 56mm (2.2 in.) travel
Rear Suspension Single-shock; 66mm (2.6 in.) travel
Front Brakes Drum
Rear Brake Drum
Front Tire 120/90-10
Rear Tire 130/90-10

DIMENSION

Wheelbase 1265mm (49.8 in.)
Seat Height 739mm (29.1 in.)
Dry Weight 82 kg. (181 lb.)
Fuel Capacity 5 litres (1.3 GalUS)

OTHER

Colors
  • Red
  • Black
Warranty 1 year

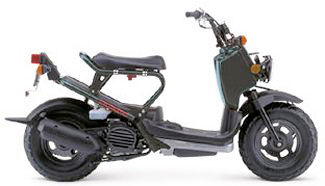

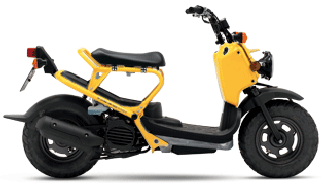

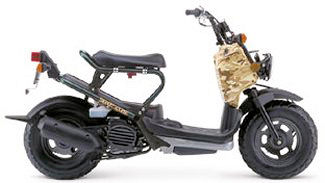

2004 Honda NPS50 “Ruckus”

Engine

Engine Type 49cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 15.0mm CV with automatic choke
Ignition CD
Spark plug CR8EH-9
Plug gap .036

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 56mm (2.2 in.) travel
Rear Suspension Single-shock; 66mm (2.6 in.) travel
Front Brakes Drum
Rear Brake Drum
Front Tire 120/90-10
Rear Tire 130/90-10

DIMENSION

Wheelbase 49.8 inches
Seat Height 29.1 inches
Dry Weight 181.0 pounds
Fuel Capacity 1.3 gallons

OTHER

Colors
  • Black
  • Yellow
  • Camo
Warranty 1 year

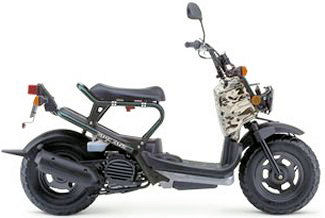

2005 Honda NPS50 “Ruckus”

Engine

Engine Type 49cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 15.0mm CV with automatic choke
Ignition CD
Spark plug CR8EH-9
Plug gap .036

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 56mm (2.2 in.) travel
Rear Suspension Single-shock; 66mm (2.6 in.) travel
Front Brakes Drum
Rear Brake Drum
Front Tire 120/90-10
Rear Tire 130/90-10

DIMENSION

Wheelbase 49.8 inches
Seat Height 29.1 inches
Dry Weight 181.0 pounds
Fuel Capacity 1.3 gallons

OTHER

Colors
  • Black
  • Yellow
  • Camo
Warranty 1 year

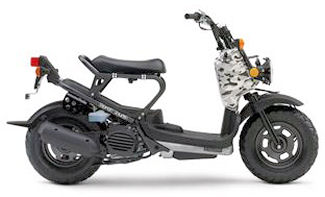

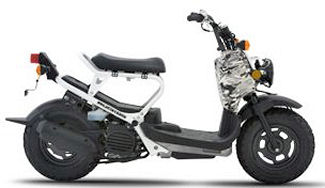

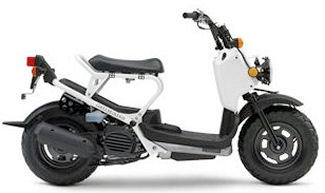

2006 NPS50 “Ruckus”

Engine

Engine Type 49cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 15.0mm CV with automatic choke
Ignition CD
Spark plug CR8EH-9
Plug gap .036

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 56mm (2.2 in.) travel
Rear Suspension Single-shock; 66mm (2.6 in.) travel
Front Brakes Drum
Rear Brake Drum
Front Tire 120/90-10
Rear Tire 130/90-10

DIMENSION

Wheelbase 49.8 inches
Seat Height 29.1 inches
Dry Weight 181 pounds
Fuel Capacity 1.3 gallons

OTHER

Colors
  • White
  • Silver
  • Camo
Warranty 1 year

2007 NPS50 “Ruckus”

Engine

Engine Type 49cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 15.0mm CV with automatic choke
Ignition CD
Spark plug CR8EH-9
Plug gap .036

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 56mm (2.2 in.) travel
Rear Suspension Single-shock; 66mm (2.6 in.) travel
Front Brakes Drum
Rear Brake Drum
Front Tire 120/90-10
Rear Tire 130/90-10

DIMENSION

Wheelbase 49.8 inches
Seat Height 29.1 inches
Dry Weight 181 pounds
Fuel Capacity 1.3 gallons

OTHER

Colors
  • Black
  • White
  • Camo
Warranty 1 year

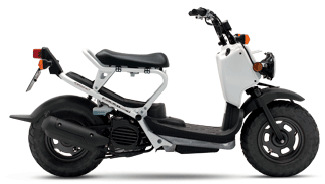

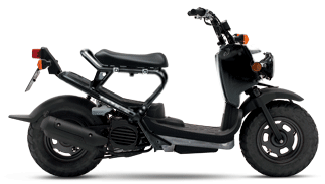

2007 ZOOMER (UK model)

Engine

Engine Type Liquid-cooled 4-stroke 4-valve SOHC single
Displacement 50cc
Bore & Stroke 38 x 44mm
Compression Ratio 12:1
Spark plug CR8EH-9
Plug gap .036
Carburation PGM-FI electronic fuel injection
Max. Power Output 4 bhp at 7,500 rpm
Max. Torque 4.5 Nm at 5,000 rpm
Ignition Digital transistorised with electronic advance
Starter Electric and back-up kick start

DRIVETRAIN

Transmission Automatic V-Matic belt drive
Final Drive V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Wheels Front Pressed Steel 10 x MT3.00
Wheels Rear Pressed Steel 10 x MT3.00
Tires Front 120/90

DIMENSION

Length x Width x Height 1,860 x 735 x 1,025mm
Wheelbase 1,265mm
Seat Height 735mm
Ground Clearance 145mm
Fuel Capacity
  • 5 litres (including 1 litre on reserve light)
  • Dry Weight: 84kg

OTHER

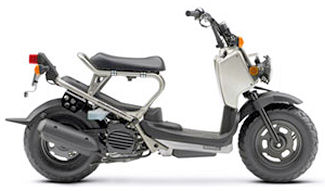

2008 NPS50 “Ruckus”

OVERVIEW

  • Ride a Ruckus, and you don’t just make the scene. You are the scene. Its zippy 49cc engine and easy ergonomics get you where the action is quick. And with its oversized double headlights, bare-bones utilitarian frame and eye-catching graphics and color choices, the Ruckus guarantees you’ll turn heads when you get there.



Engine

Engine Type 49cc liquid-cooled single-cylinder four-stroke
Spark plug CR8EH-9
Plug gap .036
Fuel Delivery 15mm CV carburetor with automatic choke
Ignition CD

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 2.2 inches travel
Rear Suspension Single-shock; 2.6 inches travel
Front Brake Drum
Rear Brake Drum
Front Tire 120/90-10
Rear Tire 130/90-10

DIMENSION

Wheelbase 49.8 inches
Seat Height 28.9 inches
Curb Weight 194 pounds
Fuel Capacity 1.3 gallons

OTHER

Colors
  • Black
  • Metallic Silver
Model ID NPS50
  • 6 months Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
  • Emissions Meets Current CARB and EPA standards.

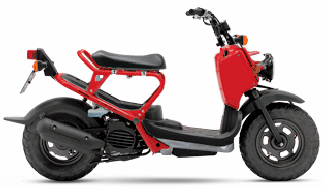

2009 NPS50 “Ruckus”

Engine

Engine Type 49cc
Engine Detail liquid-cooled single-cylinder four-stroke
Spark plug CR8EH-9
Plug gap .036
Fuel Delivery 15mm CV carburetor with automatic choke
Ignition CD

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 2.2 inches travel
Rear Suspension Single-shock; 2.6 inches travel
Front Brake Drum
Rear Brake Drum
Front Tire 120/90-10
Rear Tire 130/90-10

DIMENSION

Wheelbase 49.8 inches
Seat Height 28.9 inches
Curb Weight 194 pounds
Fuel Capacity 1.3 gallons

OTHER

Colors Red, Matte Gray Metallic
Price $2149
Warranty 1 Year

2012 NPS50 “Ruckus”



Engine

Engine Type 49cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 15mm CV carburetor with automatic choke
Spark plug CR8EH-9
Plug gap .036
Bore And Stroke 37.8mm x 44mm
Compression Ratio 11.9:1
Ignition CD

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 2.2 inches travel
Rear Suspension Single-shock; 2.6 inches travel
Front Brake Drum
Rear Brake Drum
Front Tire 120/90-10
Rear Tire 130/90-10

DIMENSION

Wheelbase 49.8 inches
Seat Height 29.0 inches
Curb Weight 194 pounds (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Capacity 1.3 gallons
Miles Per Gallon 114 MPG – Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.

OTHER

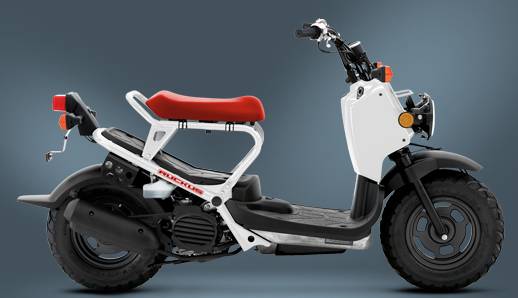

Colors White/Red, Black
Model Id NPS50

FACTORY WARRANTY INFORMATION

  • Duration: One year
  • Description: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

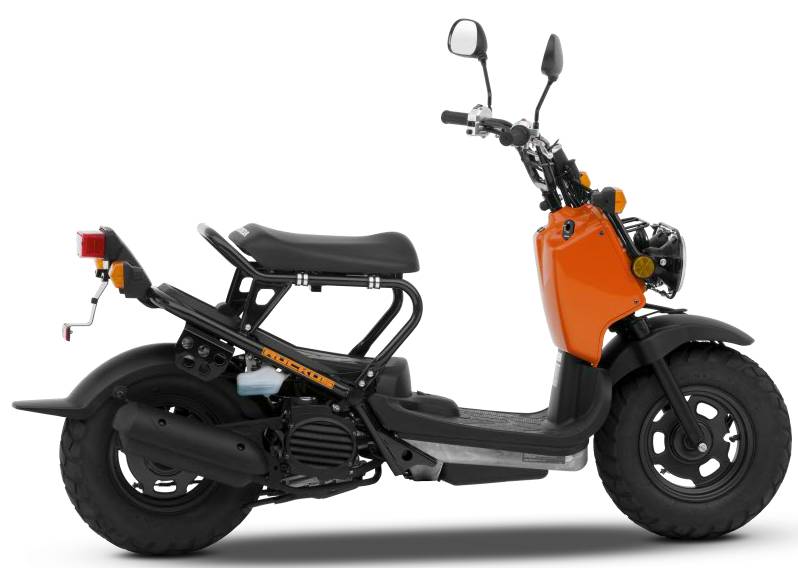

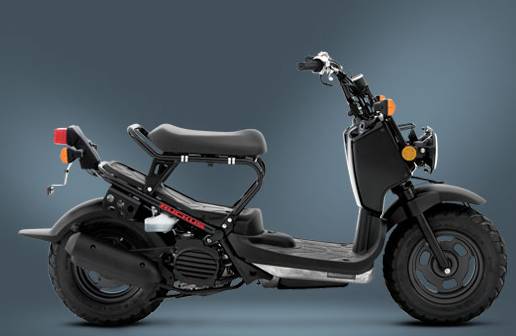

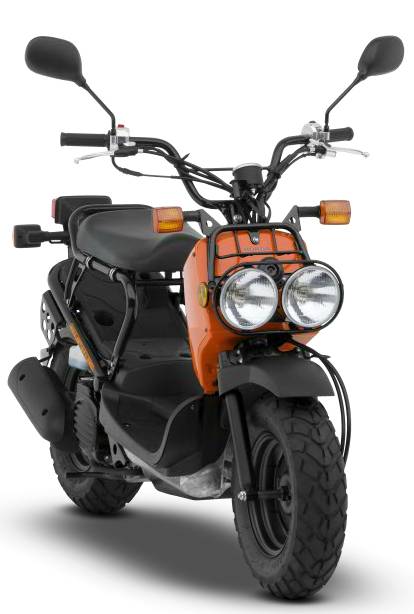

NPS50 Image Gallery
