Honda Lead SCV100 DIO Motorcycles

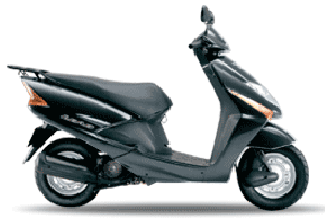

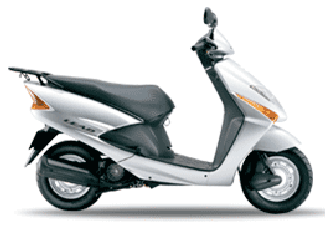

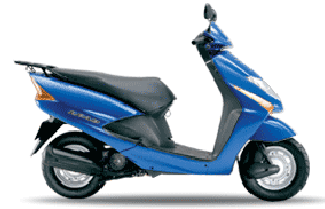

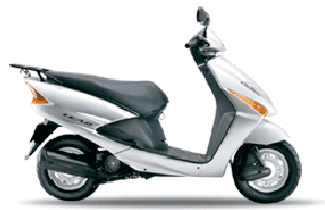

2004 SCV100 Lead

Engine

Engine Type Forced air-cooled 4-stroke SOHC single
Displacement 102.1cc
Bore and Stroke 50 x 52mm
Compression Ratio 9 :1
Fuel Delivery 18mm VK-type carburetor
Max. Power Output 5.2kW at 7500 rpm
Max. Torque 7.50Nm at 5500 rpm
Ignition Capacitor Discharge (CDI)
Starter Electric/Primary kick

DRIVETRAIN

Transmission Centrifugal; automatic
Final Drive V-Matic belt drive
Front Wheel ComCast steel
Rear Wheel ComCast steel

CHASSIS / SUSPENSION / BRAKES

Front Suspension Oil-damped leading-link, 80mm axle travel
Rear Suspension Single-damper unit swingarm, 71mm axle travel
Front Brakes 130mm leading/trailing drum
Rear Brakes 130mm leading/trailing drum
Front Tire 90-10 53J
Rear Tire 100-10 53J

DIMENSION

Length x Width x Height 1825 x 710 x 1110mm
Wheelbase 1235mm
Seat Height 765mm
Ground Clearance 150mm
Fuel Capacity 6 litres
Dry Weight 102kg

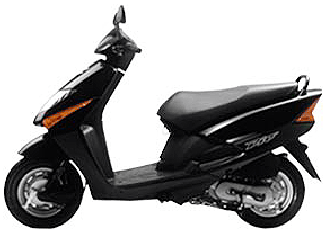

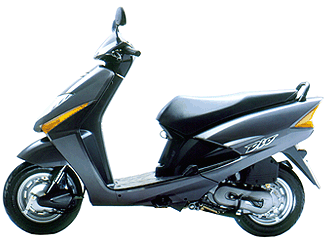

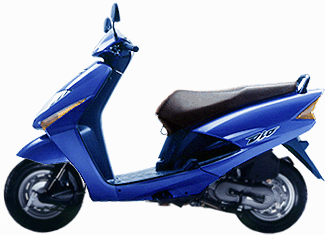

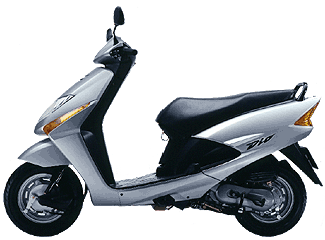

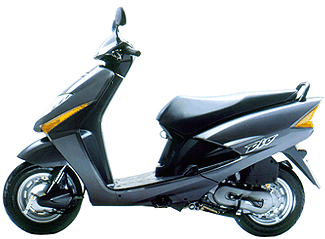

2005 DIO SCV100

Engine

Engine Type Forced air-cooled 4-stroke SOHC single
Displacement 102.1cc
Bore and Stroke 50 x 52mm
Compression Ratio 9 :1
Fuel Delivery 18mm VK-type carburetor
Max. Power Output 5.2kW at 7500 rpm
Max. Torque 7.50Nm at 5500 rpm
Ignition Capacitor Discharge (CDI)
Starter Electric/Primary kick

DRIVETRAIN

Transmission Centrifugal; automatic
Final Drive V-Matic belt drive
Front Wheel ComCast steel
Rear Wheel ComCast steel

CHASSIS / SUSPENSION / BRAKES

Front Suspension Oil-damped leading-link, 80mm axle travel
Rear Suspension Single-damper unit swingarm, 71mm axle travel
Front Brakes 130mm leading/trailing drum
Rear Brakes 130mm leading/trailing drum
Front Tire 90-10 53J
Rear Tire 100-10 53J

DIMENSION

Length x Width x Height 1825 x 710 x 1110mm
Wheelbase 1235mm
Seat Height 765mm
Ground Clearance 150mm
Fuel Capacity 6 litres
Dry Weight 102kg

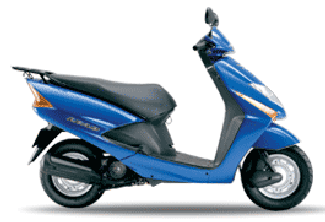

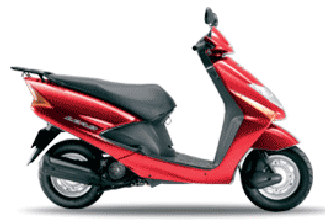

2007 SCV100 LEAD

Engine

Engine Type Forced air-cooled 4-stroke SOHC single
Displacement 102.1cc
Bore and Stroke 50 x 52mm
Compression Ratio 9 :1
Fuel Delivery 18mm VK-type carburetor
Max. Power Output 5.2kW at 7500 rpm
Max. Torque 7.50Nm at 5500 rpm
Ignition Capacitor Discharge (CDI)
Starter Electric/Primary kick

DRIVETRAIN

Transmission Centrifugal; automatic
Final Drive V-Matic belt drive
Front Wheel ComCast steel
Rear Wheel ComCast steel

CHASSIS / SUSPENSION / BRAKES

Front Suspension Oil-damped leading-link, 80mm axle travel
Rear Suspension Single-damper unit swingarm, 71mm axle travel
Front Brakes 130mm leading/trailing drum
Rear Brakes 130mm leading/trailing drum
Front Tire 90-10 53J
Rear Tire 100-10 53J

DIMENSION

Length x Width x Height 1825 x 710 x 1110mm
Wheelbase 1,235mm
Seat Height 765mm
Ground Clearance 150mm
Fuel Capacity 6 litres
Dry Weight 102kg
