Honda Silver Wing 600 (FJS600) Motorcycles


Honda FJS 600 2001 (Silver Wing)

2007 Silver Wing 600 ABS FJS600

Engine Type Liquid-cooled 4-stroke 8-valve DOHC parallel twin
Bore and Stroke 72 x 71.5mm
Displacement 582cc
Compression Ratio 8.3:1
Carburation Electronic fuel injection
Max. Power Output 50 bhp at 7,000 rpm
Max. Torque 54Nm/5,500 rpm
Ignition Computer-controlled digital transistorised with electronic advance
Starter Electric
Gearbox V-Matic
Final Drive V-Belt
Length x Width x Height 2,275 x 770 x 1,430mm
Wheelbase 1,595mm
Seat Height 740mm
Ground Clearance 140mm
Fuel Capacity 16 litres (including 3.5 litre reserve)
Dry Weight 224kg
Wheels Front 14M/C x MT2.75 4-spoke cast aluminium
Wheels Rear 13M/C x MT4.50 4-spoke cast aluminium
Tires Front 120/80-14M/C 58S
ires Rear 150/70-13M/C 64S
Suspension Front 41mm telescopic fork, 120mm axle travel
Suspension Rear Dual conventional dampers with 5-step spring preload adjustment, 120mm axle travel
Brakes Front 256 x 5mm single disc with Combined 3-piston caliper and sintered metal pads
Brakes Rear 240 x 6mm dual-piston caliper disc with sintered metal pads

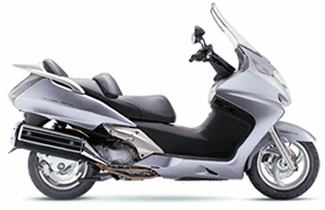

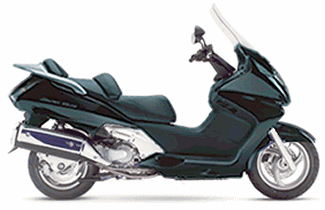

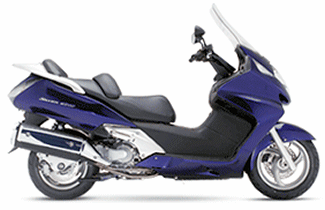

(FJS600) Image Gallery
