Honda CRF50F Motorcycles

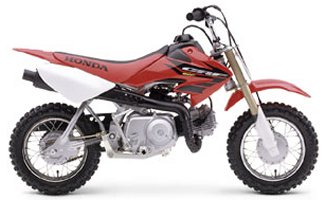

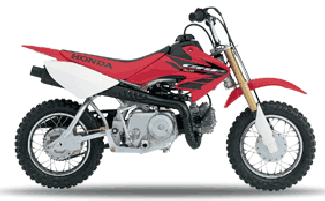

2004 CRF50F

Engine

Engine 49cc air-cooled single-cylinder four-stroke
Bore & Stroke 39.0mm x 41.4mm
Compression ratio 10.0:1
Spark plug CR6HSA
Plug gap .028
Valve Train SOHC; two-valve
Fuel Delivery 13.0mm piston-valve
Ignition CDI

DRIVETRAIN

Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T

CHASSIS / SUSPENSION / BRAKES

Tire size 3.50-10-2 PR (front and rear)
Front suspension Inverted telescopic fork; 89mm (3.5″) travel
Rear suspension Single-shock; 71mm (2.8″) travel
Front Brake Drum
Rear Brake Drum
Front Tire 2.50-10
Rear Tire 2.50-10

DIMENSION

Rake 25.0 degrees
Trail 32.0mm (1.3″)
Wheelbase 914mm (36.0″)
Seat Height 549mm (21.6″)
Ground Clearance 147mm (5.8″)
Dry Weight 47.3 kg (104.0 lb)
Fuel Capacity 3 litres (0.8 US gal.), including 0.75 litre (0.2 US gal.) reserve

OTHER

Colors Red
Warranty 6 months

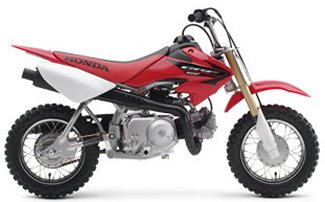

2005 CRF50F

Engine

Engine 49cc air-cooled single-cylinder four-stroke
Bore & Stroke 39.0mm x 41.4mm
Compression ratio 10.0:1
Spark plug CR6HSA
Plug gap .028
Valve Train SOHC; two-valve
Fuel Delivery 13.0mm piston-valve
Ignition CD

DRIVETRAIN

Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T

CHASSIS / SUSPENSION / BRAKES

Tire size 3.50-10-2 PR (front and rear)
Front suspension Inverted telescopic fork; 89mm (3.5″) travel
Rear suspension Single-shock; 71mm (2.8″) travel
Front Brake Drum
Rear Brake Drum
Front Tire 2.50-10
Rear Tire 2.50-10

DIMENSION

Rake 25.0 degrees
Trail 32.0mm (1.3″)
Wheelbase 914mm (36.0″)
Seat Height 549mm (21.6″)
Ground Clearance 147mm (5.8″)
Dry Weight 47.3 kg (104.0 lb)
Fuel Capacity 3 litres (0.8 US gal.), including 0.75 litre (0.2 US gal.) reserve

OTHER

Colors Red
Warranty 6 months

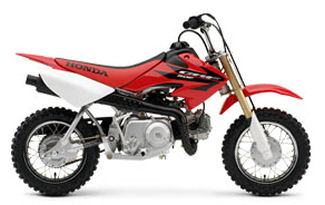

2006 CRF50F

Engine

Engine 49cc air-cooled single-cylinder four-stroke
Bore & Stroke 39.0mm x 41.4mm
Compression ratio 10.0:1
Spark plug CR6HSA
Plug gap .028
Valve Train SOHC; two-valve
Fuel Delivery 13.0mm piston-valve
Ignition CD

DRIVETRAIN

Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T

CHASSIS / SUSPENSION / BRAKES

Front suspension Inverted telescopic fork; 89mm (3.5″) travel
Rear suspension Single-shock; 71mm (2.8″) travel
Front Brake Drum
Rear Brake Drum
Front Tire 2.50-10
Rear Tire 2.50-10

DIMENSION

Rake 25.0 degrees
Trail 32.0mm (1.3 inches)
Wheelbase 36.0 inches
Seat Height 21.6 inches
Ground Clearance 5.8 inches
Dry Weight 104.0 pounds
Fuel Capacity 0.8 gallons, including 0.2-gallon reserve

OTHER

Colors Red
Model ID CRF50F

2007 CRF50F

Engine

Engine 49cc air-cooled single-cylinder four-stroke
Bore & Stroke 39.0mm x 41.4mm
Compression ratio 10.0:1
Spark plug CR6HSA
Plug gap .028
Valve Train SOHC; two-valve
Fuel Delivery 13.0mm piston-valve
Ignition CD

DRIVETRAIN

Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T

CHASSIS / SUSPENSION / BRAKES

Front suspension Inverted telescopic fork; 89mm (3.5″) travel
Rear suspension Single-shock; 2.8-inch travel
Front Brake Drum
Rear Brake Drum
Front Tire 2.50-10
Rear Tire 2.50-10

DIMENSION

Rake 25.0 degrees
Trail 32.0mm (1.3 inches)
Wheelbase 36.0 inches
Seat Height 21.6 inches
Ground Clearance 5.8 inches
Dry Weight 104.0 pounds
Fuel Capacity 0.8 gallons, including 0.2-gallon reserve

OTHER

Colors Red
Model ID CRF50F

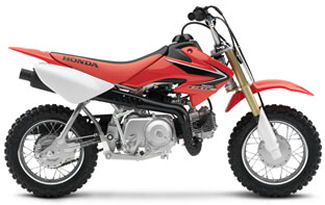

2008 CRF50F

OVERVIEW

  • There are first bikes, and then there’s the CRF50F. This super-popular machine has launched countless careers, proof positive there’s no better place for a young rider to start dirt-riding than on a Honda CRF50F. Rugged, reliable and beginner-friendly, with smooth four-stroke power, an automatic clutch and low seat height, this entry-level wonder is indeed the ultimate off-road starter kit.



Engine

Engine 49cc air-cooled single-cylinder four-stroke
Bore & Stroke 39.0mm x 41.4mm
Compression ratio 10.0:1
Spark plug CR6HSA
Plug gap .028
Valve Train SOHC; two-valve
Fuel Delivery 13.0mm piston-valve
Ignition CD

DRIVETRAIN

Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T

CHASSIS / SUSPENSION / BRAKES

Front suspension Inverted telescopic fork; 3.5-inch travel
Rear suspension Single-shock; 2.8-inch travel
Front Brake Drum
Rear Brake Drum
Front Tire 2.50-10
Rear Tire 2.50-10

DIMENSION

Rake 25.0 degrees
Trail 32.0mm (1.3 inches)
Wheelbase 36.0 inches
Seat Height 21.6 inches
Ground Clearance 5.8 inches
Dry Weight TBD
Fuel Capacity 0.8 gallons, including 0.2-gallon reserve

OTHER

  • Emissions Meets current CARB and EPA standards.
  • Available Colors Red
  • Price: $1349
  • Model ID CRF50F
  • 6 months Coverage of defects in materials and workmanship

2009 CRF50F

Engine

Engine 49cc
Engine Detail air-cooled single-cylinder four-stroke
Bore & Stroke 39.0mm x 41.4mm
Compression ratio 10.0:1
Spark plug CR6HSA
Plug gap .028
Valve Train SOHC; two-valve
Fuel Delivery 13.0mm piston-valve
Ignition CD

DRIVETRAIN

Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T

CHASSIS / SUSPENSION / BRAKES

Front suspension Inverted telescopic fork; 89mm (3.5″) travel
Rear suspension Single-shock; 2.8-inch travel
Front Brake Drum
Rear Brake Drum
Front Tire 2.50-10
Rear Tire 2.50-10

DIMENSION

Rake 25.0 degrees
Trail 32.0mm (1.3 inches)
Wheelbase 36.0 inches
Seat Height 21.6 inches
Ground Clearance N/A
Curb Weight 110 lbs.
Fuel Capacity 0.7 gal.

OTHER

Colors Red
Warranty 6 Months
Price $1349

2011 CRF50F

Engine

Engine 49cc air-cooled single-cylinder four-stroke
Bore & Stroke 39.0mm x 41.4mm
Compression ratio 10.0:1
Spark plug CR6HSA
Plug gap .028
Valve Train SOHC; two-valve
Fuel Delivery 13.0mm piston-valve
Ignition CD

DRIVETRAIN

Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T

CHASSIS / SUSPENSION / BRAKES

Front suspension Inverted telescopic fork; 89mm (3.5″) travel
Rear suspension Single-shock; 2.8-inch travel
Front Brake Drum
Rear Brake Drum
Front Tire 2.50-10
Rear Tire 2.50-10

DIMENSION

Rake 25.0 degrees
Trail 32.0mm (1.3 inches)
Wheelbase 36.0 inches
Seat Height 21.6 inches
Ground Clearance 5.8 inches
Curb Weight 110 pounds
Fuel Capacity 0.7 gallons, including 0.2-gallon reserve

OTHER

Colors Red
Model Id CRF50F
Emissions
  • Meets current CARB and EPA standards.
  • Note: Recommended for riders 13 years of age and older. Honda recommends that riders take a training course and read their owner’s manual thoroughly.

FACTORY WARRANTY INFORMATION

Duration 6 months
Description Transferable limited warranty; extended warranty available with a Honda Protection Plan.

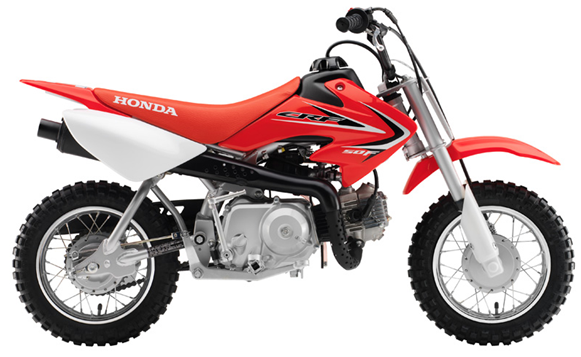

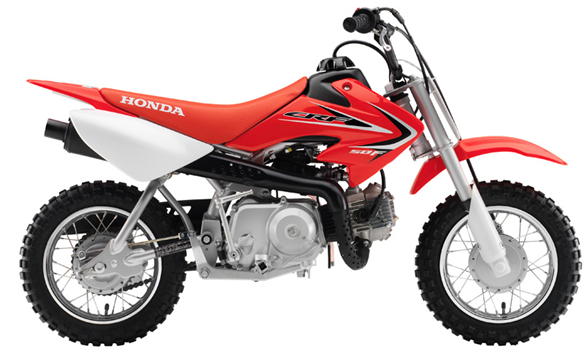

2012 CRF50F

Engine

Engine Air-cooled 4-stroke OHC single
Engine Displacement 49.4cc
Bore & Stroke 39.0mm x 41.4mm
Compression ratio 10.0:1
Spark plug CR6HSA
Plug gap .028
Valve Train SOHC; two-valve
Fuel Delivery 13.0mm piston-valve
Ignition Capacitor Discharge (CDI)

DRIVETRAIN

Transmission Three-speed with automatic clutch
Final Drive #420 chain; 14T/37T
Front Wheels Wire spoke
Rear Wheels Wire spoke

CHASSIS / SUSPENSION / BRAKES

Front suspension 21.7mm inverted telescopic fork, 96mm axle travel
Rear suspension Monoshock with cantilever-type swingarm, 70mm axle travel
Front Brake Leading/trailing drum
Rear Brake Leading/trailing drum
Front Tire 2.50 10 (33J)
Rear Tire 2.50 10 (33J)

DIMENSION

Rake 25.0 degrees
Trail 32.0mm (1.3 inches)
Wheelbase 911mm (35.9 inches)
Overall Length 1302mm (51.25 inches)
Overall Width 581mm (22.9 inches)
Overall Height 774mm (30.5 inches)
Seat Height 550mm (21.65 inches)
Dry Weight 47 kg (103.4 lb)
Ground Clearance 5.8 inches
Curb Weight 50 kg (110 lb)
Fuel Capacity 3 Litres (.79 GalUS) (including 0.8-Litre reserve)

OTHER

Colors Red
Model Id CRF50F
Emissions
  • Meets current CARB and EPA standards.
  • Note: Recommended for riders 13 years of age and older. Honda recommends that riders take a training course and read their owner’s manual thoroughly.

FACTORY WARRANTY INFORMATION

Duration 6 months
Description Transferable limited warranty; extended warranty available with a Honda Protection Plan.

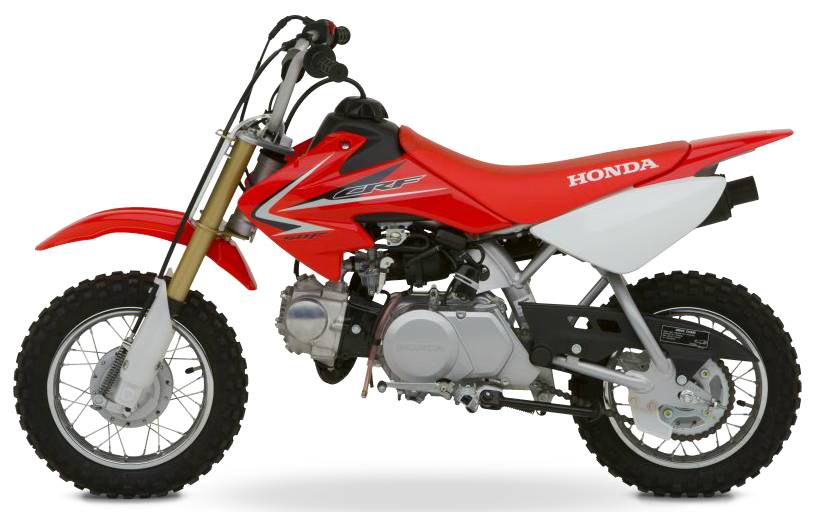

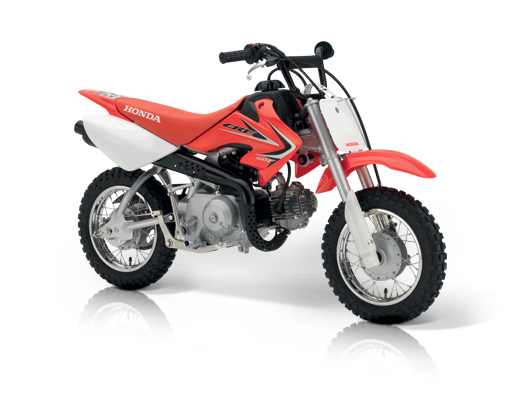

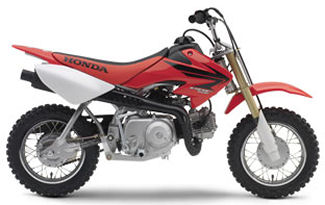

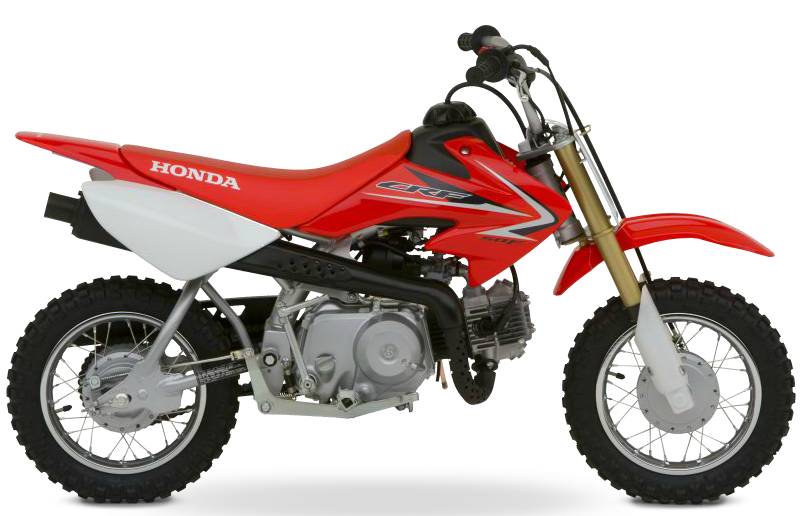

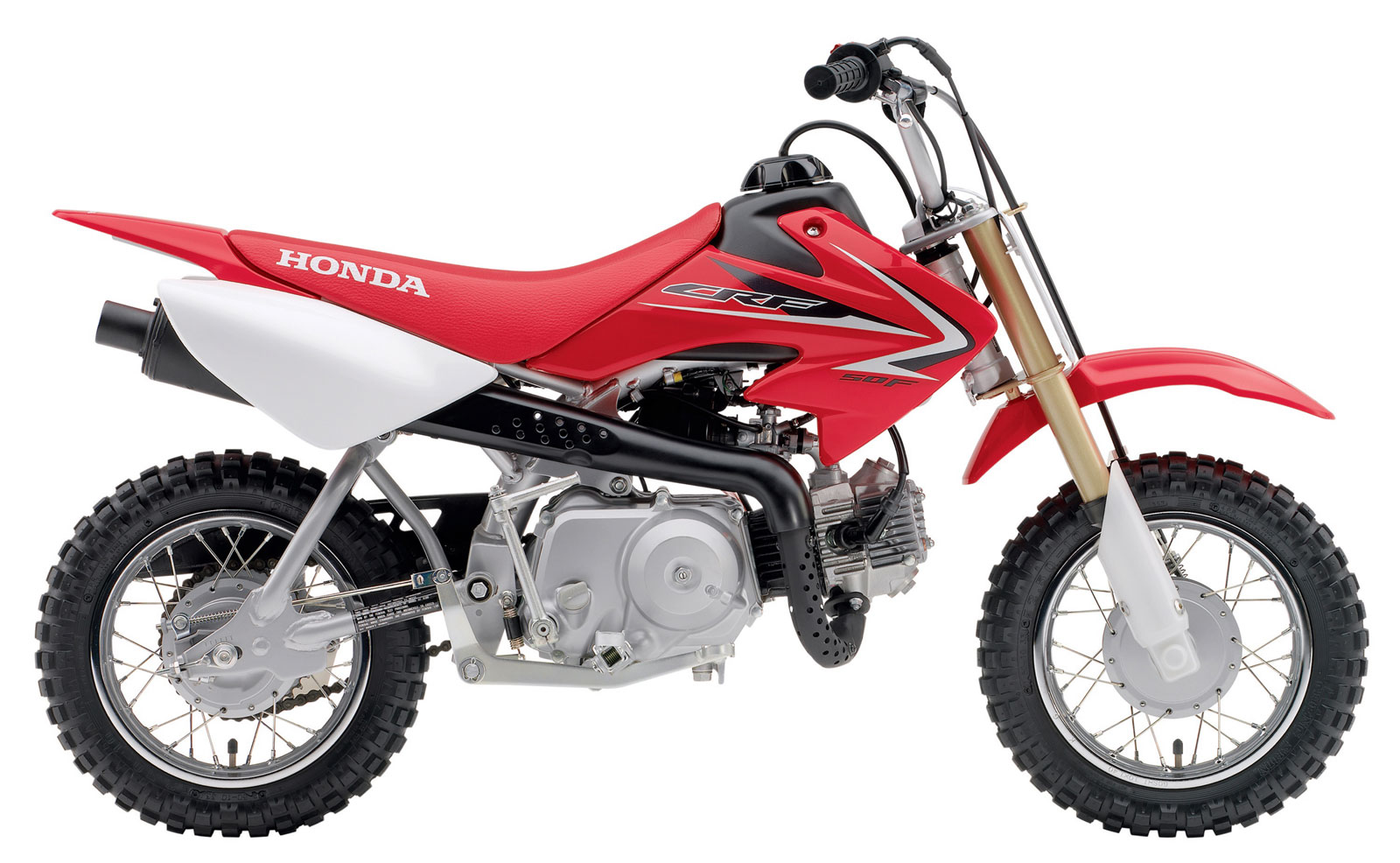

CRF50F Image Gallery
