Honda CRF100F Motorcycles


2004 CRF100F

Engine

Engine Type 99cc air-cooled single-cylinder four-stroke
Compression Ratio 8.4:1
Bore and Stroke 53.0mm x 45.0mm
Valve Train OHC; two-valve
Fuel Delivery 22.0mm piston-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #428 chain; 14T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension Pro-Link Showa single shock; 5.8-inch travel
Front Brakes Drum
Front Brakes Drum
Front Tire 2.50-19
Rear Tire 3.00-16

DIMENSION

Rake 28.50 degrees
Trail 99.0mm (3.9 inches)
Wheelbase 49.2 inches
Seat Height 30.9 inches
Ground Clearance 10.0 inches
Dry Weight 165.0 pounds
Fuel Capacity 1.5 gallons, including 0.3-gallon reserve

OTHER

Colors Red
Warranty 6 months

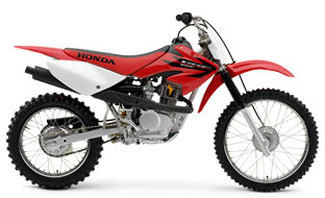

2006 CRF100F

Engine

Engine Type 99cc air-cooled single-cylinder four-stroke
Compression Ratio 9.4:1
Bore and Stroke 53.0mm x 45.0mm
Valve Train SOHC; two-valve
Fuel Delivery 22.0mm piston-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #428 chain; 14T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension Pro-Link Showa single shock; 5.8-inch travel
Front Brakes Drum
Front Brakes Drum
Front Tire 2.50-19
Rear Tire 3.00-16

DIMENSION

Rake 28.50 degrees
Trail 99.0mm (3.9 inches)
Wheelbase 49.2 inches
Seat Height 30.9 inches
Ground Clearance 10.0 inches
Dry Weight 165.0 pounds
Fuel Capacity 1.5 gallons, including 0.3-gallon reserve

OTHER

Colors Red
Model ID CRF100F

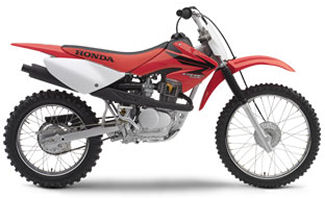

2007 CRF100F

OVERVIEW

  • Meet one of the most versatile and popular off-road machines Honda has ever made. With its bulletproof four-stroke engine, smooth five-speed transmission and easy-to-use power, the CRF100F is big enough for most adults to play around on, yet boasts a seat low enough for younger riders, too. Which leaves only one question: Who gets to ride first?

Engine

Engine Type 99cc air-cooled single-cylinder four-stroke
Compression Ratio 9.4:1
Bore and Stroke 53.0mm x 45.0mm
Valve Train SOHC; two-valve
Fuel Delivery 22.0mm piston-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #428 chain; 14T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension Pro-Link Showa single shock; 5.8-inch travel
Front Brakes Drum
Front Brakes Drum
Front Tire 2.50-19
Rear Tire 3.00-16

DIMENSION

Rake 28.50 degrees
Trail 99.0mm (3.9 inches)
Wheelbase 49.2 inches
Seat Height 30.9 inches
Ground Clearance 10.0 inches
Dry Weight 165.0 pounds
Fuel Capacity 1.5 gallons, including 0.3-gallon reserve

OTHER

Colors Red
Model ID CRF100F

2008 CRF100F

OVERVIEW

  • The only thing greater than the CRF100F’s versatility is its popularity as one of the most beloved off-road bikes Honda has ever created. Lightweight, easy to handle and stone-reliable, the CRF100F boasts a bulletproof four-stroke engine, smooth five-speed transmission, and just enough size for adults to have fun on — and a seat height just low enough that younger riders can too. Quite simply, it’s probably one of the greatest off-road teaching tools ever invented.



Engine

Engine Type 99cc air-cooled single-cylinder four-stroke
Compression Ratio 9.4:1
Bore and Stroke 53.0mm x 45.0mm
Valve Train SOHC; two-valve
Fuel Delivery 22.0mm piston-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #428 chain; 14T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension Pro-Link Showa single shock; 5.8-inch travel
Front Brakes Drum
Front Brakes Drum
Front Tire 2.50-19
Rear Tire 3.00-16

DIMENSION

Rake 28.50 degrees
Trail 99.0mm (3.9 inches)
Wheelbase 49.2 inches
Seat Height 30.9 inches
Ground Clearance 10.0 inches
Dry Weight 165.0 pounds
Fuel Capacity 1.3 gallons, including 0.3-gallon reserve

OTHER

Colors Red
Model ID CRF100F
Emissions Meets current CARB and EPA standards.
Warranty 6 months Coverage of defects in materials and workmanship

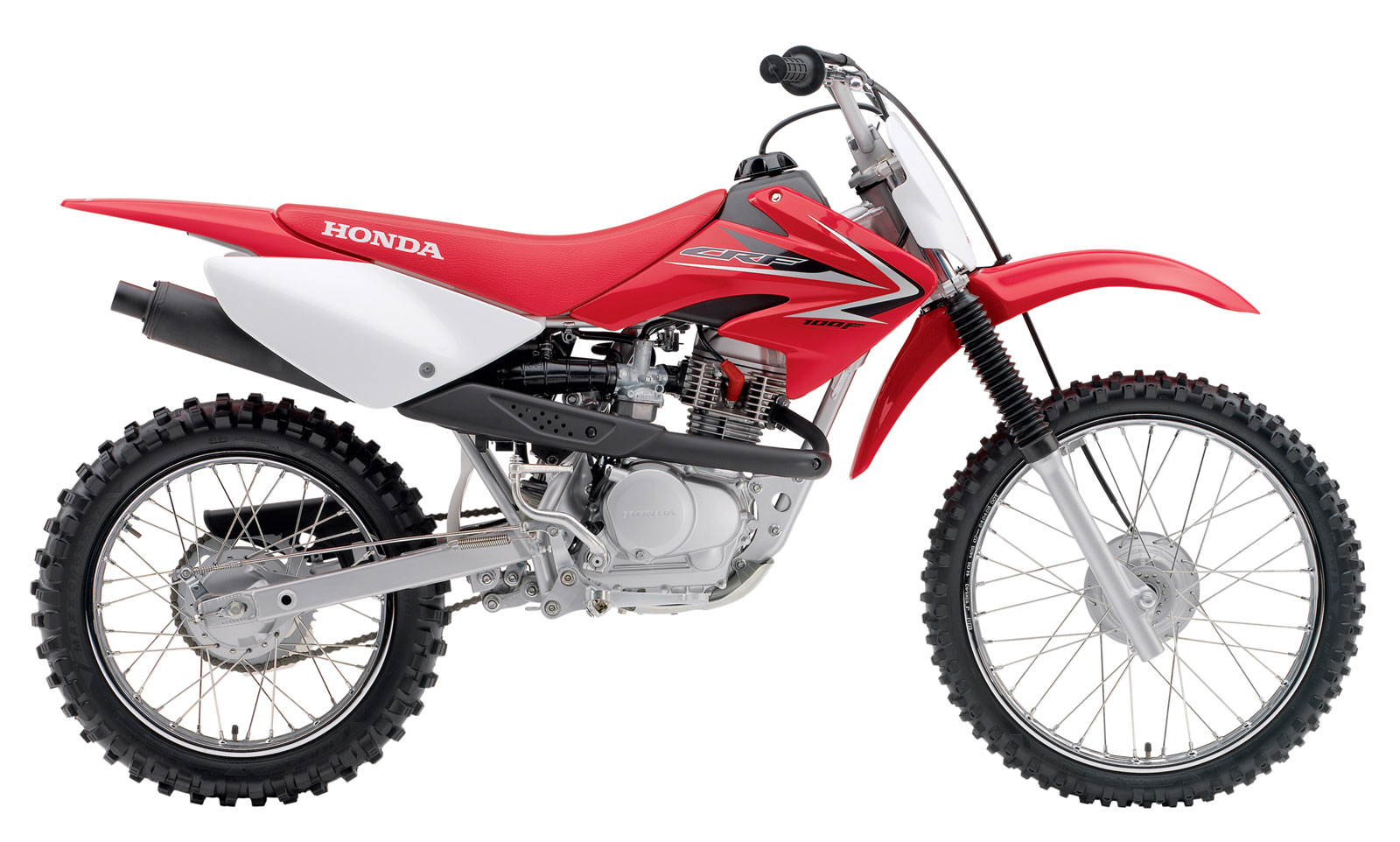

2009 CRF100F

Engine

Engine Type 99cc
Compression Ratio 9.4:1
Bore and Stroke 53.0mm x 45.0mm
Engine Detail air-cooled single-cylinder four-stroke
Fuel System 22mm piston-valve carburator
Ignition CD

DRIVETRAIN

Transmission Five-speed
Final Drive #428 chain; 14T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension Pro-Link Showa single shock; 5.8-inch travel
Front Brakes Drum
Front Brakes Drum
Front Tire 2.50-19
Rear Tire 3.00-16

DIMENSION

Wheelbase 49.2 in.
Seat Height 30.9 inches
Dry Weight 174 lbs.
Fuel Capacity 1.3 gal.

OTHER

Colors Red
Price $2449
Warranty 6 Months

2011 CRF100F

Engine

Engine Type Air-cooled single-cylinder four-stroke
Displacement 99 cc
Compression Ratio 9.4:1
Bore and Stroke 53 mm x 45 mm
Valve Train SOHC, 2 valves
Fuel Delivery
  • Canada: Single 20 mm piston-valve carb
  • USA: 22mm piston-valve carburator
Ignition CD

DRIVETRAIN

Transmission Five-speed with manual clutch
Final Drive #428 chain, 14T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 27.0mm leading-axle Showa fork; 5.2-inch travel
Rear Suspension Pro-Link Showa single shock; 5.8-inch travel
Front Brakes Drum
Front Brakes Drum
Front Tire
  • Canada: 70/100 – 19
  • USA: 2.50-19
Rear Tire
  • Canada: 90/100 – 16
  • USA: 3.00-16

DIMENSION

Wheelbase 1,250 mm (49.2 in.)
Seat Height 785 mm (30.9 in.)
Dry Weight 77 kg (170 lb) including required fluids and full tank of gas – ready to ride
Fuel Capacity 5 litres (1.3 GalUS), including 0.7-litre (0.3 Gal) reserve

OTHER

Colors Extreme Red
Model Id CRF100F
Warranty 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
Emissions Meets current CARB and EPA standards.
MSRP $2,999

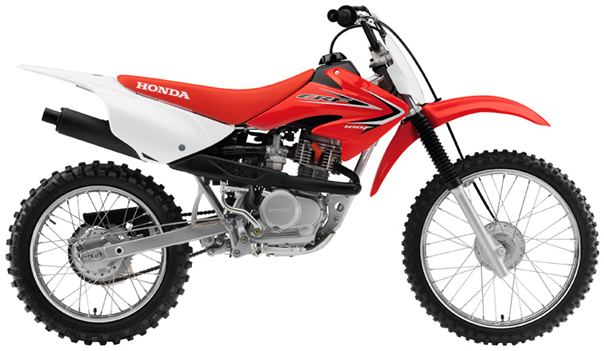

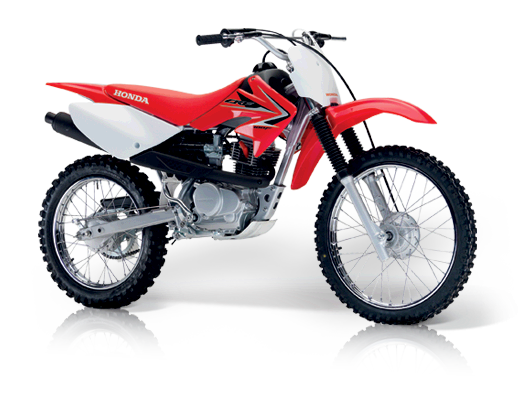

2012 CRF100F

Engine

Engine Type Air-cooled single-cylinder four-stroke
Displacement 99.2cc
Compression Ratio 9.4:1
Bore and Stroke 53 x 45mm
Valve Train SOHC; two-valve
Fuel Delivery 22mm piston-valve carburator
Ignition Capacitor Discharge (CDI)
Starter Primary kick

DRIVETRAIN

Transmission 5-speed
Final Drive 428 roller chain
Front sprocket 14T
Rear sprocket 50T
Front Wheels Steel rim/wire spoke
Rear Wheels Steel rim/wire spoke

CHASSIS / SUSPENSION / BRAKES

Front Suspension 27mm leading-axle fork, 150mm (5.2 inch) axle travel
Rear Suspension Pro-Link, 148mm (5.8 inch) axle travel
Front Brakes Leading/trailing drum
Front Brakes Leading/trailing drum
Front Tire
  • UK: 70/100 19M/C 42M
  • N.America: 2.50-19
Rear Tire
  • UK: 90/100 16M/C 51M
  • N. America: 3.00-16

DIMENSION

Rake 28.50 degrees
Trail 99.0mm (3.9 inches)
Overall Length 1853mm (73 inches)
Overall Width 786mm (30.9 inches)
Overall Height 1046mm (41.2 inches)
Wheelbase 1250 mm (49.2 inches)
Seat Height 775mm (30.5 inches)
Dry Weight 75 kg (165 lb)
Fuel Capacity 5.5 Litres (1.45 GalUS) (including 1.1-Litre reserve)

OTHER

Colors Red
Model Id CRF100F
Warranty 6 months
Emissions Meets current CARB and EPA standards.
MSRP $2,999

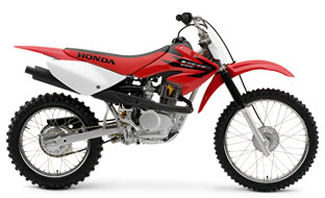

CRF100F Image Gallery
