Honda CBR125R Motorcycles

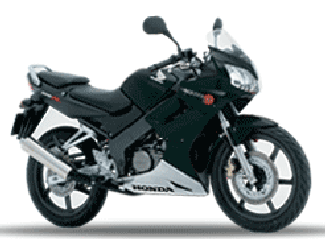

2004 CBR125R

Engine

Engine Type Liquid-cooled 4-stroke 2-valve SOHC single
Displacement 124.7cc
Bore and Stroke 58 x 47.2mm
Compression Ratio 11 :1
Fuel Delivery VK-type carburetor
Ignition Capacitor Discharge (CDI)
Max. Power Output 13 bhp at 10,000 rpm
Max. Torque 10.1Nm at 8000 rpm
Starter Electric

DRIVETRAIN

Transmission 6 speed
Final Drive O-ring sealed chain
Front Wheel U-section 6-spoke cast aluminum
Rear Wheel U-section 6-spoke cast aluminum

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm telescopic fork, 109mm axle travel
Rear Suspension Monoshock damper, 120mm axle travel
Front Brakes 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads
Rear Brakes 220 x 4mm hydraulic disc with single-piston caliper and sintered metal pads
Front Tire 80/90 17M/C 44P
Rear Tire 100/80 17M/C 52P

DIMENSION

Length x Width x Height 1920 x 675 x 1070mm
Seat Height 776mm
Wheelbase 1294mm
Dry Weight 125kg
Fuel Capacity 10 litres
Ground Clearance 172mm

OTHER

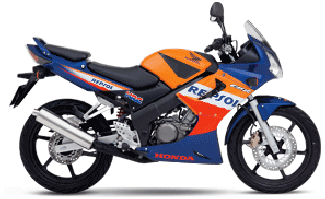

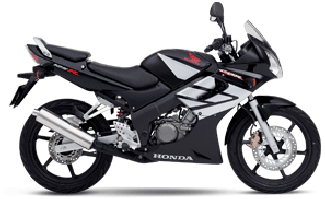

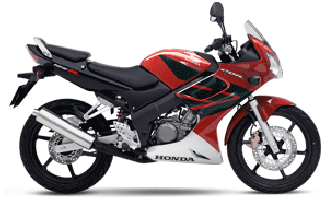

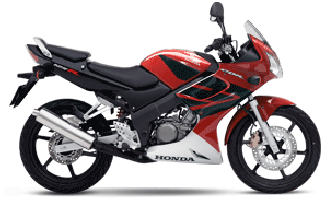

2007 CBR125R

Engine

Engine Type Liquid-cooled 4-stroke 2-valve SOHC single
Displacement 124.7cc
Bore and Stroke 58 x 47.2mm
Compression Ratio 11 :1
Carburation PGM-FI electronic fuel injection
Ignition Fully transistorised with electronic advance
Max. Power Output 10kW/10,000min-1 (95/1/EC)
Max. Torque 10.6Nm/8,250min-1 (95/1/EC)
Starter Electric

DRIVETRAIN

Transmission 6-speed
Final Drive O-ring sealed chain
Front Wheel U-section 6-spoke cast aluminium
Rear Wheel U-section 6-spoke cast aluminum

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm telescopic fork, 109mm axle travel
Rear Suspension Monoshock damper, 120mm axle travel
Front Brakes 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads
Rear Brakes 220 x 4mm hydraulic disc with single-piston caliper and sintered metal pads
Front Tire 80/90 17M/C 44P
Rear Tire 100/80 17M/C 52P

DIMENSION

Length x Width x Height 1920 x 675 x 1070mm
Seat Height 776mm
Wheelbase 1294mm
Dry Weight 125kg
Fuel Capacity 10 litres
Ground Clearance 172mm

OTHER

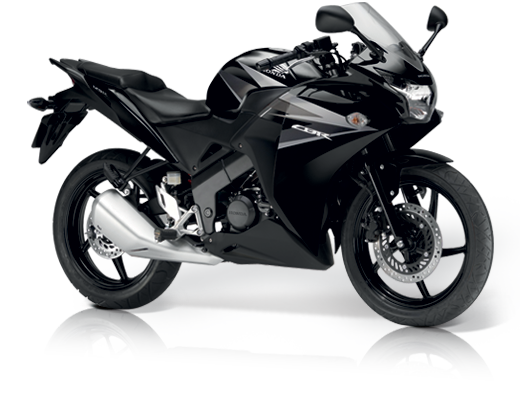

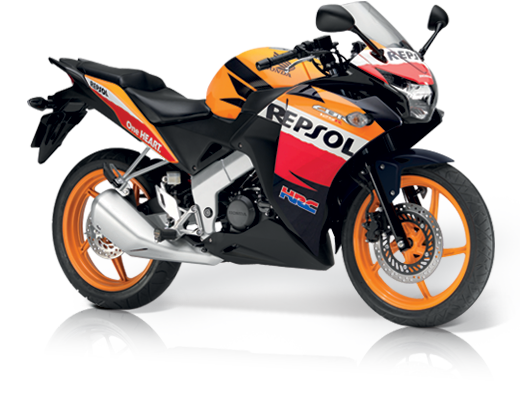

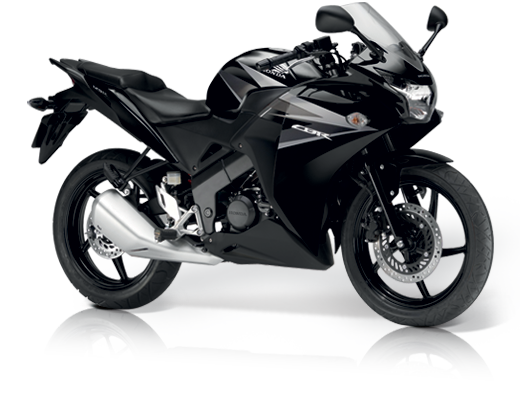

2011 CBR125R



Engine

Engine Type Liquid-cooled 4-stroke 2-valve SOHC single
Displacement 124.7cc
Bore and Stroke 58 x 47.2mm
Compression Ratio 11 :1
Valve Train Chain-driven SOHC; 2 valves per cylinder
Fuel Delivery PGM-FI fuel injection

DRIVETRAIN

Transmission 6-speed
Final Drive O-ring sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31 mm telescopic fork; 120 mm (4.7 in.) travel
Rear Suspension Single shock; 126 mm (5 in.) travel
Front Brakes 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads
 Brakes Front 276 mm disc with dual-piston caliper; rear 220 mm disc with single-piston caliper
Front Tire 100/80 – 17 front; 130/70 – 17 rear

DIMENSION

Seat Height 793 mm (31.2 in.)
Wheelbase 1,313 mm (51.7 in.)
Dry Weight 136.9 kg (302 lb) including required fluids and full tank of gas – ready to ride
Fuel Capacity 13 litres
Ground Clearance N/A

OTHER

Colour
  • Asteroid Black Metallic
  • Terra Silver Metallic
Warranty 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
MSRP $3,499

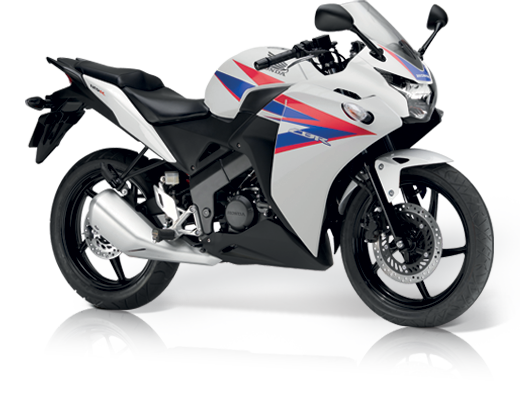

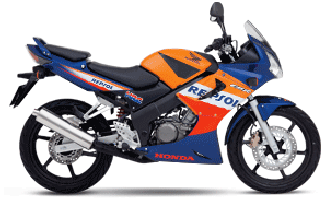

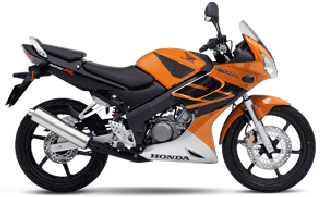

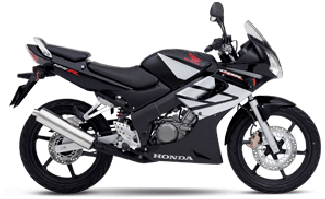

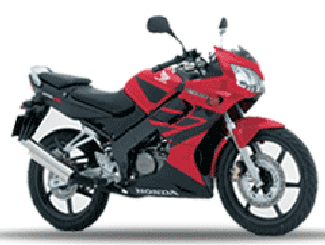

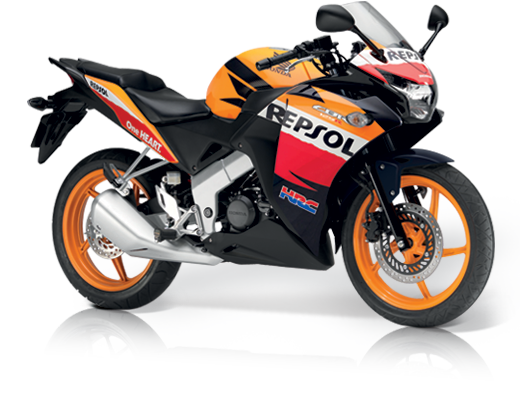

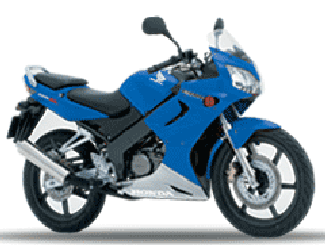

CBR125R Image Gallery
