Honda CBF250 Motorcycles


2004 CBF250

Engine

Engine Type Single Cylinder – Air-cooled 4-stroke 4-valve DOHC
Displacement 249 cc
Bore and Stroke 73 x 59.5mm
Compression Ratio 9.3 :1
Fuel Delivery 32mm VE-L type carburetor
Ignition Digital transistorised with electronic advance
Max. Power Output 20 bhp at 8000 rpm
Max. Torque 22Nm at 6000 rpm

DRIVETRAIN

Transmission 6-speed
Final Drive O-ring-sealed chain
Front Wheel 17M/C x MT2.15
Rear Wheel 17M/C x MT3.00

CHASSIS / SUSPENSION / BRAKES

Front Suspension 7mm telescopic fork, 130mm axle travel
Rear Suspension Monoshock, 100mm axle travel
Front Brakes 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads
Rear Brakes 130mm leading/trailing drum
Front Tire 100/80 17M/C 52S
Rear Tire 130/70 17M/C 62S

DIMENSION

Seat Height 780mm
Wheelbase 1370mm
Curb Weight 16 litres (including 2.5-litre reserve)
Fuel Capacity 16 litres (including 2.5-litre reserve)
Dry Weight 138.5kg
Length x Width x Height 2030 x 745 x 1050mm

OTHER

2007 CBF250

Engine

Engine Type Single Cylinder – Air-cooled 4-stroke 4-valve DOHC
Displacement 249 cc
Bore and Stroke 73 x 59.5mm
Compression Ratio 9.3 :1
Fuel Delivery 32mm VE-L type carburetor
Ignition Digital transistorised with electronic advance
Max. Power Output 20 bhp at 8000 rpm
Max. Torque 22Nm at 6000 rpm

DRIVETRAIN

Transmission 6-speed
Final Drive O-ring-sealed chain
Front Wheel 17M/C x MT2.15
Rear Wheel 17M/C x MT3.00

CHASSIS / SUSPENSION / BRAKES

Front Suspension 7mm telescopic fork, 130mm axle trave
Rear Suspension Monoshock, 100mm axle travel
Front Brakes 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads
Rear Brakes 130mm leading/trailing drum
Front Tire 100/80 17M/C 52S
Rear Tire 130/70 17M/C 62S

DIMENSION

Seat Height 780mm
Wheelbase 1,370mm
Ground Clearance 180mm
Fuel Capacity 16 litres (including 2.5-litre reserve)
Dry Weight 138.5kg
Length x Width x Height 2030 x 745 x 1050mm

OTHER

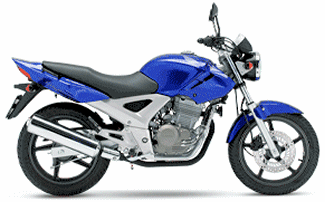

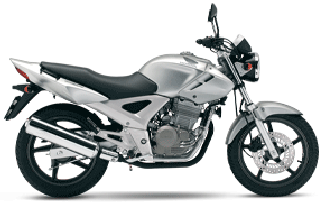

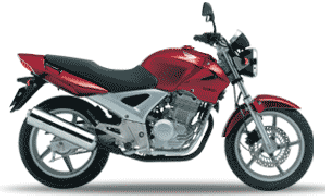

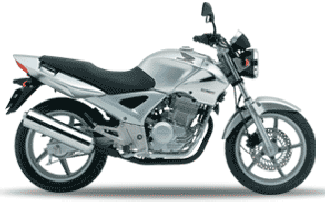

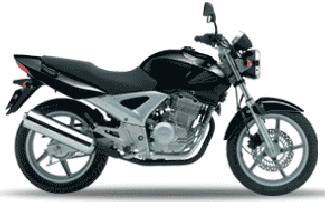

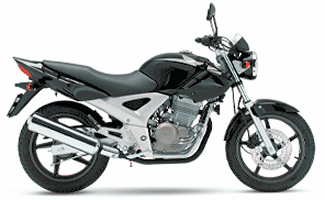

CBF250 Image Gallery
