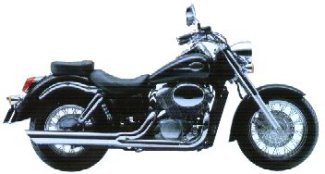

Honda Shadow ACE 750 (VT750C) Motorcycles


2020 Honda Shadow Phantom RHP Black

1998 VT750C’98 Shadow American Classic Edition (ACE) 750

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • It came in one color: Black
    • This model does not have the upper fork covers like the Deluxe
    • The serial number began JH2RC440*WM000001.

2001 VT750C’01 SHADOW ACE 750

Engine

Engine Type Liquid cooled, 52° V-twin, single pin crank
Displacement 745cc
Bore and Stoke 79mm x 76mm
Compression Ratio 9:1
Valve Train SOHC, 3 valve per cylinder
Fuel Delivery Twin 36mm, diaphragm-type CV

DRIVETRAIN

Transmission Wide-Ratio, 5-speed
Final Drive “O” ring chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork, 140mm travel
Rear Suspension Dual shocks with 5-way spring preload adjustment, 90mm travel
Front Tire 120/90H-17
Rear Tire 170/80H-15
Front Brakes Single 296mm disc with twin piston caliper
Rear Brakes Mechanical drum

DIMENSION

Seat Height 700mm (27.5″)
Wheelbase 1618mm (63.7″)
Fuel Capacity 14.0 liters
Dry weight 229 kg (505 lb)

OTHER

Color Black

2002 VT750C

Engine

Engine Type 745cc liquid-cooled, 52-degree, V-twin, single pin crank
Bore and Stoke 79mm x 76mm
Compression Ratio 9.0: 1
Valve Train SOHC, 3 valve per cylinder
Fuel Delivery Fuel Delivery: Two 34mm diaphragm-type CV

DRIVETRAIN

Transmission Wide-Ratio, 5-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork, 140mm travel
Rear Suspension Dual shocks with 5-way spring preload adjustment, 90mm travel
Front Tire 120/90H-17
Rear Tire 170/80H-15
Front Brakes Single 296mm disc with twin piston caliper
Rear Brakes drum

DIMENSION

Seat Height 700mm (27.6 in.)
Wheelbase 1615mm (63.7 in.)
Fuel Capacity 14 L (3.1 Imp.gal)
Dry weight 229 kg (505 lbs.)

OTHER

2003 VT750C

Engine

Engine Type 745cc liquid-cooled, 52-degree, V-twin, single pin crank
Bore and Stoke 79mm x 76mm
Compression Ratio 9.0: 1
Valve Train SOHC, 3 valve per cylinder
Fuel Delivery Two 36mm diaphragm-type CV

DRIVETRAIN

Transmission Wide-Ratio, 5-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork, 140mm travel
Rear Suspension Dual shocks with 5-way spring preload adjustment, 90mm travel
Front Tire 120/90H-17
Rear Tire 170/80H-15
Front Brakes Single 296mm disc with twin piston caliper
Rear Brakes drum

DIMENSION

Seat Height 700mm (27.6 in.)
Wheelbase 1615mm (63.7 in.)
Fuel Capacity 14 L (3.1 Imp.gal)
Dry weight 229 kg (505 lbs.)

OTHER

Colors
  • Black monochrome (VT750CA)
  • Red with silver pinstripe (VT750CB)
  • Red/Black (VT750CC)
  • Silver/Black (VT750CC)
  • Candy Orange/Orange Motif (VT750CD)

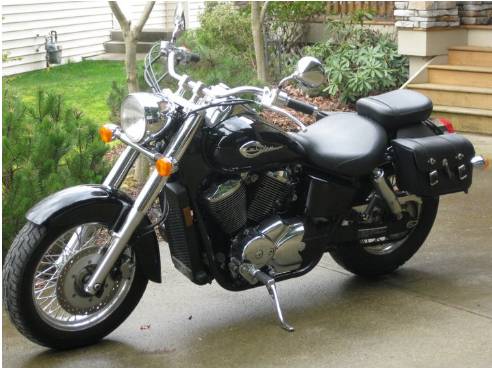

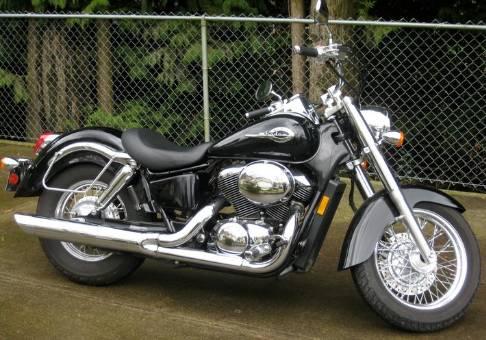

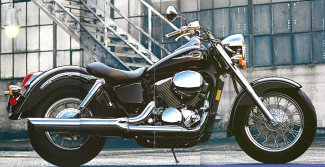

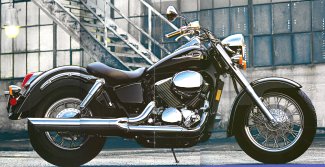

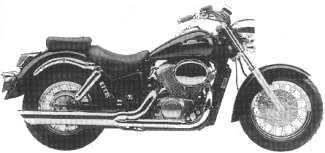

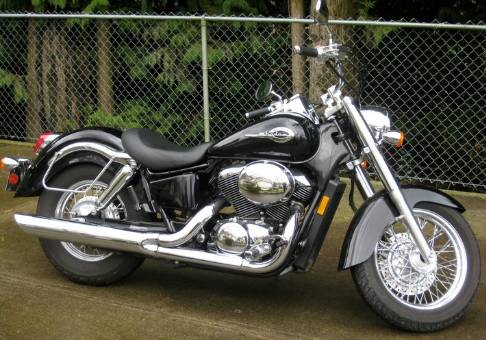

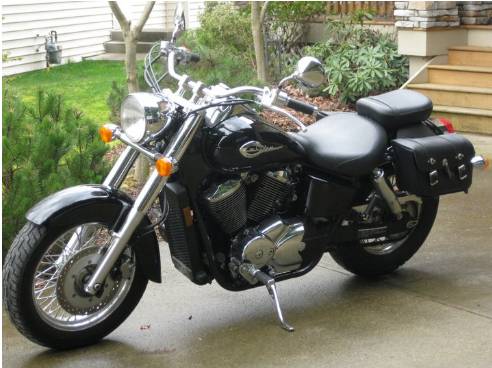

750 (VT750C) Image Gallery
