The Yamaha MT-10 was launched in 2017 as a successor to the older FZ series street naked sport bikes. It uses the same engine that is used in the 2020 YZF-R1, however, it is re-tuned from 198 HP to 160 HP which gives it 82 lbs-ft of torque coming in near the low to mid-range of the power band.

As well, the MT-10 has many technical changes including a redesigned intake, exhaust, and fuel injection system to make it more efficient and powerful for street use. Some parts also got picked from the Yamaha Racing program, including the multifunction TFT screen and adjustable suspension. Lastly, the MT-10 comes with the expected dual-zone ABS, Yamaha QuickShift, and throttle-by-wire that its R1 cousin uses.

The Yamaha MT-10 starts at $12,999 US/$16,299 CA

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Yamaha MT-10 in one place.

2020 Yamaha MT-10

Model Overview

General Info

  • Price: $ $12,999 US / $16,299 CA
  • Key Features:
    • ABS
    • New Quick Shift System
    • Traction Control

Key Specs

  • Engine type: 998cc, liquid-cooled DOHC inline 4-cylinder; 16 valves
  • Power: 160 hp
  • Wet weight: 463 lb
  • Seat height: 32.5 in

Key Competitors

2020 Yamaha MT-10

2020 Yamaha MT-10 Specifications

From Yamaha

ENGINE
Engine 998cc, liquid-cooled inline 4 cylinder DOHC; 16 valves
Power 160 hp
Bore x Stroke 79.0mm x 50.9mm
Compression Ratio 12.0:1
Fuel System Fuel injection with YCC-T
Starter Electric
Lubrication

DRIVETRAIN
Clutch Wet Multiplate assist and slipper clutch
Transmission 6-speed
Final Drive Chain

CHASSIS
Suspension Front 43mm KYB® inverted fork, fully adjustable; 4.7-in travel
Suspension Rear KYB® piggyback shock, fully adjustable; 4.7-in travel
Brakes Front Dual 320mm hydraulic disc; ABS
Brakes Rear 220mm hydraulic disc; ABS
Tires Front 120/70 ZR 17
Tires Rear 190/55 ZR 17
Fuel Tank Capacity 17 L (4.5 US gal.)
Color Ice Fluo, Matte Raven Black

ELECTRICAL
Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS
Overall Length
Overall Width
Overall Height
Wheelbase 55.1 in (1400mm)
Ground Clearance 5.1 in (129 mm)
Seat Height 32.5 in (825mm)
Curb Weight 463 lbs (210 kg)

WARRANTY
Warranty 1 Year (Limited Factory Warranty)
Extension

2020 Yamaha MT-10

2020 Yamaha MT-10 Features

TOP FEATURES

  • Latest Generation Crossplane Crankshaft Engine
    The potent 998cc inline 4-cylinder engine features the same Crossplane Crankshaft technology developed in Yamaha’s renowned YZF-R1® superbike. Tuned specifically for the MT-10™, this engine develops awesome low- and mid-rpm torque with arm-stretching top-end power.
  • Advanced Digital Control
    The MT-10 features a range of systems powered by YCC-T®—a ride-by-wire throttle system that provides exceptionally precise engine control. D-Mode allows the rider to select a preferred engine response at the flick of a switch. A Traction Control System (TCS) assists the rider in managing rear tire traction on various road conditions The MT-10 also includes cruise control for improved highway cruising comfort.
  • Cutting Edge Chassis
    Like the YZF-R1 superbike, the MT-10 uses an aluminum Deltabox® frame to create a lightweight and responsive chassis built for agility, featuring an ultra-compact 55.1-inch wheelbase. The MT-10 mounts fully-adjustable KYB® suspension front and rear for excellent road holding with a tuning range ready for a wide range of street conditions.
  • Powerful, Controllable Brakes with ABS
    An advanced Anti-lock Braking System (ABS) is mated to high-specification braking components for strong braking power with excellent feedback and control.
  • Aggressive Ergonomics and Styling
    The MT-10 displays raw aggression from every angle, with upright ergonomics that perfectly balance sport riding feedback and relaxed comfort. High-tech LED lighting and an all-LCD instrument panel boost both style and function.

ENGINE

  • R1-Derived Crossplane Crankshaft Engine
    The potent 998cc inline 4-cylinder engine features the same Crossplane Crankshaft technology developed in Yamaha’s renowned YZF-R1 superbike. The crossplane design nearly eliminates inertial engine torque to provide a direct connection between the throttle and rear wheel, for maximum traction and linear torque feeling. Tuned specifically for the needs of the high-performance street rider, the MT- 10 engine develops awesome low- and mid-rpm torque with arm-stretching top-end power.
  • Ultra-Modern Engine Design
    The MT-10 motor features the very latest in engine design to create the ultimate high-performance street sportbike. Engine reliability is ensured with strong, lightweight forged pistons and carburized fracture-split connecting rods moving through an extremely rigid, closed-deck cylinder block. The engine’s cylinders are slightly offset to reduce friction losses, with plated bores for excellent heat dissipation and cylinder sealing. And rocker-arm valve actuation utilizes the lever ratio of each rocker arm to allow for larger valve lifts while using lower camshaft lobes and reduced spring pressure, further boosting power and efficiency.
  • Compact Stacked Transmission
    The 6-speed transmission “stacks” the crankshaft, input and output shafts in a triangular layout to centralize mass and keep the engine shorter front-to-back, which allows optimized engine placement in the frame for outstanding handling.
  • Oversized Intake System
    A large 12-liter airbox improves rideability, especially when transferring from acceleration to deceleration or vice versa, while 12-hole fuel injectors are angled to optimize combustion chamber filling for improved power and torque characteristics.
  • High-Capacity Cooling System
    A large curved radiator keeps engine heat in check, while a compact air-cooled oil cooler ensures stable oil temperatures in any condition. Simplified pipe and hose routing minimize the need for additional parts, saving weight.

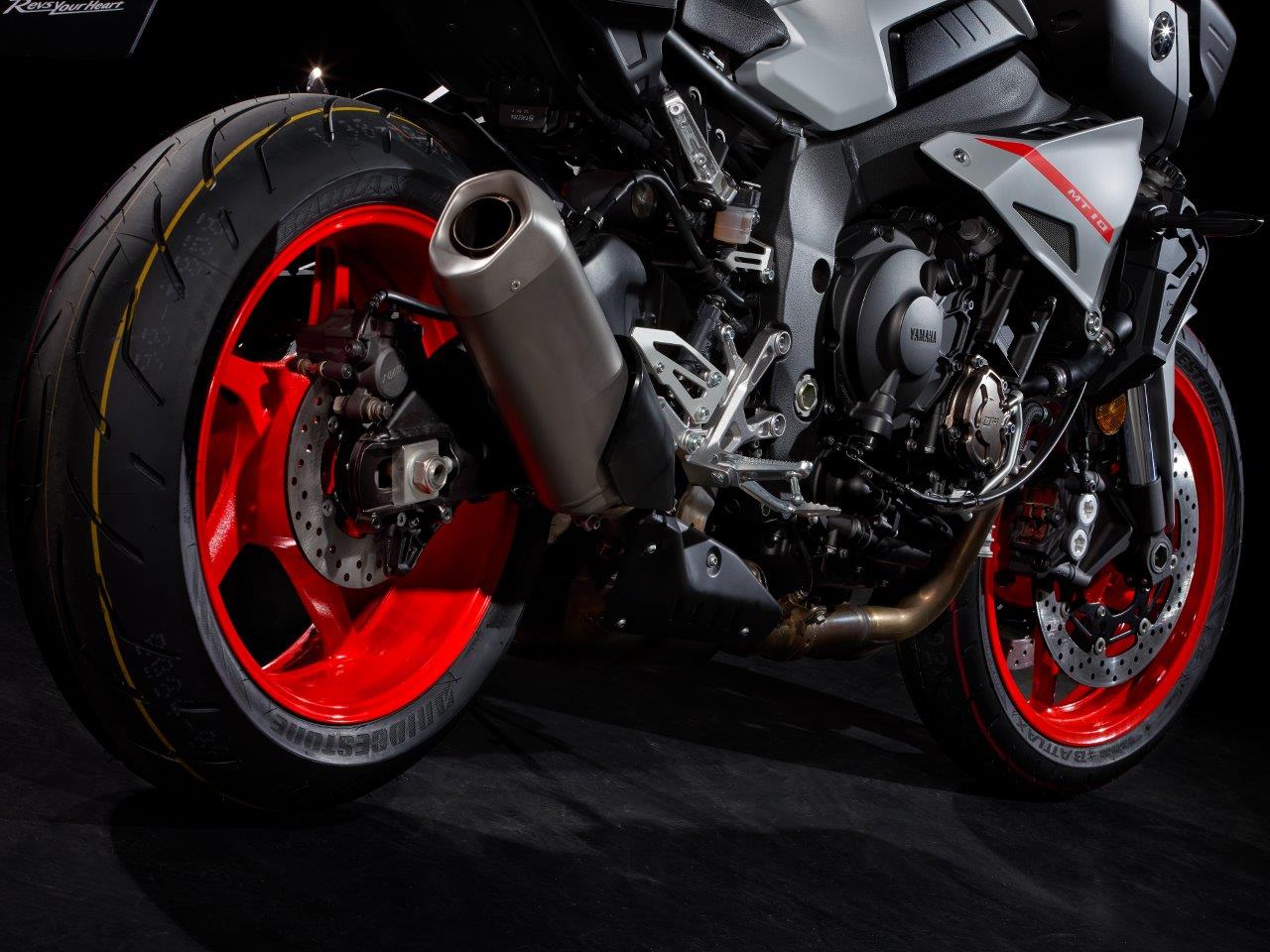

  • Lightweight Exhaust System
    The MT-10‘s stainless steel and titanium exhaust system features a compact midship exhaust chamber for mass centralization and excellent handling. Exhaust flow is regulated by Yamaha’s Exhaust Ultimate Power valve (EXUP®) system to provide optimal exhaust back-pressure across the entire rpm range, further improving efficiency.
  • Advanced Clutch
    Yamaha’s assist and slipper clutch are used to give the rider smoother, more confident downshifts when entering corners aggressively, as well as a lighter pull effort at the lever, all while easily handling the torque of the MT-10’s high-output, inline-four motor.

CHASSIS/SUSPENSION

  • Deltabox® Aluminum Frame
    The MT-10 uses an aluminum Deltabox frame derived from the YZF-R1 superbike to create a lightweight and responsive chassis built for agility, featuring an ultra-compact 55.1-inch wheelbase. The frame uses a strength-rigidity balance developed especially for the MT-10, and uses the engine as a stressed member of the frame for optimal cornering performance.
  • Fully-Adjustable KYB® Fork
    The MT-10 features an inverted 43mm KYB® front fork offering full adjustability and 4.7 inches of travel, for excellent front-end feel and road holding along with a tuning range ready for a wide range of street conditions.
  • Linkage-Type KYB® Shock
    The four-way-adjustable KYB® piggyback-style shock uses a rear bottom link pivot position that is optimally placed to provide optimal handling and excellent transmission of engine torque to the asphalt. Like the front fork, the MT-10’s rear suspension offers a wide range of adjustment and a smooth, well-controlled 4.7 inches of wheel travel.
  • Powerful, Controllable Brakes with ABS

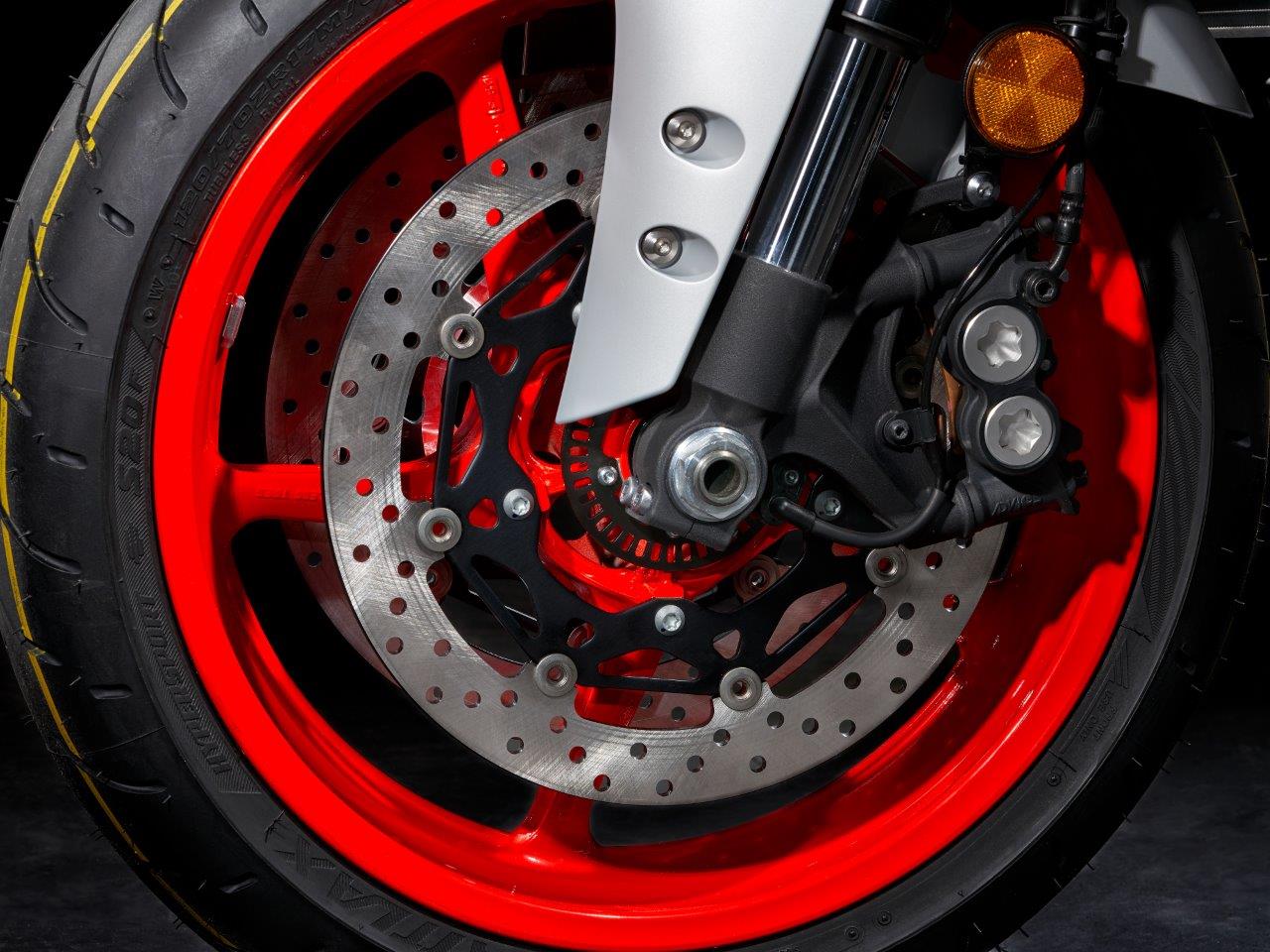

    An advanced Anti-lock Braking System (ABS) is mated to high-specification braking components for the excellent braking power and control. Radial-mount, 4-piston front calipers use sintered brake pads to grip a pair of large 320mm discs for exceptional braking power, with a 220mm rear disc brake in support. A compact ABS module provides rapid and accurate brake force modulation to prevent wheel lock-ups.
  • Lightweight Wheels and High-Performance Tires
    The MT-10 rolls on lightweight 5-spoke aluminum wheels for nimble steering and suspension feel. Bridgestone® Hypersport™ S20 tires—a 120/70ZR17 front and a huge 190/55ZR17 at the rear—are engineered specifically for the MT-10 for chassis-matched handling and grip.

ADDITIONAL FEATURES

  • Comfortable, Upright Ergonomics
    MT-10 riders look forward to every ride thanks to upright ergonomics that perfectly balance sporty riding feedback and relaxed comfort, with a tapered aluminum handlebar and ideal placement of the seat and footpegs, plus a hip stopper that braces the rider under maximum acceleration. The sculpted 4.5-gallon fuel tank design allows for a solid feeling of knee grip and lower body control.
  • High-Performance LED Lighting
    In addition to LED turn signals, running lights and taillights, the MT- 10 features compact LED headlights for stunning illumination and state-of-the-art style. The mono-focus headlight elements draw very little power but produce a crisp, brilliant beam of light for confidence and visibility in low-light conditions.
  • Aggressive Styling
    The MT-10 displays raw aggression from every angle, with a muscular central core that highlights the machine’s power and unmistakably futuristic styling. With its belligerent design and unique elements—including the compact frame-mounted front mask and dynamically shouldered fuel tank—the MT-10 stands out as the king of the MT series.
  • Ready to Accessorize
    The MT-10 arrives ready for personalization, with exposed hardware ideal for mounting a range of Genuine Yamaha accessories, including windscreens, chassis protection, and other items. A standard 12V DC power outlet is ready to recharge your personal mobile devices or various electronic accessories.

ELECTRONICS

  • Yamaha Chip Controlled Throttle
    The ride-by-wire Yamaha Chip Controlled Throttle (YCC-T®) system senses the slightest throttle input by the rider and instantaneously calculates the ideal throttle valve opening and fuel input. This technology contributes to the rider’s feeling of torque and controllability from the potent 4-cylinder engine.
  • Refined D-Mode Mapping
    Thanks to YCC-T, the MT-10 also offers D-Mode, which allows the rider to select a preferred engine response at the flick of a switch. Mode 1 provides the sharpest throttle response, Mode 2 offers a good all-around character, and Mode 3 offers the smoothest, most progressive throttle response.
  • Adjustable Traction Control System
    An advanced Traction Control System (TCS) assists the rider in managing traction on various road conditions by quickly modulating throttle opening, ignition timing, fuel volume, and other parameters. TCS Level 1 is intended for sporty riding on clean roads, with Level 2 configured for normal street riding. Level 3 is tuned for wet roads and other low-traction situations. The TCS can also be disabled by the rider if they so choose.
  • Quick Shift System (QSS)
    The QSS utilizes a shift lever sensor that momentarily cuts engine output when upshifting, allowing riders to select the next gear without using the clutch or closing the throttle. The result is a smooth, lightning-fast shift and a more exciting riding experience.
  • Cruise Control System
    The MT-10 includes a cruise control system powered by the YCC-T. Using the left handlebar switchgear, the rider can easily select or adjust a set speed to ease long-distance touring on the highway, improving rider comfort.

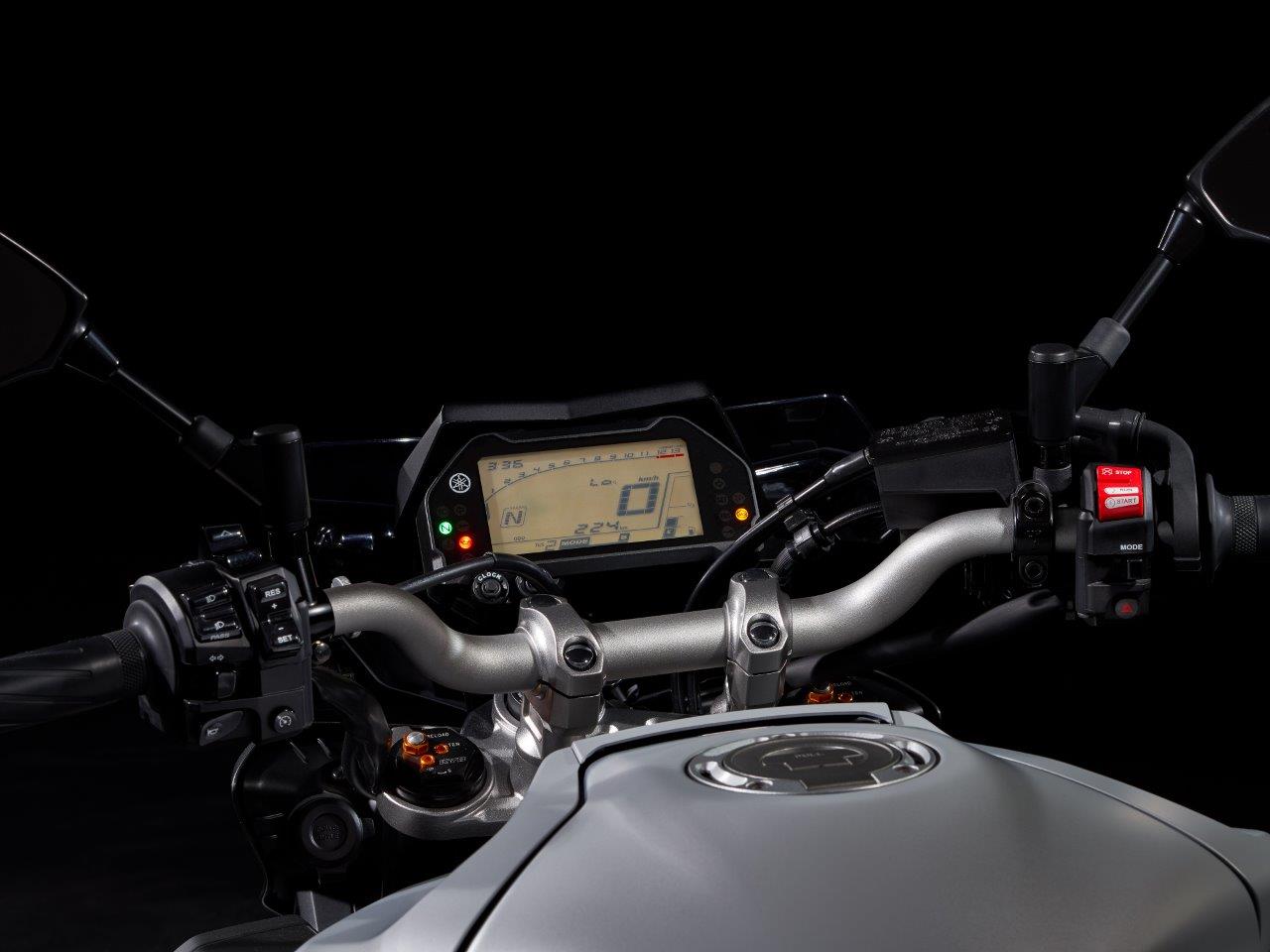

  • All-LCD Instrument Panel
    A highly-legible instrument display provides crystal clear information for the rider at a glance. The all-LCD design is lightweight and compact, with a large speedometer display and bar-type tachometer. The panel also includes a fuel gauge and fuel economy readouts, a gear position indicator, clock, odometers and warning indicators. An upshift timing light is also programmable to the rider’s preferences.

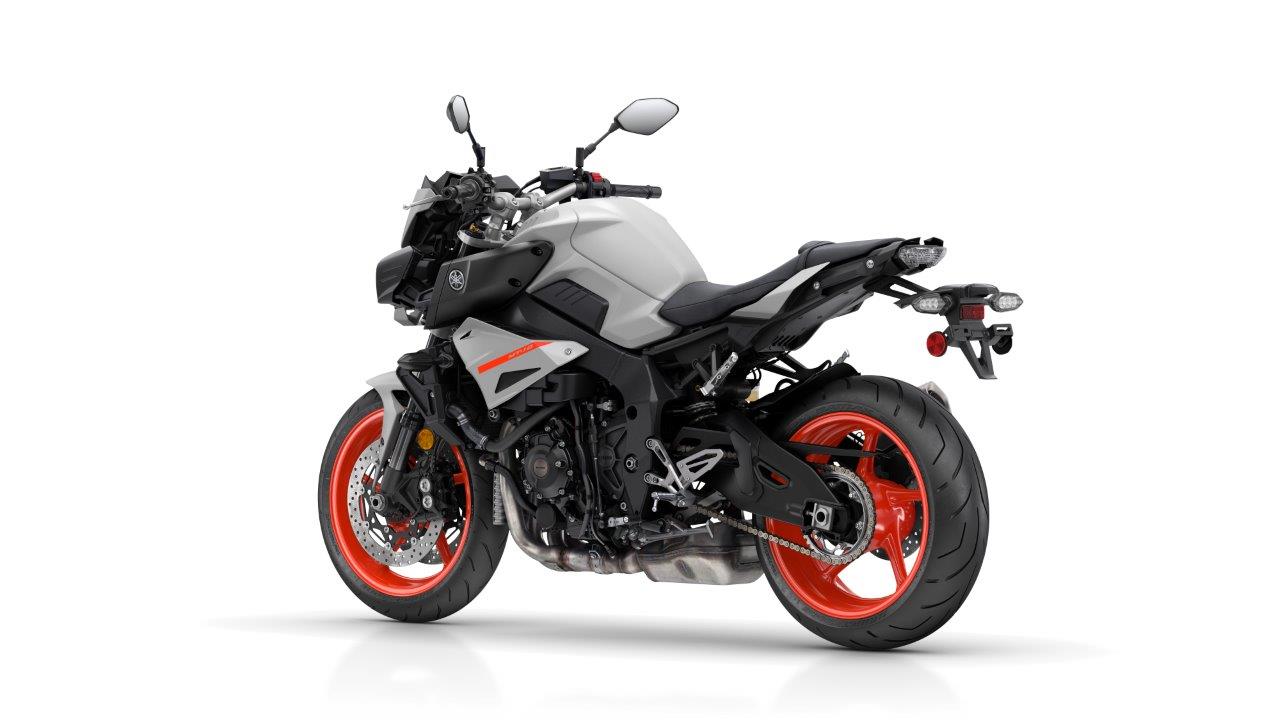

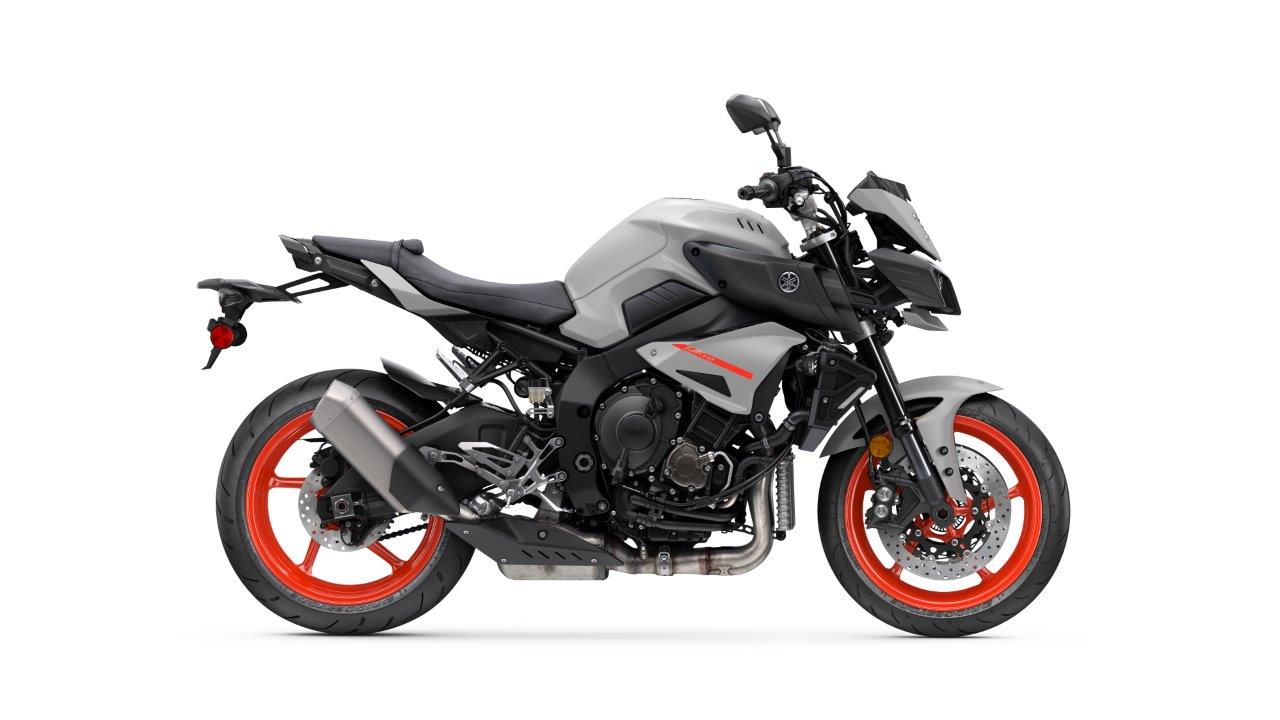

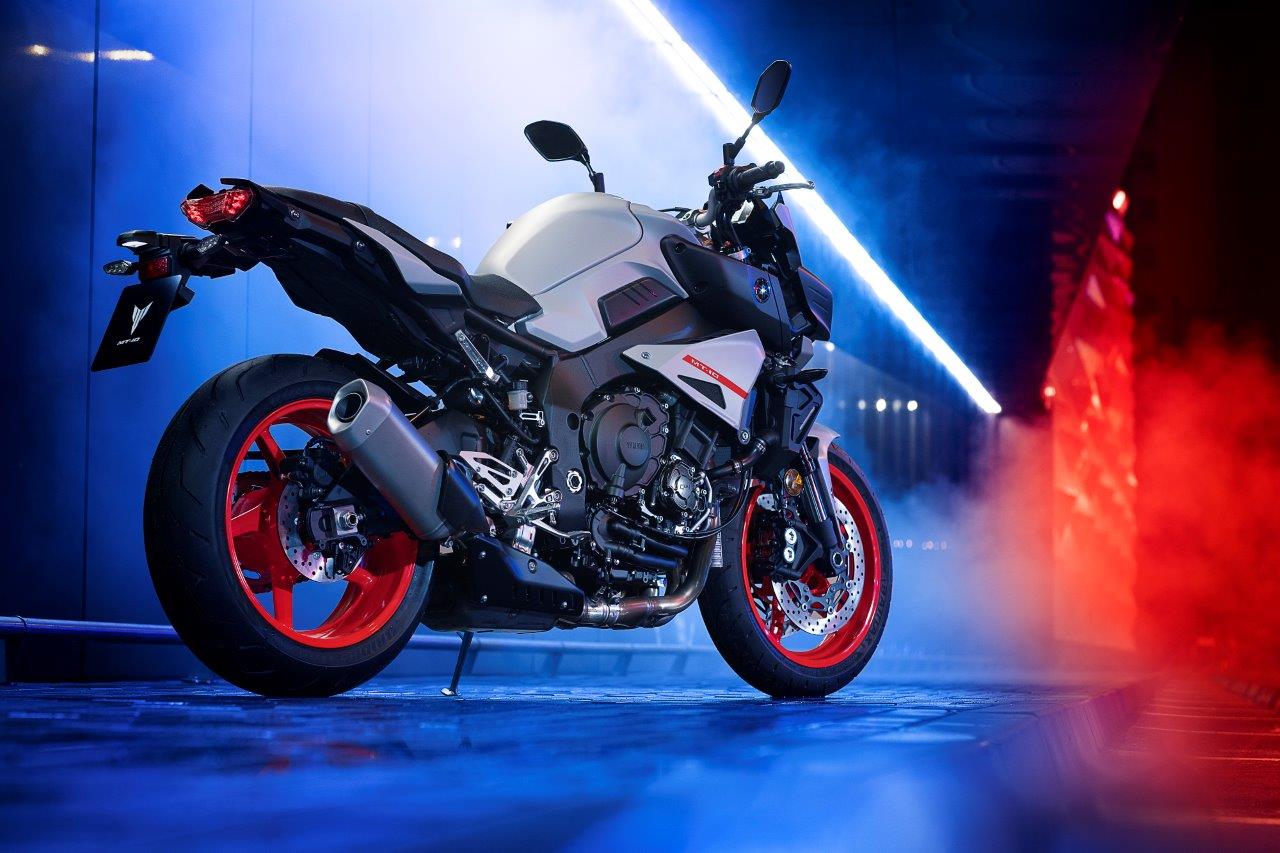

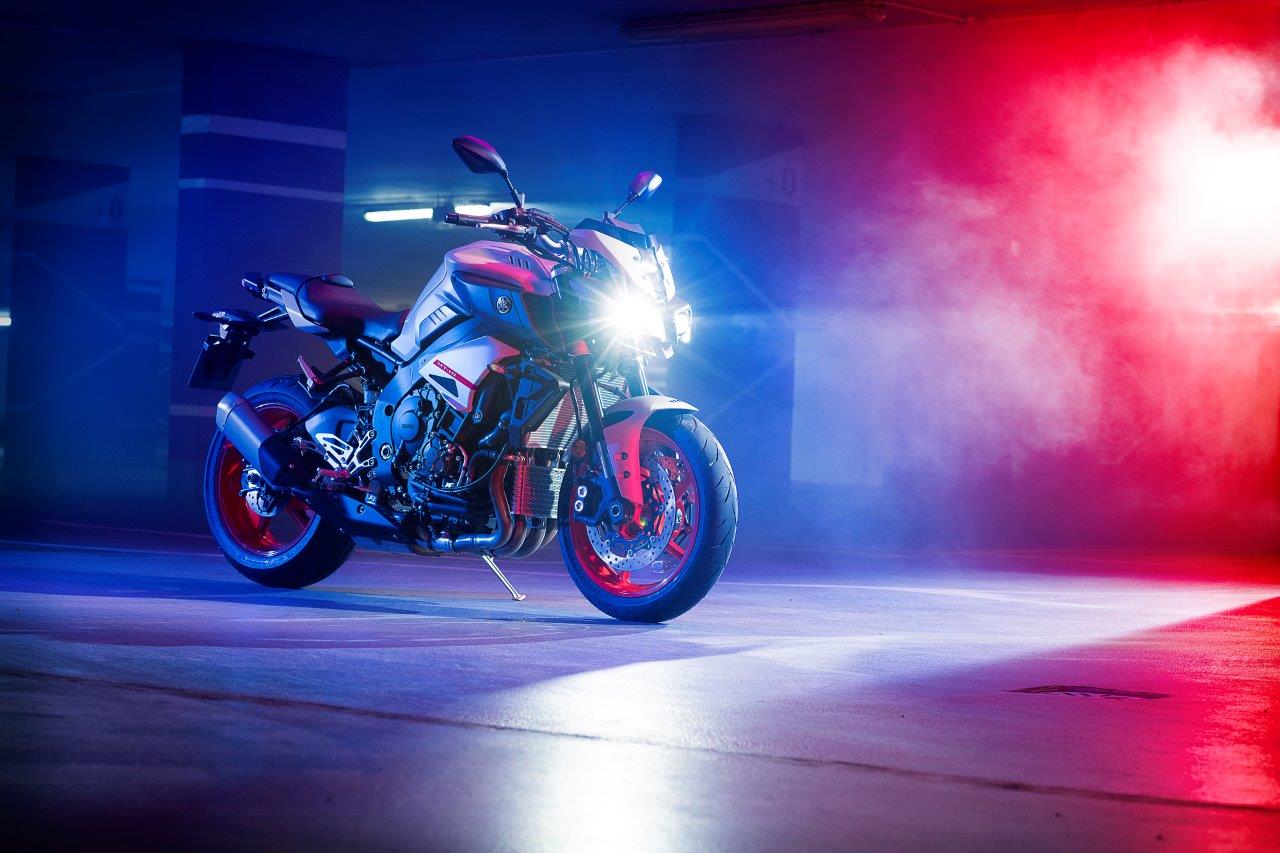

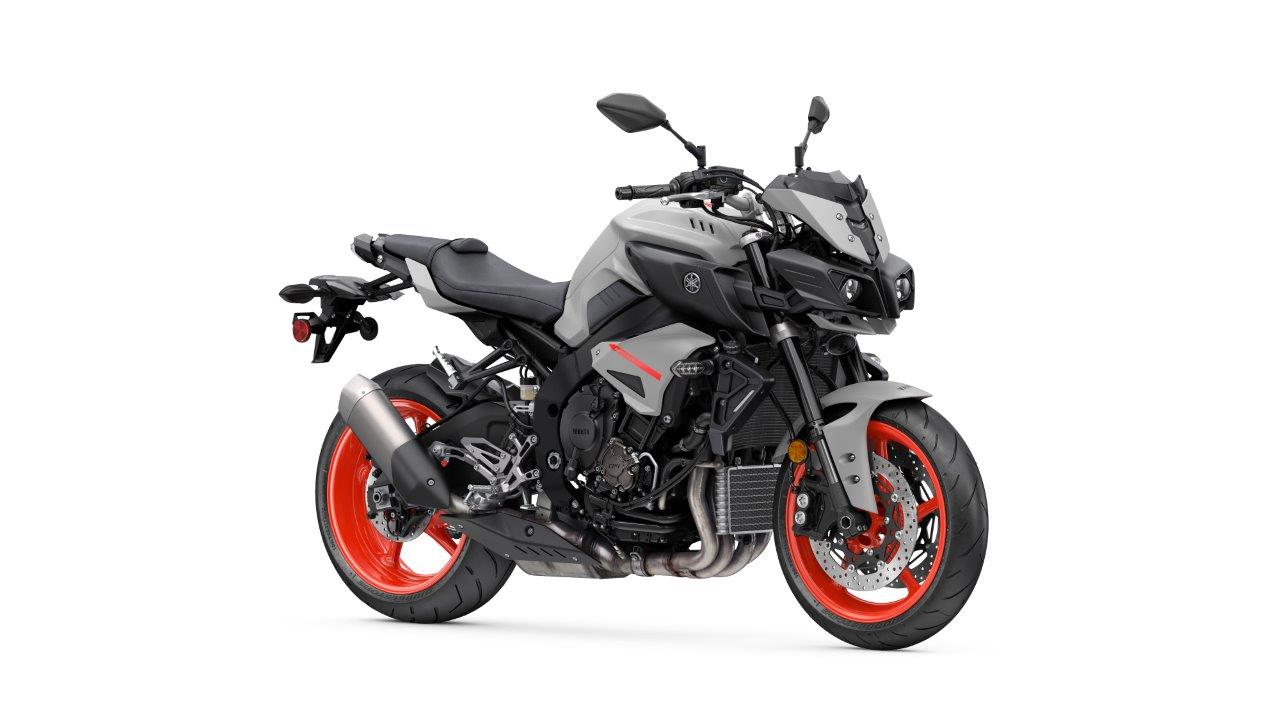

2020 Yamaha MT-10 Photos

2020 Yamaha MT-10
2020 Yamaha MT-10
2020 Yamaha MT-10
2020 Yamaha MT-10
