2020 Triumph Scrambler 1200 XE

The 2020 Triumph Scrambler 1200 XE is an interesting motorcycle, coming from the strangest of marriages. The styling, frame, and most of the equipment from the Street Scrambler. The engine from the Bonneville T120. Put them together, and you have the Scrambler 1200.

The Scrambler 1200 XE gets the 1200cc parallel twin that all Bonnevilles use, tuned to produce 90 HP and 81 lbs-ft of torque. The XE in the name, however, hints at what the bike is designed to do: Exploration.

This is a civil bike on the street, but with the raised ride height, long distance travel in both front and rear suspension, and the addition of an engine guarding bash plate on the bottom of the frame, this motorcycle craves to scramble down some rough roads, or across places where there are no roads.

The 2020 Triumph Scrambler 1200 XE starts at $15,400 US/$16,300 CDN.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Triumph Scrambler 1200 XE in one place.

2020 Triumph Scrambler 1200 XE


Model Overview

General Info

  • Price: $15,400 US/$16,300 CDN
  • Key Features:
    • LED Lighting
    • ABS
    • Fuel-injected

Key Specs

  • Engine type: 1200 cc, Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
  • Power: 89 HP
  • Wet weight: 456 lbs (207kg)
  • Seat height: 34.2 in

Key Competitors

2020 Triumph Scrambler 1200 XE


2020 Triumph Scrambler 1200 XE Specifications

From Triumph

ENGINE

Engine 1200 cc, Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Power 89 HP
Bore x Stroke 97.6 mm x 80 mm
Compression Ratio 12.066:1
Fuel System Multipoint sequential electronic fuel injection
Starter Electric
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers

DRIVETRAIN

Clutch Wet, multi-plate slip-assist clutch
Transmission 6 Speed
Final Drive X ring chain

CHASSIS

Suspension Front Showa 47mm fully adjustable upside down forks, 9.8 in (250mm) travel
Suspension Rear Fully adjustable Ohlins twin shocks with piggy back reservoir, 9.8 in (250mm) rear wheel travel
Brakes Front Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Brakes Rear Single 255mm disc, Brembo 2-piston floating caliper, ABS
Tires Front 90/90-21
Tires Rear
150/70 R17
Fuel Tank Capacity 4.2 US gal (16l)
Color

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Width Handlebars 35.6 in (905mm)
Height Without Mirror 49.2 in (1250mm)
Wheelbase 61.8 in (1570mm)
Trail 5.09 in (129.2mm)
Seat Height 34.2 in (870mm)
Dry Weight 456 lbs (207kg)

WARRANTY

Warranty
Extension

2020 Triumph Scrambler 1200 XE


2020 Triumph Scrambler 1200 XE Features

Engine

High Torque, high performance, liquid cooled 1200cc Bonneville engine with dedicated ‘scrambler’ tune
Low inertia, six-speed, 8-valve 270o crank angle parallel twin
90PS peak power at 7.400rpm
110Nm peak torque at 3,950rpm
7,500rpm rev limit
High service interval of 10,000miles (16,000km)

Chassis

Category-leading Brembo twin 320mm floating discs with Monobloc M50 front calipers
Brembo 2-piston 255mm rear brake caliper
High specification side-laced wheels
Dual-purpose Metzler Tourance tubeless tyres
New dedicated scrambler frame
Adjustable handlebar position
Hand guards with aluminium brace
Brembo MCS lever

Technology

2nd generation TFT instruments
Torque-assist clutch
Intuitive switchcubes & 5-way joystick
Illuminated backlit switches
Ride-by-wire
ABS & switchable traction control
All-LED lighting with DRL headlight
Keyless ignition
Single-button cruise control
USB charging
Immobiliser
Accessory fit Bluetooth connectivity module, enabling the world’s first integrated GoPro control system, ‘turn-by-turn’ navigation, plus phone and music operation
Accessory fit Tyre Pressure Monitoring System
Five riding modes (Road, Rain, Sport, Off-Road and Rider-Configurable)
Six riding modes (Road, Rain, Sport, Off-Road, Rider-Configurable and Off-Road Pro)
Optimised Cornering ABS and Traction Control, facilitated by an inertial measurement unit (IMU)

Styling

Crafted aluminium mudguards, number board, swingarm, bash plate
Sculpted side panels with brushed aluminium badge
Stainless Steel tank strap
Brushed aluminium Monza filler cap
Silver handlebar finish with black anodised risers and clamps
Gold coloured forks
Top-of-the-range finishes & detailing

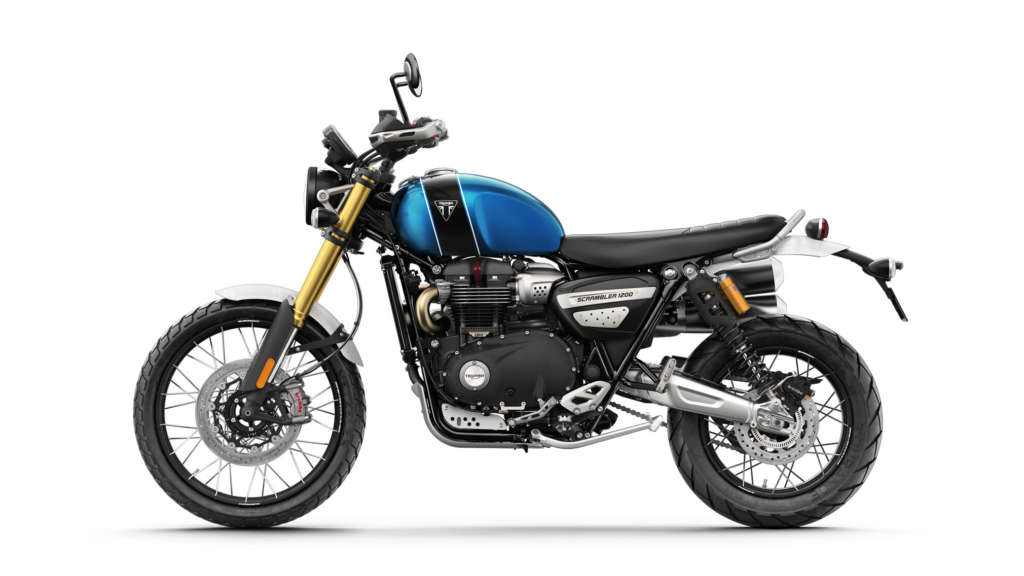

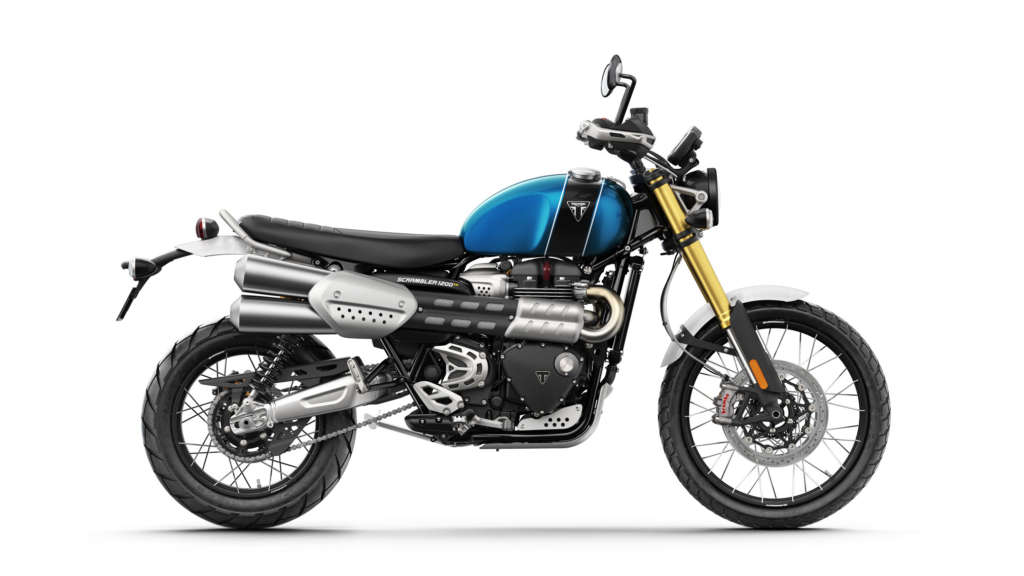

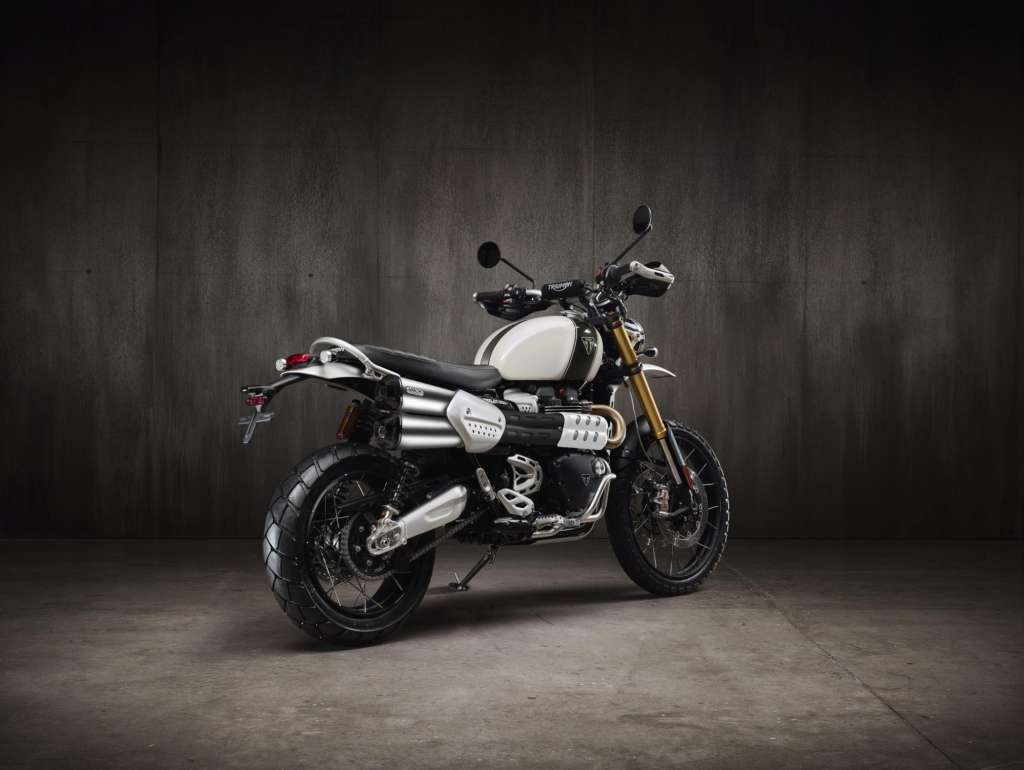

2020 Triumph Scrambler 1200 XE Photos
