Off-Road Fury: The 2020 Honda CRF450X

Designed for serious off-road thrills, the Honda CRF450X is a dirt bike that can tackle anything put in front of it. This is a true off-road machine with numerous Baja 1000 victories and SCORE International series trophies to its name, and to make things even better, it’s 100% trail legal legal in all 50 states.

Powered by a compact 449cc liquid-cooled single-cylinder four-stroke engine, this CRF model feels like a real motocross bike, with plenty of power on offer and light and easy handling. Add in a six-speed manual transmission, Showa USD forks and a Pro-Link rear shock, and Dunlop MX52 rubber, and you’ve got a real dirt bike in front of you.

Despite the fact that it’s a dedicated trail bike, the 2020 CRF450X has a few nice additions that transform it into a versatile and practical machine, including headlights, a taillight, a side stand, comprehensive instrumentation, and more. The CRF450X is a true dirt bike but with a few useful comforts that make it a more usable tool.

If you’re looking for a motorcycle that can traverse deserts, tackle muddy trails, and climb dry river beds, then the CRF450X is the machine for you.

For 2020, the Honda CRF450X has an updated graphics package; everything else is the same as on the 2019 model, including the classic Honda Red color option.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Honda CRF450X in one place.

2020 Honda CRF450X


Model Overview

General Info

  • Price: $ 9,799
  • Key Features:
    • Fuel injection
    • LED lights
    • Electric starter

Key Specs

  • Engine type: 449cc liquid-cooled, single-cylinder
  • Power:
  • Wet weight: 275 lbs
  • Seat height: 37.4 Inch

Key Competitors

  • Kawasaki KLX300R
  • Kawasaki KX450
  • KTM 450 SX-F
  • KTM 450 XC-F

2020 Honda CRF450X


2020 Honda CRF450X Specifications

From Honda

ENGINE

Engine 449cc liquid-cooled, single-cylinder, four-stroke
Power
Bore x Stroke 96mm x 62.1mm
Compression Ratio 12.0:1
Fuel System Programmed Fuel Injection (PGM-FI), 46mm downdraft throttle body
Starter Electric
Lubrication

DRIVETRAIN

Clutch Wet multiplate
Transmission Wide-ratio 6-speed
Final Drive #520 Chain

CHASSIS

Suspension Front 49mm leading-axle inverted telescopic Showa coil-spring fork with rebound and compression damping adjustability
Suspension Rear Pro-Link® Showa single shock with adjustable spring preload, rebound and compression damping adjustability
Brakes Front Single 260mm disc with twin-piston caliper
Brakes Rear Single 240mm disc
Tires Front Dunlop MX52 80/100-21
Tires Rear Dunlop MX52 110/100-18
Fuel Tank Capacity 7.98 L (2.1US gal.)
Color Red

ELECTRICAL

Ignition DC-CDI
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Overall Width
Overall Height
Wheelbase 1493 mm (58.8 in.)
Ground Clearance 322 mm (12.7 in.)
Seat Height 949 mm (37.4 in.)
Curb Weight 124 kg (275 lb.)

WARRANTY

Warranty 12-month Transferable, unlimited-mileage limited warranty
Extension Extended coverage available with a HondaCare Protection Plan®

2020 Honda CRF450X


2020 Honda CRF450X Features

WIDE-RATIO SIX-SPEED TRANSMISSION

Having six speeds in the CRF450X’s transmission compared to an MX bike’s typical five gives you more choice, and makes this versatile bike even more versatile. You have a gear for everything from east-coast rock crawling to wide-open Baja blasts.

LITHIUM-ION BATTERY

Light, compact, and offering excellent performance—just like the CRF450X itself! Conventional batteries are heavy, but not this premium piece. It’s all part of why your new CRF450X performs as well as it does.

TUNED-WEIGHT CRANK

The CRF450X gets a special crankshaft, different from our CRF450R MX bikes and our CRF450L dual-sport. Why? The crank’s weight and inertial character make a huge difference in how a bike delivers power. A crank is expensive, but it’s no place to scrimp and try to save—with the CRF450X, power delivery is just what you want.

DUAL RADIATORS

The CRF450X’s dual radiators feature a refined core area for superior heat dissipation compared with conventional dual-radiator designs. A coolant recovery tank is located in front of the engine between the frame downtubes for improved center of gravity, and the tank is protected by a plastic skid plate.

TITANIUM FUEL TANK

Holding 2.01 gallons, the CRF450X’s premium titanium tank is light and tough.

SKID PLATE

The CRF450X’s factory skid plate is light, yet also offers the engine and lower-frame protection serious riders demand on a machine like this.

LIGHTING PACKAGE

Your CRF450X comes equipped with a complete lighting package (headlight and taillight) for riding at dusk.

ELECTRIC STARTER

An electric start system ensures trouble-free starting in all conditions. The electric starter also drives the clutch side of the crankshaft to provide superior lubrication to starter gears while producing a narrow engine with a short, strong crank.

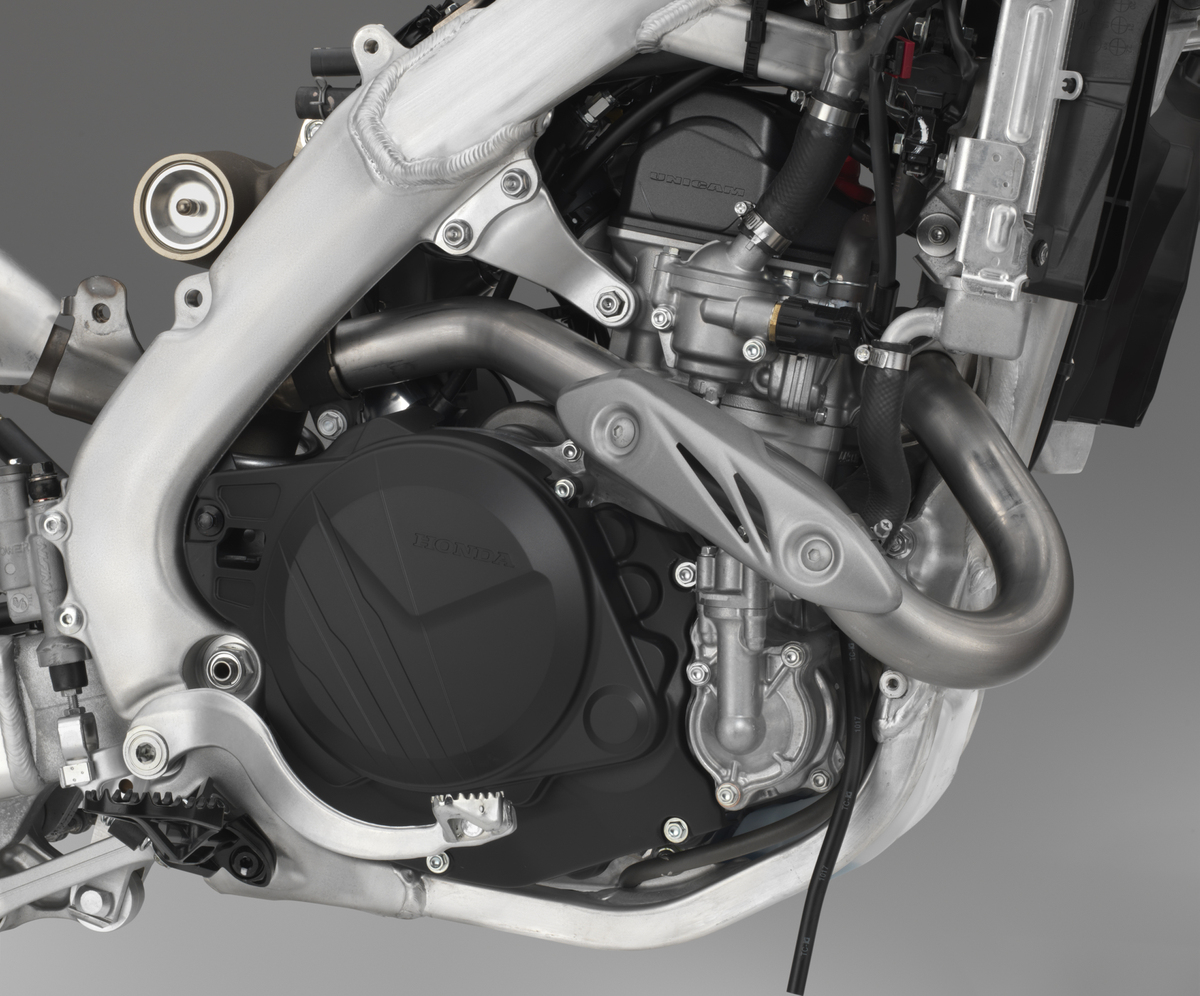

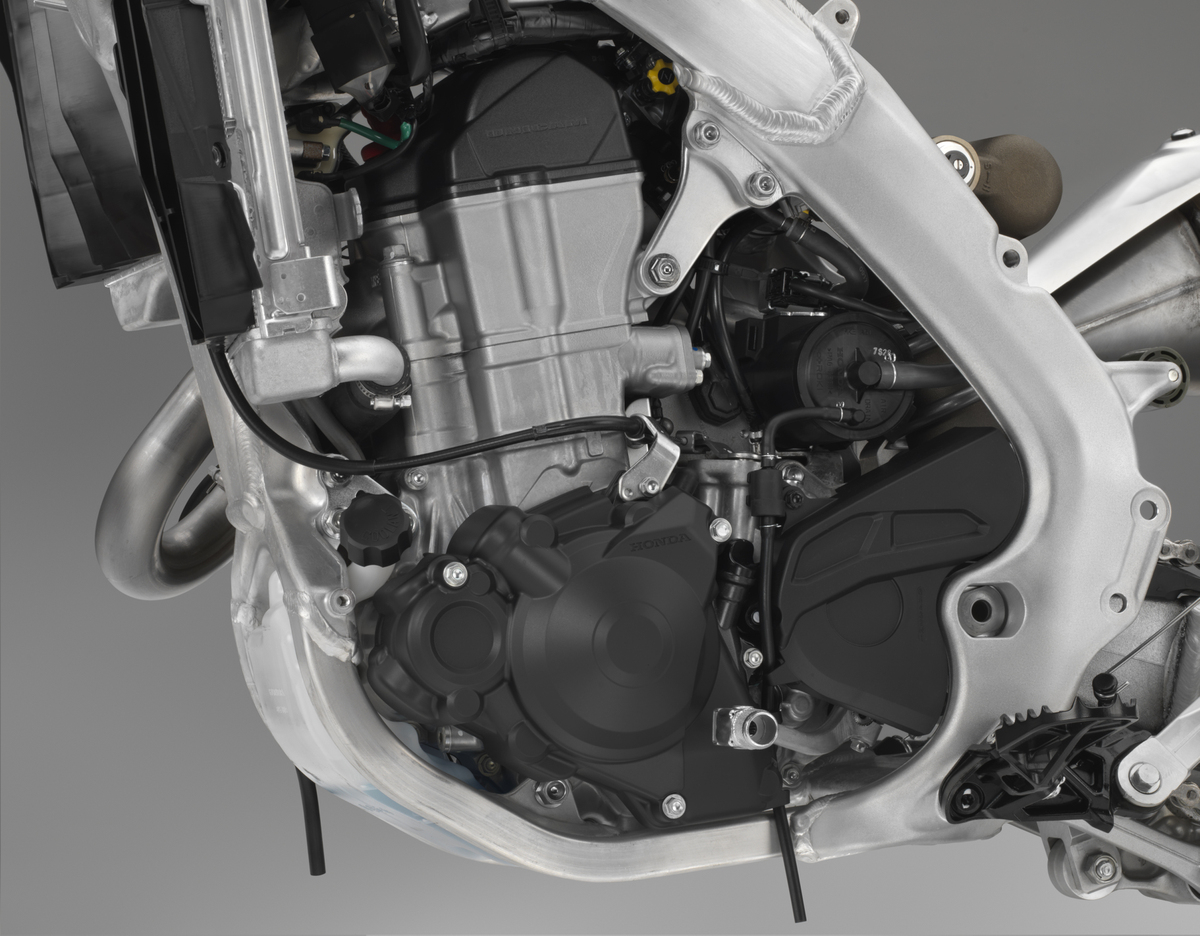

449cc UNICAM® ENGINE

Honda’s Unicam® cylinder heads combine the best of single- and double-overhead-cam designs. The configuration contributes to a compact engine that saves weight over a comparable dual-overhead-camshaft motor and also permits a narrow included valve angle. This flattens the combustion chamber to facilitate ignition flame propagation, allowing a high compression ratio. Since less space is taken up in the cylinder head, the camshaft sits lower in the head for a more compact engine and a lower center of gravity.

TITANIUM INTAKE AND EXHAUST VALVES

Lightweight titanium intake and exhaust valves permit use of smaller valve springs, reducing overall engine height.

FUEL INJECTION

The CRF450X features our proven fuel-injection system. It’s part of the reason the CRF450X offers such excellent torque and spot-on metering and response, especially in the critical low-rpm range. It also automatically compensates for elevation and weather changes.

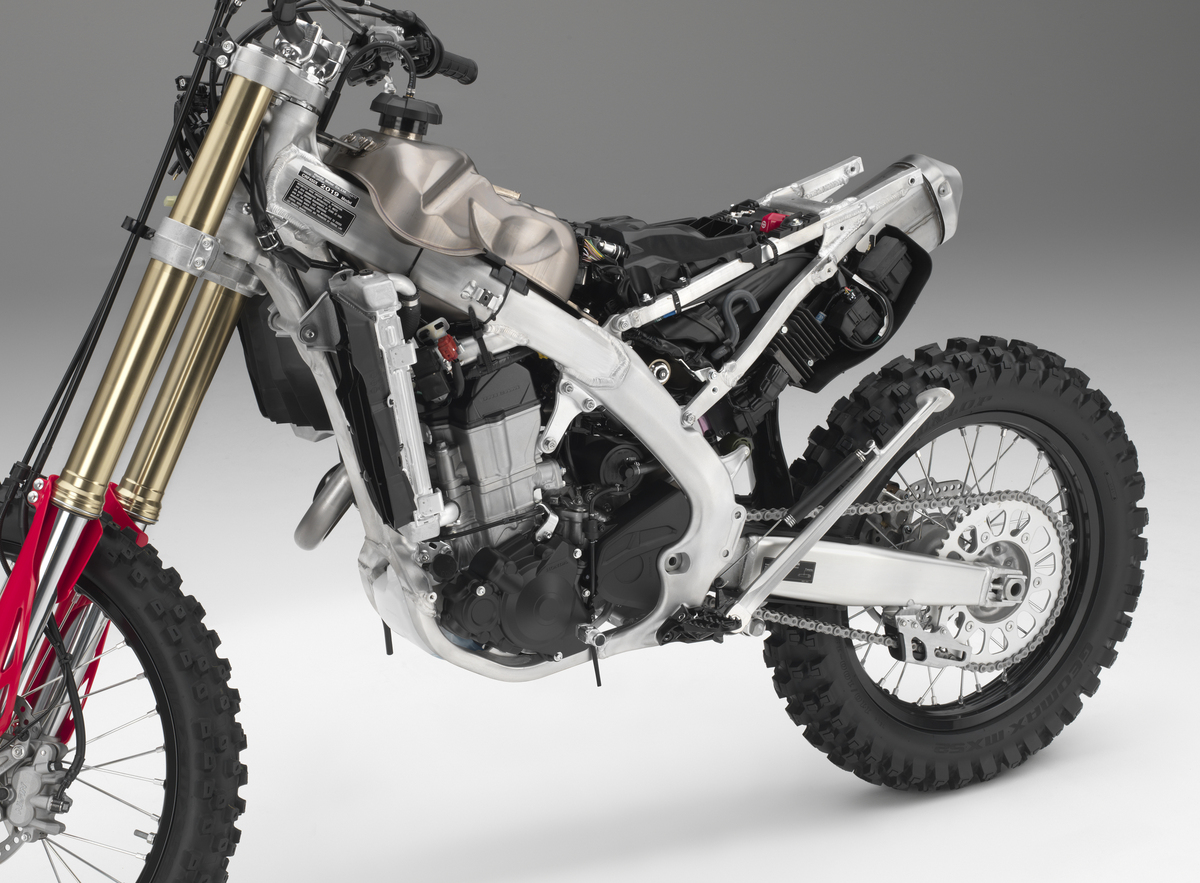

TWIN-SPAR CHASSIS

The CRF450X uses a twin-spar aluminum chassis that takes advantage of all the lessons we’ve learned on the MX track and from winning countless Bajas. The frame is both light and stiff, and provides the basis for the CRF450X’s excellent handling. The chassis is also wider than the standard MX frame to accommodate the six-speed transmission.

DUNLOP MX52 TIRES

The CRF450X’s Dunlop MX52 tires give you good superior off-road traction in a wide variety of terrain and conditions. Tires are always a critical part of any on/off-road bike, and we’ve hooked you up with some great ones here.

LOW CENTER OF GRAVITY

The compact Unicam engine and Honda’s famous concentration on center-of-mass engineering help keep the CRF450X’s center of gravity low. That means the bike feels lighter, and it helps handling too.

WORKS-STYLE FRONT BRAKE

Compact twin-piston front brake caliper, anodized-aluminum brake pistons and lightweight 260mm front disc offer great stopping power while minimizing unsprung weight for improved turning and handling.

WORKS-STYLE REAR BRAKE

HRC works-type rear brake system uses a 240mm brake rotor to its integrated rear master-cylinder and fluid reservoir, a set-up that eliminates the separate reservoir and hose.

18-INCH REAR WHEEL

The CRF450X’s 18-inch rear wheel gives you an excellent choice of off-road tires. Plus, the black DID rims look great too.

GEAR-DRIVEN COUNTERBALANCER

The Gear-Driven Counterbalancer reduces vibration and drives the water pump. Eight clutch plates provide the surface area necessary to handle the engine’s massive torque, while carefully matched clutch springs provide a light feel at the lever.

WORKS MX STYLING

Having a hard time spotting the differences between our factory MX bikes and the CRF450X? You’re excused. The “X” looks like our MX bikes because it’s derived from them—the smooth bodywork makes it easy to move around, and the in-mold graphics not only look cool but are durable, too.

SUPERIOR ERGONOMICS

Placing the rider’s legs at the narrowest part of the frame helps improve comfort and handling.

SIDESTAND

Hey, a sidestand may seem like no big thing, but take a look at the one the CRF450X uses. Tucked up high and out of the way, this forged alloy piece is just another example of how the CRF450X gets it right.

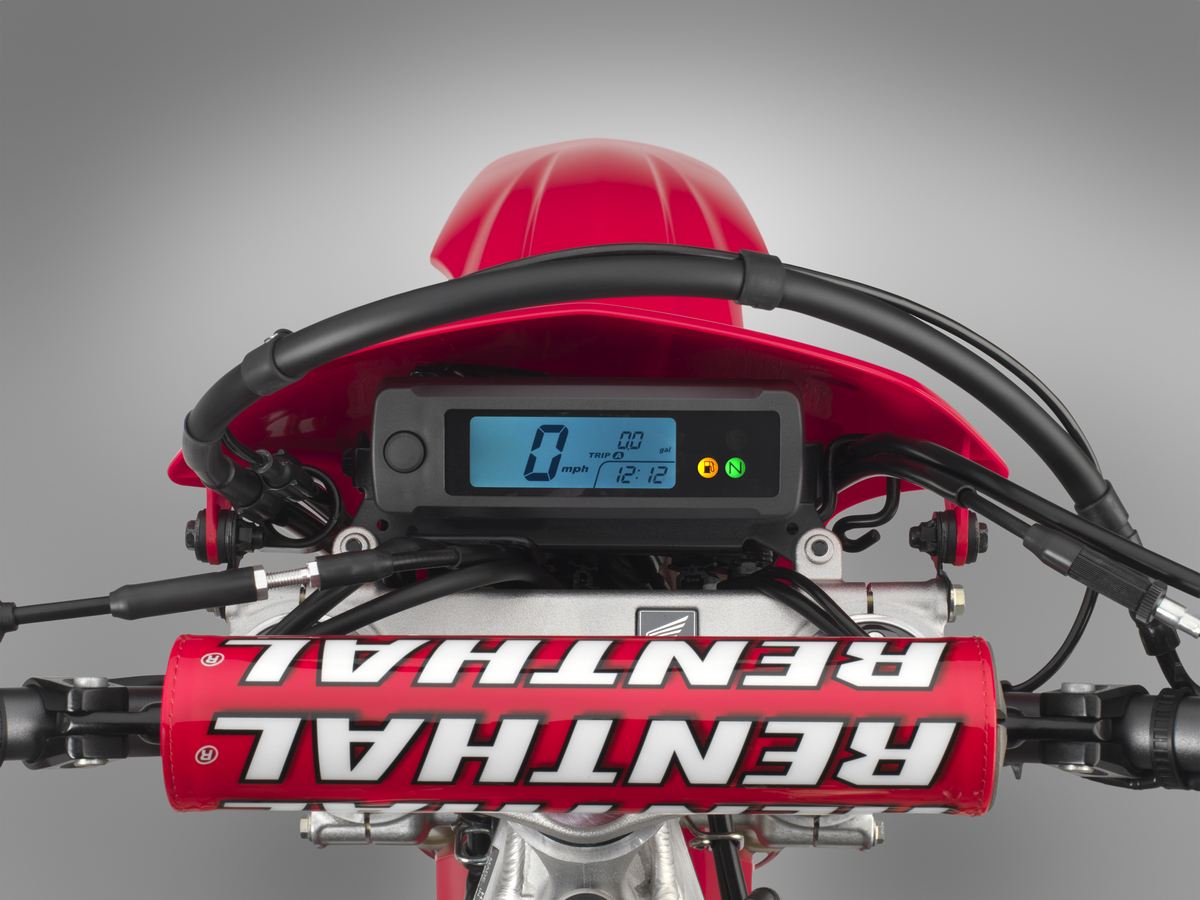

FUEL MILAGE METER

An important feature for planning gas stops and calculating your bike’s range under varying conditions, the Fuel Mileage Meter shows current fuel mileage and average fuel mileage as well as fuel consumption. Displays in either miles or kilometers, and applies to both the A and B tripmeters. The Fuel Mileage Meter is in the same digital instrument display as the speedometer, odometer, tripmeters and digital clock.
