2020 Harley-Davidson Tri Glide Ultra

The 2020 Harley-Davidson Tri Glide Ultra is the company’s top-level three-wheeler. The bike is a highway-ready machine that can be piloted around town easily, too. It’s large, offers tons of storage, and plenty of stability.

The Tri Glide Ultra has the Milwaukee-Eight 114 engine. It’s an air-cooled V-twin that has a displacement of 1,868cc. The 114 engine is mated to a six-speed manual transmission and it makes 121 lb-ft of torque.

The Tri Glide Ultra is the kind of bike you get if you love the Harley-Davidson brand and touring machines but simply can’t or doesn’t want to make it on two wheels anymore. That privilege comes with a pretty hefty price tag of $34,999.

The motorcycle is available in a few different colors, including Vivid Black, Spruce, Midnight Blue/Barracuda Silver, River Rock Gray/Vivid Black, and Tahitian Teal.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Tri Glide Ultra in one place.

2020 Harley-Davidson Tri Glide Ultra


Model Overview

General Info

  • Price: $ 34,999
  • Key Features:
    • Low Seat Height
    • H-D™ Connect Service
    • LED Lighting

Key Specs

  • Engine type: 1,868cc, Milwaukee-Eight® 107
  • Torque: 121 ft-lb
  • Wet weight: 1204 lbs
  • Seat height: 27.1 Inch

2020 Harley-Davidson Tri Glide Ultra


2020 Harley-Davidson Tri Glide Ultra Specifications

From Harley-Davidson

ENGINE

Engine 1,868cc, Milwaukee-Eight® 114
Engine Torque 121 ft-lb
Bore x Stroke 4.016 in x 4.5 in
Compression Ratio 10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Lubrication

DRIVETRAIN

Clutch
Transmission 6-speed
Final Drive Chain, 34/46 ratio

CHASSIS

Suspension Front Black, 7-spoke Cast Aluminum
Suspension Rear Black, 7-spoke Cast Aluminum
Brakes Front 32mm 4 piston fixed
Brakes Rear floating 36mm piston integrated park brake
Tires Front MT90B16 72H
Tires Rear P205/65R15 92T
Fuel Tank Capacity 22.71 L (6 US gal.)
Color Vivid Black, Spruce, Midnight Blue/Barracuda Silver, River Rock Gray/Vivid Black, and Tahitian Teal

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length 105.1 in (2,670 mm)
Overall Width
Overall Height
Wheelbase 65.7 in (1,670 mm)
Ground Clearance 4.9 in (125 mm)
Seat Height 27.1 in (690 mm)
Curb Weight 1204 lbs (546 kg)

WARRANTY

Warranty
Extension

2020 Harley-Davidson Tri Glide Ultra


2020 Harley-Davidson Tri Glide Ultra Features

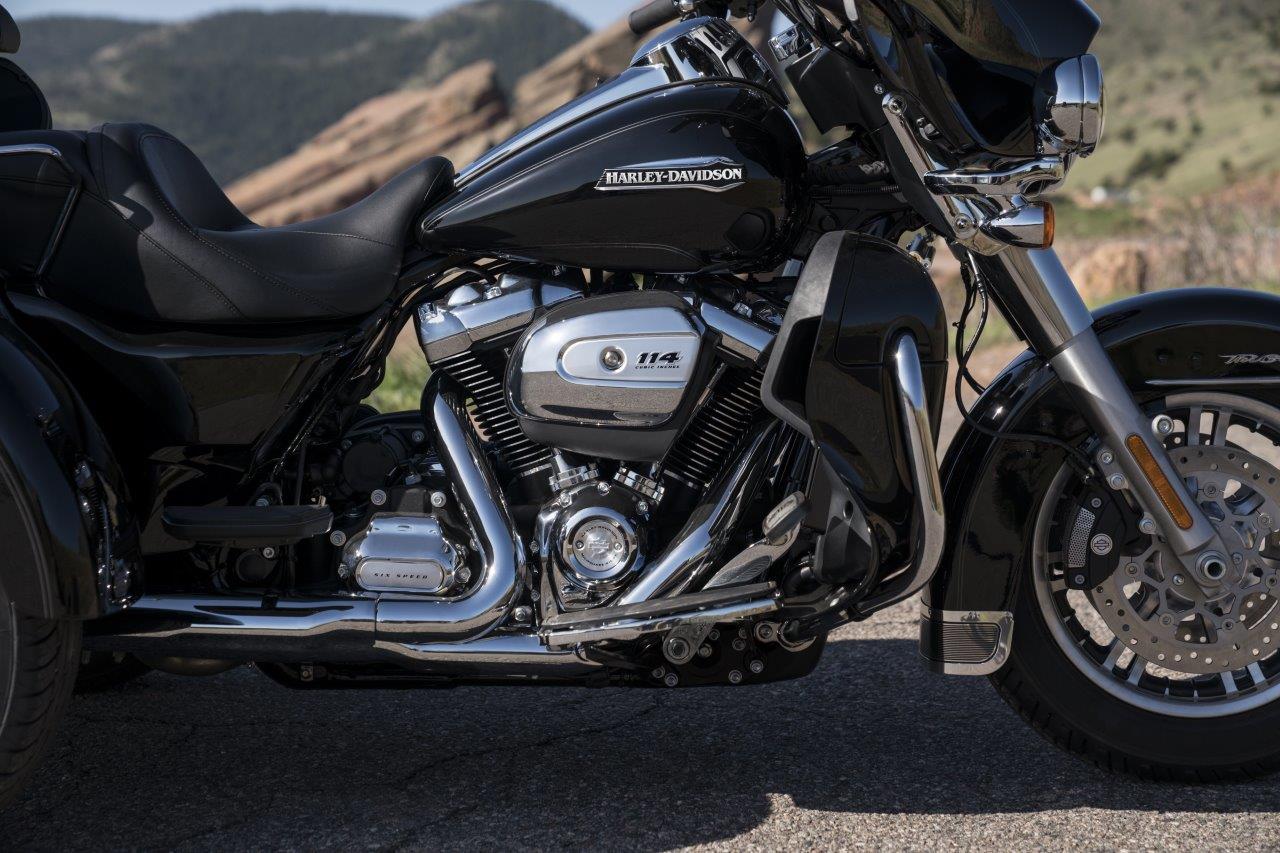

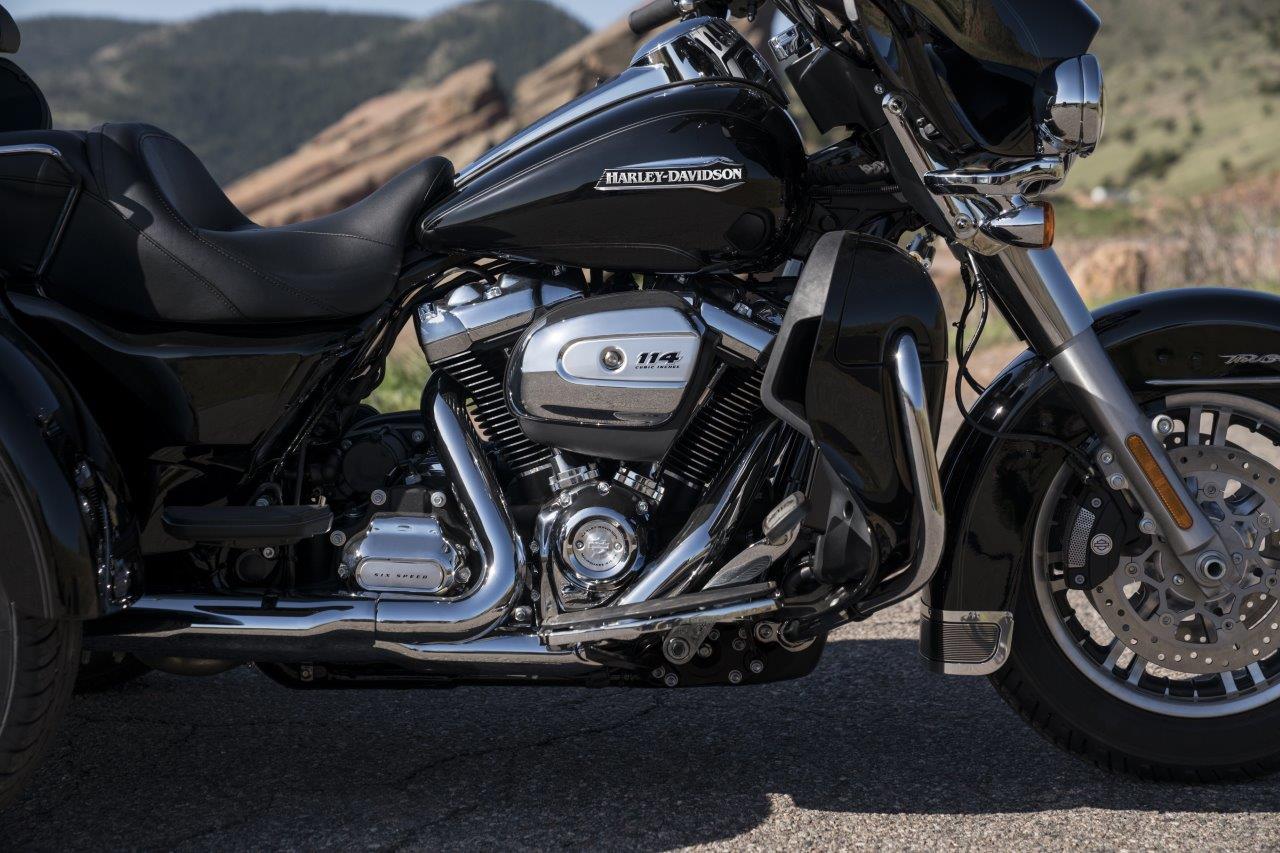

Twin-Cooled™ Milwaukee-Eight® 114 Engine

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

H-D™ Connect Service

With subscription-based cellular connectivity, you can connect to your bike through your smart phone using the latest version of the Harley-Davidson® App. Check your bike’s vitals including fuel level, get tamper alerts and stolen-vehicle tracking, and more.

Reflex™ Defensive Rider Systems (RDRS)

A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.

Reflex™ Linked Brembo® Brakes with Standard ABS

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

BOOM!™ Box GTS Infotainment System

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

High Performance Suspension

Premium Harley-Davidson® touring suspension technology is calibrated specifically for Trike models, delivering a smooth and responsive ride.

6-Speed Cruise Drive® Transmission

Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.

Trunk and King Tour-Pak® Storage

The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak® luggage carrier keeps things classy and neat with soft woven-nylon luggage liner and plenty of storage pockets.

Daymaker® LED Headlamp and LED Foglamps

Darkness–defying headlight so you can see and be seen.

Batwing Fairing & Splitsteam Air Vent

Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front. It opens and closes with one touch of a button.

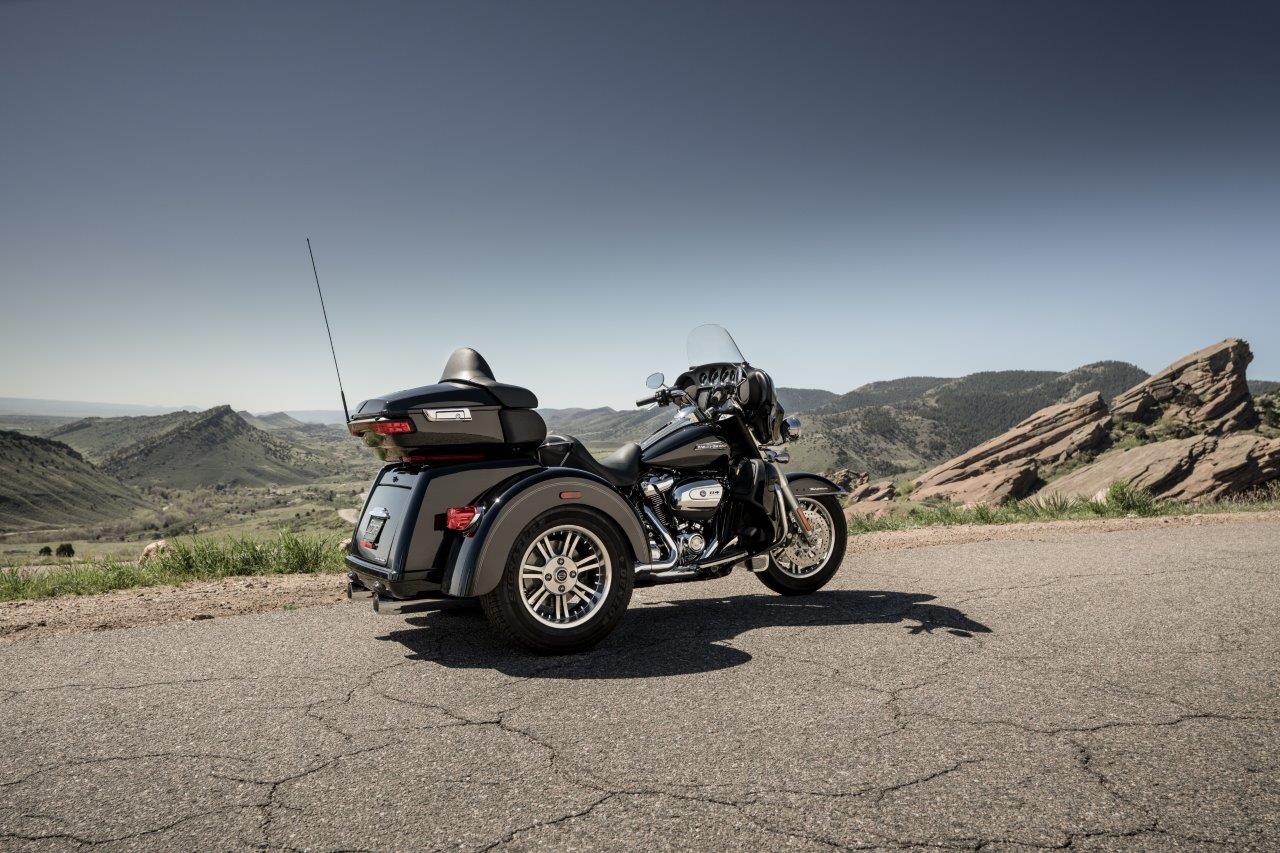

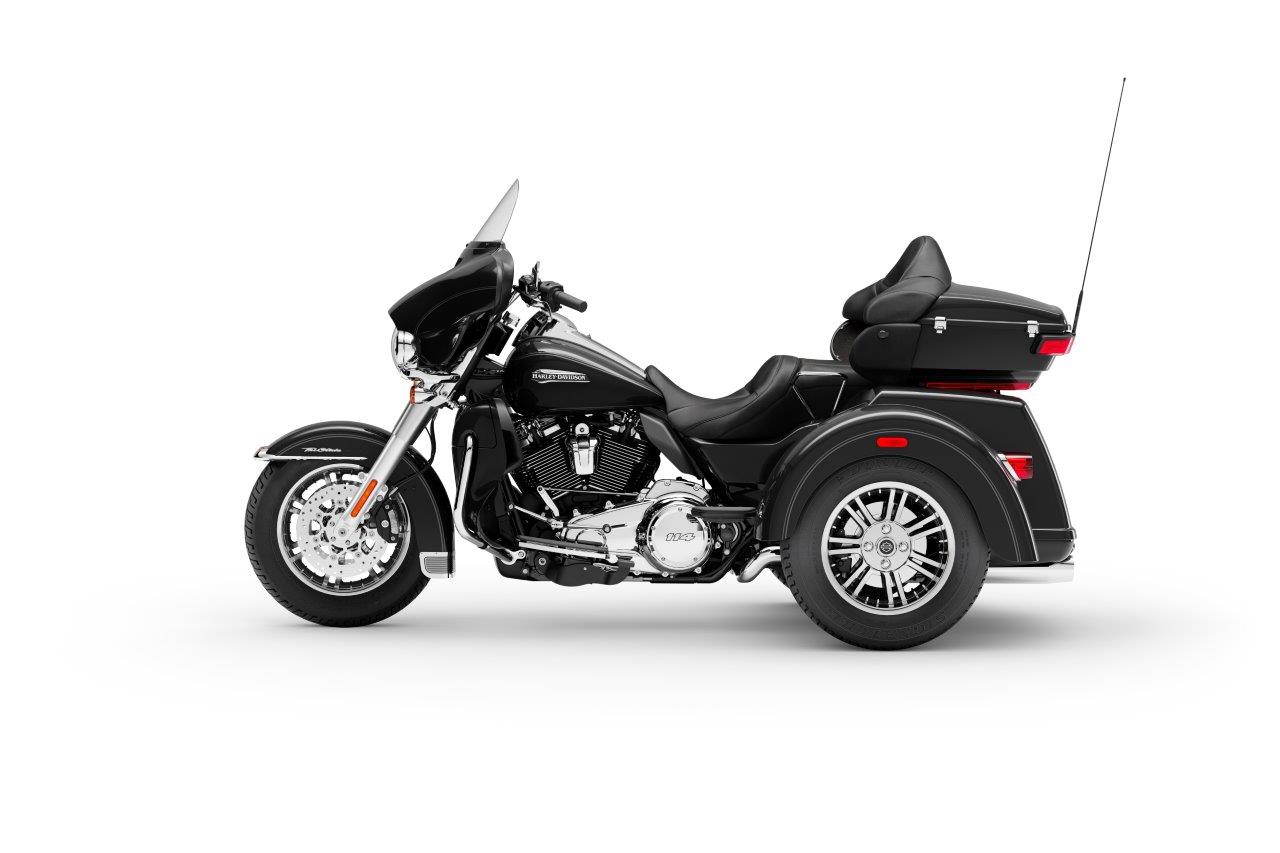

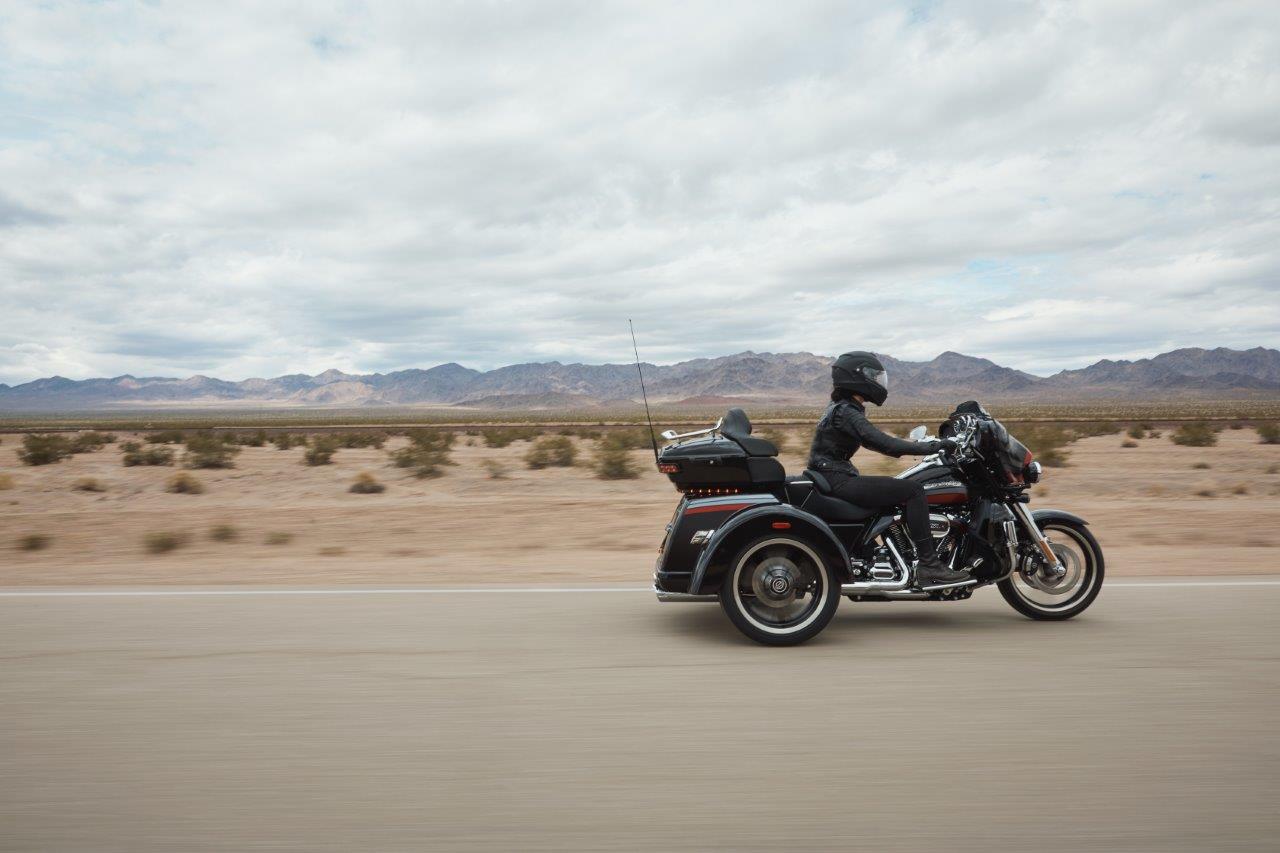

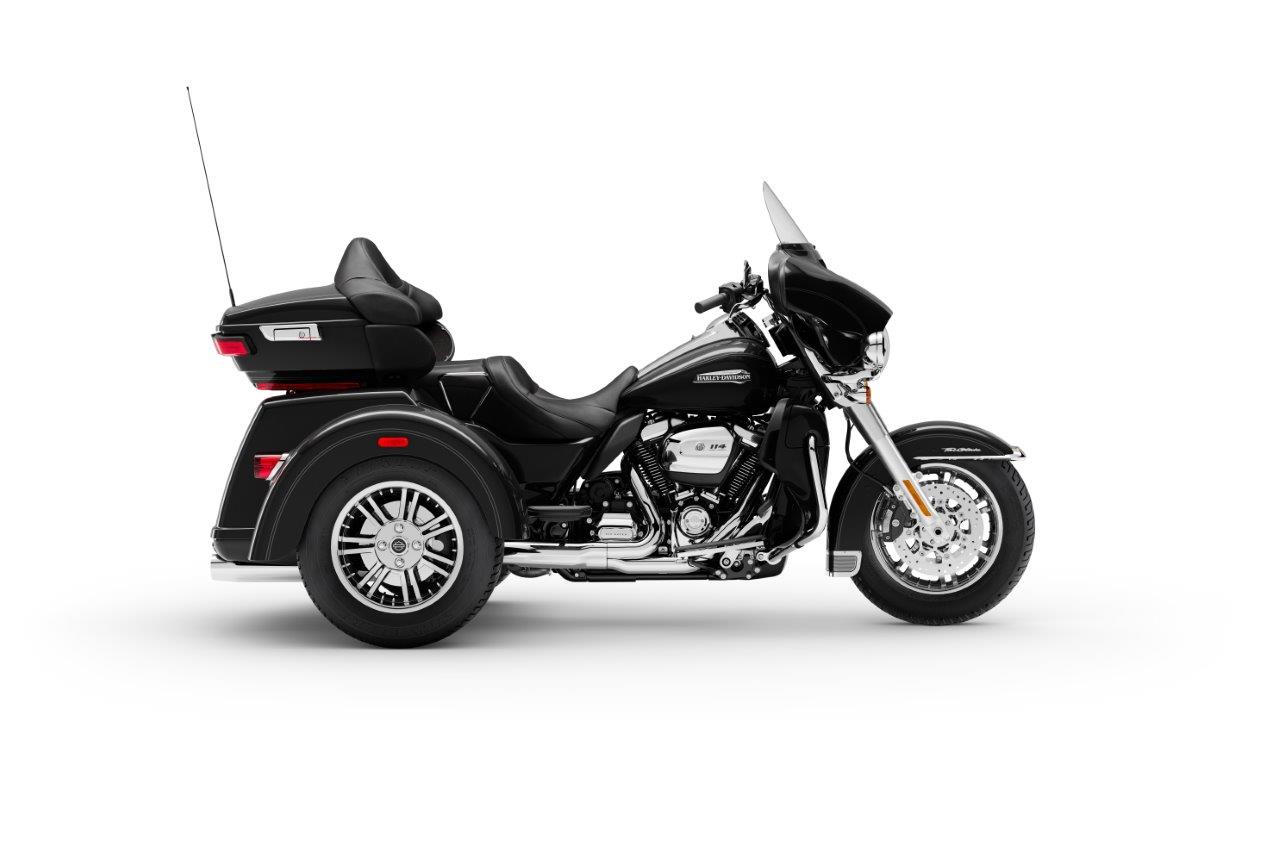

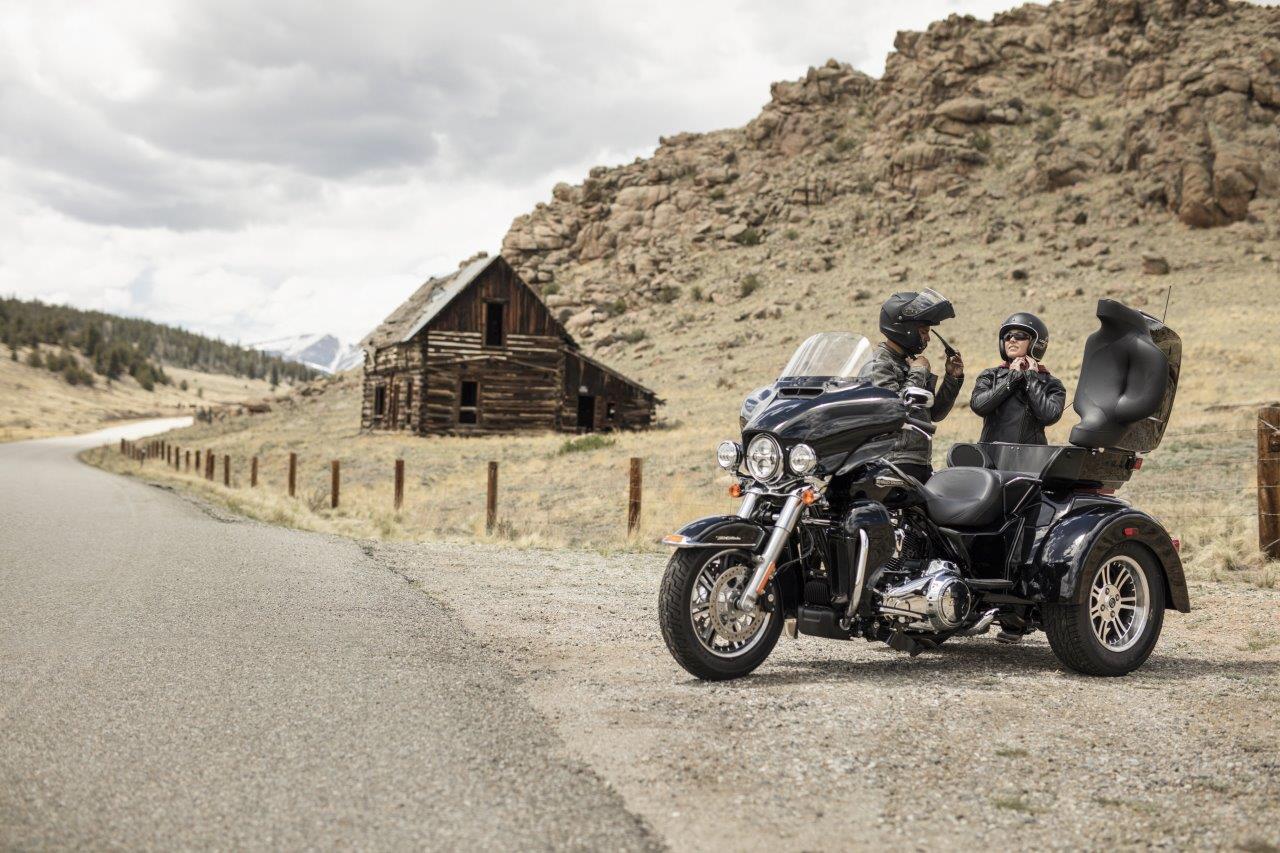

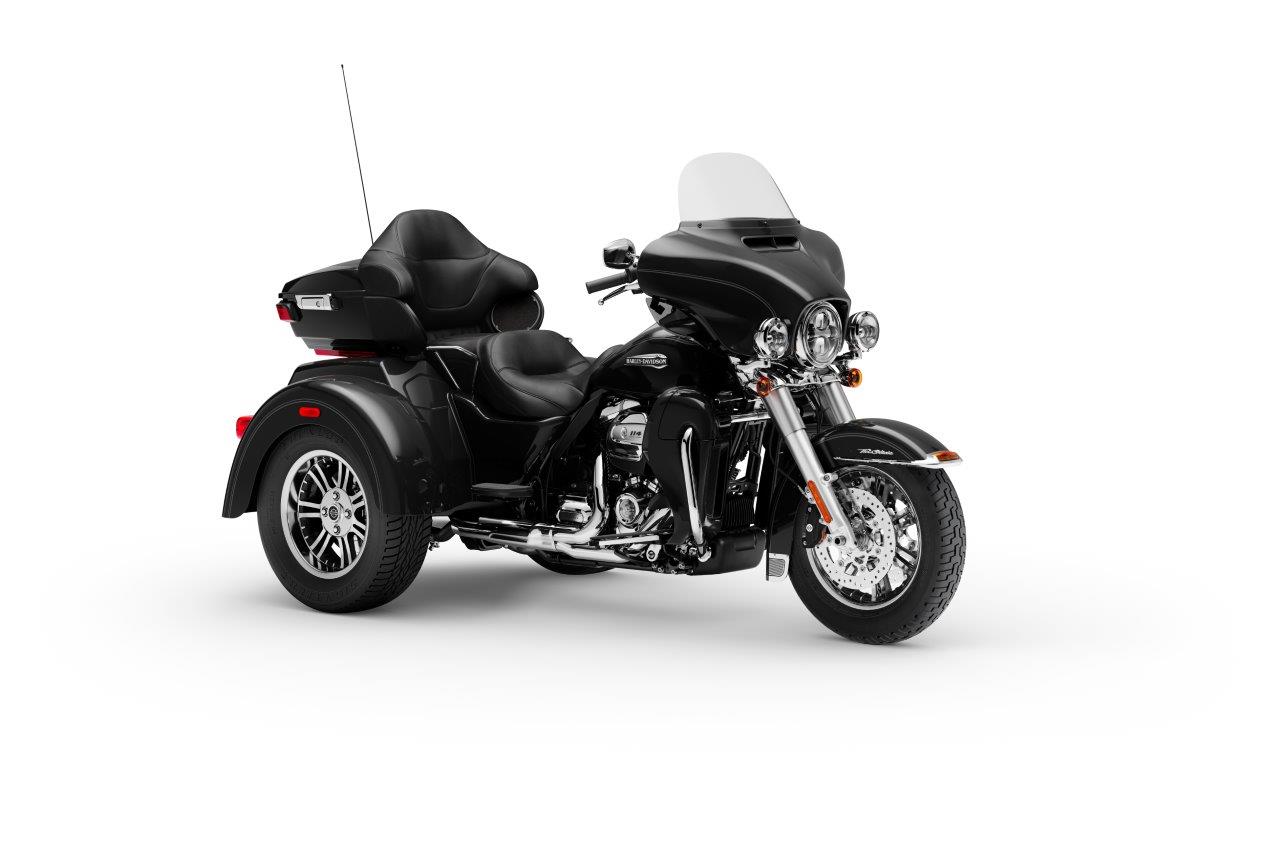

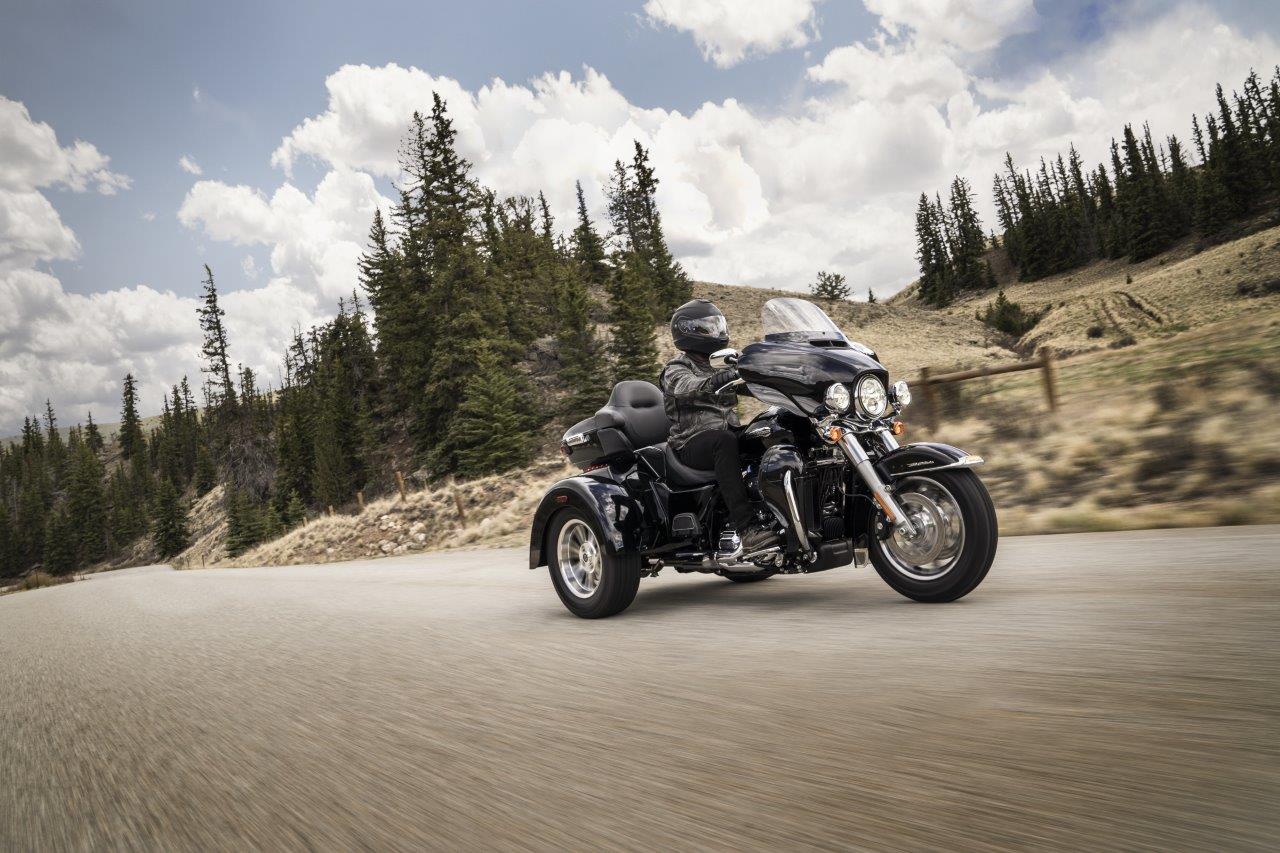

2020 Harley-Davidson Tri Glide Ultra Photos
