2020 Harley-Davidson Fat Bob 114

The 2020 Harley-Davidson Fat Bob 114 utilizes the Softail design to make a modern power cruiser unlike any other bike on the road. Its muscular styling goes against the name of the bike, but there’s a beautiful brutishness to the machine that isn’t found elsewhere in Harley’s lineup.

The Fat Bob 114 has the Milwaukee 114 engine that’s an air-cooled V-twin—in true Harley form—that has a displacement of 1,868cc. The engine is mated to a six-speed manual transmission and it makes 118 lb-ft of torque.

The Fat Bob 114 would look at home anywhere from your favorite bar to a zombie apocalypse. It’s a badass bike and that much power and style doesn’t come cheap. Harley has a price tag of $18,799.

The motorcycle is available in a few different colors: Vivid Black, Barracuda Silver, Black Denim, Performance Orange, and River Rock Gray Denim, and Stiletto Red.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Fat Bob 114 in one place.

2020 Harley-Davidson Fat Bob 114


Model Overview

General Info

  • Price: $ 18,799
  • Key Features:
    • Pull-Back Handlebars
    • Race-Style Fork Technology
    • LED Lighting

Key Specs

  • Engine type: 1,868cc, Milwaukee-Eight® 107
  • Torque: 118 ft-lb
  • Wet weight: 653 lbs
  • Seat height: 27.7 Inch

2020 Harley-Davidson Fat Bob 114


2020 Harley-Davidson Fat Bob 114 Specifications

From Harley-Davidson

ENGINE

Engine 1,868cc, Milwaukee-Eight® 107
Engine Torque 118 ft-lb
Bore x Stroke 4.016 in x 4.5 in
Compression Ratio  10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Lubrication

DRIVETRAIN

Clutch
Transmission 6-speed
Final Drive Chain, 34/46 ratio

CHASSIS

Suspension Front Denim black, Structure cast aluminum with laser etched graphics
Suspension Rear Denim black, Structure cast aluminum with laser etched graphics
Brakes Front 4-piston fixed front
Brakes Rear 2-piston floating rear
Tires Front 150/80-16,71H
Tires Rear 180/70B16,77H,BW
Fuel Tank Capacity 13.62 L (3.6 US gal.)
Color Vivid Black, Barracuda Silver, Black Denim, Performance Orange, and River Rock Gray Denim, and Stiletto Red

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length 92.1 in (2,340 mm)
Overall Width
Overall Height
Wheelbase 63.6 in (1,615mm)
Ground Clearance 4.7 in (120 mm)
Seat Height 27.7 in (705 mm)
Curb Weight 653 lbs (296 kg)

WARRANTY

Warranty
Extension

2020 Harley-Davidson Fat Bob 114


2020 Harley-Davidson Fat Bob 114 Features

Inverted Forks

Inverted front forks deliver precise handling.

Dual Disc Front Brakes

The Milwaukee-Eight® engine is not short on power. And these high-performance dual disc brakes help you keep that power in check when you need to.

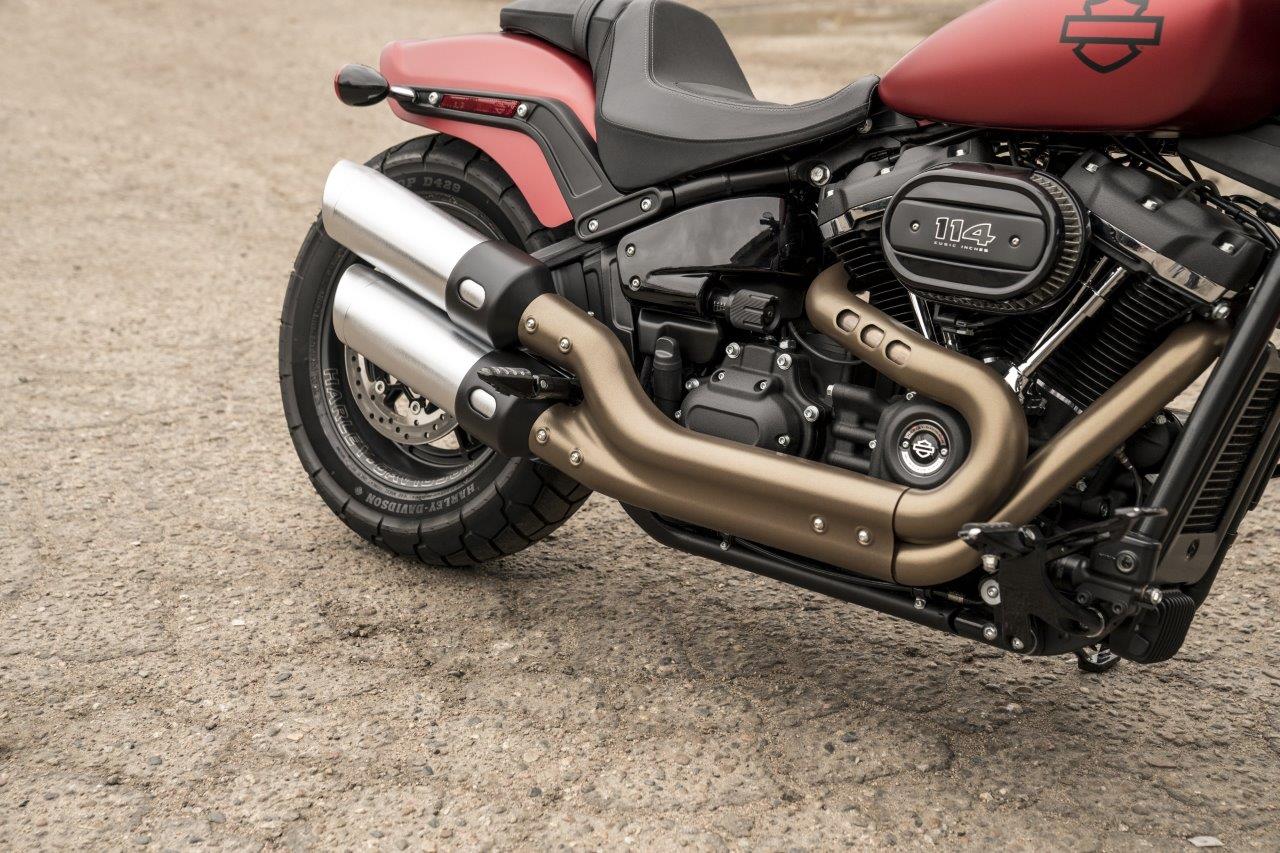

2-1-2 Exhaust

Big performance-inspired, upswept exhaust with a custom contrast finish.



Cast Wheels with Fat Tires

Bold aluminum wheels with fat, aggressive tires that give you asphalt-eating traction.

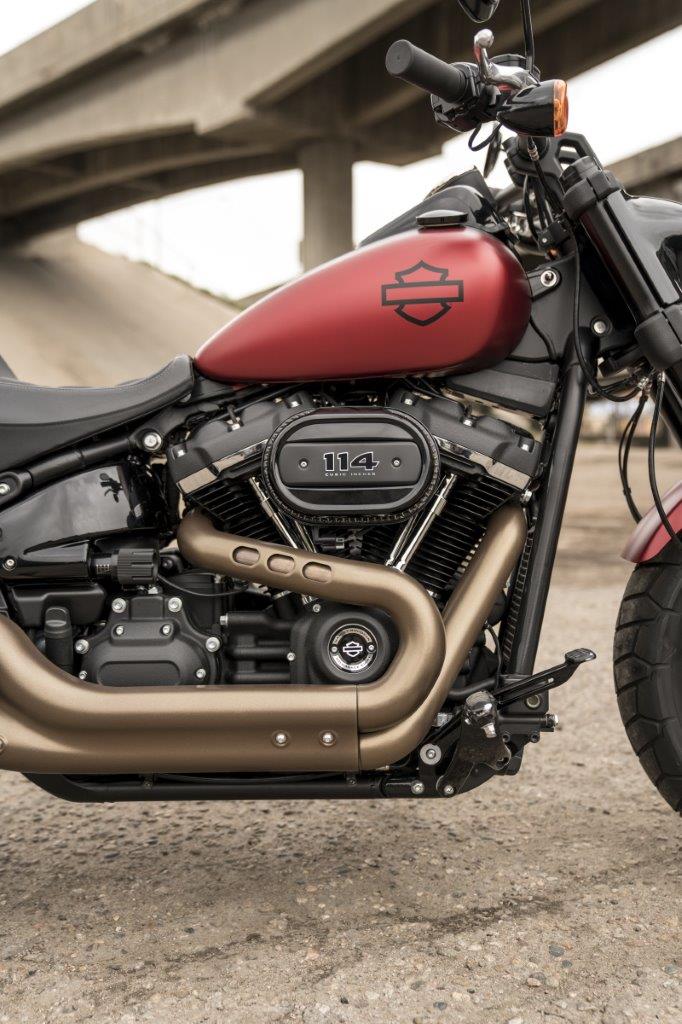

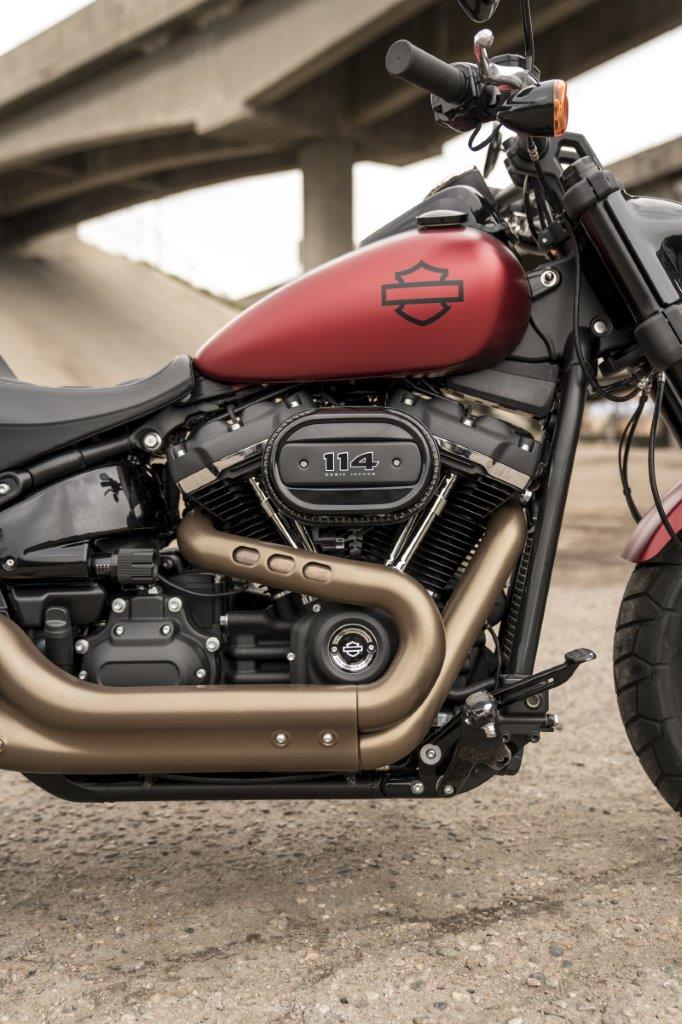

Milwaukee-Eight® Big Twin Engine

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.

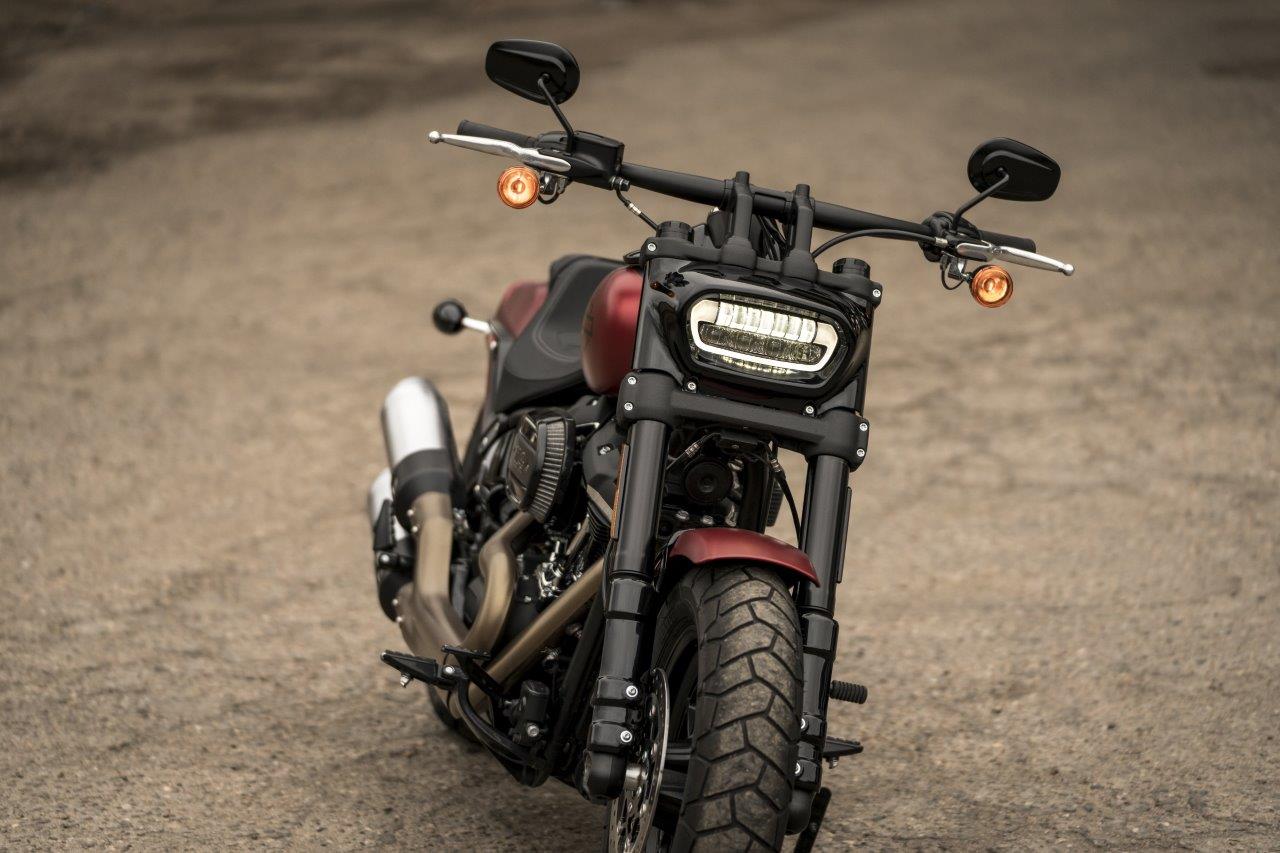

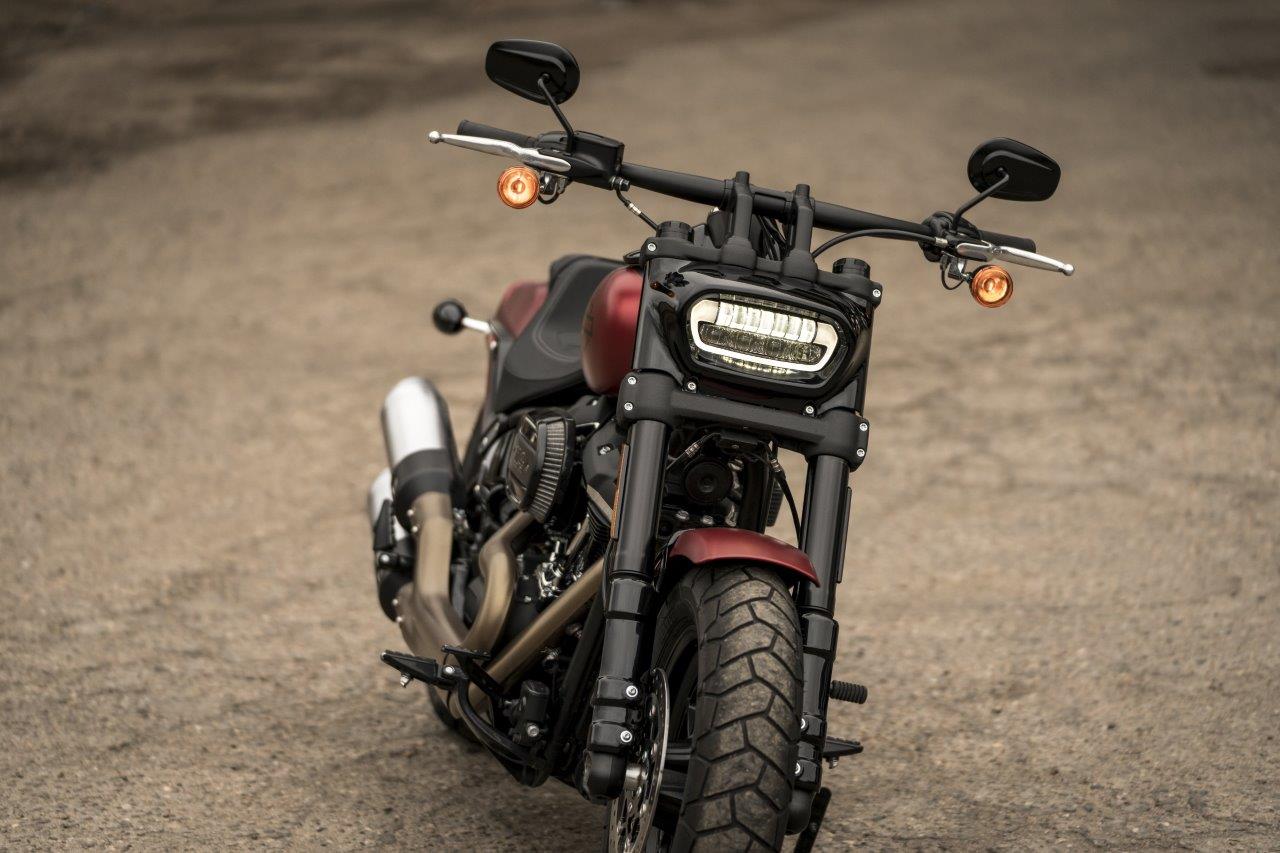

LED Lighting

A bold headlight design that gives you great visibility at night and during the day makes sure all eyes are focused on you.

Race-Style Fork Technology

Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.

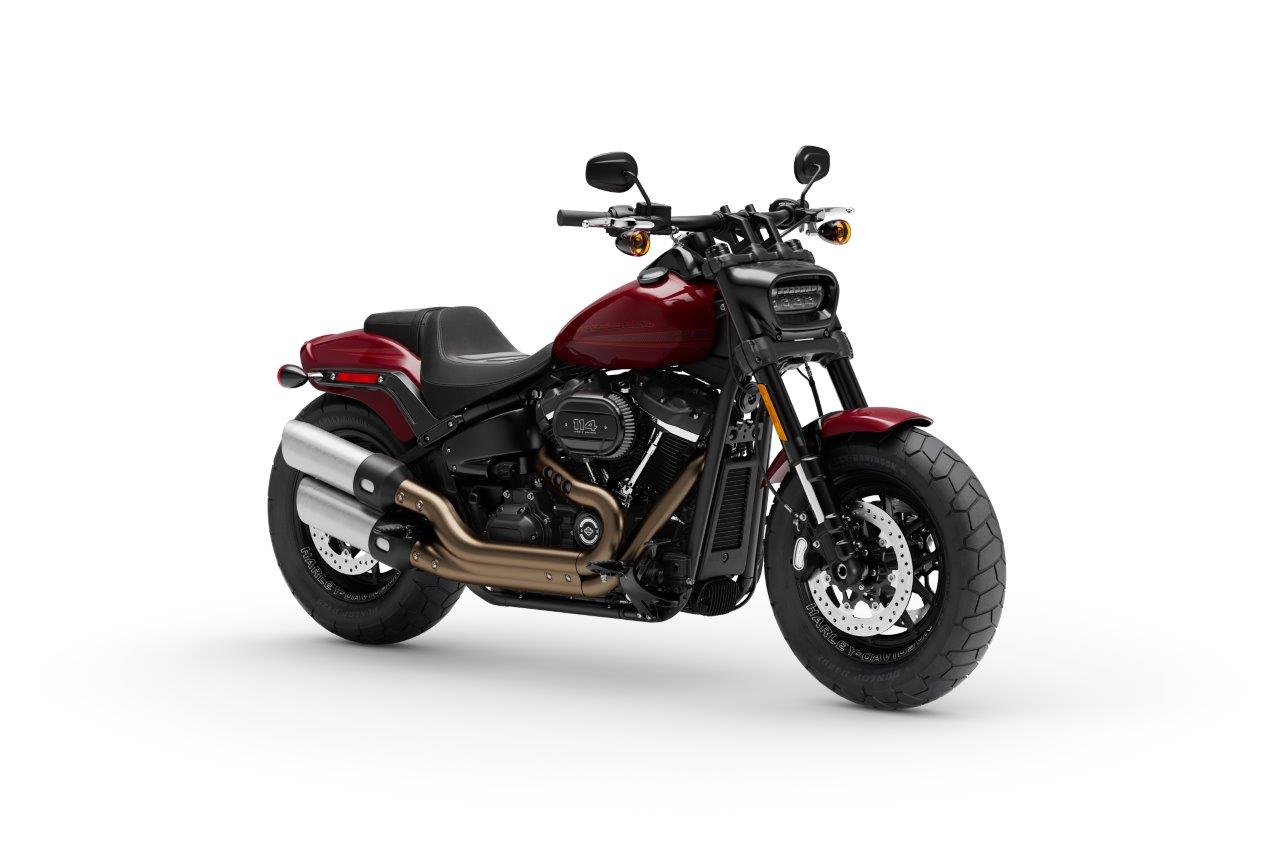

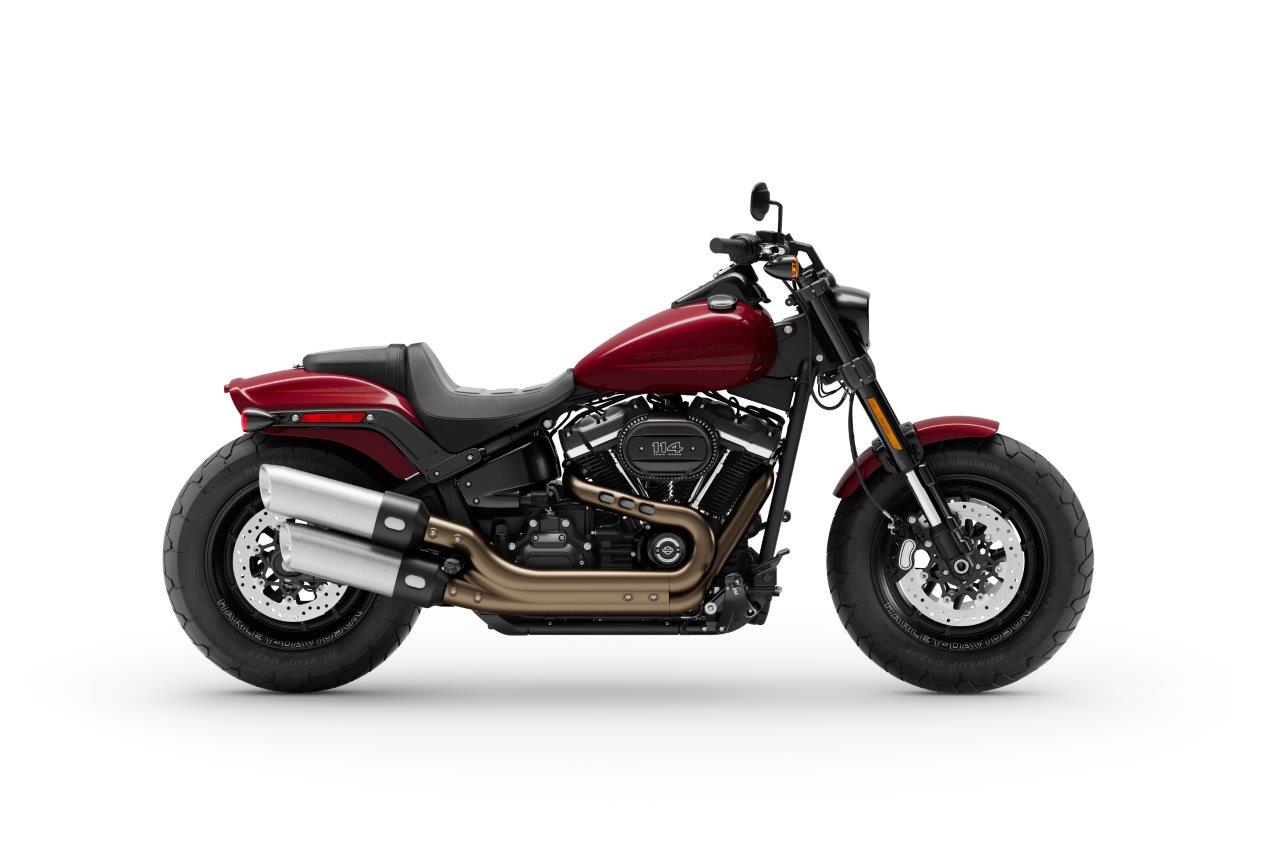

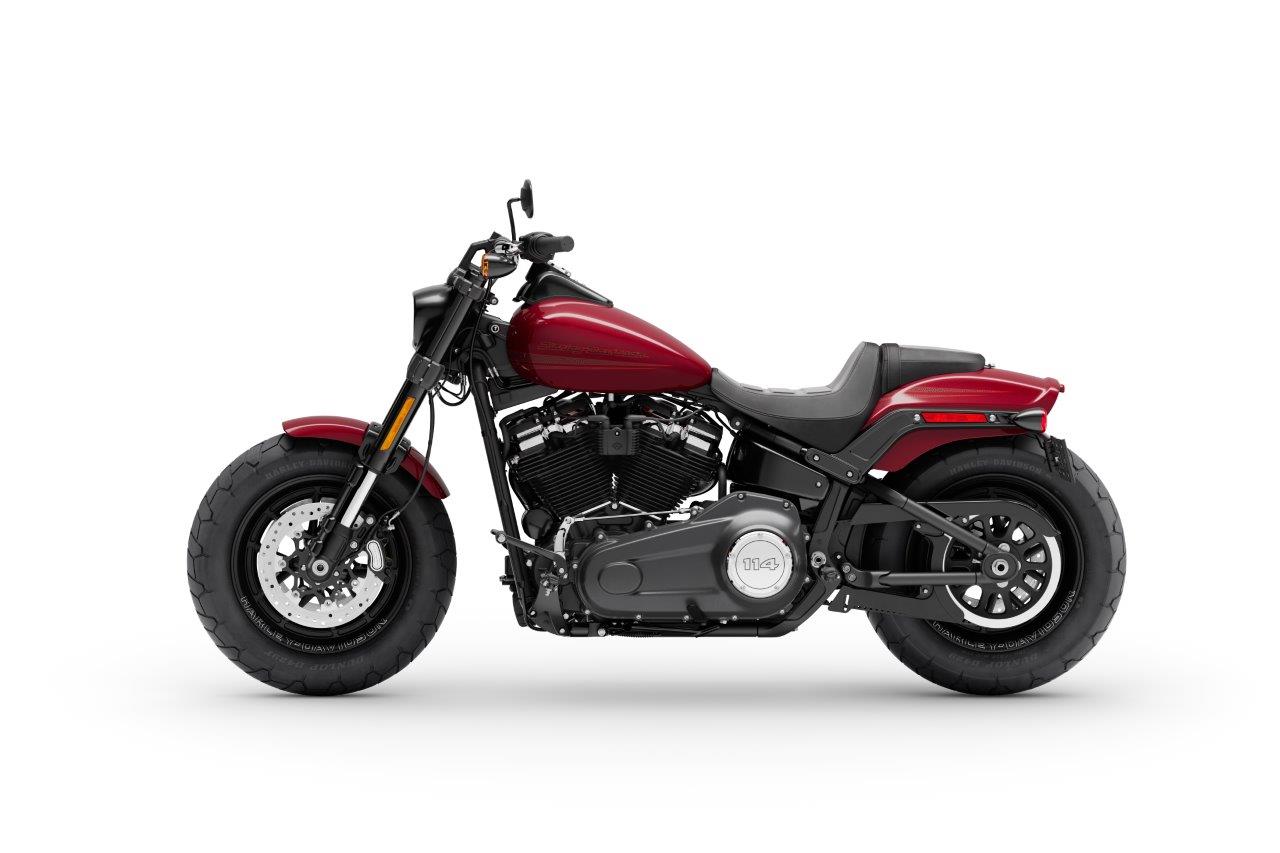

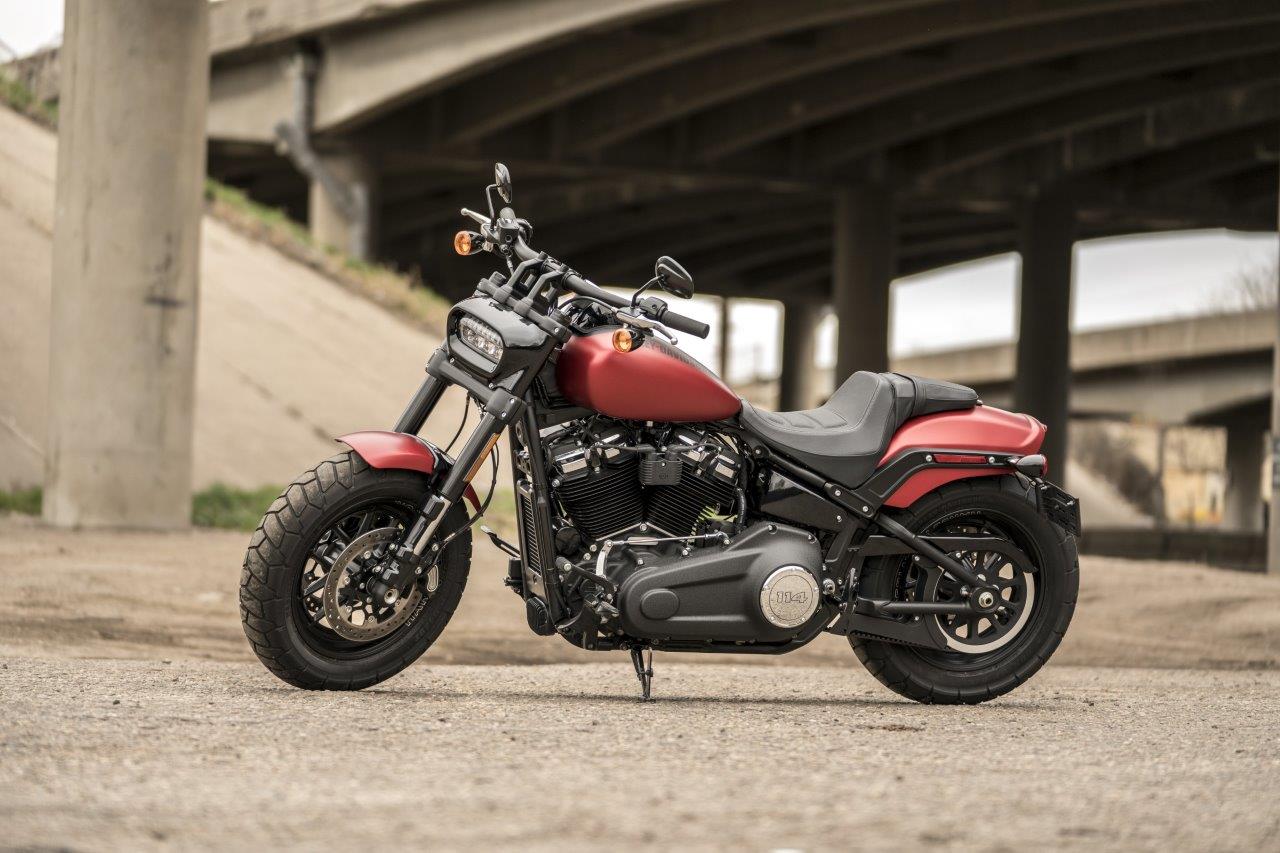

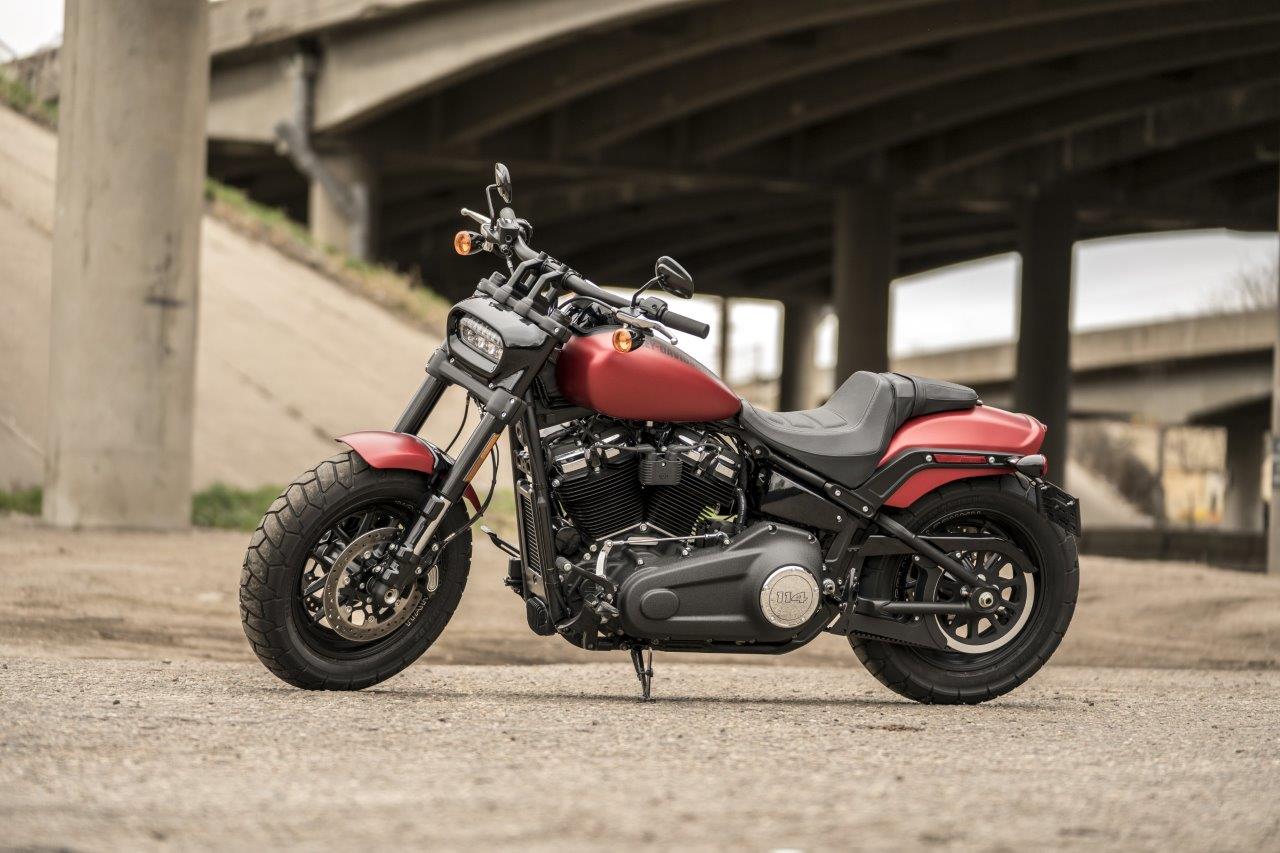

2020 Harley-Davidson Fat Bob 114 Photos


2020 Harley-Davidson Fat Bob 114 Videos
