Honda Elite 150 (CH150D) scooter

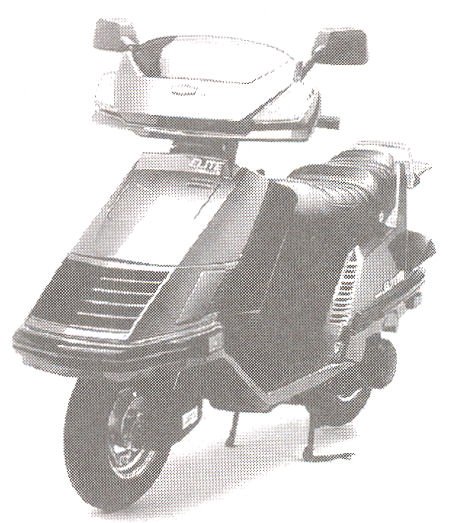

1985 Elite 150 Deluxe (CH150D)

Engine
Engine Type	Liquid-cooled, SOHC, Four-stroke
Displacement	152.7cc
Bore & Stroke	58 x 57.8mm
Compression Ratio	10:1
Fuel Delivery	22mm, CV type
Ignition	CDI
Starting system	Electric
DRIVETRAIN
Transmission	Variable Ratio, V-MaticTM
Clutch	Centrifugal, Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Trailing-link type
Rear Suspension	Twin hydraulic shocks
Brakes	Drum (front and rear)
Tire	3.50-10 (front and rear)
DIMENSION
Dry weight	105 kg (231.4 lb)
Overall length	1940mm (76.4 in.)
Overall width	655mm (25.8 in.)
Seat height	760mm (29.9 in.)
Fuel capacity	8.3 liters (2.2 US gal) (1.8 Imp. gal)
OTHER
Colors	Pleiades Silver Metallic Candy Ruby Red
V.I.N	JH2KF012_FK000001
Engine	KF01E-5000001
Wheelbase	1200mm (47.2 in.)

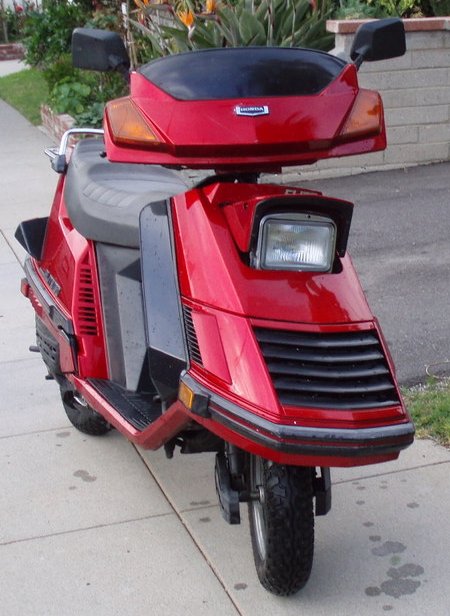

1986 Elite 150 Deluxe (CH150D)



Engine
Engine Type	Liquid-cooled, SOHC, Four-stroke
Displacement	152.7cc
Bore & Stroke	58 x 57.8mm
Compression Ratio	10:1
Fuel Delivery	22mm, CV type
Ignition	CDI
Starting system	Electric
DRIVETRAIN
Transmission	Variable Ratio, V-MaticTM
Clutch	Centrifugal, Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Trailing-link type
Rear Suspension	Twin hydraulic shocks
Brakes	Drum (front and rear)
Tire	3.50-10 (front and rear)
DIMENSION
Dry weight	105 kg (231.4 lb)
Overall length	1940mm (76.4 in.)
Overall width	655mm (25.8 in.)
Seat height	760mm (29.9 in.)
Fuel capacity	8.3 liters (2.2 US gal) (1.8 Imp. gal)
OTHER
Colors	Pleiades Silver Metallic Candy Ruby Red
V.I.N	JH2KF012_FK000001
Engine	KF01E-5000001

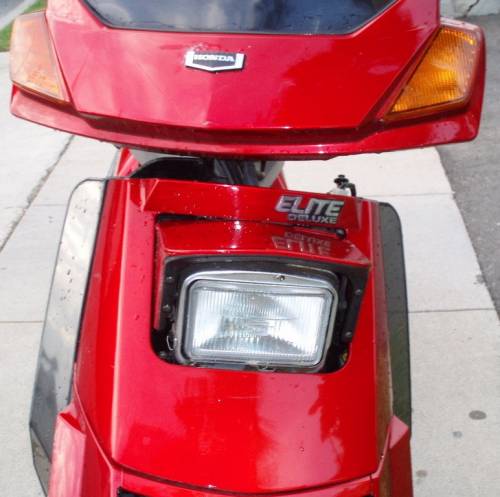

• Pop-up headlight on front body cowling
• LC digital speedometer

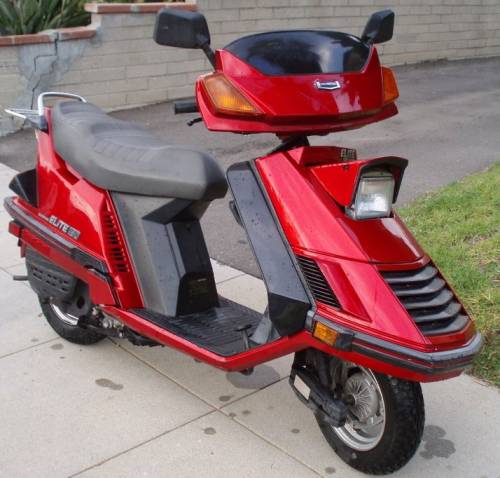

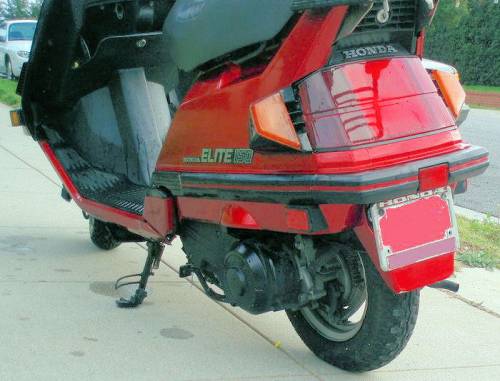

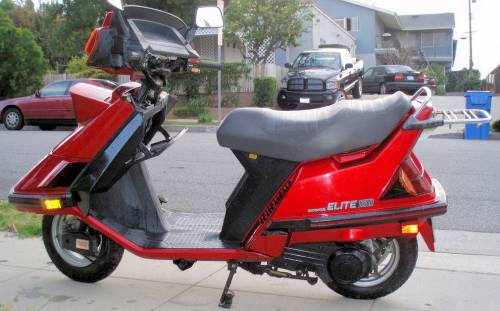

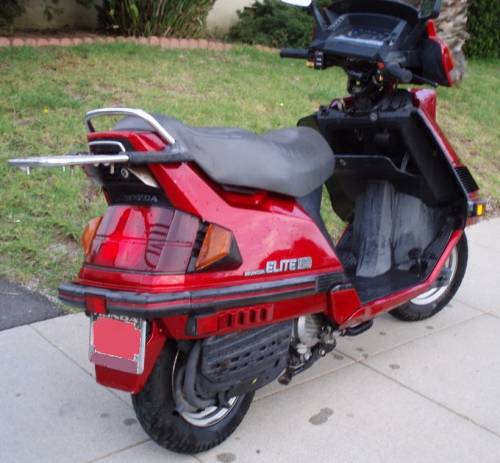

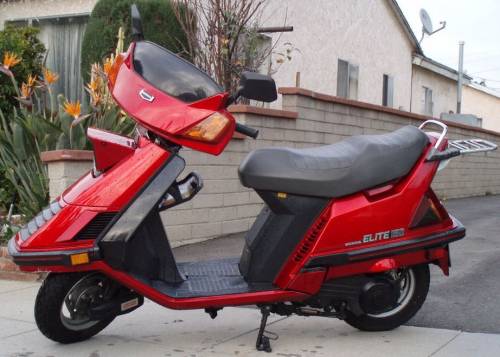

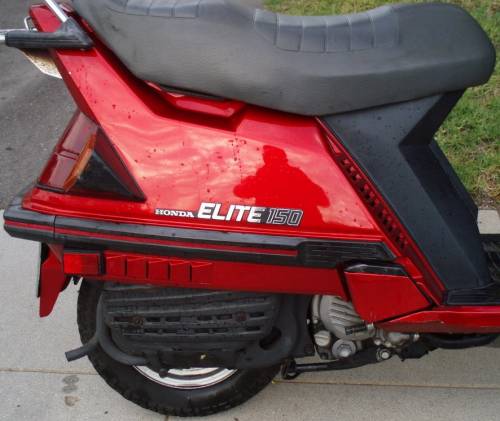

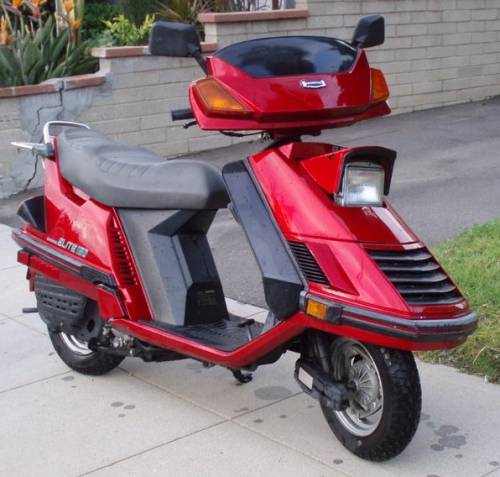

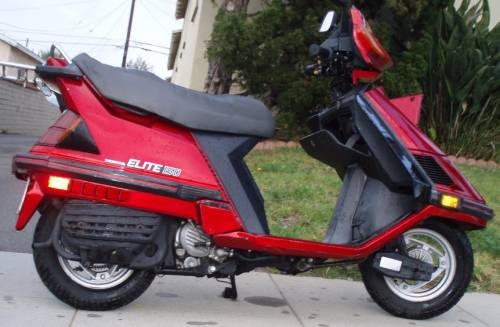

CH150D Image Gallery
