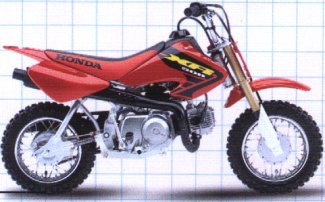

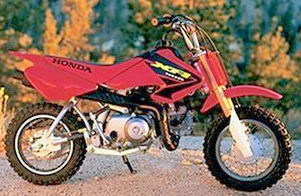

2002 XR50R
Engine |
|
| Engine Type | Air cooled, single cylinder four stroke |
| Displacement | Air cooled, single cylinder four stroke |
| Bore and Stroke | 39mm x 41.4mm |
| Compression Ratio | 10.0:1 |
| Plug gap | .028 |
| Valve system | SOHC 2-valve |
| Fuel Delivery | Single, 13mm |
| Fuel System | Kick |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | 3-speed, auto clutch |
| Final Drive | #420 x 78 Chain |
| Front sprocket | 14 T |
| Rear sprocket | 37 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 22 mm fork, 96 mm travel |
| Rear Suspension | Single shock 70mm travel |
| Front Brakes | Mechanical drum |
| Rear Brakes | Mechanical drum |
| Front Tire | 2.50-10 |
| Rear Tire | 2.50-10 |
DIMENSION |
|
| Wheelbase | 915mm (36.0 in.) |
| Seat Height | 550mm (21.7 in.) |
| Dry Weight | 47 kg (104 lb) |
| Fuel Capacity | 3.0 liters |
OTHER |
|
| Colors | Red |

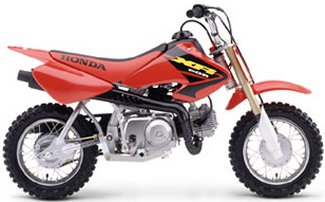

2003 Honda XR50’03
Engine |
|
| Engine Type | 49cc air-cooled single-cylinder four-stroke |
| Displacement | Air cooled, single cylinder four stroke |
| Bore and Stroke | 39.0 x 41.4 mm |
| Compression Ratio | 10.0:1 |
| Spark plug | CR6HSA |
| Plug gap | .028 |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | 3-speed, auto clutch |
| Final Drive | #420 x 78 Chain |
| Front sprocket | 14 T |
| Rear sprocket | 37 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Inverted telescopic fork; 97mm (3.8 in.) travel |
| Rear Suspension | Single hydraulic shock; 71mm (2.8 in.) travel |
| Front Tire | 2.50-10 |
| Rear Tire | 2.50-10 |
DIMENSION |
|
| Wheelbase | 914mm (36.0 in.) |
| Seat Height | 551mm (21.7 in.) |
| Dry Weight | 47 kg (104 lb) |
| Fuel Capacity | 3.0 liters (including 0.75 liters reserve) |
OTHER |
|
| Colors | Red |
