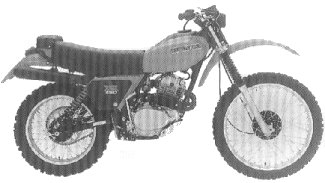

1979 XR250’79
Engine |
|
| Engine Type | 249cc OHC 4-valve single cylinder with 2 head pipes |
| Spark plug | D8EA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Chain | #520 x 102 |
| Front sprocket | 13 T |
| Rear sprocket | 53 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front wheel | 23″ |
| Rear wheel | 18″ |
DIMENSION |
N/A |
OTHER |
|
| Color | Tahitian Red |
- The “HONDA” tank decal was red
- The top of the tank, side cover panel, and headlight cowl were black
- The “XR250” side cover logo was red and white
- The serial number began ME01-5000032.

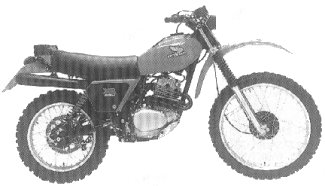

1980 XR250’80
Engine |
|
| Engine Type | 4 stroke, single cylinder, liquid cooled, with oil radiator |
| Displacement | 249cc |
| Bore & Stroke | 73mm x 59.5mm |
| Compression Ratio | 9.3:1 |
| Lubrication system | forced oil pump wet sump |
| Carburetor | constant velocity vacuum piston valve |
| Ignition | CDI |
| Starter | Electric |
| Maximum horsepower | 23 hp @ 7,500 rpm |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Clutch | Multi-disc in oil bath |
| Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | telescopic Bracket, 245 mm of travel |
| Rear Suspension | Pro-Link, 242 mm of travel |
| Front Brake | hydraulic Disk |
| Rear Brake | mechanical Drum |
| Spokes | Wire |
| Front Tire | 90/90-21 54S |
| Rear Tire | 120/80-18 62S |
DIMENSION |
|
| Dry weight | 134 kg |
| Overall length | 2,147 mm |
| Width | 845 mm |
| Height | 1,198 mm |
| Fuel capacity | 11.5 liters (3.7 liters reserve) |
| Wheelbase | 1,427 mm |
| Seat height | 880 mm |
| Ground clearance | 281 mm |
OTHER |
|
| Color |
|
It was sold in Mexico and other countries.
