Honda XL75 Motorcycles

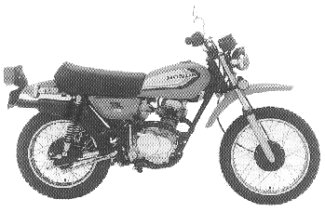

1977 Honda XL75’77

Engine
Engine Type	75cc OHC single cylinder
Spark plug	C7HSA
Plug gap	.028
Battery	6N4C-1B — 6 volt
DRIVETRAIN
Drive chain	4-speed with manual clutch
Chain	#420 x 94
Front sprocket	14 T
ear sprocket	36 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Tahitian Red

• Fuel tank stripe was yellow
• The “HONDA” decal on the tank was also yellow
• The “XL75” decal on the side covers was black outlined in yellow
• The frame and headlight shell were red
• The wheel hubs were silver
• Serial number began: XL75-1000005

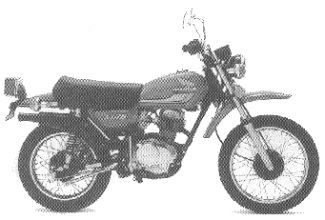

1978 Honda XL75’78

Engine
Engine Type	75cc OHC single cylinder
Spark plug	C7HSA
Plug gap	.028
Battery	6N4C-1B — 6 volt
DRIVETRAIN
Drive chain	4-speed with manual clutch
Chain	#420 x 94
Front sprocket	14 T
ear sprocket	36 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Tahitian Red

• Fuel tank stripe was orange and yellow
• “XL75” decal on the side covers was yellow and white
• Frame and headlight shell were black
• Wheel hubs were black
• Serial number began XL75-1100005

1979 Honda XL75’79

Engine
Engine Type	75cc OHC single cylinder
Spark plug	C7HSA
Plug gap	.028
Battery	6N4C-1B — 6 volt
DRIVETRAIN
Drive chain	4-speed with manual clutch
Chain	#420 x 94
Front sprocket	14 T
ear sprocket	36 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Tahitian Red

• Fuel tank stripe was black, silver, and yellow
• “HONDA” decal was black
• The “XL75” decal on the side covers was black and white
• Frame and headlight shell were black
• Wheel hubs were black
• Serial number began: XL75-1100005.

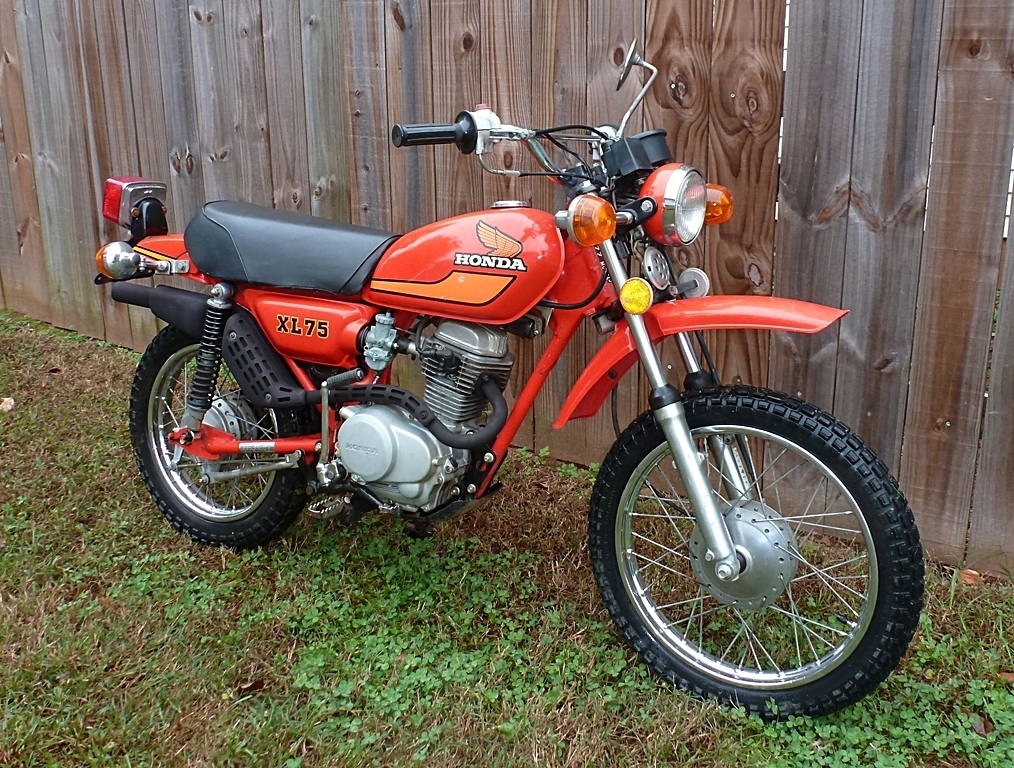

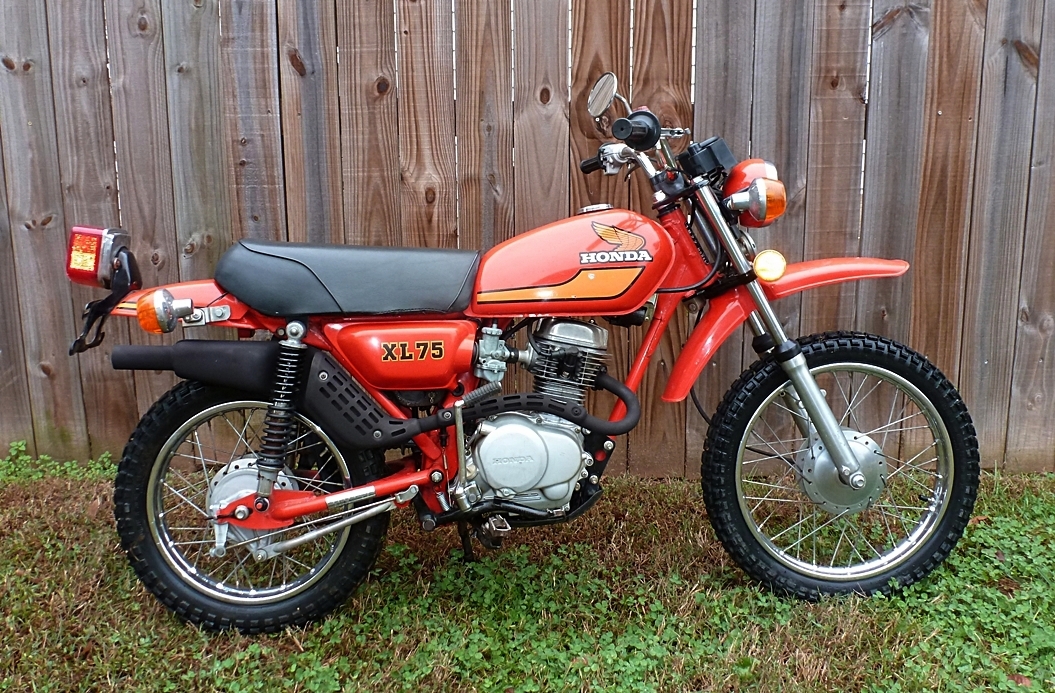

XL75 Image Gallery
