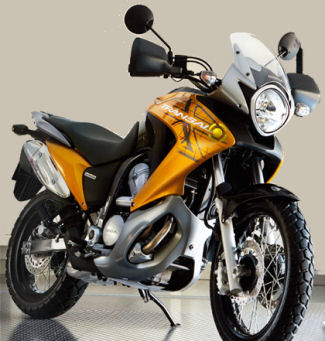

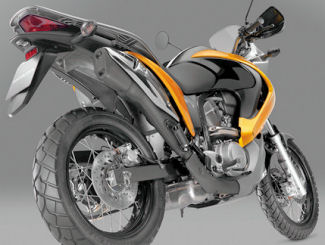

2008 Transalp XL700V
OVERVIEW
- Wide-coverage handlebarmounted knuckleguards
- New aggressive, more compact Adventure Sports bodywork design
- Slimmer, more contoured seat for easier reach to ground
- New sleekly designed resin rear carrier integrates pillion hand grips
- New 130/80-17 radial rear Tire mounted on lightweight black-anodised aluminium wheel rims
- New catalyser chamber located below swingarm pivot for low centre-of-gravity
- New 680cc liquid-cooled, fuel-injected 8-valve V-twin engine delivers smooth, strong performance
- New Combined-ABS version with 3-piston calipers
- New smaller 19″ front Tire mountedon lightweight black-anodised wire-spoke wheels
- New, more compact front cowl with over/under dual headlight
- New, more compact and stylish instrument panel
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve SOHC 52° Vtwin |
| Displacement | 680.2cc |
| Max power | 44.1kW / 7,750min-1 (95/1/EC) |
| Max torque | 60Nm / 5,500min-1 (95/1/EC) |
DRIVETRAIN |
|
| Clutch | Mechanical; cable-actuated, Wet, Wet, multiplate with coil springs |
CHASSIS / SUSPENSION / BRAKES |
|
| Long-travel |
|
| Front Tire | 100/90 R19M/C (57H) |
| Rear Tire | 130/80 R17M/C (65H) |
DIMENSION |
|
| Curb weight | 218 kg (F: 105 kg; R: 113 kg) |
| Fuel Capacity | 17.5 litres (including 3-litre reserve) |
| Dimensions | 2,250 x 905 x 1,305mm |
OTHER |
2012 Transalp XL700V
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve SOHC 52° Vtwin |
| Engine Displacement | 680.2cc |
| Bore and Stroke | 81 X 66 mm |
| Compression Ratio | 10:1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Ignition | Digital transistorised with electronic advance |
| Max. Power Output | 44.1kW / 7,750min-1 (95/1/EC) |
| Max. Torque | 60Nm / 5,500min-1 (95/1/EC) |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | O-ring sealed chain |
| Front Wheels | Aluminium rim/wire spoke |
| Rear Wheels | Aluminium rim/Tangentially Located (TL) spoke |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm leading-axle telescopic fork,177 mm axle travel |
| Rear Suspension | Pro-Link with adjustable compression damping, 173 mm axle travel |
| Front Tire | 100/90 R19M/C (57H) |
| Rear Tire | 130/80 R17M/C (65H) |
| Front Brakes | 256 X 4 mm dual hydraulic disc with dual-piston Combined three-piston calipers, ABS and sintered metal pads |
| Rear Brakes | 240 X 6 mm hydraulic disc with Combined single-piston caliper, ABS and resin mould pads |
DIMENSION |
|
| Curb Weight | 218 kg (480 lb) [Front: 105 kg (231 lb); Rear: 113 kg (249 lb)] |
| Wheelbase | 1,515 mm (59.6 inches) |
| Fuel Capacity | 20 litres (5.3 Gal) |
| Overall Length | 2250mm (88.6 inches) |
| Overall Width | 905mm (35.6 inches) |
| Overall Height | 1305mm (51.4 inches) |
| Ground Clearance | 177 mm (7 inches) |
| Fuel Capacity | 17.5 Litres (4.6 Gal) [including 3-Litre (.8 Gal) reserve] |
OTHER |
