Honda XL70 Motorcycles

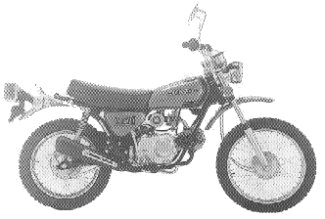

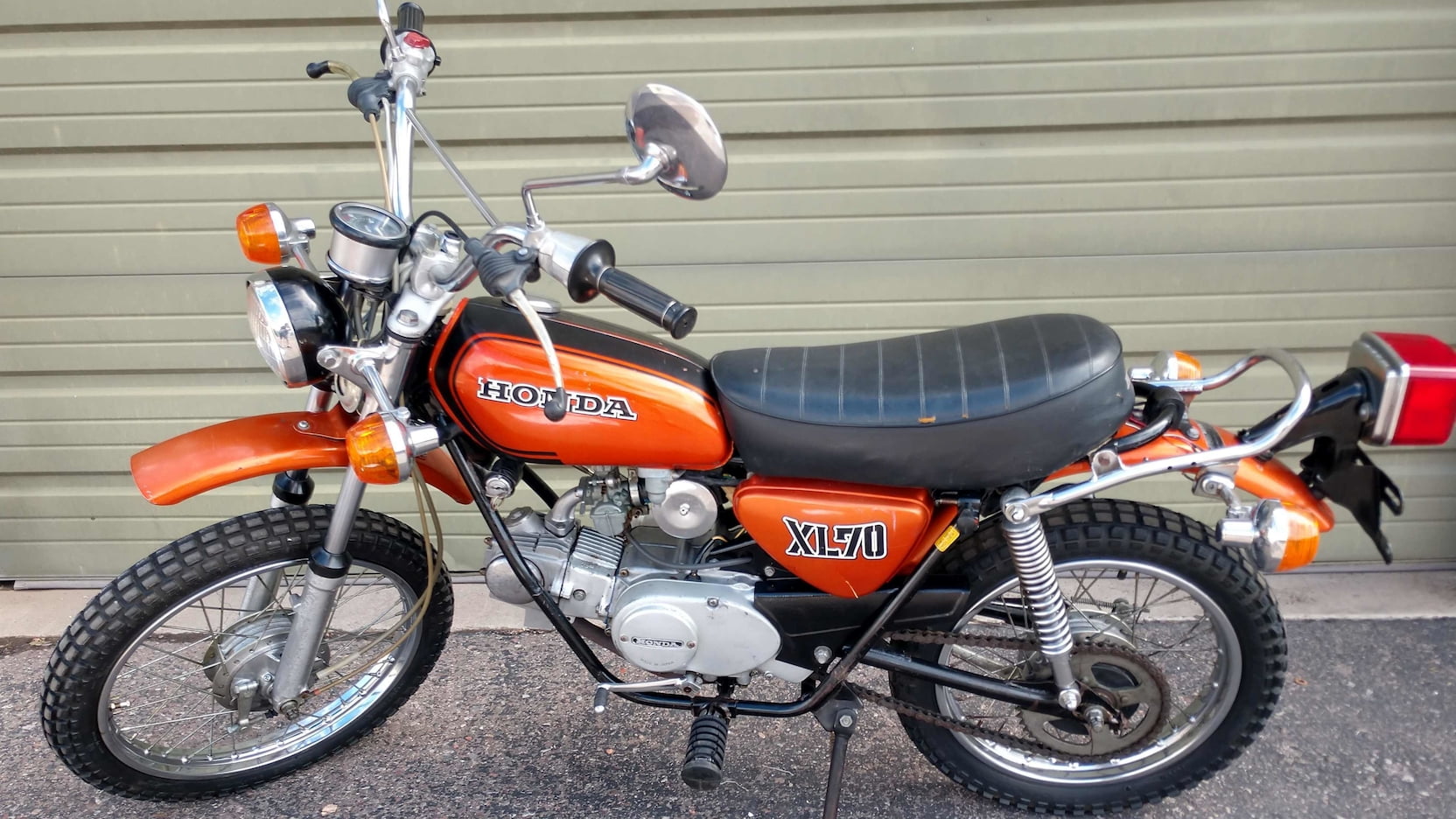

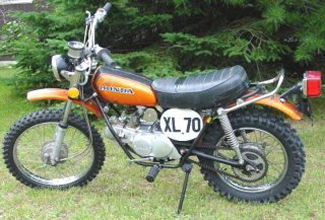

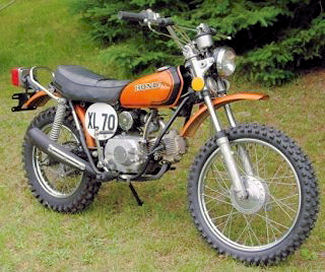

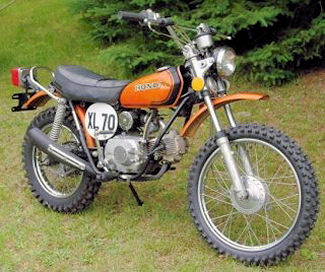

1974 Honda XL70K0

Engine
Engine Type	72cc OHC single cylinder
Spark plug	C7HSA
Plug gap	.028
Battery	6N4C-1B — 6 volt
DRIVETRAIN
Transmission	4-speed with manual clutch
Drive chain	#420 x 96
Front sprocket	13 T
Rear sprocket	44 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Candy Topaz Orange

• The “HONDA” and “XL70” decals were black
• Fuel tank stripes: black
• Shock springs: chrome
• Steel fenders: orange
• The serial number began: XL70-1000001

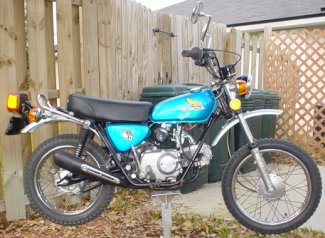

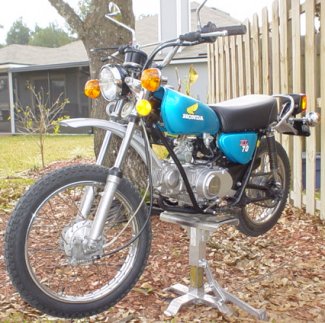

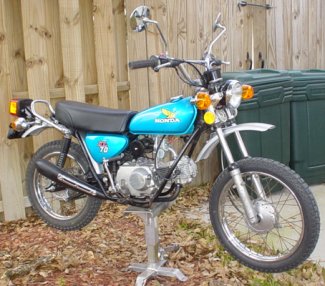

1975 Honda XL70K1

Engine
Engine Type	72cc OHC single cylinder
Spark plug	C7HSA
Plug gap	.028
Battery	6N4C-1B — 6 volt
DRIVETRAIN
Transmission	4-speed with manual clutch
Drive chain	#420 x 96
Front sprocket	13 T
Rear sprocket	44 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Candy Riviera Blue with Silver

• “XL70” logo was red and white
• The shock springs were black
• The steel fenders were silver
• Serial number began: XL70-1100003

1976 Honda XL70’76

Engine
Engine Type	72cc OHC single cylinder
Spark plug	C7HSA
Plug gap	.028
Battery	6N4C-1B — 6 volt
DRIVETRAIN
Transmission	4-speed with manual clutch
Drive chain	#420 x 96
Front sprocket	13 T
Rear sprocket	44 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Mighty Green with Special Silver Metallic

• The “XL70” logo was yellow and white
• The steel fenders were silver
• The serial number began XL70-1200003

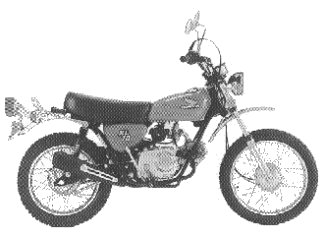

XL70 Image Gallery
