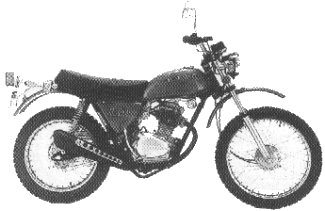

1974 XL100K0
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: just one color: Candy Topaz Orange
- The “HONDA” decal on the tank and the “XL100” decal on the side cover were both black
- The shock springs were chrome
- The seat was pleated
- The cylinder head was a one piece
- The serial number began XL100-1000001.

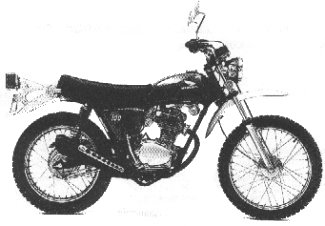

1975 XL100K1
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: one color: Candy Ruby Red with Special Silver Metallic
- The fenders were silver painted steel
- The seat was not pleated
- The shock springs were black
- The cylinder head was a one piece
- The serial number began XL100-1000001.

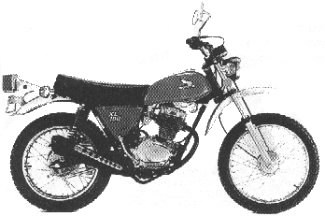

1976 XL100
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: just one color: Shiny Orange with Special Silver Metallic
- The fenders were silver painted steel
- The seat was not pleated
- The shock springs were black
- It had a 2-piece cylinder head
- The serial number began XL100-1200003.
1977 XL100
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: Tahitian Red
- The fenders were color-impregnated plastic
- The “XL100” side cover decal was black
- The wheel hubs were painted silver
- The handlebars were chrome
- The seat was not pleated
- The shock springs were black
- It had a 2-piece cylinder head
- The serial number began XL100-1300001.

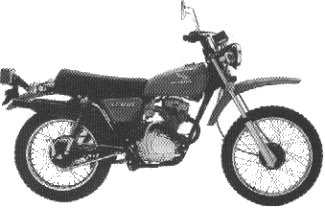

1978 XL100
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: one color: Tahitian Red
- The “XL100” decal on the side cover was yellow and white
- The wheel hubs were painted black
- The handlebars were black
- The seat was not pleated
- The shock springs were black
- It had a 2-piece cylinder head
- The serial number began XL100-1400001.
1979 XL100S
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Front wheel | 19 in. |
| Rear wheel | 17 in. |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: Tahitian Red
- The gas tank stripes and side cover stripes were yellow, gray, and black
- The shock springs and turn signal housings were chrome
- The serial number began HD01-5002640.
1980 XL100S
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Front wheel | 19 in. |
| Rear wheel | 17 in. |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: Helios Red
- The gas tank stripes and side cover stripes were orange, yellow, and white
- The “HONDA” tank decal was red outlined in white
- The shock springs and turn signal housing were black
- The handlebar levers were black
- The serial number began HD01-5100009.
1981 XL100S
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Front wheel | 19 in. |
| Rear wheel | 16 in. |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: one color: Monza Red with Black
- The frame color was also black
- The side cover panels were black
- The serial number began JH2HD050BK000011.
1982 XL100S
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Front wheel | 19 in. |
| Rear wheel | 16 in. |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: one color: Monza Red
- The gas tank had a black stripe on top
- The frame was red
- The “100S” logo on the side cover was white and red
- The side cover panels were black
- The serial number began JH2HD0500CK100003.
1983 XL100S
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Front wheel | 19 in. |
| Rear wheel | 16 in. |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- One color was available: Monza Red
- The “100S” side cover logo was white
- The seat was black with a white “XL” logo
- The side cover panels were black
- The serial number began JH2HD0501DK200001.

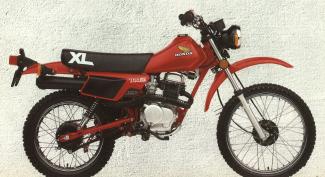

1984 XL100S
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Front wheel | 19 in. |
| Rear wheel | 16 in. |
CHASSIS / SUSPENSION / BRAKES |
|
| Rear Suspension | Twin, five-way adjustable rear shocks |
DIMENSION |
|
| Wheelbase | 1225mm (48.2 in.) |
| Dry weight | 81 kg (178.5 lb) |
| Seat height | 800mm (31.5 in.) |
OTHER |
- Color: one color: Monza Red
- The “100S” side cover logo was red and white
- The side cover panels were black
- The serial number began JH2HD0506EK300001.

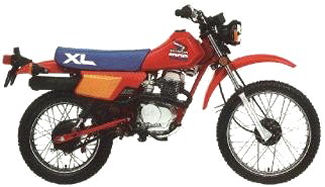

1985 XL100S
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 99cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Front wheel | 19 in. |
| Rear wheel | 16 in. |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: one color: Flash Red
- The gas tank wing decal was red, white, and blue
- The “100S” gas tank decal was white and blue
- The seat was blue with a white “XL” logo
- The side cover panel was yellow
- The serial number began JH2HD0500FK400001.
