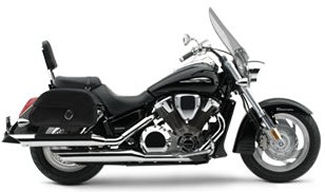

Honda VTX1800T Motorcycles

2007 VTX1800T

Engine
Engine Type	1795cc liquid-cooled 52-degree V-twin
Bore and Stroke	101mm x 112mm
Compression Ratio	9.0:1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	PGM-FI with automatic choke
Ignition	Digital, two spark plugs per cylinder
Drivetrain
Transmission	5-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	45mm inverted fork; 5.1 inches travel
Rear Suspension	Dual shocks with five-position spring-preload adjustability; 3.9 inches travel
Front Brakes	Dual 296mm discs with LBS three-piston calipers
Rear Brakes	Single 316mm disc with LBS twin-piston caliper
Front Tires	150/80R-17 radial
Rear Tires	180/70R-16 radial
DIMENSION
Rake	32.0 degrees
Trail	163mm (6.4 inches)
Wheelbase	67.5 inches
Seat Height	27.4 inches
Dry Weight	TBD pounds
Fuel Capacity	5.3 gallons
OTHER
Emissions	Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Colors	Black Dark Blue Metallic/Met. Silver Black/Red
Model ID	VTX1800T1

Overview	The VTX1800T is the perfect cruiser built for the perfect road trip, combining a massive 106-hp 1795cc V-twin with all the touring touches you could ever need — roomy saddlebags, big windscreen, cozy passenger backrest. Hear that? It’s the open road calling. Classic Retro Fender Style Classic-Style Seating Fully Equipped for Touring
Engine
Engine Type	1795cc liquid-cooled 52° V-twin
Bore and Stroke	101mm x 112mm
Compression Ratio	9.0: 1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	PGM-FI with automatic choke
Ignition	Digital, two spark plugs per cylinder
Drivetrain
Transmission	5-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	45mm inverted fork; 5.1 inches travel
Rear Suspension	Dual shocks with five-position spring preload adjustability; 3.9 inches travel
Front Brakes	Dual 296mm disc with LBS three-piston calipers
Rear Brakes	Single 316mm disc with LBS twin-piston caliper
Front Tires	150/80R-17 radial
Rear Tires	180/70R-16 radial
DIMENSION
Rake	(Caster Angle): 32.0°
Trail	163mm (6.4 inches)
Wheelbase	67.5 inches
Seat Height	27.4 inches
Curb Weight	800 pounds
Fuel Capacity	5.3 gallons
OTHER

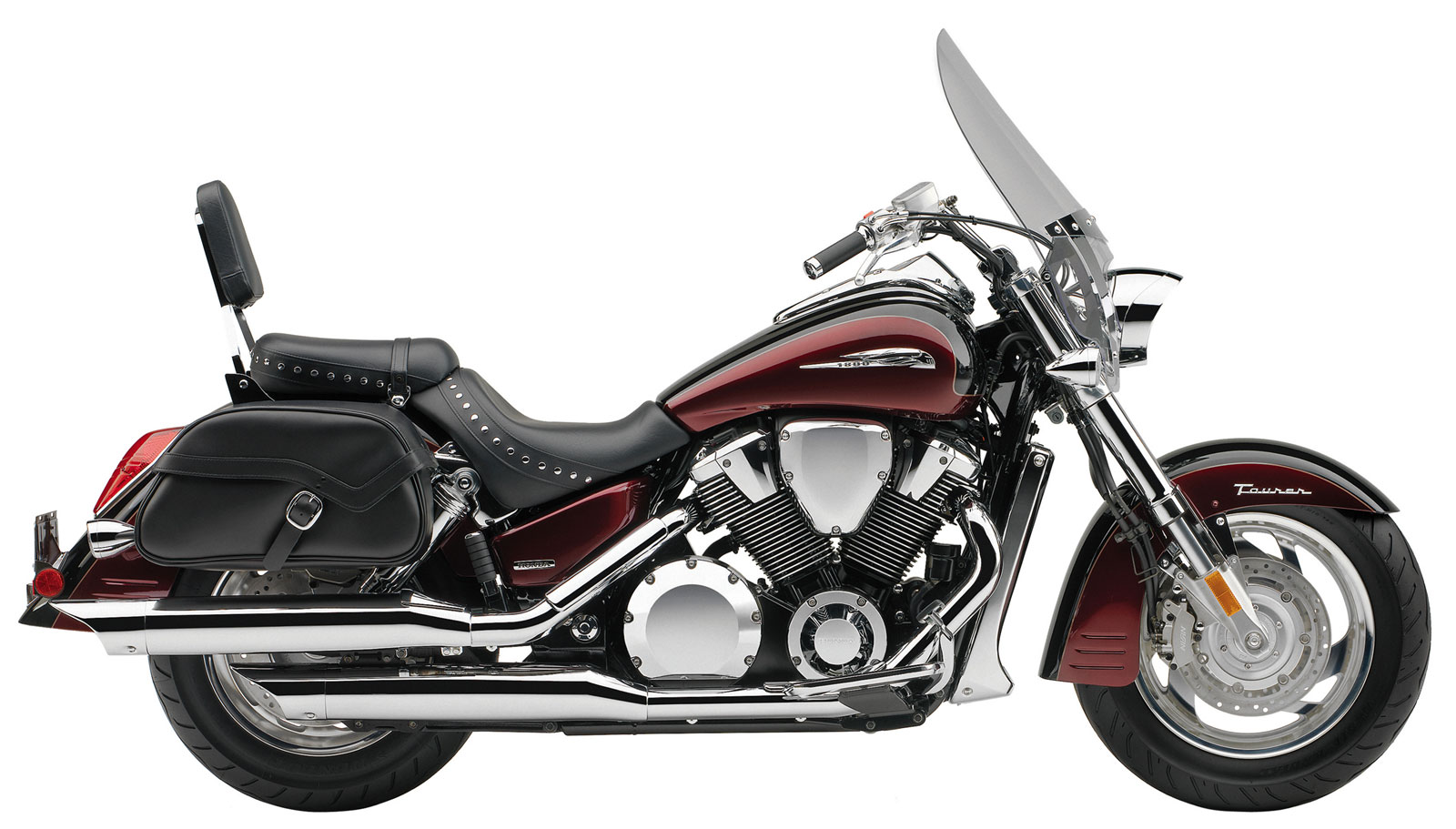

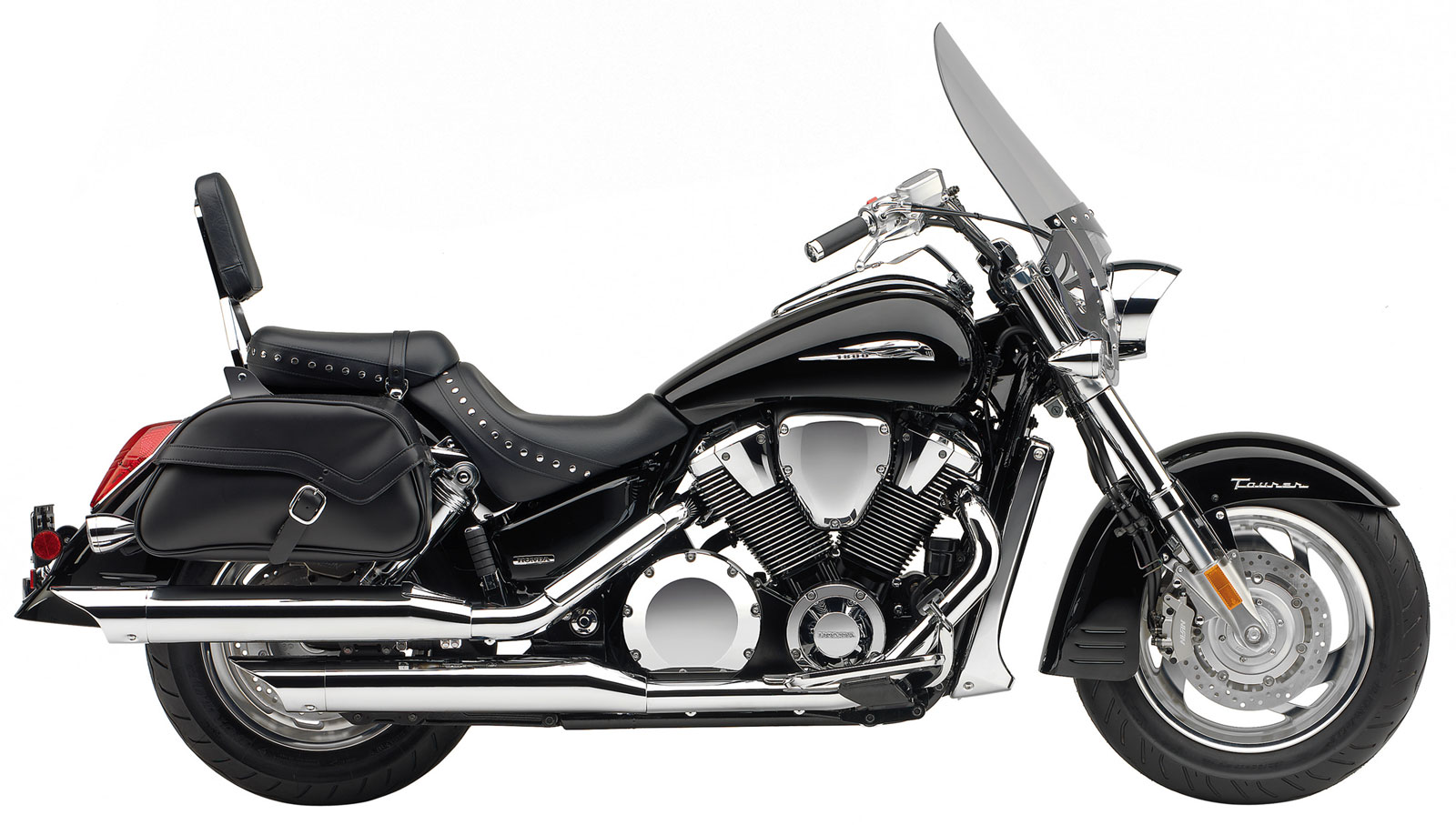

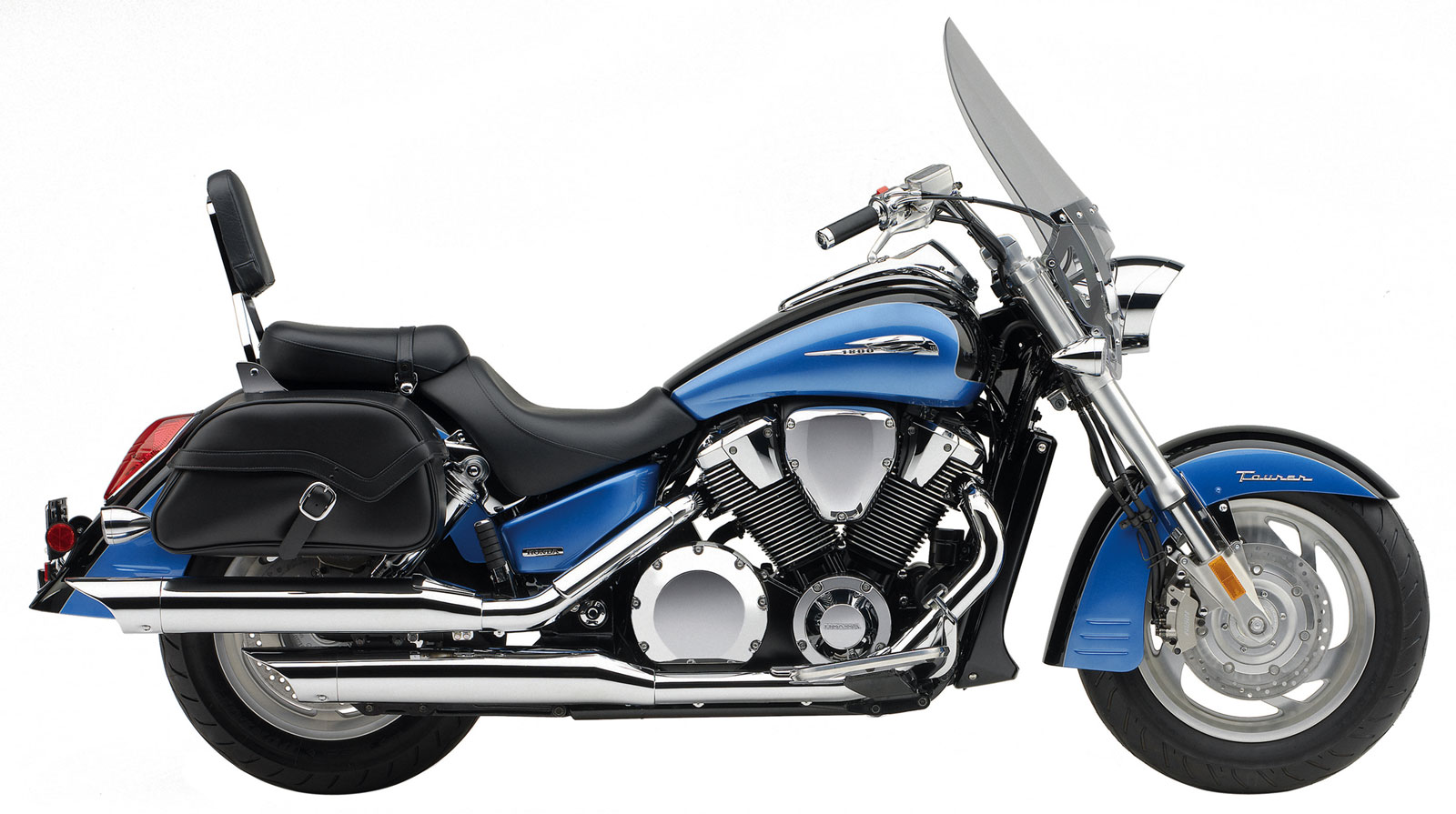

Colors and Warranty	Black Black/Candy Black Cherry Black/Metallic Blue Warranty One-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
