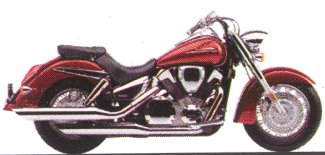

2003 VTX1300S
Engine |
|
| Engine Type | 1312cc liquid-cooled 52° V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC; three valves per cylinder |
| Fuel Delivery | Single 38mm CV |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 130mm travel |
| Rear Suspension | Dual shocks with five-position spring preload adjustability; 94mm travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
| Front Tires | 140/80R-17 |
| Rear Tires | 170/80R-15 |
DIMENSION |
|
| Wheelbase | 1669mm (65.7 in.) |
| Seat Height | 686mm (27.0 in.) |
| Dry Weight | 301 kg (661 lb) |
| Fuel Capacity | 18 liters (4.75 GalUS) |
OTHER |
|
| Colors |
|

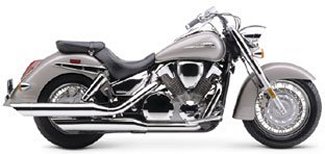

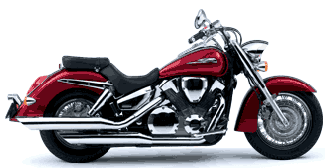

2004 VTX1300 Retro
Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin 4-stroke |
| Bore and Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC; three valves per cylinder |
| Fuel Delivery | 38mm CV |
| Max. Power Output | 74 bhp at 5000 rpm |
| Max. Torque | 123Nm at 3000 rpm |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
| Starter | Electric |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork; 5.1-inch (130mm) travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.7-inch (94mm) travel |
| Front Brakes | Single 336mm x 6mm hydraulic disc with twin-piston caliper and sintered metal pads |
| Rear Brakes | Single 296mm x 6mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Wheel | Steel rim/wire spoke |
| Rear Wheel | Steel rim/wire spoke |
| Front Tire | 140/80-17 |
| Rear Tires | 170/80-15 |
DIMENSION |
|
| Length x Width x Height | 2575 x 960 x 1125mm |
| Rake | 32.0 degrees |
| Trail | 144mm (5.7 inches) |
| Wheelbase | 65.7 inches (1669mm) |
| Seat Height | 27.0 inches (686mm) |
| Ground Clearance | 130mm |
| Dry Weight | 661.0 pounds (300kg) |
| Fuel Capacity | 4.8 gallons, including 1.0-gallon reserve (18 litres, including 3.7-litre reserve) |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Colors |
|
| Model ID | VTX1300S |
| Warranty | 1 year |
2005 VTX1300S
| Engine Type | 1312cc liquid-cooled 52-degree V-twin 4-stroke |
Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin 4-stroke |
| Bore and Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC; three valves per cylinder |
| Fuel Delivery | 38mm CV |
| Max. Power Output | 74 bhp at 5000 rpm |
| Max. Torque | 123Nm at 3000 rpm |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
| Starter | Electric |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork; 5.1-inch (130mm) travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.7-inch (94mm) travel |
| Front Brakes | Single 336mm x 6mm hydraulic disc with twin-piston caliper and sintered metal pads |
| Rear Brakes | Single 296mm x 6mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Wheel | Steel rim/wire spoke |
| Rear Wheel | Steel rim/wire spoke |
| Front Tire | 140/80-17 |
| Rear Tires | 170/80-15 |
DIMENSION |
|
| Rake | 32.0 degrees |
| Trail | 144mm (5.7 inches) |
| Wheelbase | 65.7 inches (1669mm) |
| Seat Height | 27.35 inches (686mm) |
| Ground Clearance | 130mm |
| Dry Weight | 669.0 pounds |
| Fuel Capacity | 4.8 gallons, including 1.0-gallon reserve |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Colors |
|
| Model ID | VT1300S |
| Warranty | 1 year |

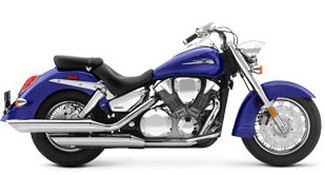

2006 VTX1300S
Overview: |
With style from a decade when cool meant cool, the VTX1300S boasts spoked wheels, deeply valanced front and rear fenders, a chrome-hooded headlight and a semi-sweptback handlebar. And with a big, wide seat, this cruiser is as comfortable as it is cool. |
| Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin 4-stroke |
| Bore and Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC; three valves per cylinder |
| Fuel Delivery | ingle 38mm CV |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork; 5.1-inch (130mm) travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.7-inch (94mm) travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Front Tire | 140/80-17 |
| Rear Tires | 170/80-15 |
DIMENSION |
|
| Rake | 32.0 degrees |
| Trail | 144mm (5.7 inches) |
| Wheelbase | 65.7 inches (1669mm) |
| Seat Height | 27.35 inches (686mm) |
| Dry Weight | 662.0 pounds |
| Fuel Capacity | 4.8 gallons, including 1.0-gallon reserve |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Colors |
|
| Model ID | VT1300S |

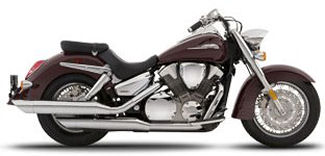

2007 VTX1300S
Front Tire140/80-17
Overview: |
With its beautiful spoked wheels, deeply valanced fenders, chrome-hooded headlight and semi-sweptback handlebar, the VTX1300S ups the ante when it comes to classic retro cool. Add a quartet of eye-catching colors, and you’ll quickly realize this brilliant 1312cc V-twin is as mesmerizing to stare at as it is exhilarating to ride. |
Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin 4-stroke |
| Bore and Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC; three valves per cylinder |
| Fuel Delivery | ingle 38mm CV |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork; 5.1-inch (130mm) travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.7-inch (94mm) travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
| Front Tires | 140/80-17 |
| Rear Tires | 170/80-15 |
DIMENSION |
|
| Rake | 32.0 degrees |
| Trail | 144mm (5.7 inches) |
| Wheelbase | 65.7 inches (1669mm) |
| Seat Height | 27.35 inches (686mm) |
| Dry Weight | 662.0 pounds |
| Fuel Capacity | 4.8 gallons, including 1.0-gallon reserve |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Colors |
|
| Model ID | VTX1300S |

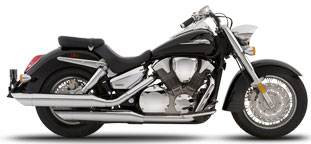

2008 VTX1300S
Engine |
|
| Engine Size | 1312cc |
| Engine Detail | liquid-cooled 52 degree V-twin |
| Bore Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Fuel System | Single 38mm CV |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm telescopic fork; 5.1-inch (130mm) travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.7-inch (94mm) travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
| Front Tires | 140/80-17 |
| Rear Tires | 170/80-15 |
DIMENSION |
|
| Wheelbase | 65.7 in. |
| Seat Height | 27.35 in. |
| Curb Weight | N/A lbs. |
| Fuel Capacity | 4.8 gal. |
OTHER |
|
| Colors |
|
| Warranty | 1 Year |
| Price | $9599 |
