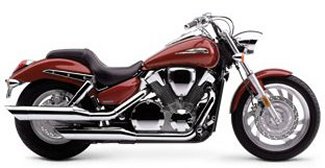

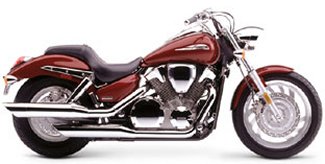

2004 VTX1300C
Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Valves | SOHC; three valves per cylinder |
| Displacement | 670cc |
| Compression Ratio | 9.2:1 |
| Fuel Delivery | Single 38mm CV |
| Ignition System | Solid-state digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 5.1-inch travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire | 110/90-19 M/C |
| Rear Tire | 170/80-15 M/C |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
DIMENSION |
|
| Wheelbase | 65.45 inche |
| Seat height | 27.0 inches |
| Fuel capacity | 4.8 gallons, including 1.0-gallon reserve |
| Dry weight | 641.0 pounds |
| Rake | 32.0 degrees |
| Trail | 149.0mm (5.9 inches) |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Color | Colors |
| Model ID | VTX1300C |
| Warranty | 1 year |
2005 VTX1300C
Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Valves | SOHC; three valves per cylinder |
| Compression Ratio | 9.2:1 |
| Fuel Delivery | Single 38mm CV |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 5.1-inch travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire | 110/90-19 M/C |
| Rear Tire | 170/80-15 M/C |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
DIMENSION |
|
| Wheelbase | 65.45 inche |
| Seat height | 27.0 inches |
| Fuel capacity | 4.8 gallons, including 1.0-gallon reserve |
| Dry weight | 641.0 pounds |
| Rake | 32.0 degrees |
| Trail | 149.0mm (5.9 inches) |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Color |
|
| Model ID | VTX1300C |
| Warranty | 1 year |

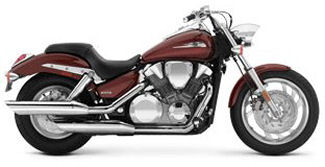

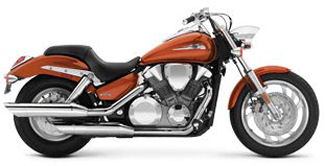

2006 VTX1300C
Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Valves | SOHC; three valves per cylinder |
| Compression Ratio | 9.2:1 |
| Fuel Delivery | Single 38mm CV |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 5.1-inch travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire | 110/90-19 M/C |
| Rear Tire | 170/80-15 M/C |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
DIMENSION |
|
| Wheelbase | 65.45 inche |
| Seat height | 27.0 inches |
| Fuel capacity | 4.8 gallons, including 1.0-gallon reserve |
| Dry weight | 641.0 pounds |
| Rake | 32.0 degrees |
| Trail | 149.0mm (5.9 inches) |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Color |
|
| Model ID | VTX1300C |
2007 VTX1300C
Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Valves | SOHC; three valves per cylinder |
| Compression Ratio | 9.2:1 |
| Fuel Delivery | Single 38mm CV |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 5.1-inch travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire | 110/90-19 M/C |
| Rear Tire | 170/80-15 M/C |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
DIMENSION |
|
| Wheelbase | 65.45 inches |
| Seat height | 27.46 inches |
| Fuel capacity | 4.8 gallons, including 1.0-gallon reserve |
| Dry weight | 641.0 pounds |
| Rake | 32.0 degrees |
| Trail | 149.0mm (5.9 inches) |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Color |
|
| Model ID | VTX1300C |

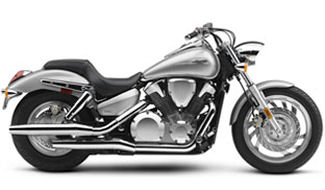

2008 VTX1300C
Overview:
- Think of the VTX1300C as the patriarch of the VTX1300 family. With its classic styling and clean lines, this bike is serious about its VTX heritage. Check out its new-for-2008 slash-cut dual pipes. Then let your gaze take in its beefy 1312cc V-twin and sleek shaft final drive. Custom cast wheels and meaty tires wrapped in bobbed fenders complete the picture of a machine that was meant to rule.
Engine |
|
| Engine Type | 1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Valves | SOHC; three valves per cylinder |
| Compression Ratio | 9.2:1 |
| Fuel Delivery | Single 38mm CV |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 5.1-inch travel |
| Rear Suspension | Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire | 110/90-19 M/C |
| Rear Tire | 170/80-15 M/C |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
DIMENSION |
|
| Wheelbase | 65.45 inches |
| Seat height | 27.46 inches |
| Fuel capacity | 4.8 gallons, including 1.0-gallon reserve |
| Curb weight | 678 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Rake | (Caster Angle): 32.0° |
| Trail | 149mm (5.9 inches) |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Color |
|
| Model ID | VTX1300C |
One year Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

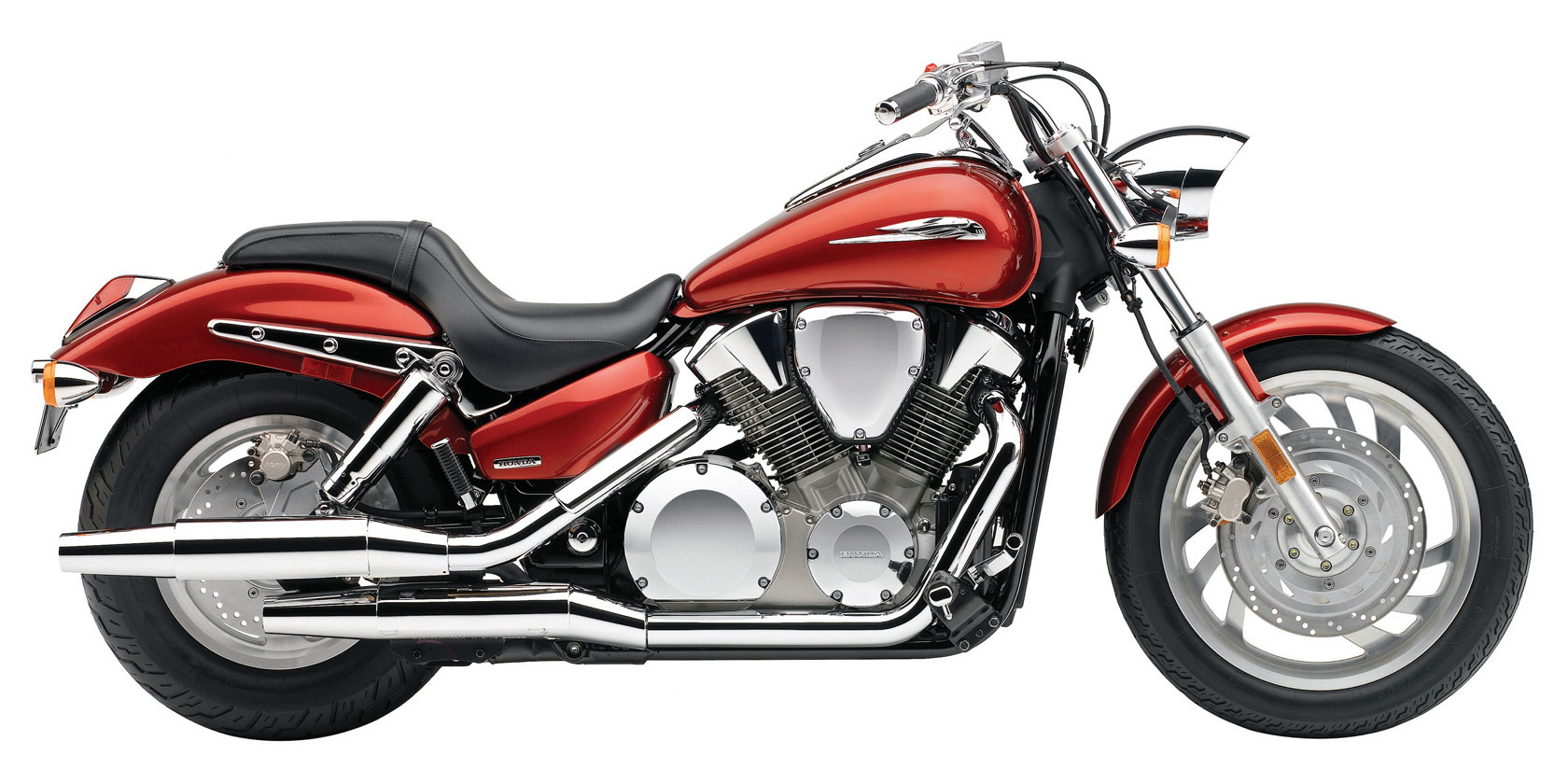

2009 VTX1300C
Engine |
|
| Engine Type | 1312cc |
| Engine Detail | iquid-cooled 52° V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Valves | SOHC; three valves per cylinder |
| Compression Ratio | 9.2:1 |
| Fuel Delivery | Single 38mm constant-velocity carburetor |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 5.1 inches travel |
| Rear Suspension | Rear: Dual shocks with five-position spring-preload adjustability; 3.6 inches travel |
| Front Tire | 110/90-19 M/C |
| Rear Tire | 170/80-15 M/C |
| Front Brakes | Single 336 mm disc with twin-piston caliper |
| Rear Brakes | Single 296 mm disc with single-piston caliper |
DIMENSION |
|
| Wheelbase | 65.45 in. |
| Seat height | 27.46 in. |
| Fuel capacity | 4.8 gal. |
| Curb weight | 678 lbs. |
OTHER |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Color |
|
| Warranty | 1 Year |
