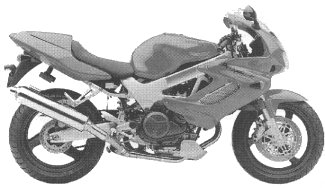

1998 VTR1000F’98 Super Hawk
- ENGINE
- N/A
- DRIVETRAIN
- N/A
- CHASSIS / SUSPENSION / BRAKES
- N/A
- DIMENSION
- N/A
- OTHER
- It came in one color: Italian Red
- This was a new V-twin sport model with a new engine: 996cc 90° V-twin
- The serial number began JH2SC360*WM000001.
2000 VTR1000F Super Hawk
Engine |
|
| Engine Type | 996cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 98mm X66mm |
| Compression ratio | 9.4 : 1 |
| Valve Train | DOHC, 4 valve, shim under bucket |
| Fuel Delivery | Two 48 mm, Flatslide, Downdraft, CV |
| Ignition | Transistorized with electronic advance |
| Starting | Electric |
Drivetrain |
|
| Transmission | Close-ratio 6-speed |
| Final Drive | O ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | Dual 296mm floating discs with four piston calipers |
| Rear Brakes | Single 220mm disc with single piston caliper |
| Front Suspension | 41mm cartridge fork, adjustable for preload and rebound damping, 109mm travel |
| Rear Suspension | Pro-Link single shock with preload and rebound damping adjustability, 124mm travel |
| Front tire | 120/70 ZR – 17 |
| Rear tire | 180/55 ZR – 17 |
DIMENSION |
|
| Wheelbase | 1430mm (56.3 in.) |
| Seat Height | 810mm (31.9 in.) |
| Fuel Capacity | 19 litres (4.2 Imp. gal.) |
| Dry Weight | 192 kg (423 lbs.) |
OTHER |
2001 VTR1000F Super Hawk
Engine |
|
| Engine Type | 996cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 98mm X66mm |
| Compression ratio | 9.4 : 1 |
| Valve Train | DOHC, 4 valve, shim under bucket |
| Fuel Delivery | Two 48 mm, Flatslide, Downdraft, CV |
| Ignition | Transistorized with electronic advance |
| Starting | Electric |
Drivetrain |
|
| Transmission | Close-ratio 6-speed |
| Final Drive | O ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | Dual 296mm floating discs with four piston calipers |
| Rear Brakes | Single 220mm disc with single piston caliper |
| Front Suspension | 41mm cartridge fork, adjustable for preload and rebound damping, 109mm travel |
| Rear Suspension | Pro-Link single shock with preload and rebound damping adjustability, 124mm travel |
| Front tire | 120/70 ZR – 17 |
| Rear tire | 180/55 ZR – 17 |
DIMENSION |
|
| Wheelbase | 1430mm (56.3 in.) |
| Seat Height | 810mm (31.9 in.) |
| Fuel Capacity | 16 litres (4.2 Imp. gal.) |
| Dry Weight | 192 kg (423 lbs.) |
OTHER |

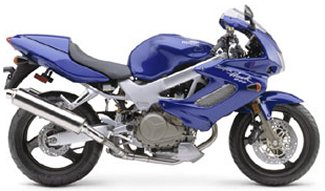

2003 VTR1000F’03 Super Hawk
Engine |
|
| Engine Type | 996cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 98mm X66mm |
| Compression ratio | 9.4 : 1 |
| Valve Train | DOHC, 4 valve, shim under bucket |
| Fuel Delivery | Two 48 mm, Flatslide, Downdraft, CV |
| Ignition | Computer-controlled digital transistorized with electronic advance |
Drivetrain |
|
| Transmission | Close-ratio 6-speed |
| Final Drive | O ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | Dual full-floating 296mm discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single-piston caliper |
| Front Suspension | 41mm HMASTM cartridge fork with spring-preload and rebound-damping adjustability, 4.7-inch travel |
| Rear Suspension | Pro-Link HMASTM single-shock with spring-preload and rebound-damping adjustability, 4.9-inch travel |
| Front tire | 120/70ZR-17 radial |
| Rear tire | 180/55ZR-17 radial |
DIMENSION |
|
| Rake | 24.9 degrees |
| Trail | 97.0mm (3.8 inches) |
| Wheelbase | 1430mm (56.3 in.) |
| Seat Height | 810mm (31.9 in.) |
| Fuel Capacity | 16 liters (4.2 gallons, including 0.7-gallon reserve) |
| Dry Weight | 194 kg (426 lb) |
OTHER |
|
| Color | Candy Blue |

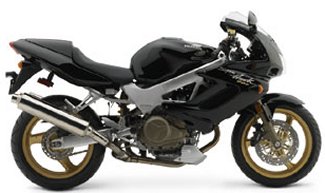

2004 Super Hawk 1000cc
Engine |
|
| Engine Type | 996cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 98mm X66mm |
| Compression ratio | 9.4 : 1 |
| Valve Train | DOHC, 4 valve, shim under bucket |
| Fuel Delivery | Two 48 mm, Flatslide, Downdraft, CV |
| Ignition | Computer-controlled digital transistorized with electronic advance |
Drivetrain |
|
| Transmission | Close-ratio 6-speed |
| Final Drive | O ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | Dual full-floating 296mm discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single-piston caliper |
| Front Suspension | 41mm HMASTM cartridge fork with spring-preload and rebound-damping adjustability, 4.7-inch travel |
| Rear Suspension | Pro-Link HMASTM single-shock with spring-preload and rebound-damping adjustability, 4.9-inch travel |
| Front tire | 120/70ZR-17 radial |
| Rear tire | 180/55ZR-17 radial |
DIMENSION |
|
| Rake | 24.9 degrees |
| Trail | 97.0mm (3.8 inches) |
| Wheelbase | 56.3 inches |
| Seat Height | 31.9 inches |
| Fuel Capacity | 4.2 gallons, including 0.7-gallon reserve |
| Dry Weight | 426.0 pounds |
OTHER |
|
| Emissions | California version differs slightly due to emissions equipment. |
| Color | Black |
| Model ID | VTR1000F |
| Warranty | 1 year |

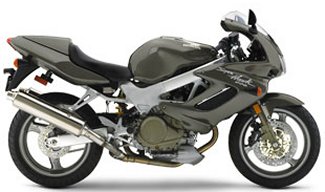

2005 Super Hawk 1000cc
Engine |
|
| Engine Type | 996cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 98mm X66mm |
| Compression ratio | 9.4 : 1 |
| Valve Train | DOHC, 4 valve, shim under bucket |
| Fuel Delivery | Two 48 mm, Flatslide, Downdraft, CV |
| Ignition | Computer-controlled digital transistorized with electronic advance |
Drivetrain |
|
| Transmission | Close-ratio 6-speed |
| Final Drive | O ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | Dual full-floating 296mm discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single-piston caliper |
| Front Suspension | 41mm HMASTM cartridge fork with spring-preload and rebound-damping adjustability, 4.7-inch travel |
| Rear Suspension | Pro-Link HMASTM single-shock with spring-preload and rebound-damping adjustability, 4.9-inch travel |
| Front tire | 120/70ZR-17 radial |
| Rear tire | 180/55ZR-17 radial |
DIMENSION |
|
| Rake | 24.9 degrees |
| Trail | 97.0mm (3.8 inches) |
| Wheelbase | 56.3 inches |
| Seat Height | 31.9 inches |
| Fuel Capacity | 4.2 gallons, including 0.7-gallon reserve |
| Dry Weight | 426.0 pounds |
OTHER |
|
| Emissions | California version differs slightly due to emissions equipment. |
| Color | Titanium |
| Model ID | VTR1000F |
| Warranty | 1 year |
