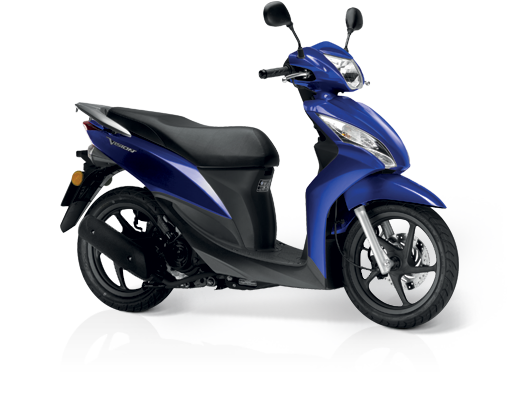

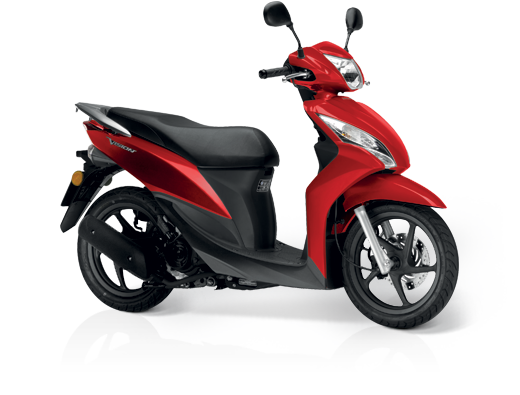

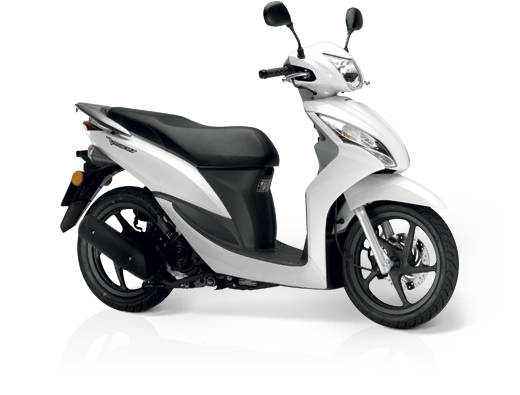

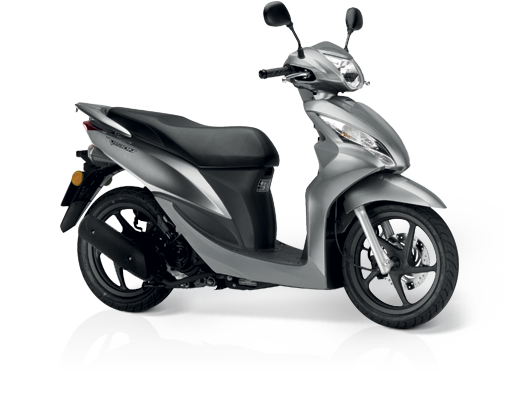

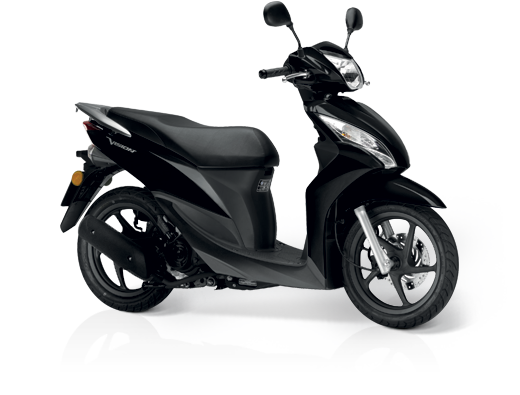

2012 Honda Vision 50
Engine |
|
| Engine Type | Air-cooled 4-stroke OHC 2v single |
| Displacement | 49cc |
| Bore and Stroke | 37.8 x 44mm |
| Compression Ratio | 10:1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Ignition | Full-transistor battery ignition |
| Max. Torque | 3.5Nm/6,750min-1 (95/1/EC) |
| Max. Power Output | 2.5kW/7,000min-1 (95/1/EC) |
DRIVETRAIN |
|
| Transmission | Continuously variable (V-Matic) |
| Final Drive | V-Belt |
| Front Wheels | Cast aluminium MT1.85 |
| Rear Wheels | Cast aluminium MT1.85 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks with hydraulic damping |
| Rear Suspension | Unit swingarm |
| Front Brakes | 220mm hydraulic disc |
| Rear Brakes | 130mm drum |
| Front Tire | 80/90 |
| Rear Tire | 90/90 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 1284mm (50.5 inches) |
| verall Length | 1882mm (74 inches) |
| Overall Width | 670mm (26.4 inches) |
| Overall Height | 1117mm (44 inches) |
| Seat Height | 785mm (30.9 inches) |
| Ground Clearance | 144mm (5.7 inches) |
| Weight | 100 kg (220 lb)
|
| Fuel Capacity | 5.5 Litres (1.45 GalUS) |
OTHER |
|
| Fuel Consumption | 1.9 L/100km (122.3 mpgUS) (32.3 miles/litre) (146.9 mpg-imp) |
