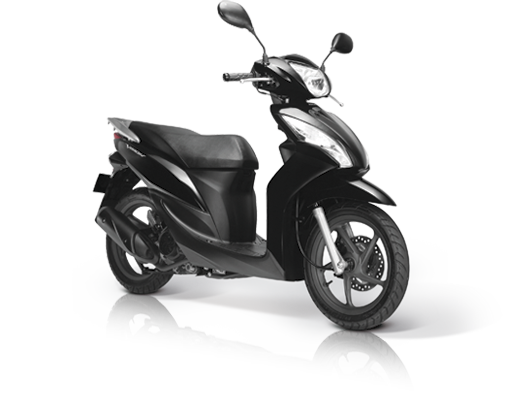

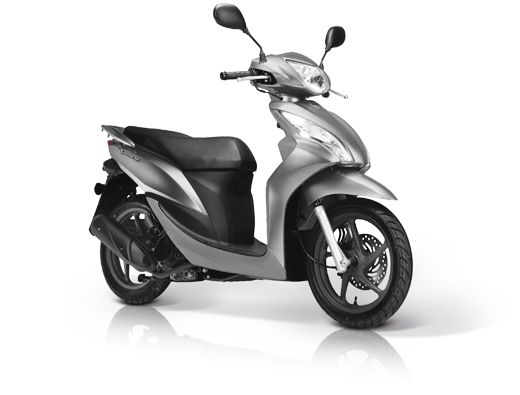

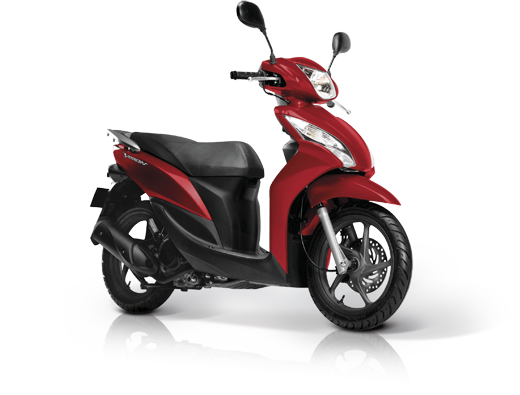

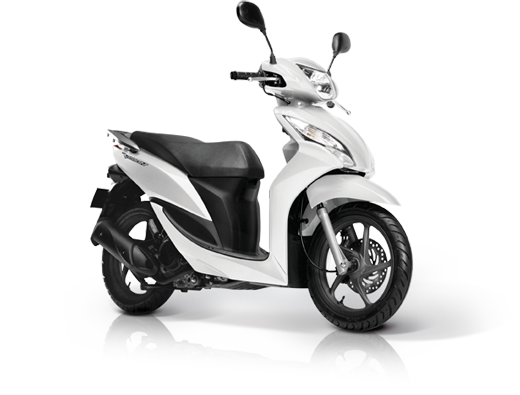

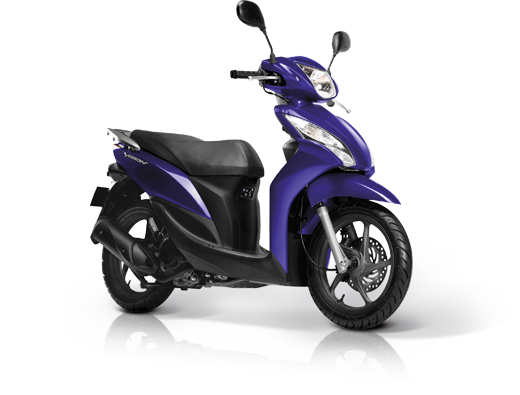

Honda Vision 110 Motorcycles
Engine |
|
| Engine Type | Air cooled 4-stroke OHC 2v single |
| Displacement | 108cc |
| Bore and Stroke | 50 x 55mm |
| Compression Ratio | 9.5:1 |
| Fuel Delivery | PGM-FI programmed fuel injection system |
| Ignition | Full-transistor battery ignition |
| Max. Power Output | 6.2kW / 8000min-1 (95/1/EC) |
| Max. Torque | 8.7Nm / 6500min-1 (95/1/EC) |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic |
| Final Drive | V-belt |
| Front Wheel | 5-spoke cast aluminium |
| Rear Wheel | 5-spoke cast aluminium |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks with hydraulic damping |
| Rear Suspension | Unit swingarm |
| Front Brakes | 220mm disc (with Combined Brake System) |
| Rear Brakes | 130mm drum (with Combined Brake System) |
| Front Tire | 80/90 14 |
| Rear Tire | 90/90 14 |
DIMENSION |
|
| Seat Height | 755mm (29.7 inches) |
| Wheelbase | 1255mm (49.4 inches) |
| Curb Weight | 102 kg (224.4 lb) |
| Fuel Capacity | 5.5 Litres (1.45 GalUS) |
| Ground Clearance | 120mm (4.7 inches) |
| Overall Length | 1845mm (72.6 inches) |
| Overall Width | 670mm (26.4 inches) |
| Overall Height | 1090 mm (42.9 inches) |
| Front | 41 kg (90.2 lb) |
| Rear | 61 kg (134.2 lb) |
OTHER |
No Comment
