Honda 650 Turbo (CX650T) Motorcycles

1983 CX650T’83 650 Turbo



Engine
Engine Type	Liquid-cooled,turbo-charged, transverse V-Twin
Bore and Stroke	82.5mm x 63mm
Valves	Chain driven SOHC, 4 valves per cylinder
Displacement	670cc
Compression Ratio	7.8:1
Fuel Delivery	Computerized fuel injection
Ignition System	High-energy transistorized
Fuel type	Regular gasoline
Starter	Electric
DRIVETRAIN
Transmission	Five-speed constant mesh
Final Drive	Shaft
Clutch	Wet, multi-plate
Wheels	ComStarTM
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Air-assisted telescopic with TRACTM anti-dive
Rear Suspension	Pro-LinkTM air-assisted single shock
Front Tire	100/90V18
Rear Tire	120/90V17
Front Brakes	Dual discs, Double piston calipers
Rear Brakes	Single disc, Double piston calipers
DIMENSION
Wheelbase	1495mm (58.9 in.)
Seat height	790mm (31.1 in.)
Fuel capacity	20 liters (5.3 GalUS)
Dry weight:	235 kg (518 lb)
Overall length	2220mm (87.4 in.)
Overall width	775mm (30.5 in.)
OTHER
Color	Pearl Shell White with Candy Aleutian Blue.

• The body stripes were red and blue.
• The “CX650 TURBO” decal was white.
• The wheels were silver.
• The fork legs were black.
• The serial number began JH2RC160*DM000024.

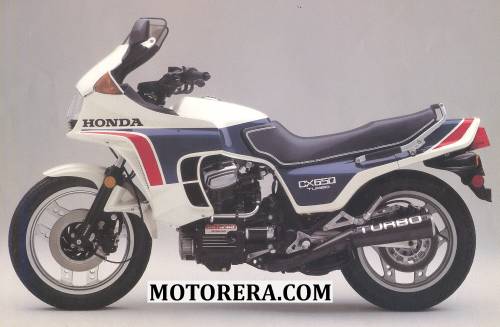

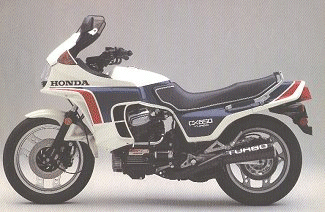

(CX650T) Image Gallery
