Honda Trail CT110 Motorcycles

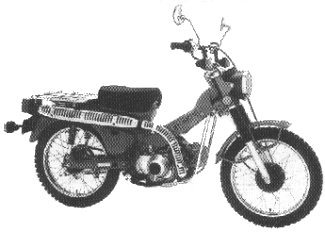

1980 Trail 110 (CT110)

Engine
Engine Type	single cylinder
Carburetor	105cc
Valve train	Single overhead cam (OHC)
Ignition	Points and condenser
DRIVETRAIN
Transmission	4-speed
Clutch	Automatic
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION
OTHER

• One color was available: Tahitian Red
• The “HONDA” decal was red but outlined in white
• The decal “TRAIL 110” appeared only on the left side cover
• The serial number began JD01-5000001.

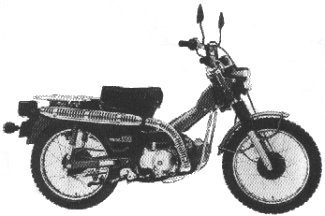

1981 Trail 110 (CT110)



Engine
Engine Type	single cylinder
Carburetor	105cc
Valve train	Single overhead cam (OHC)
Ignition	Points and condenser
DRIVETRAIN
Transmission	8-speed dual range
Clutch	Automatic
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION
OTHER
Color	one color: Tahitian Red

• The “HONDA” decal was red, outlined in black
• The “TRAIL 110” side cover decal was located on both sides of the bike and was white and red on a black panel
• The serial number began JH2JD010*BS100002.

1982 Trail 110 (CT110)

Engine
Engine Type	single cylinder
Carburetor	105cc
Valve train	Single overhead cam (OHC)
Ignition	CD
DRIVETRAIN
Transmission	8-speed dual range
Clutch	Automatic
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION
OTHER
Color	Monza Red

• The “TRAIL 110: decal was a white outline and red on a black panel
• The serial number began JH2JD010*CS200001.

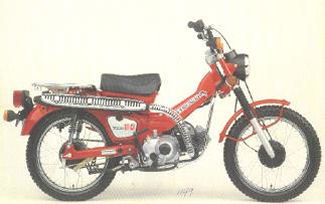

1983 Trail 110 (CT110)

Engine
Engine Type	single cylinder
Carburetor	105cc
Valve train	Single overhead cam (OHC)
Ignition	CD
DRIVETRAIN
Transmission	8-speed dual range
Clutch	Automatic
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION
OTHER
Color	Monza Red

• The “HONDA” decal was black but outlined in white
• The decal “TRAIL 110” was red on silver and outlined in black
• The serial number began JH2JD0102DS300003.

1984 Trail 110 (CT110)

Engine
Engine Type	single cylinder
Carburetor	105cc
Valve train	Single overhead cam (OHC)
Ignition	CD
DRIVETRAIN
Transmission	8-speed dual range
Clutch	Automatic
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION
OTHER
Color	Monza Red

• All decals and graphics were outlined in white
• The “HONDA” decal was red
• The “TRAIL 110” logo was black and red
• The side cover panel was black
• The serial number began JH2JD010*ES400001.

1986 Trail 110 (CT110)

Engine
Engine Type	single cylinder
Carburetor	105cc
Valve train	Single overhead cam (OHC)
Ignition	CD
DRIVETRAIN
Transmission	8-speed dual range
Clutch	Automatic
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION
OTHER
Color	N/A

• All decals and graphics were outlined in white
• The “HONDA” decal was red
• The “TRAIL 110” logo was black and red
• The side cover panel was black
• The serial number began JH2JD010*GS500001.
