Honda Sport 90 (S90) Motorcycles

1964-69 Honda S90 “Super 90”

Engine
Engine Type	The engine was a 89cc OHC single cylinder
Spark plug	D6HA
Plug gap	.028
Battery	6N5.5-1D — 6 volt
DRIVETRAIN
transmission	4-speed with a manual clutch
Chain	#428
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	White Black Candy Blue Red (the early models had Scarlet Red while the later models had Candy Red)

• The pre-68 models had silver painted fenders; but those produced after March 1968 had chrome fenders
• The pre-68 models had only non-metallic colors; but after March 1968, they were made with candy colors
• Sold 1964-69

Honda CS90 “Benly”

Engine
Engine Type	The engine was a 89cc OHC single cylinder
Spark plug	D6HA
Plug gap	.028
Battery	6N5.5-1D — 6 volt
DRIVETRAIN
transmission	4-speed with a manual clutch
Chain	#428
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	White Black Scarlet Red Candy Blue

It was sold between 1964-67

The fenders were painted silver

1970 CB90

OVERVIEW

• The CB90 is very similar to the 1970 Super Sport CB100

Engine
Engine Type	The engine was a 89cc OHC single cylinder
Spark plug	D6HA
Plug gap	.028
Battery	6N5.5-1D — 6 volt
DRIVETRAIN
transmission	4-speed with a manual clutch
Chain	#428

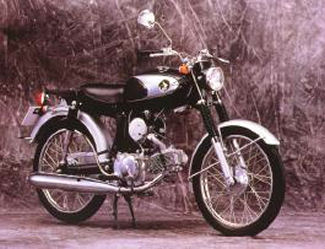

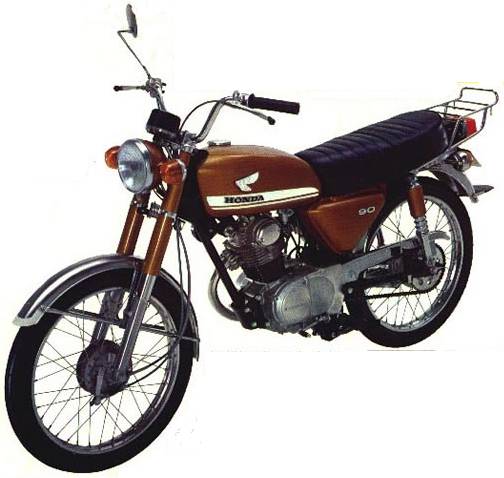

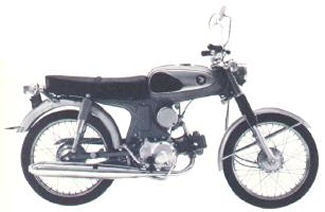

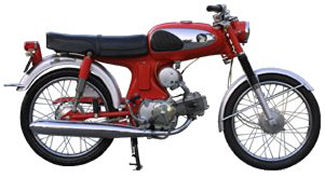

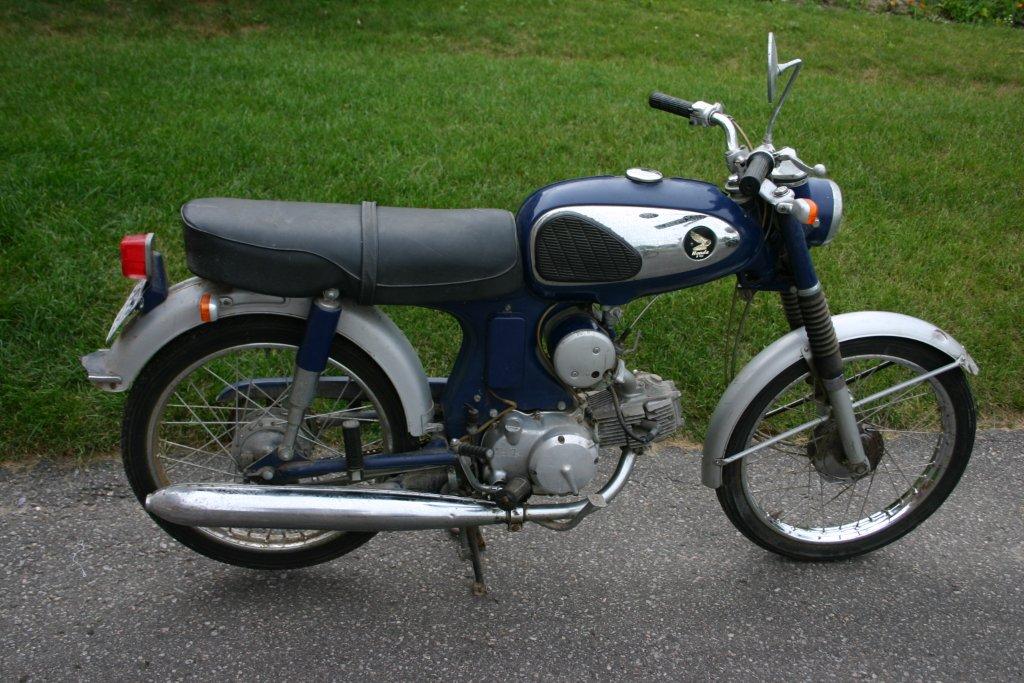

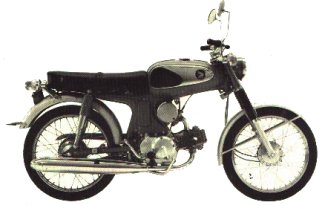

Sport 90 Image Gallery
