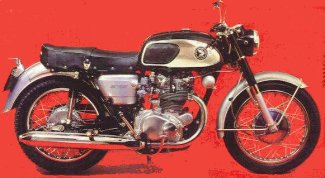

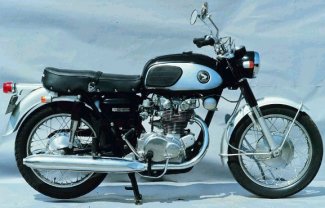

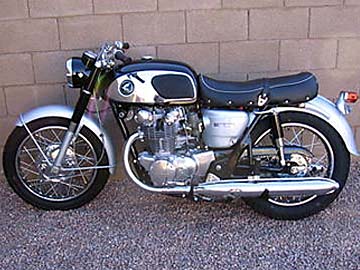

1965-66 CB450K0
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, DOHC, 2 valves per cylinder, |
| Displacement | 445cc (27 cu. in.) |
| Bore and Stroke | 70 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Dual CV Carburetors |
| Ignition | Points and condenser |
| Starter | N/A |
| Max Power | 45 hp @ 9000 rpm |
| Max Torque | 4 kg-m @ 7000 rpm |
Drivetrain |
|
| Transmission | 4-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Dry weight | N/A |
OTHER |
|
| Colors | Black with Silver |
- The gas tank, upper forks, and headlight shell were black
- The side covers and fenders were silver
- The gas tank had chrome panels with black rubber knee pads
- The instruments were in the headlight housing
- The serial number began CB450-1000001

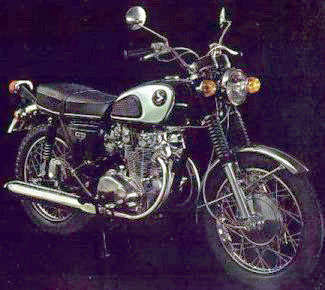

1967 CB450K1
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, DOHC, 2 valves per cylinder, |
| Displacement | 445cc (27 cu. in.) |
| Bore and Stroke | 70 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Dual CV Carburetors |
| Ignition | Points and condenser |
| Starter | N/A |
| Max Power | 45 hp @ 9000 rpm |
| Max Torque | 4 kg-m @ 7000 rpm |
Drivetrain |
|
| Transmission | 4-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Dry weight | N/A |
OTHER |
|
| Top Speed | 171 km/h (106 mph) |
The serial number began CB450-2000001
1968 CB450K1
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, DOHC, 2 valves per cylinder, |
| Displacement | 445cc (27 cu. in.) |
| Bore and Stroke | 70 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Dual CV Carburetors |
| Ignition | Points and condenser |
| Starter | N/A |
| Max Power | 45 hp @ 9000 rpm |
| Max Torque | 4 kg-m @ 7000 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Top Speed | 171 km/h (106 mph) |
| Dry weight | N/A |
OTHER |
|
| Colors |
|
- The gas tank and side covers were the basic color (i.e., red or blue-green)
- The gas tank stripe and side cover emblems were gold
- The seat surface was pleated
- The taillight lens had a rectangular shape
- The gas tank badge “HONDA” was metal
- The upper forks and headlight shell were black
- There was an independent speedometer, tachometer, and headlight unit
- The fenders were chrome
- The serial number began CB450-3000001.
1969 CB450K2
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, DOHC, 2 valves per cylinder, |
| Displacement | 445cc (27 cu. in.) |
| Bore and Stroke | 70 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Dual CV Carburetors |
| Ignition | Points and condenser |
| Starter | N/A |
| Max Power | 45 hp @ 9000 rpm |
| Max Torque | 4 kg-m @ 7000 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Top Speed | 171 km/h (106 mph) |
| Dry weight | N/A |
OTHER |
|
| Colors |
|
- The headlight shell, upper fork covers, gas tank, and side covers were the basic color (i.e., red or blue-green)
- There was an independent speedometer, tachometer, and headlight unit
- The gas tank badge “HONDA” was metal
- The fenders were chrome
- The engine was a 444cc DOHC parallel twin with dual CV carburetors
- The transmission was a 5-speed
- The serial number began CB450-3008956.
1970 CB450K3
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, DOHC, 2 valves per cylinder, |
| Displacement | 445cc (27 cu. in.) |
| Bore and Stroke | 70 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Dual CV Carburetors |
| Ignition | Points and condenser |
| Starter | N/A |
| Max Power | 45 hp @ 9000 rpm |
| Max Torque | 4 kg-m @ 7000 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Dry weight | N/A |
OTHER |
|
| Colors |
|
- The headlight shell, upper forks, gas tank, and side covers were the basic color (i.e., red, blue, or gold)
- The gas tank badge “HONDA” was metal
- There was an independent speedometer, tachometer, and headlight unit
- The fenders were chrome
- The front braking system used a hydraulic disc
- The fork boots were black rubber
- The mufflers were megaphone-shaped
- The serial number began CB450-4000001.

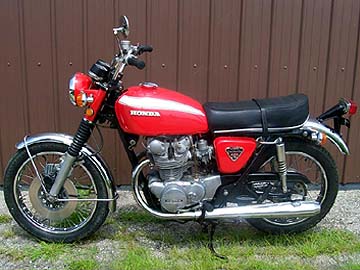

1971 CB450K4
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, DOHC |
| Valving | 2 valves per cylinder |
| Displacement | 445cc (27 cu. in.) |
| Bore and Stroke | 70.0 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Dual CV Carburetors |
| Ignition | Breaker points and condenser |
| Starter | Electric and kickstart |
| Max Power | 45 CV @ 9000 rpm |
| Max Torque | 4 kg-m @ 7000 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Dry weight | N/A |
OTHER |
|
| Colors |
|
- The gas tank, headlight shell, upper forks, and side covers were the basic color (i.e., red, gold, or green)
- The gas tank badge “HONDA” was metal
- The side cover emblem reads “DOUBLE OVERHEAD CAM 450”
- The seat changed shape and pleating design
- There was an independent speedometer, tachometer, and headlight unit
- The front braking system used a hydraulic disc
- The fork boots were black rubber
- The fenders were chrome
- The mufflers were megaphone-shaped
- The serial number began CB450-4100001.
1972 CB450K5
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, SOHC, 3 valves per cylinder, 360� crankshaft and twin balance-shafts |
| Valving | N/A |
| Displacement | 445cc (27 cu in) |
| Bore and Stroke | 70 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Two 32mm Keihin Carburetors |
| Ignition | Breaker points and condenser |
| Starter | Electrick and kickstart |
| Max Power | 41 hp 30 KW @ 8500 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Dry weight | N/A |
OTHER |
|
| Colors |
|
- The gas tank and side covers were the basic color (i.e., red, brown, or olive)
- The gas tank badge “HONDA” was metal
- The gas tank stripe was gold
- The upper fork were chrome
- The headlight shell was black
- There was a chrome strip on the base of the gas tank
- The side cover emblem reads “DOUBLE OVERHEAD CAM 450”
- The front braking system used a hydraulic disc
- The fork boots were black rubber
- There was an independent speedometer, tachometer, and headlight unit
- The fenders were chrome
- The mufflers were megaphone-shaped
- The serial number began CB450-5000001.
1973 CB450K6
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, SOHC, 3 valves per cylinder, 360� crankshaft and twin balance-shafts |
| Valving | N/A |
| Displacement | 445cc (27 cu in) |
| Bore and Stroke | 70 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Two 32mm Keihin Carburetors |
| Ignition | Breaker points and condenser |
| Starter | Electrick and kickstart |
| Max Power | 41 hp 30 KW @ 8500 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Dry weight | N/A |
OTHER |
|
| Colors |
|
- The gas tank and side covers were the basic color (i.e., brown or green)
- The gas tank badge “HONDA” was metal
- The gas tank stripes were gold and black
- The “450 DOHC” side cover emblem was white and yellow
- The upper forks and headlight shell were black
- There was a chrome grip pipe behind the seat
- The front braking system used a hydraulic disc
- The fork boots were black rubber
- There was an independent speedometer, tachometer, and headlight unit
- The instruments were tilted toward the rider
- There was an independent light housing added between the speedometer and tachometer
- The fenders were chrome
- The mufflers were megaphone-shaped
- The serial number began CB450-6000001.

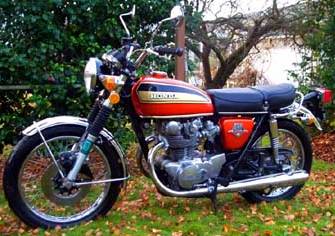

1974 CB450K7
Engine |
|
| Engine Type | Air cooled, parallel twin cylinder, four stroke, SOHC, 3 valves per cylinder, 360� crankshaft and twin balance-shafts |
| Valving | N/A |
| Displacement | 445cc (27 cu in) |
| Bore and Stroke | 70 x 57.8 mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | Two 32mm Keihin Carburetors |
| Ignition | Breaker points and condenser |
| Starter | Electrick and kickstart |
| Max Power | 41 hp 30 KW @ 8500 rpm |
Drivetrain |
|
| Transmission | 5-speed |
| Final drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescoping forks |
| Rear Suspension | Adjustable shocks |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| Front Tire | 3.25-18 |
| Rear Tire | 3.50-18 |
DIMENSION |
|
| Fuel capacity | 14 Litres (3.7 Gal) |
| Dry weight | N/A |
OTHER |
|
| Colors |
|
- The gas tank and side covers were the basic color (i.e., brown or orange)
- The gas tank badge “HONDA” was metal
- The gas tank stripes were gold and black
- The “450 DOHC” side cover emblem was white and red
- The upper forks and headlight shell were black
- There was a chrome grip pipe behind the seat
- The front braking system used a hydraulic disc
- The fork boots were black rubber
- There was an independent speedometer, tachometer, and headlight unit
- The instruments were tilted toward the rider
- There was an independent light housing added between the speedometer and tachometer
- The fenders were chrome
- The mufflers were megaphone-shaped
- The engine was a 444cc DOHC parallel twin with dual CV carburetors
- The transmission was a 5-speed
- The serial number began CB450-7000001.
