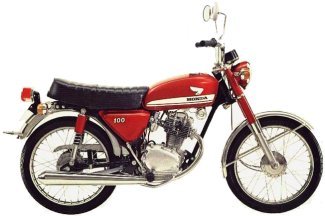

1970 Super Sport 100 (CB100K0)
Engine |
|
| Engine Type | 99 cc, air cooled, single cylinder, 4-stroke |
| Bore and Stroke | 50.5 mm x 49.5 mm |
| Valves | 2 valves/cylinder |
| Horsepower | 11.5 hp (85.8 kW) @ 11000 rpm |
| Battery | 6N6-3B — 6 volt |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 2.50-18 |
| Rear Tire | 2.75-18 |
| Front Brakes | 110 mm drum |
| Rear Brakes | 110 mm drum |
DIMENSION |
|
| Fuel capacity | 7.5 litres (2 gal. US) |
| Dry weight | 95 kg (209.4 pounds) |
OTHER |
- Colors:
- Candy Blue Green with white stripes
- Candy Ruby Red with white stripes
- Candy Gold with white stripes
- The front fork cover and rear shock cover as well as the headlight shell were the same as the basic color
- The fenders were chrome
- The serial number began CB100-100001.

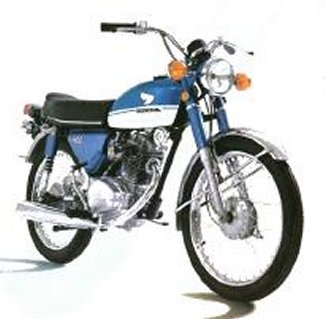

1971 Super Sport 100 (CB100K1)
Engine |
|
| Engine Type | 99 cc, air cooled, single cylinder, 4-stroke |
| Bore and Stroke | 50.5 mm x 49.5 mm |
| Valves | 2 valves/cylinder |
| Horsepower | 11.5 hp (85.8 kW) @ 11000 rpm |
| Battery | 6N6-3B — 6 volt |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 2.50-18 |
| Rear Tire | 2.75-18 |
| Front Brakes | 110 mm drum |
| Rear Brakes | 110 mm drum |
DIMENSION |
|
| Fuel capacity | 7.5 litres (2 gal. US) |
| Dry weight | 95 kg (209.4 pounds) |
OTHER |
- Colors:
- Crystal Blue Metallic
- Candy Ruby Red
- Candy Gold
- The bottom half of the fuel tank was white
- The “CB100” side cover emblem was molded plastic
- The seat had a chrome trim
- The front fork cover and rear shock cover as well as the headlight shell were the same as the basic color
- The fenders were chrome
- The serial number began CB100-200001.

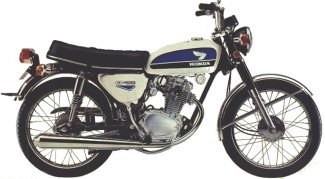

1972 CB100K2 Super Sport 100
Engine |
|
| Engine Type | 99 cc, air cooled, single cylinder, 4-stroke |
| Bore and Stroke | 50.5 mm x 49.5 mm |
| Valves | 2 valves/cylinder |
| Horsepower | 11.5 hp (85.8 kW) @ 11000 rpm |
| Battery | 6N6-3B — 6 volt |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 2.50-18 |
| Rear Tire | 2.75-18 |
| Front Brakes | 110 mm drum |
| Rear Brakes | 110 mm drum |
DIMENSION |
|
| Fuel capacity | 7.5 litres (2 gal. US) |
| Dry weight | 95 kg (209.4 pounds) |
OTHER |
- Colors:
- White with Light Scarlet Red
- White with Aquarius Blue
- The upper gas tank panel was red or blue and the lower part was black
- The triangular side cover emblem was also matching red or blue
- The front forks and headlight shell was black
- The shock covers were chrome
- The serial number began CB100-1200001.
1973 CB100K3 Super Sport 100
Engine |
|
| Engine Type | 99 cc, air cooled, single cylinder, 4-stroke |
| Bore and Stroke | 50.5 mm x 49.5 mm |
| Valves | 2 valves/cylinder |
| Horsepower | 11.5 hp (85.8 kW) @ 11000 rpm |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 2.50-18 |
| Rear Tire | 2.75-18 |
| Front Brakes | 110 mm drum |
| Rear Brakes | 110 mm drum |
DIMENSION |
|
| Fuel capacity | 7.5 litres (2 gal. US) |
| Dry weight | 95 kg (209.4 pounds) |
OTHER |
Not sold in North America
1974 CB100K4 Super Sport 100
Engine |
|
| Engine Type | 99 cc, air cooled, single cylinder, 4-stroke |
| Bore and Stroke | 50.5 mm x 49.5 mm |
| Valves | 2 valves/cylinder |
| Horsepower | 11.5 hp (85.8 kW) @ 11000 rpm |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 2.50-18 |
| Rear Tire | 2.75-18 |
| Front Brakes | 110 mm drum |
| Rear Brakes | 110 mm drum |
DIMENSION |
|
| Fuel capacity | 7.5 litres (2 gal. US) |
| Dry weight | 95 kg (209.4 pounds) |
OTHER |
1975 CB100K5 Super Sport 100
Engine |
|
| Engine Type | 99 cc, air cooled, single cylinder, 4-stroke |
| Bore and Stroke | 50.5 mm x 49.5 mm |
| Valves | 2 valves/cylinder |
| Horsepower | 11.5 hp (85.8 kW) @ 11000 rpm |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 2.50-18 |
| Rear Tire | 2.75-18 |
| Front Brakes | 110 mm drum |
| Rear Brakes | 110 mm drum |
DIMENSION |
|
| Fuel capacity | 7.5 litres (2 gal. US) |
| Dry weight | 95 kg (209.4 pounds) |
OTHER |
1976 CB100K6 Super Sport 100
Engine |
|
| Engine Type | 99 cc, air cooled, single cylinder, 4-stroke |
| Bore and Stroke | 50.5 mm x 49.5 mm |
| Valves | 2 valves/cylinder |
| Horsepower | 11.5 hp (85.8 kW) @ 11000 rpm |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 2.50-18 |
| Rear Tire | 2.75-18 |
| Front Brakes | 110 mm drum |
| Rear Brakes | 110 mm drum |
DIMENSION |
|
| Fuel capacity | 7.5 litre (2 gal. US) |
| Dry weight | 95 kg (209.4 pounds) |
OTHER |
Not sold in North America
