Honda Super Sport 1100 (CB1100) Motorcycles

1983 CB1100F’83 Super Sport

Engine
Engine Type	Four cylinder 16-valve DOHC
Engine Displacement	1062cc
Bore and Stroke	70mm x 69mm
Compression Ratio	9.7:1
Exhaust system	Four into Two
Fuel Delivery	Four 33mm CV-type Carburetors
Ignition	Transistorized pointless
Starting	Electric
Fuel type	Regular gasoline
Oil cooler	Large capacity
Drivetrain
Transmission	Five-speed constant mesh
Clutch	Wet multi-plate
Final Drive	chain
Wheels	Comstar^TM
CHASSIS / SUSPENSION / BRAKES
Front suspension	Air-assisted telescopic with TRAC^TM Anti-Dive
Rear suspension	Box section swing arm with 30-way adjustable shocks
Front brakes	Double piston caliper dual disc
Rear brakes	Double piston caliper disc
Front Tire	100/90V18
Rear Tire	130/90V17
DIMENSION
Wheelbase	1520mm (59.8 in.)
Dry weight	243kg (535.6 lb)
Overall length	2175mm (85.6 in.)
Overall width	805mm (31.7 in.)
Seat height	820mm (32.3 in.)
Fuel capacity	20 Litres (5.3 GalUS)
Colors:	Candy Pearl Maui Red with Pearl Shell White Candy Pearl Capiolani Blue with Pearl Shell White

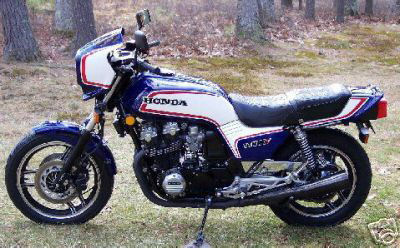

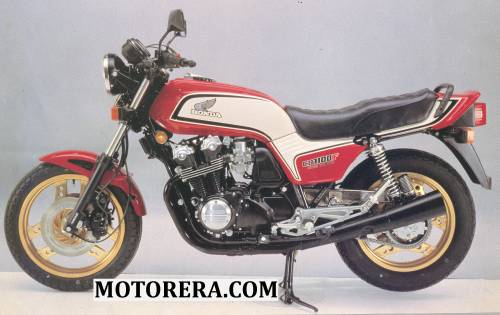

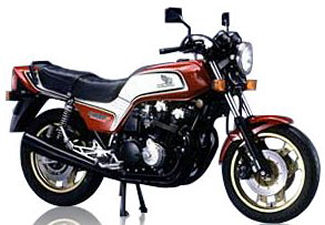

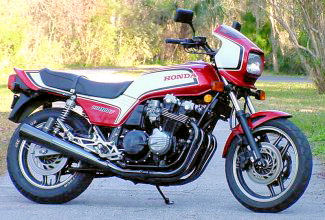

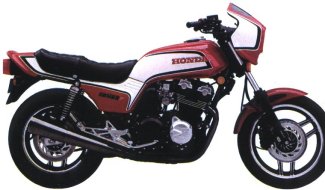

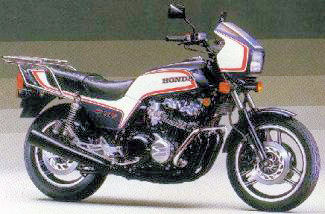

OTHER	On the red bike, the panels were white while the striping was black On the blue bike, the panels were white while the striping was red. The 4-into-2 exhaust system was black chrome. In North America, the headlight was rectangular with a fork mounted sport fairing. In UK, the headlight was round with no fairing The serial number began JH2SC110*DM000020.
