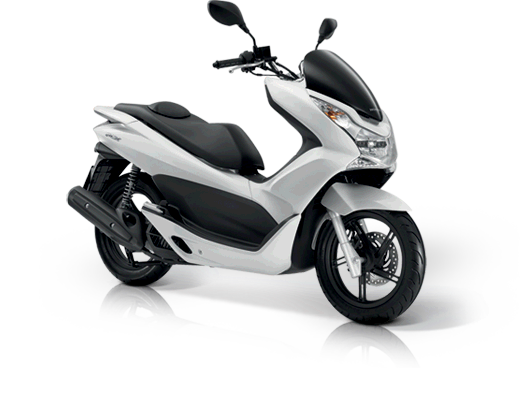

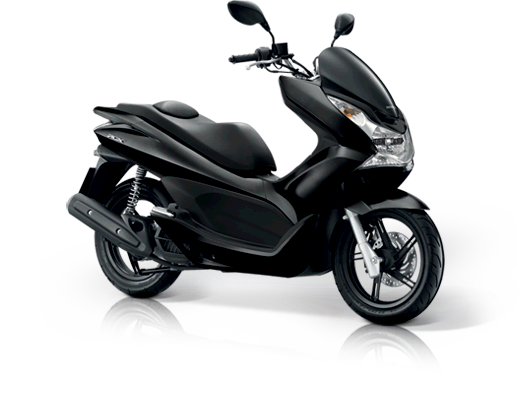

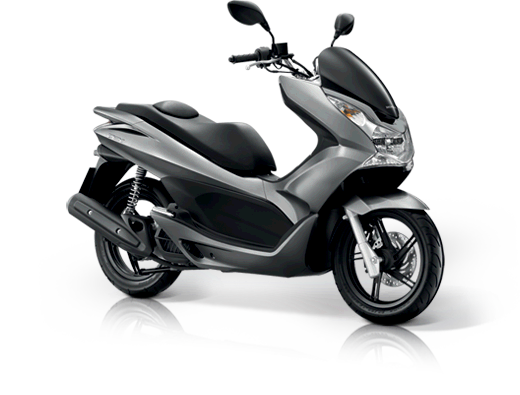

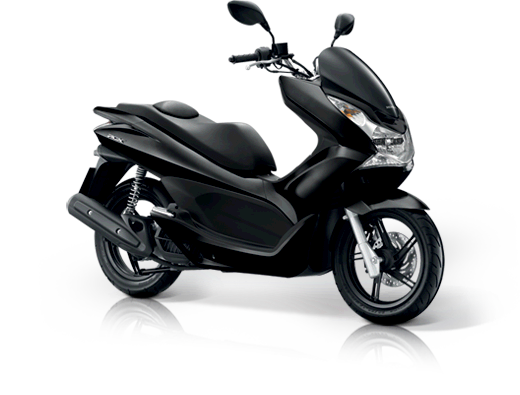

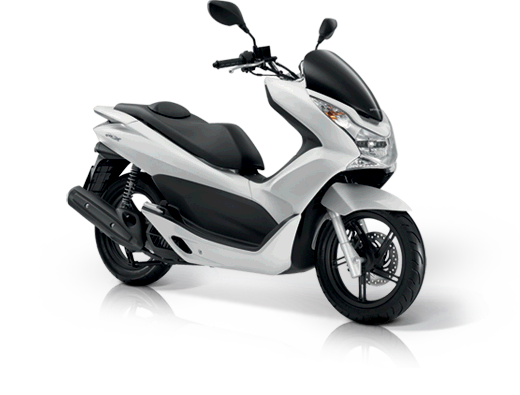

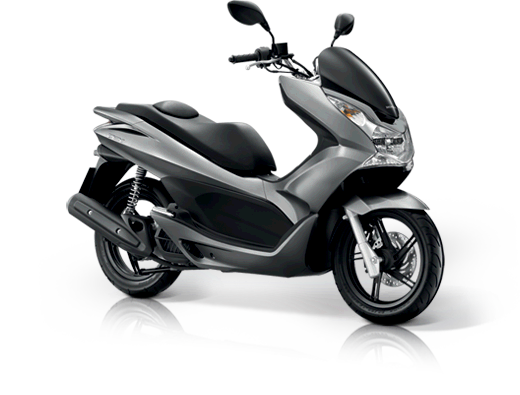

2012 Honda PCX125
Engine |
|
| Engine Type | 4-stroke 2-valve SOHC with built-in liquid cooling |
| Displacement | 124.9cc |
| Bore and Stroke | 52.4 x 57.9mm |
| Compression Ratio | 11:1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Carburation | PGM-FI electronic fuel injection |
| Ignition | Fully transistorised electric |
| Max. Power Output | 8.33kW/8,000min-1 (95/1/EC) |
| Max. Torque | 11.56Nm/6,000min-1 (95/1/EC) |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic – Centrifugal Automatic |
| Final Drive | Belt drive |
| Front Wheel | 5-spoke cast aluminium 14M/C x MT1.85 |
| Rear Wheel | 5-spoke cast aluminium 14M/C x MT2.15 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31mm telescopic fork, 100mm stroke |
| Rear Suspension | Twin suspension aluminium swingarm, 75mm stroke |
| Front Brakes | 220mm hydraulic disc with Combined 3-piston caliper |
| Rear Brakes | 130mm Combined leading/trailing drum |
| Front Tire | 90/90-14M/C (46P) |
| Rear Tire | 100/90-14M/C (57P) |
DIMENSION |
|
| Overall Length | 1917mm (75.5 inches) |
| Overall Width | 738mm (28.9 inches) |
| Overall Height | 1094mm (43.1 inches) |
| Front | 52.2 kg (115 lb) |
| Rear | 72.2 kg (159 lb) |
| Seat Height | 761mm (30 inches) |
| Wheelbase | 1305mm (51.4 inches) |
| Curb Weight | 124.4 kg (274 lb) |
| Fuel Capacity | 6.2 Litres (1.6 GalUS) |
| Ground Clearance | 135mm (5.3 inches) |
OTHER |
