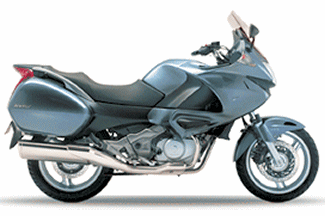

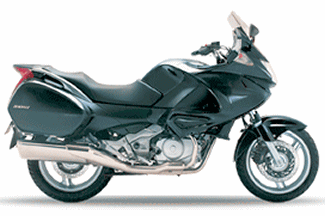

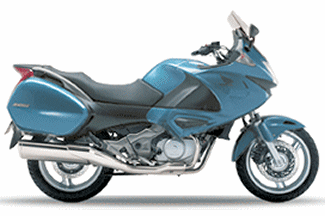

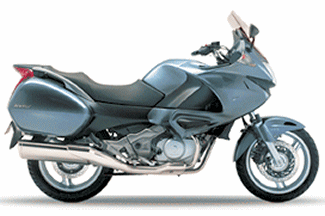

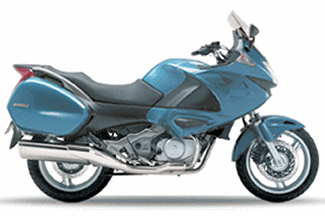

2007 NT700V Deauville
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve SOHC 52° V-twin |
| Engine Displacement | 680.2cc |
| Bore and Stroke | 81 x 66cm |
| Valves | 10 :1 |
| Carburation | PGM-FI electronic fuel injection |
| Max. Power Output | 48.3 kW/8,000 min (95/1/EC) (65bhp) |
| Max. Torque | 66.2 Nm/6,500 min (95/1/EC) |
| Ignition | Digital transistorised with electronic advance |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Enclosed shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Wheels Front | S-section triple-spoke cast aluminium |
| Wheels Rear | S-section triple-spoke cast aluminium |
| Front Tire | 120/70ZR17 (58W) |
| Rear Tire | 150/70ZR17 (69W) |
| Suspension Front | 41 mm telescopic fork, 115 mm axle travel |
| Suspension Rear | Single damper with adjustable preload, 122.5 mm axle travel |
| Front Brakes | 296 x 4.5 mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads |
| Rear Brakes | 276 x 6 mm hydraulic disc with dual-piston caliper sintered metal pads |
DIMENSION |
|
| Length x Width x Height | 2,218 x 776 x 1320 mm (raised windscreen: 1491 mm) |
| Seat Height | 805mm |
| Wheelbase | 1,476 mm |
| Fuel Capacity | 19.7 litres (including 3.5 litre reserve) |
| Dry weight | 236 kg |
OTHER |

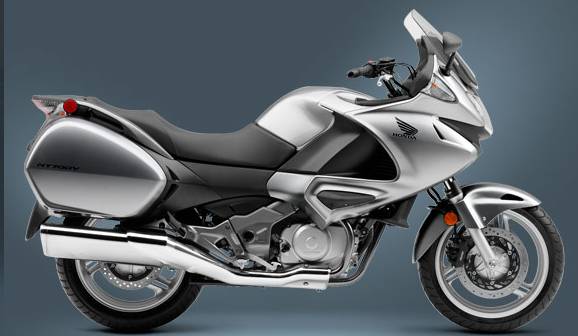

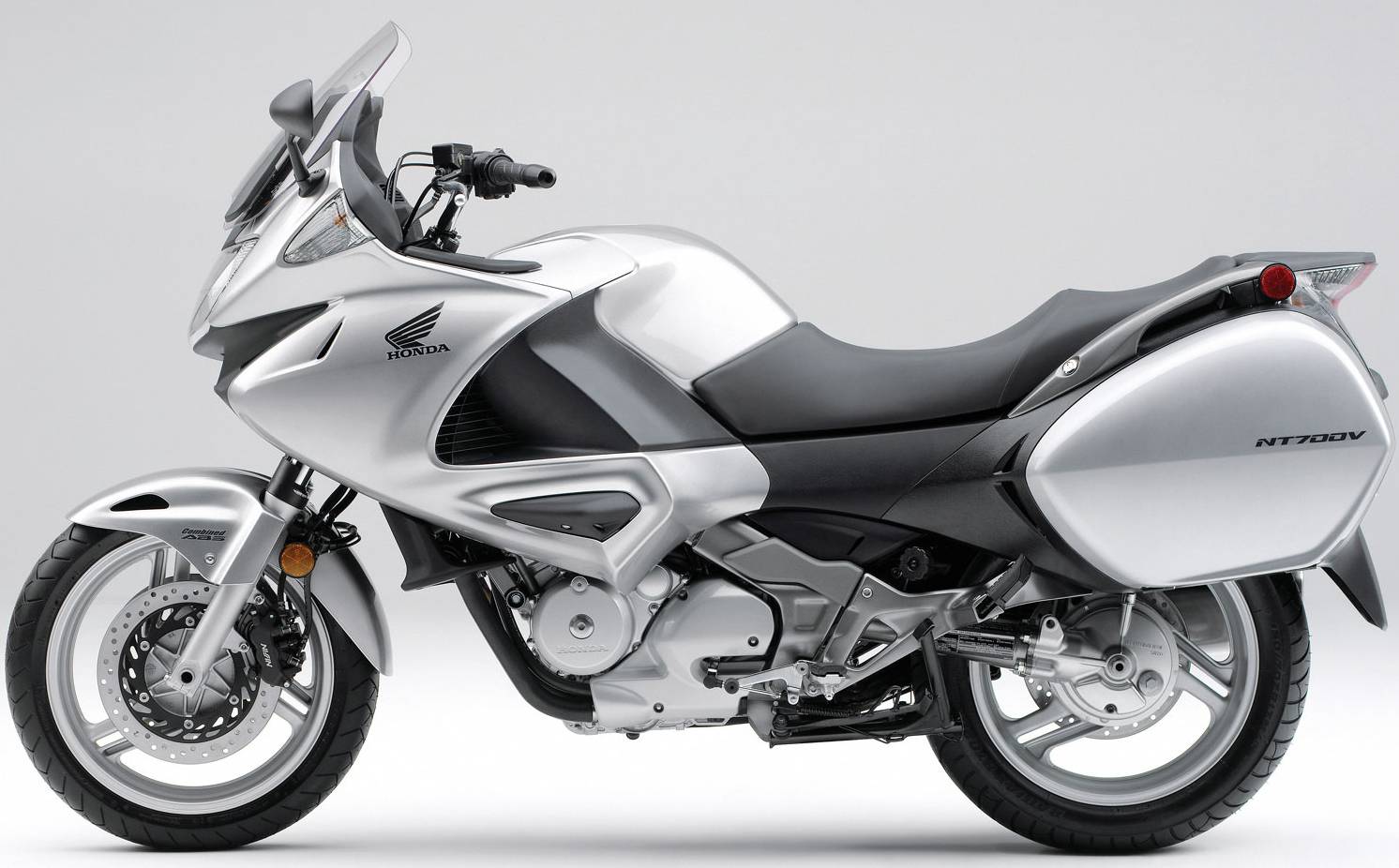

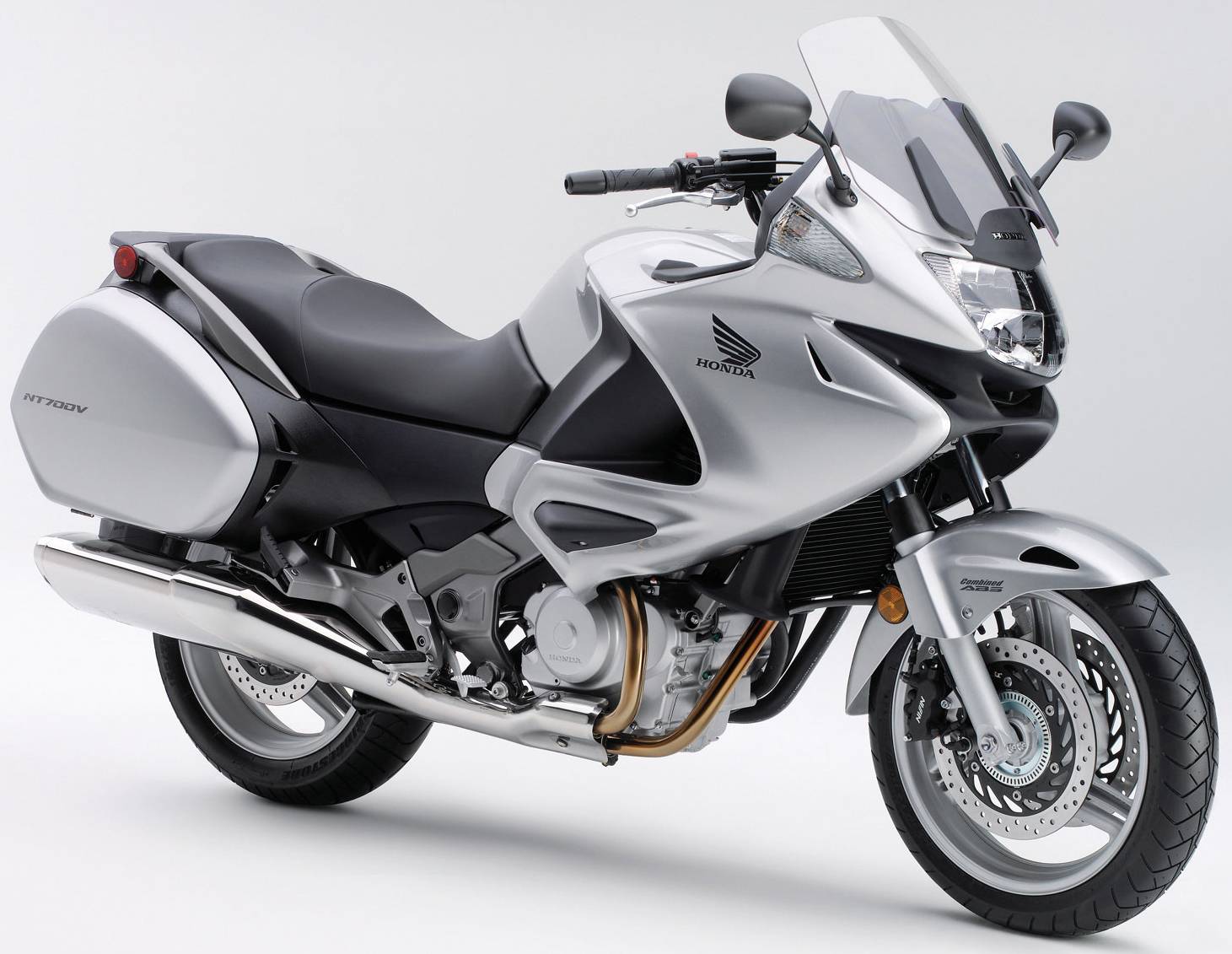

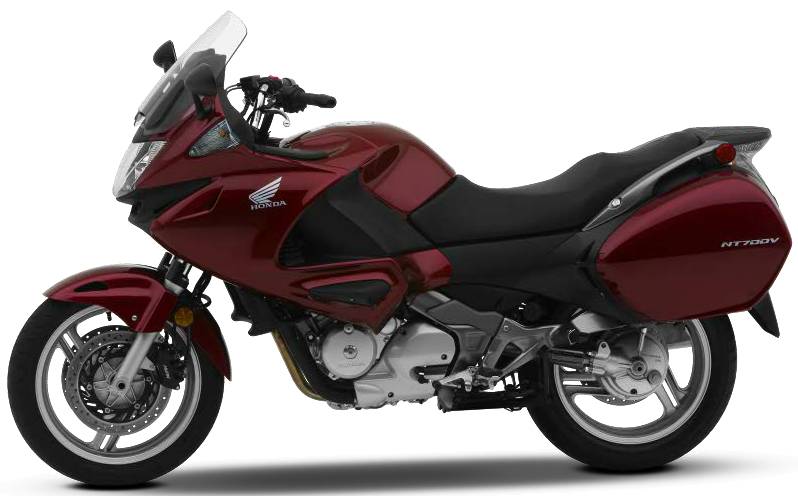

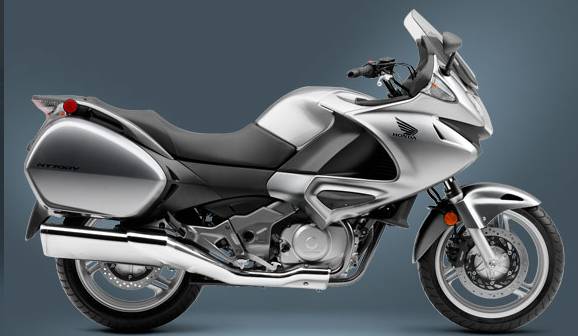

2010 NT700V Varadero
Engine |
|
| Engine Type | 680cc liquid-cooled 52 degrees V-twin |
| Bore and Stroke | 81mm x 66mm |
| Fuel Delivery | PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors |
| Compression Ratio | 10.0:1 |
| Valve Train: | SOHC; four valves per cylinder |
| Ignition | Digital transistorized with electronic advance |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 120/70 ZR17 radial |
| Rear Tire | 150/70 ZR17 radial |
| Suspension Front | 41mm telescopic fork; 4.5 inches travel |
| Suspension Rear | Single shock with spring-preload adjustability; 4.8 inches travel |
| Front Brakes | Dual full-floating 296mm discs with CBS three-piston calipers |
| Rear Brakes | Single 276mm disc with CBS three-piston caliper |
DIMENSION |
|
| Fuel consumption | 49 MPG |
| Seat Height | 31.7 inches |
| Wheelbase | 58.1 inches |
| Fuel Capacity | 5.2 gallons, including 0.9-gallon reserve |
| Curb weight | 562 pounds (Includes all standard equipment, required fluids and full tank of fuel ready to ride.) |
| Rake | (Caster Angle): 28 degrees 50′ |
| Trail | 115mm (4.5 inches) |
OTHER |
|
| Emissions | Meets current California Air Resources Board (CARB) and EPA standards. |

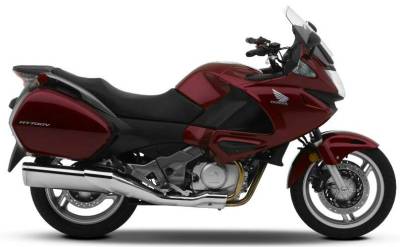

| Colors | Metallic Red, Metallic Silver |
| Model Id | NT700VA |
| Warranty: One Year | Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |

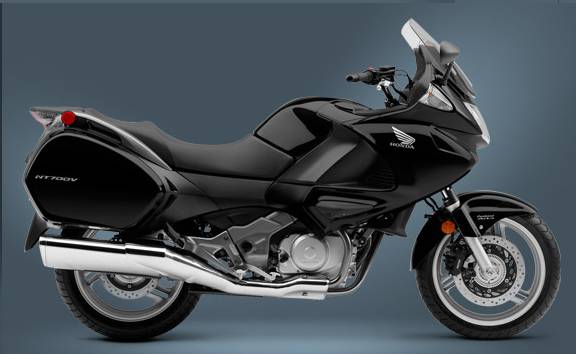

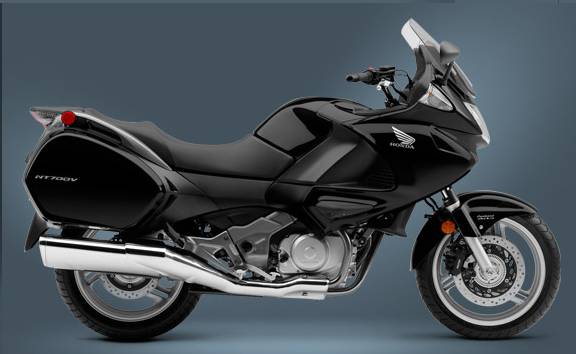

2011 NT700V Deauville
Engine |
|
| Engine Type | 680cc liquid-cooled 52 degrees V-twin |
| Bore and Stroke | 81mm x 66mm |
| Fuel Delivery | PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors |
| Compression Ratio | 10.0:1 |
| Valve Train: | SOHC; four valves per cylinder |
| Ignition | Digital transistorized with electronic advance |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 120/70 ZR17 radial |
| Rear Tire | 150/70 ZR17 radial |
| Suspension Front | 41mm telescopic fork; 4.5 inches travel |
| Suspension Rear | Single shock with spring-preload adjustability; 4.8 inches travel |
| Front Brakes | Dual full-floating 296mm discs with CBS three-piston calipers |
| Rear Brakes | Single 276mm disc with CBS three-piston caliper |
DIMENSION |
|
| Fuel consumption | 49 MPG |
| Seat Height | 31.7 inches |
| Wheelbase | 58.1 inches |
| Fuel Capacity | 5.2 gallons, including 0.9-gallon reserve |
| Curb weight | 569 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride.) |
| Rake | 28 degrees 50′ |
| Trail | 115mm (4.5 inches) |
OTHER |
|
| Fuel consumption | 4.8 L/100km (49 mpgUS) |
| Emissions | Meets current California Air Resources Board (CARB) and EPA standards. |

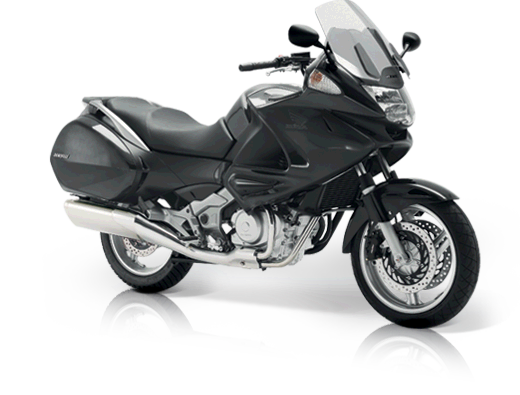

| Colors | Pearl Black |
| Model Id | NT700VA |
| Warranty | One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |

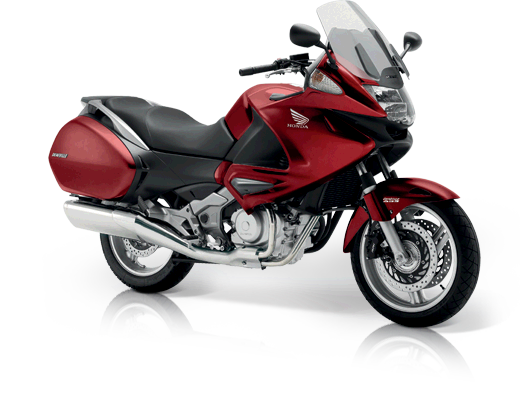

2012 NT700VA Deauville
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve SOHC 52° V-twin |
| Engine Displacement | 680.2cc |
| Bore and Stroke | 81 x 66cm |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Compression Ratio | 10.0:1 |
| Max. Power Output | 48.3 kW/8,000 min-1 (95/1/EC) (65bhp) |
| Max. Torque | 66.2 Nm/6,500 min-1 (95/1/EC) |
| Ignition | Digital transistorised with electronic advance |
DRIVETRAIN |
|
| Transmission | 5 speed |
| Final Drive | Enclosed shaft |
| Front Wheels | S-section triple-spoke cast aluminium |
| Rear Wheels | S-section triple-spoke cast aluminium |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Tire | 120/70ZR17 (58W) |
| Rear Tire | 150/70ZR17 (69W) |
| Suspension Front | 41mm telescopic fork; 4.5 inches travel |
| Suspension Rear | Single shock with spring-preload adjustability; 4.8 inches travel |
| Front Brakes | 296 x 4.5 mm dual hydraulic disc with Combined 3-piston calipers, ABS and sintered metal pads |
| Rear Brakes | 276 x 6 mm hydraulic disc with dual-piston caliper, ABS and sintered metal pads |
DIMENSION |
|
| Fuel consumption | 49 MPG |
| Seat Height | 805 mm (31.7 inches) |
| Wheelbase | 1476 mm (58.1 inches) |
| Fuel Capacity | 19.7 Litres (5.2 GalUS) (including 3.5 Litre (1 Gal)reserve) |
| Curb weight | 239 kg (526 lb) |
| Overall Width | 776mm (30.6 inches) |
| Overall Length | 2218mm (87.3 inches) |
| Overall Height | 1320 mm (52 inches) (raised windscreen: 1491 mm (58.7 inches)) |
