Honda Reflex 250 (NSS250) Motorcycles

2001 NSS250 Reflex 250

• ENGINE
  • N/A
• DRIVETRAIN
  • N/A
• CHASSIS / SUSPENSION / BRAKES
  • N/A
• DIMENSION
  • N/A
• OTHER

2002 Reflex (NSS250)

OVERVIEW

• It was a scooter with an automatic transmission that needed no shifting even into Neutral or Park

Engine
Engine Type	249cc liquid-cooled, four-stroke, single-cylinder, SOHC
Bore And Stroke	72.7 x 60mm
Compression Ratio	10.5:1
Carburetor	30mm CV, auto-choke
Valve Train	SOHC; two valves per cylinder
Ignition	Transistorized
Starter
Max Power
Max Torque
DRIVETRAIN
Transmission	Automatic V-MaticTM
Final Drive
CHASSIS / SUSPENSION / BRAKES
Front Suspension	3.9 in. travel
Rear Suspension	4.7 in. travel, 7-way preload adjustment
Front Brakes	Triple piston, single 240mm disc
Rear Brake	Single piston, single 220mm disc
Front Tire	110/90-13
Rear Tire	130/70-12
DIMENSION
Rake
Luggage capacity	33 liters
Wheelbase	60.8 inches (1544 mm)
Seat Height	28.3 inches (719 mm)
Dry Weight	351 pounds (160 kg) – ABS Dryweight: 362 pounds (165 kg)
Fuel Tank Capacity	3.2 gallons (12 liters)
OTHER
Model	Reflex NSS250
Color	Metallic Red Metallic Silver Gold Candy Dark Red
Warranty

2003 Reflex 250 (NS250)

• ENGINE
  • N/A
• DRIVETRAIN
  • N/A
• CHASSIS / SUSPENSION / BRAKES
  • N/A
• DIMENSION
  • N/A
• OTHER

2004 Reflex 250 (NS250)

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	72.7 x 60mm
Compression Ratio	10.5:1
Fuel Delivery	30mm CV with auto-enricher
Valve Train	SOHC; two valves per cylinder
Ignition	Fully transitorized
Starter
Max Power
Max Torque
DRIVETRAIN
Transmission	Automatic V-MaticTM
Final Drive
CHASSIS / SUSPENSION / BRAKES
Front Suspension	33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension	Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes	Single 240.0mm disc with CBS three-piston caliper
Rear Brake	Single 220.0mm disc with CBS single-piston caliper
Front Tire	110/90-13
Rear Tire	130/70-12
DIMENSION
Rake
Luggage capacity
Wheelbase	60.8 inches (1544 mm)
Seat Height	28.3 inches (719 mm)
Dry Weight	351 pounds (160 kg)
Fuel Tank Capacity	3.2 gallons (12 liters)
OTHER
Emissions	California version differs slightly due to emissions equipment.

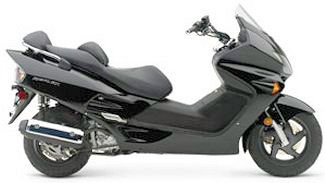

Color	Black Red
Warranty	1 year

2004 Reflex 250 ABS (NS250A)

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	72.7 x 60mm
Compression Ratio	10.5:1
Fuel Delivery	30mm CV with auto-enricher
Valve Train	SOHC; two valves per cylinder
Ignition	Fully transitorized
Starter
Max Power
Max Torque
DRIVETRAIN
Transmission	Automatic V-MaticTM
Final Drive
CHASSIS / SUSPENSION / BRAKES
Front Suspension	33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension	Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes	Single 240.0mm disc with CBS three-piston caliper with Anti-Lock Braking System®
Rear Brake	Single 220.0mm disc with CBS single-piston caliper with Anti-Lock Braking System®
Front Tire	110/90-13
Rear Tire	130/70-12
DIMENSION
Rake
Luggage capacity
Wheelbase	60.8 inches (1544 mm)
Seat Height	28.3 inches (719 mm)
Dry Weight	362.0 pounds
Fuel Tank Capacity	3.2 gallons (12 liters)
OTHER
Emissions	California version differs slightly due to emissions equipment.
Color	Black Red
Warranty	1 year

2005 Reflex 250 (NS250)

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	72.7 x 60mm
Compression Ratio	10.5:1
Fuel Delivery	30.0mm CV with auto-enricher
Valve Train	SOHC; two valves per cylinder
Ignition	Fully transitorized
Starter
Max Power
Max Torque
DRIVETRAIN
Transmission	Automatic V-Matic belt drive
Final Drive
CHASSIS / SUSPENSION / BRAKES
Front Suspension	33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension	Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes	Single 240.0mm disc with CBS three-piston caliper
Rear Brake	Single 220.0mm disc with CBS single-piston caliper (Opt: Anti-Lock Braking System®)
Front Tire	110/90-13
Rear Tire	130/70-12
DIMENSION
Rake
Luggage capacity
Wheelbase	60.8 inches (1544 mm)
Seat Height	28.3 inches (719 mm)
Dry Weight	375 pounds (ABS: 379 pounds)
Fuel Tank Capacity	3.2 gallons (12 liters)
OTHER
Emissions	California version differs slightly due to emissions equipment.
Color	Candy Dark Red
Warranty	1 year

2006 NSS250

OVERVIEW

• Overview: Where will you be riding? The highway? Back roads? Around town? The Reflex has got you covered. Featuring a smooth 249cc, liquid-cooled four-stroke engine, seamless automatic transmission, comfy two-up seating, it’s perfect for going just about anywhere.

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	72.7 x 60mm
Compression Ratio	10.5:1
Fuel Delivery	30.0mm CV with auto-enricher
Valve Train	SOHC; two valves per cylinder
Ignition	Fully transitorized
Starter
Max Power
Max Torque
DRIVETRAIN
Transmission	Automatic V-Matic belt drive
Final Drive
CHASSIS / SUSPENSION / BRAKES
Front Suspension	33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension	Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes	Single 240.0mm disc with Combined Braking System three-piston caliper
Rear Brake	Single 220.0mm disc with Combined Braking System single-piston caliper (Opt: ABS)
Front Tire	110/90-13
Rear Tire	130/70-12
DIMENSION
Rake
Luggage capacity
Wheelbase	60.8 inches (1544 mm)
Seat Height	28.3 inches (719 mm)
Dry Weight	375 pounds (ABS: 379 pounds)
Fuel Tank Capacity	3.2 gallons (12 liters)
OTHER
Emissions	California version differs slightly due to emissions equipment.

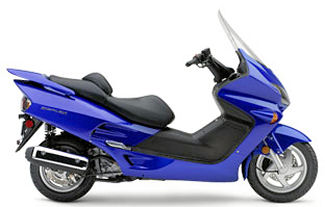

Color	Candy Blue
Model ID	NSS250

2007 NSS250

OVERVIEW

• Overview: From city streets to country roads to long stretches of highway, the Reflex is one scooter that’s built for any number of rides. Its smooth 249cc engine, automatic transmission and comfortable seating for two deliver the goods to get you going, wherever the day takes you.

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	72.7 x 60mm
Compression Ratio	10.5:1
Fuel Delivery	30.0mm CV with auto-enricher
Valve Train	SOHC; two valves per cylinder
Ignition	Fully transitorized
Starter
Max Power
Max Torque
DRIVETRAIN
Transmission	Automatic V-Matic belt drive
Final Drive
CHASSIS / SUSPENSION / BRAKES
Front Suspension	33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension	Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes	Single 240mm disc with Combined Braking System three-piston caliper
Rear Brake	Single 220mm disc with Combined Braking System single-piston caliper (Opt: ABS)
Front Tire	110/90-13
Rear Tire	130/70-12
DIMENSION
Rake
Luggage capacity
Wheelbase	60.8 inches (1544 mm)
Seat Height	28.3 inches (719 mm)
Dry Weight	375 pounds (ABS: 379 pounds)
Fuel Tank Capacity	3.2 gallons (12 liters)
OTHER
Emissions	California version differs slightly due to emissions equipment.
Color	Light Silver Metallic
Model ID	NSS250

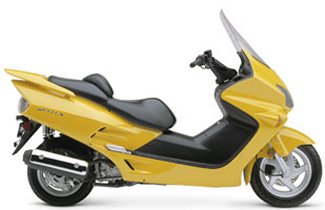

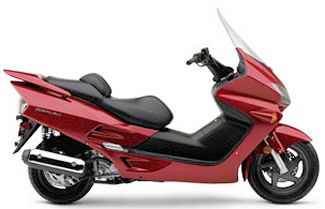

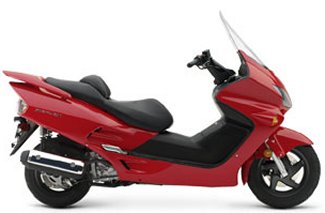

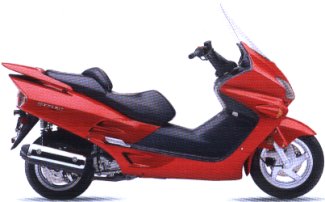

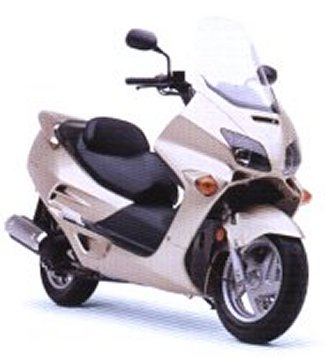

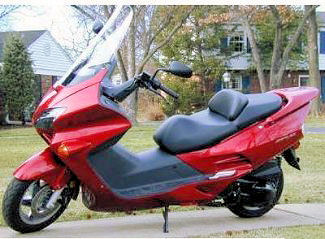

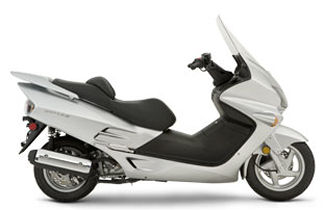

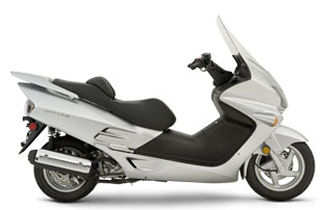

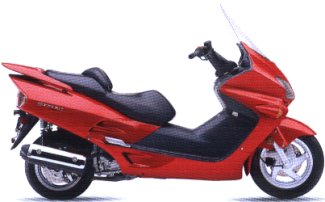

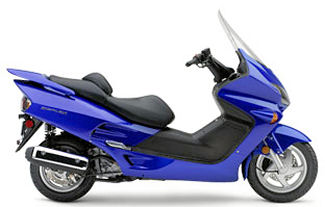

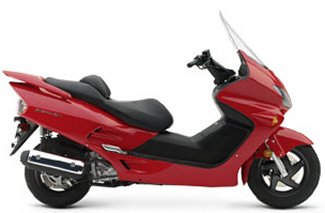

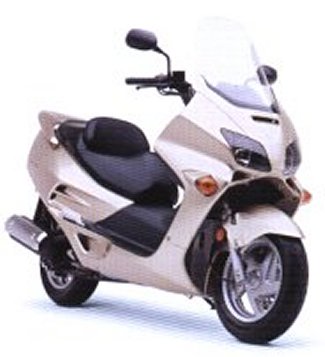

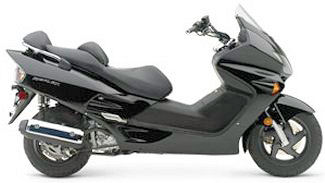

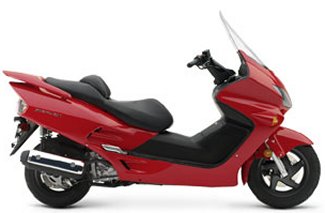

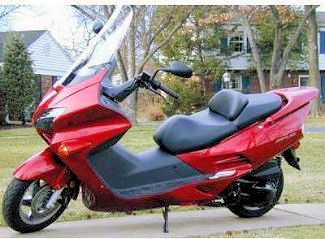

Honda Reflex 250 Photo Gallery
