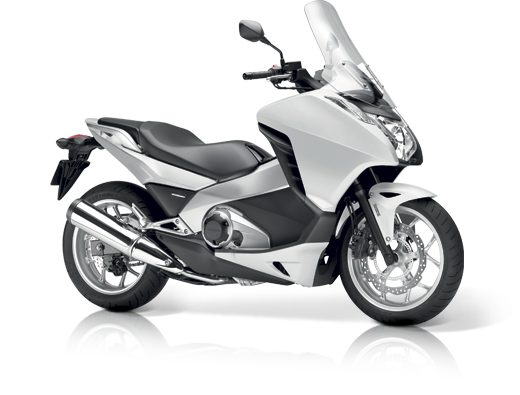

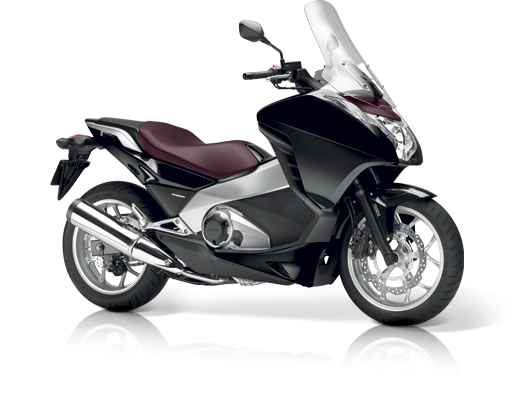

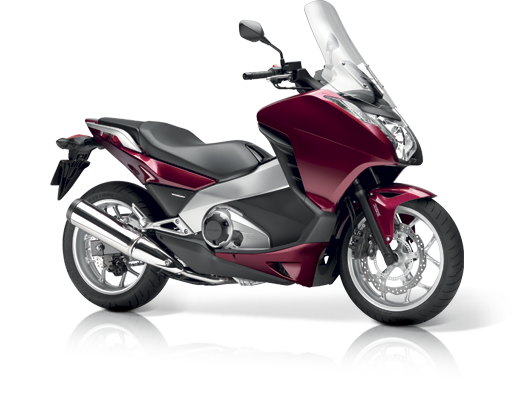

2012 Honda Integra 670
OVERVIEW
- The Integra takes its name from the fact it integrates the ease of use of a scooter with the dynamic performance of a motorcycle. It has a feet-forward riding position, protection from the elements, internal storage and the advanced three-mode transmission in the shape of the second generation of Honda’s innovative Dual Clutch Transmission. At the same time it offers stability, handling and superb road-holding. The result is a unique and desirable modern machine, conceived to deliver a totally engaging riding experience while benefiting from the environmental and safety technologies customers expect of a 21st century vehicle.
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder |
| Bore and Stroke | 73 x 80mm |
| Valves | Chain driven SOHC, 4 valves per cylinder |
| Displacement | 670cc |
| Compression Ratio | 10.7:1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Ignition System | Computer-controlled digital transistorised with electronic advance |
| Max. Torque | 62Nm/4,750min-1 95/1/EC |
| Max. Power Outpu | 38.1kW/6,250min-1 95/1/EC |
DRIVETRAIN |
|
| Transmission | 6-speed Dual Clutch Transmission |
| Final Drive | Chain |
| Clutch | Wet, multiplate hydraulic 2-clutch |
| Clutch Operation | Push button – D mode/S mode/Manual mode |
| Front Wheels | multi-spoke cast aluminium 17M/C x MT3.5 |
| Rear Wheels | multi-spoke cast aluminium 17M/C x MT3.5 |
CHASSIS / SUSPENSION / BRAKES |
|
| Frame type | Diamond; steel pipe |
| Front Suspension | 41mm telescopic fork, 153.5mm (6 in.) travel |
| Rear Suspension | Monoshock damper, Pro-Link® swingarm, 150mm (5.9 in.) travel |
| Front Tire | 120/70-ZR17M/C (58W) |
| Rear Tire | 160/60-ZR17M/C (69W) |
| Front Brakes | 320mm single wave/wavy hydraulic disc with 2-piston caliper and sintered metal pads |
| Rear Brakes | 40 single wave/wavy hydraulic disc with single-piston caliper and sintered metal pads |
DIMENSION |
|
| Rake/trail | 27.0 degrees/110.0mm (4.3 inches) |
| Wheelbase | 1525mm (60 inches) |
| Overall Length | 2195mm (86.4 inches) |
| Overall Width | 790mm (31.1 inches) |
| Overall Height | 1440mm (56.7 inches) |
| Curb Weight | 238 kg (524 lb) |
| Seat Height | 790mm (31.1 inches) |
| Ground Clearance | 135mm (5.3 inches) |
| Fuel Tank Capacity | 14.1 Litres (3.7 GalUS) |
OTHER |
|
| Fuel Consumption | 3.6 L/100km (17.3 miles/litre) (65.5 mpgUS) (78.6 mpg-Imp) |
