Honda Helix 250 (CN250) Motorcycles

1986 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER
Engine	MF02E-5000001 ~
V.I.N.	JH2MF020_GK000001 ~
Color	Pearl Shell White with white floorboard stripe Candy Glory Red with red floorboard stripe

1987 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER
Engine	MF02E-5100001 ~
V.I.N.	JH2MF020_HK000001 ~
Color	Achilles, Black Metallic with no floorboard stripe Candy Glory Red with no floorboard stripe

1986 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER
Engine	MF02E-5000001 ~
V.I.N.	JH2MF020_GK000001 ~
Color	Pearl Shell White with white floorboard stripe Candy Glory Red with red floorboard stripe

1992 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER	New cast aluminum wheels New tire design
Engine	MF02E-5400001 ~
V.I.N.	JH2MF020_NK000001 ~
Color	Candy Glory Red

1993 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER	New cast aluminum wheels New tire design
Engine	MF02E-5401001 ~
V.I.N.	JH2MF020_PK000001 ~
Color	Candy Glory Red

1994 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER	New cast aluminum wheels Redesigned graphics
Engine	MF02E-5403569 ~
V.I.N.	JH2MF020_RK000001 ~
Color	Gloss Black

1995 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER	New cast aluminum wheels Redesigned graphics
Engine	MF02E-5405667 ~
V.I.N.	JH2MF020_SK000001 ~
Color	Gloss Black

1996 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER	cast aluminum wheels
Engine	MF02E-5407318 ~
V.I.N.	JH2MF020_TK000001 ~
Color	Pure Red

1997 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER	cast aluminum wheels
Engine	MF02E-5408851 ~
V.I.N.	JH2MF020_VK200001 ~
Color	Pure Red

1998 Helix 250 (CN250)

Engine
Engine Type	244cc 4-stroke liquid-cooled
Cylinders	One
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER	cast aluminum wheels
Engine	MF02E-5000000 ~
V.I.N.	JH2MF020_WK300001 ~
Color	Pure Red

2004 Helix 250 CN250

Engine
Engine Type	244cc liquid-cooled single-cylinder four-stroke
Fuel Delivery	30.0mm CV with automatic choke
Ignition	CDI
Starter
DRIVETRAIN
Transmission	Automatic V-Matic
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link; 3.2-inch travel
Rear Suspension	Swingarm with dual hydraulic shocks; 3.9-inch travel
Front Brakes	Single disc
Rear Brake	Drum
Front Tire	110/100-12
Rear Tire	120/90-10
DIMENSION
Length x Width x Height
Rake
Trail
Wheelbase	63.8 inches
Seat Height	26.2 inches
Ground Clearance
Dry Weight	349.4 pounds
Fuel Capacity	3.2 gallons
OTHER
Warranty	1 year: Coverage of defects in materials and workmanship

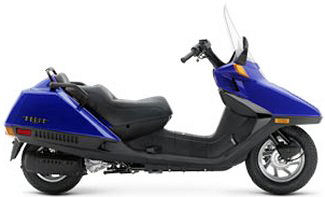

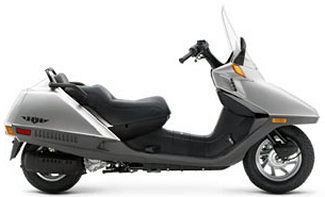

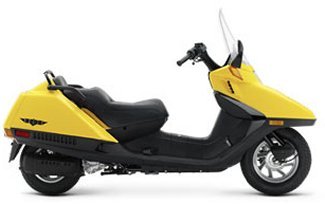

Color	Candy Blue Metallic Silver Pearl White Red Yellow

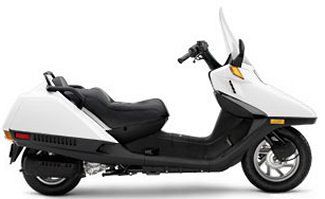

2005 Helix 250 CN250

Engine
Engine Type	244cc liquid-cooled single-cylinder four-stroke
Fuel Delivery	30.0mm CV with automatic choke
Ignition	CDI
Starter
DRIVETRAIN
Transmission	Automatic V-Matic
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link; 3.2-inch travel
Rear Suspension	Swingarm with dual hydraulic shocks; 3.9-inch travel
Front Brakes	Single disc
Rear Brake	Drum
Front Tire	110/100-12
Rear Tire	120/90-10
DIMENSION
Length x Width x Height
Rake
Trail
Wheelbase	63.8 inches
Seat Height	26.2 inches
Ground Clearance
Dry Weight	349.4 pounds
Fuel Capacity	3.2 gallons
OTHER
Emissions	California version differs slightly due to emissions equipment.
Warranty	1 year

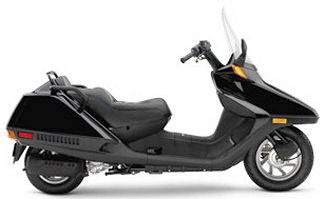

Color	Black Pearl White

2006 CN250

OVERVIEW
Overview: Let’s see you get comfort, loads of performance, seating for two, and a built-in trunk with plenty of room for all that stuff you’re sure to be toting. With all these features, it’s pretty easy to see why this 244cc, liquid-cooled four-stroke scooter has been a popular favorite for both the urban and suburban set for years.

Engine
Engine Type	244cc liquid-cooled single-cylinder four-stroke
Fuel Delivery	30.0mm CV with automatic choke
Ignition	CDI
Starter
DRIVETRAIN
Transmission	Automatic V-Matic
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link; 3.2-inch travel
Rear Suspension	Swingarm with dual hydraulic shocks; 3.9-inch travel
Front Brakes	Single disc
Rear Brake	Drum
Front Tire	110/100-12
Rear Tire	120/90-10
DIMENSION
Length x Width x Height
Rake
Trail
Wheelbase	63.8 inches
Seat Height	26.2 inches
Ground Clearance
Dry Weight	349.4 pounds
Fuel Capacity	3.2 gallons
OTHER
Emissions	California version differs slightly due to emissions equipment.
Model ID	CN250

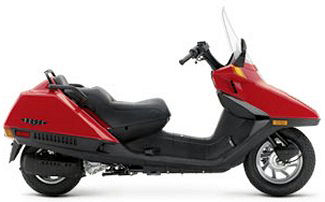

Color	Red

2007 CN250

OVERVIEW
Overview: Let’s see… you get comfort, loads of performance, seating for two, and a built-in trunk with plenty of room for all that stuff you’re sure to be toting. With all these features, it’s pretty easy to see why this 244cc, liquid-cooled four-stroke scooter has been a popular favorite for both the urban and suburban set for years.

Engine
Engine Type	244cc liquid-cooled single-cylinder four-stroke
Fuel Delivery	30.0mm CV with automatic choke
Ignition	CDI
Starter
DRIVETRAIN
Transmission	Automatic V-Matic
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link; 3.2-inch travel
Rear Suspension	Swingarm with dual hydraulic shocks; 3.9-inch travel
Front Brakes	Single disc
Rear Brake	Drum
Front Tire	110/100-12
Rear Tire	120/90-10
DIMENSION
Length x Width x Height
Rake
Trail
Wheelbase	63.8 inches
Seat Height	26.2 inches
Ground Clearance
Dry Weight	349.4 pounds
Fuel Capacity	3.2 gallons
OTHER
Emissions	California version differs slightly due to emissions equipment.
Model ID	CN250
Color	Red

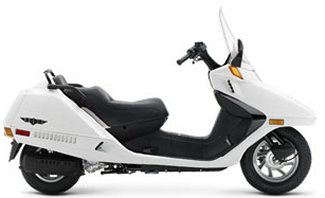

Honda Helix 250 Photo Gallery
