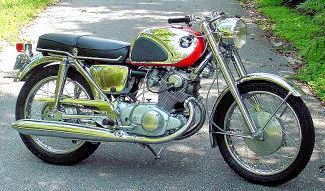

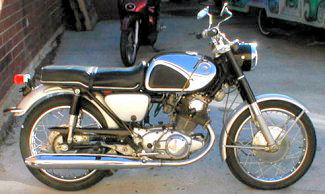

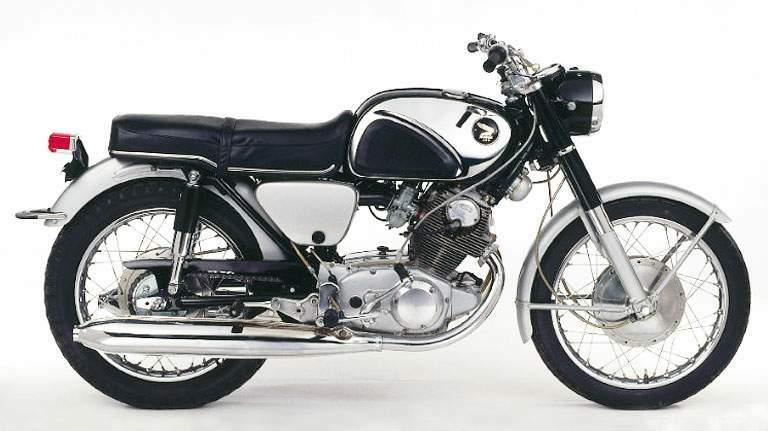

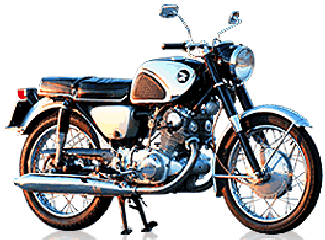

1961-68 Honda Super Hawk 305 (CB77)
Engine |
|
| Engine Type | Air cooled, four stroke, parallel twin cylinder SOHC |
| Displacement | 305cc |
| Bore and Stroke | 60 x 54 mm |
| Compression Ratio | 9.5:1 |
| Carburetors | Twin |
| Starter | Kickstart |
| Max Power | 16.8 KW (23.8 hp) @ 7500 rpm |
| Max Torque | 23.1 NM @ 6000 rpm |
DRIVETRAIN |
|
| Transmission | 4-speed |
| Clutch | Wet multi-plate |
| Final drive | chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Hydra lick forks |
| Rear Suspension | Dual chocks |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Tires | 3.25-16 |
| Brakes | 3.25-16 |
DIMENSION |
|
| Seat Height | 785 mm (30.9 in.) |
| Dry Weight | 169 kg (372 lb) |
| Fuel Capacity | N/A |
OTHER |
|
| Colors |
|
- The fuel tank, forks, headlight shell, and frame were painted one of the basic colors
- The fenders and side covers were silver
- The lower front forks on early models were painted one of the basic colors, but later they were silver
- The tank panel was chrome with rubber knee pads
- The early models had a flat handlebar, but the later models had a low rise handlebar
- The serial number began CB77-100001.
