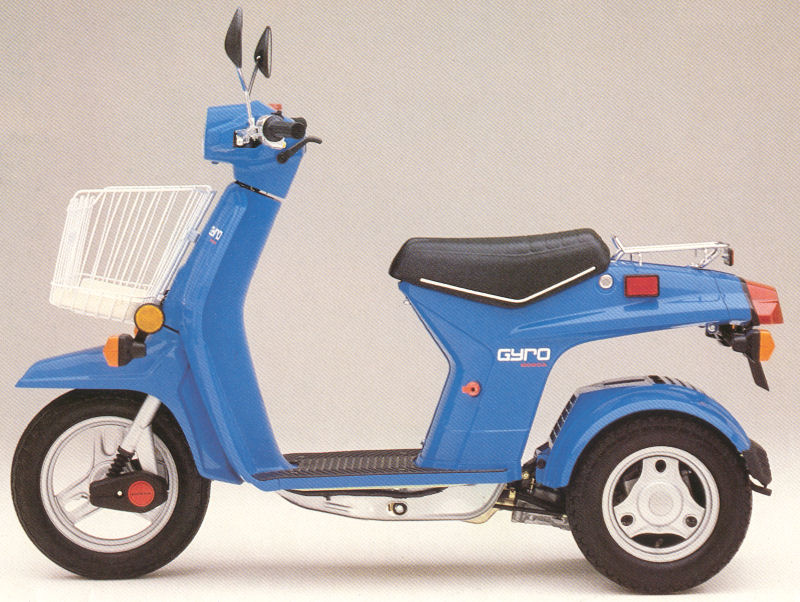

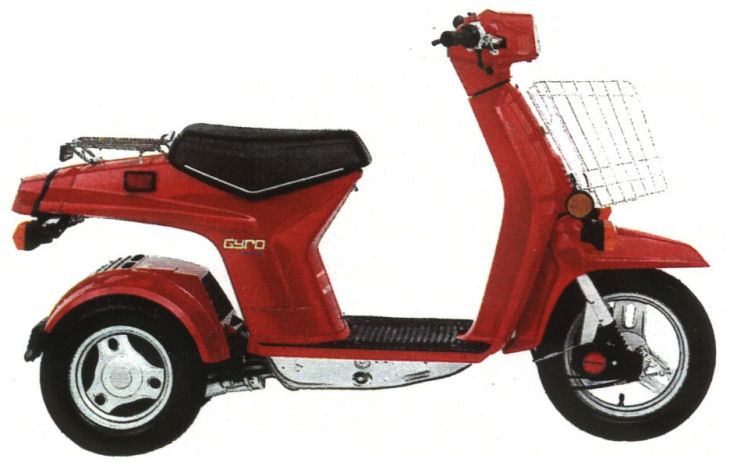

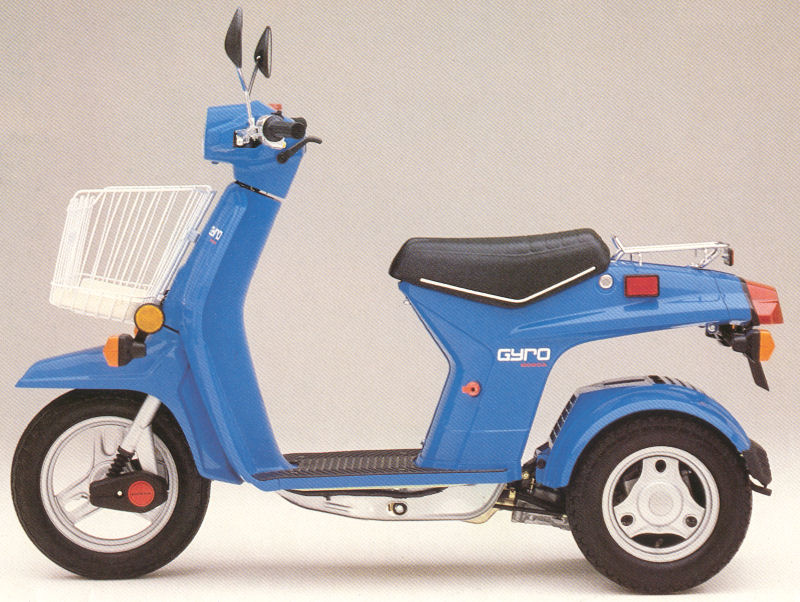

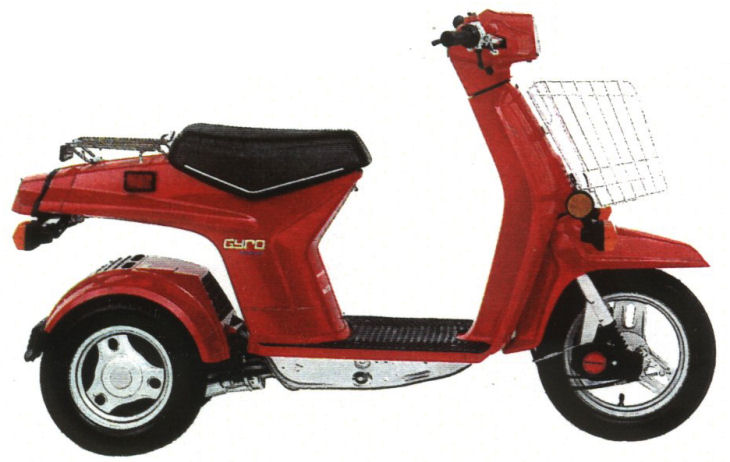

1984 GYRO 50 NN50MD
OVERVIEW
- It had two rear wheels and pivoting-link frame to let the front part lean during cornering while rear power unit stays flat
Engine |
|
| Engine Type | two-stroke air cooled single |
| Oil supply | oil injection |
| Displacement | 49cc |
| Compression ratio | 7.2:1 |
| Fuel Delivery | 14mm piston-valve type |
| Spark plug | BPR6HS |
| Plug gap | .028 |
| Bore And Stroke | 41 x 37.4mm |
| Compression Ratio | 11.9:1 |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | Variable ratio automatic |
| Clutch | Automatic centrifugal |
| Drive line | Gear |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Bottom-link type |
| Rear Suspension | Single shock |
| Front Brake | Drum |
| Rear Brake | Drum |
| Front Tire | 2.75-10 |
| Rear Tire | 3.00-8 |
DIMENSION |
|
| Wheelbase | 1080mm (42.5 in.) |
| Seat Height | 29.0 inches |
| Dry Weight | 58 kg (127.8 lb) |
| Fuel Capacity | 1540mm (60.6 in.) |
| Overall length | 1540mm (60.6 in.) |
| Overall width | 620mm (24.4 in.) |
OTHER |
|
| Accessory | Rear carrier |
| Color | Sparling Red |
| Color | Neptune Blue |
| V.I.N | JH2TB0904ES000001 |
| Engine | TB09E-2000001 |
