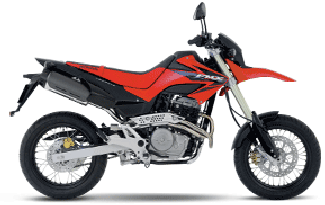

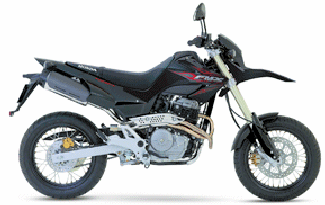

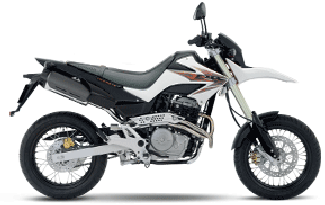

2007 FMX650
| Engine Type | Air-cooled, 4-stroke single |
| Bore and Stroke | 100 x 82mm |
| Displacement | 644cc |
| Compression Ratio | 8.3:1 |
| Carburation | 40 mm VE-type carburetor |
| Max. Power Output | 37 bhp at 5,750 rpm |
| Max. Torque | 52.3 Nm at 4,500 rpm |
| Ignition | Fully transistorised electronic |
| Starter | Electric |
| Gearbox | 5-Speed |
| Final Drive | O-ring sealed chain |
| Length x Width x Height | 2,151 x 823 x 1,157 mm |
| Wheelbase | 1,490 mm |
| Seat Height | 875 mm |
| Ground Clearance | 216 mm |
| Fuel Capacity | Fuel Capacity |
| Dry Weight | 163 kg |
| Wheels Front | 17M/C x MT3.50 aluminum rim/steel spoke |
| Wheels Rear | 17M/C x MT4.00 aluminum rim/steel spoke |
| Tires Front | 120/70 R17M/C 58H |
| ires Rear | 150/60 R17M/C 66H |
| Suspension Front | 45mm inverted leading-axle telescopic fork,218mm axle travel |
| Suspension Rear | Pro-Link, 186mm axle travel |
| Brakes Front | 296 x 4mm hydraulic disc with dual-pistoncaliper and sintered metal pads |
| Brakes Rear | 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |
