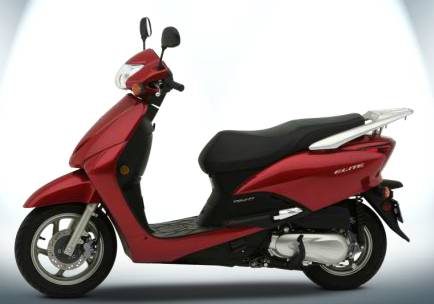

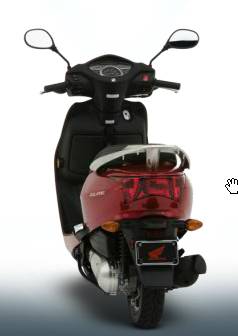

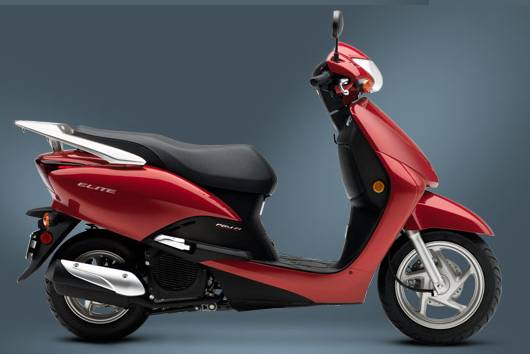

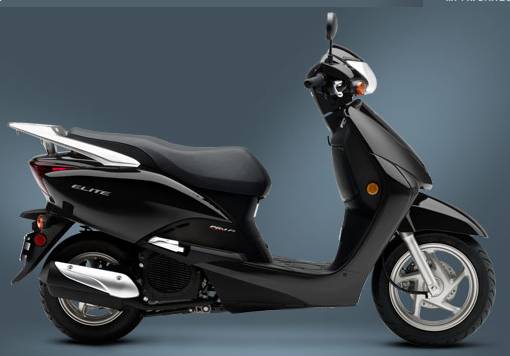

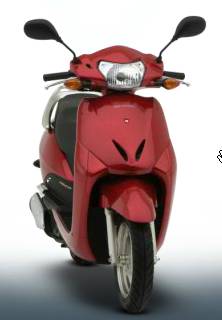

2008 Elite 110 NHX110
Engine |
|
| Engine Type | 108cc liquid-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 50mm x 55mm |
| Compression Ratio | 11.0:1 |
| Fuel Delivery | Programmed Fuel Injection (PGM-FI) with automatic enrichment |
| Ignition | Digital transistorized with electronic advance |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | Honda V-Matic belt-converter automatic transmission |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33mm hydraulic fork; 3.1 inches travel |
| Rear Suspension | Swingarm with single hydraulic shock; 2.8 inches travel |
| Front Brakes | Single 190mm disc with CBS two piston caliper |
| Rear Brakes | 130mm drum with CBS |
| Front Tire | 90/90-12 |
| Rear Tire | 100/90-10 |
DIMENSION |
|
| Miles Per Gallon | 107 MPG* |
| Seat Height | 29.1 inches |
| Wheelbase | 50.2 inches |
| Curb Weight | 254 pounds (Includes all standard equipment, required fluids and a full tank of fuel ready to ride) |
| Fuel Capacity | 1.6 gallons |
| Ground Clearance | 173mm |
| Rake | (Caster Angle): 26.5 degrees |
| Trail | 74mm (2.9 inches) |
OTHER |
|
| Emissions | Meets current EPA standards. |
| Available Colors | Red, Black |
| Model Id | NHX110 |
| FACTORY WARRANTY INFORMATION | One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |
