Honda Elite 150 (CH150) scooter

1985 Elite 150 (CH150)

Engine
Engine Type	Liquid-cooled, SOHC, Four-stroke
Displacement	152.7cc
Bore & Stroke	58 x 57.8mm
Compression Ratio	10:1
Fuel Delivery	22mm, CV type
Ignition	CDI
Starting system	Electric
DRIVETRAIN
Transmission	Variable Ratio, V-MaticTM
Clutch	Centrifugal, Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Trailing-link type
Rear Suspension	Twin hydraulic shocks
Brakes	Drum (front and rear)
Tire	3.50-10 (front and rear)
DIMENSION
Dry weight	105 kg (231.4 lb)
Overall length	1940mm (76.4 in.)
Overall width	655mm (25.8 in.)
Wheelbase	1200mm (47.2 in.)
Fuel capacity	8.3 liters (2.2 US gal) (1.8 Imp. gal)
OTHER
Colors	Pleiades Silver Metallic Candy Ruby Red
V.I.N	JH2KF010_FK000001
Engine	KF01E-5000001

• Headlight on handlebar cowling
• Analog speedometer

1987 CH150 Elite 150

Engine
Engine Type	Liquid-cooled, SOHC, Four-stroke
Displacement	152.7cc
Bore & Stroke	58 x 57.8mm
Compression Ratio	10:1
Fuel Delivery	22mm, CV type
Ignition	CDI
Starting system	Electric
DRIVETRAIN
Transmission	Variable Ratio, V-MaticTM
Clutch	Centrifugal, Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Trailing-link type
Rear Suspension	Twin hydraulic shocks
Brakes	Drum (front and rear)
Tire	3.50-10 (front and rear)
DIMENSION
Dry weight	105 kg (231.4 lb)
Overall length	1940mm (76.4 in.)
Overall width	655mm (25.8 in.)
Wheelbase	1200mm (47.2 in.)
Fuel capacity	8.3 liters (2.2 US gal) (1.8 Imp. gal)
OTHER
Colors	Pearl Gleam Red Pearl Seashell White
V.I.N	JH2KF010_FK000001
Engine	KF01E-5000001

• Headlight on front body cowling
• Analog speedometer

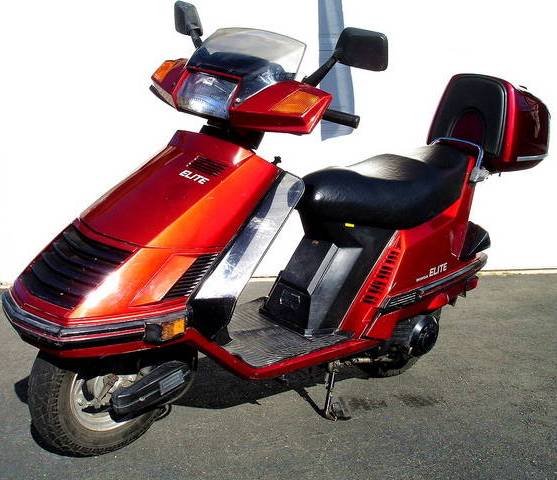

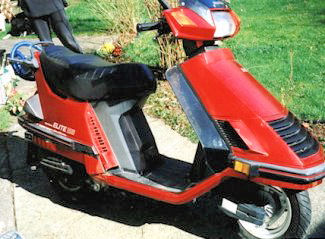

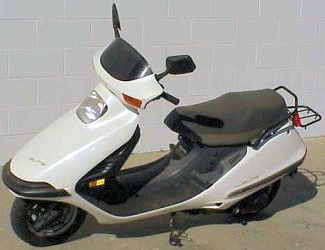

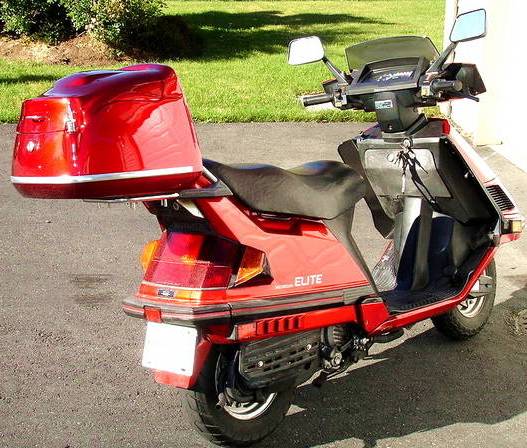

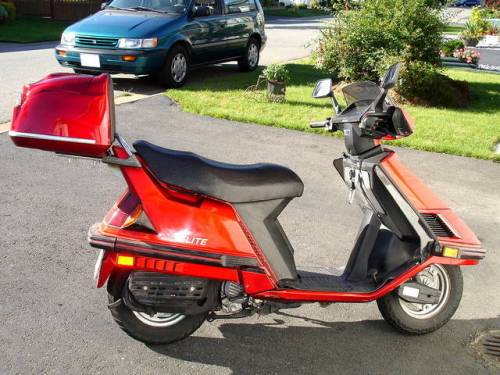

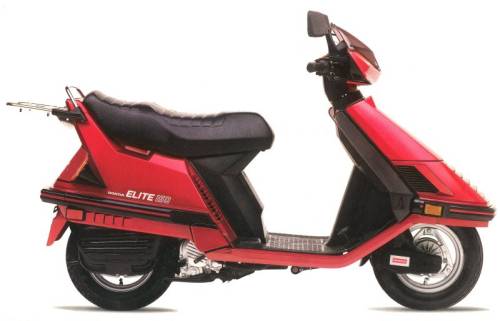

CH150 Image Gallery
