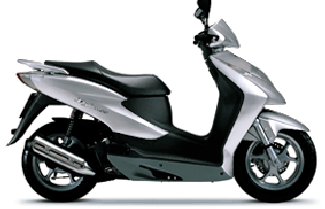

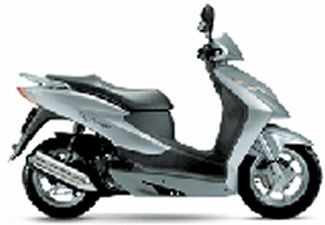

2004 Dylan 125
Engine |
|
| Engine Type | Liquid-cooled 4-stroke SOHC single |
| Displacement | 125cc |
| Bore and Stroke | 52.4 x 57.8mm |
| Compression Ratio | 11.0 :1 |
| Fuel Delivery | 26mm VK-type |
| Ignition | Digital transistorised with electronic advance |
| Max. Power Output | 14bhp at 9000 rpm |
| Max. Torque | 11.3Nm at 7250 rpm |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic |
| Final Drive | V-belt |
| Front Wheel | 13 x MT2.75 cast aluminum alloy |
| Rear Wheel | 13 x MT3.50 cast aluminum alloy |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33mm hydraulic telescopic fork, 88mm axle travel |
| Rear Suspension | Dual damper unit swingarm, 75mm axle travel |
| Front Brakes | 220mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 110/90-13 56L (tubeless) |
| Rear Tire | 130/70-13 57L (tubeless) |
DIMENSION |
|
| Length x Width x Height | 1940 x 700 x 1170mm |
| Seat Height | 795mm |
| Wheelbase | 1330mm |
| Dry Weight | 120kg |
| Fuel Capacity | 9 litres (including 2.0 litre reserve) |
| Ground Clearance | 130mm |
OTHER |

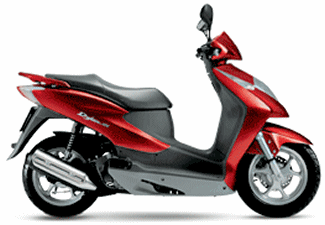

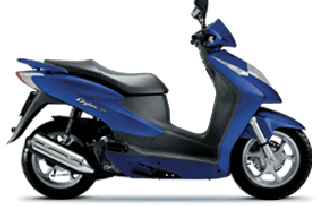

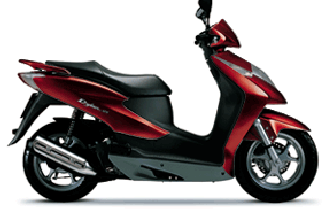

2007 SES125 DYLAN
Engine |
|
| Engine Type | Liquid-cooled 4-stroke SOHC single |
| Displacement | 125cm3 |
| Bore and Stroke | 52.4 x 57.8mm |
| Compression Ratio | 11.0 :1 |
| Fuel Delivery | 26mm VK-type |
| Ignition | Digital transistorised with electronic advance |
| Max. Power Output | 14bhp at 9000 rpm |
| Max. Torque | 11.3Nm at 7250 rpm |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic |
| Final Drive | V-belt |
| Front Wheel | 13 x MT2.75 cast aluminium alloy |
| Rear Wheel | 13 x MT3.50 cast aluminum alloy |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33mm hydraulic telescopic fork, 88mm axle travel |
| Rear Suspension | Dual damper unit swingarm, 75mm axle travel |
| Front Brakes | 220mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 110/90-13 56L (tubeless) |
| Rear Tire | 130/70-13 57L (tubeless) |
DIMENSION |
|
| Length x Width x Height | 1940 x 700 x 1170mm |
| Seat Height | 795mm |
| Wheelbase | 1330mm |
| Dry Weight | 120kg |
| Fuel Capacity | 9 litres (including 2.0 litre reserve) |
| Ground Clearance | 130mm |
OTHER |
