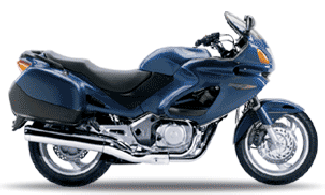

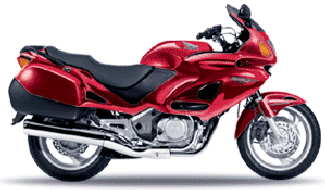

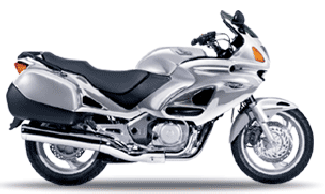

2004 Deauville
R
| Engine Type | Liquid-cooled 4-stroke 6-valve SOHC 52° V-twin |
| Bore and Stroke | 79 x 66mm |
| Displacement | 647cc |
| Compression Ratio | 9.2:1 |
| Carburation | 40 mm VE-type carburetor |
| Max. Power Output | 55 bhp at 7750 rpm |
| Max. Torque | 55Nm at 6250 rpm |
| Ignition | Digital transistorised with electronic advance and HISS |
| Starter | Electric |
| Transmission | Transmission |
| Final Drive | Enclosed shaft |
| Length x Width x Height | 2215 x 780 x 1260mm |
| Wheelbase | 1475mm |
| Seat Height | 814mm |
| Ground Clearance | 144mm |
| Fuel Capacity | 19.5 litres |
| Dry Weight | 228kg |
| Wheels Front | ‘S’-section triple-spoke cast aluminum |
| Wheels Rear | ‘S’-section triple-spoke cast aluminum |
| Tires Front | 120/70 ZR17M/C (58W) |
| Tires Rear | 150/70 ZR17M/C (69W) |
| Suspension Front | 41mm telescopic fork, 115mm axle travel |
| Suspension Rear | Single damper with adjustable preload, 120mm axle travel |
| Brakes Front | 296mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads |
| Brakes Rear | 276mm hydraulic disc with dual-piston caliper and sintered metal pads |
