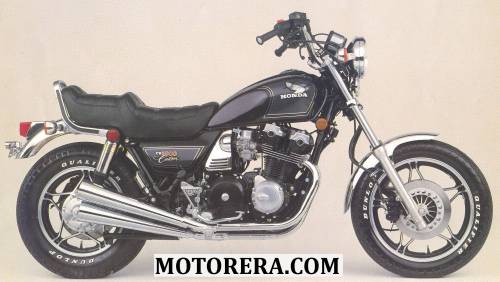

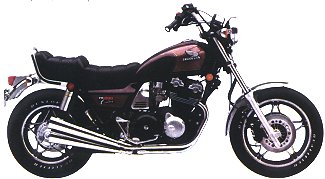

Honda Custom 1000 (CB1000C) Motorcycles

1983 CB1000C’83 1000 Custom

Engine
Engine Type	Four cylinder DOHC 16 valve
Displacement	973cc
Bore and Stroke	67mm x 69mm
Compression Ratio	9:1
Fuel Delivery	Four 32mm CV-type Carburetors
Exhaust system	Four-into-four
Ignition system	Transistorized pointless
StarterStarting system	Electric
Fuel type	Regular gasoline
DRIVETRAIN
Transmission	Five speed witdh Hi/Lo Secondary Transmission
Clutch	Wet multi-plate
Wheels	Honda cast wheels
CHASSIS / SUSPENSION / BRAKES
Front suspension	Air-assisted telescopic with TRAC^TM anti-dive
Rear suspension	Swing arm with air-assisted shocks
Front Wheel	Front Brakes
Rear Wheel	Double piston caliper type dual disc
Rear Brakes	Single disc
Front tire	110/90H18
Rear tire	140/90H16
DIMENSION
Wheelbase	1612mm (63.5 in.)
Overall length	2325mm (91.5 in.)
Overall width	890mm (35.0 in.)
Seat height	790mm (31.1 in.)
Fuel capacity	16.7 liter (4.4 GalUS)
Dry weight	266 kg (585 lb)
OTHER
It came in one of two color schemes	Black with Achilles black Metallic or Candy Regal Brown with Chestnut Gold Metallic the gas tank and side covers were two-tone the wheels were comcast The taillight was integrated The transmission was a 5-speed with dual range sub-transmission — thus 10 speeds.
Engine	Powerful, four-cylinder, 973cc, DOHC
Transmission	Five-speed dual-range
Drive	Shaft
Suspension	Air-adjustable, leading-axle front forks
Brakes	TRAC^TM anti-dive control system with integrated fork brace
Oil cooler	Large capacity
