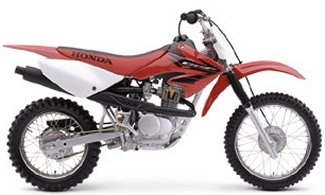

2004 CRF80F
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery | 20.0mm piston-valve |
| Spark plug | CR7HSA |
| Plug gap | .028 |
| Valve Train | SOHC; two-valve |
| Ignition | CDI |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #420 chain x 110 |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.5-inch travel |
| Rear Suspension | Pro-Link Showa single-shock; 4.3-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | 28.02 degrees |
| Trail | 74.0mm (2.9 inches) |
| Wheelbase | 47.6 inches |
| Seat Height | 28.9 inches |
| Ground Clearance | 8.6 inches |
| Dry Weight | 154.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Model ID | CRF80F |
| Color | Red |
| Warranty | 6 months |

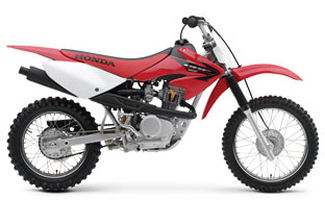

2005 CRF80F
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery | 20.0mm piston-valve |
| Spark plug | CR7HSA |
| Plug gap | .028 |
| Valve Train | SOHC; two-valve |
| Ignition | CD |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #420 chain x 110 |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.5-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | 28.02 degrees |
| Trail | 74.0mm (2.9 inches) |
| Wheelbase | 47.6 inches |
| Seat Height | 28.9 inches |
| Ground Clearance | 8.6 inches |
| Dry Weight | 154.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Model ID | CRF80F |
| Color | Red |
| Warranty | 6 months |
2006 CRF80F
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery | 20.0mm piston-valve |
| Spark plug | CR7HSA |
| Plug gap | .028 |
| Valve Train | SOHC; two-valve |
| Ignition | CD |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #420 chain x 110 |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.5-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | 28.02 degrees |
| Trail | 74.0mm (2.9 inches) |
| Wheelbase | 47.6 inches |
| Seat Height | 28.9 inches |
| Ground Clearance | 8.6 inches |
| Dry Weight | 154.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Model ID | CRF80F |
| Color | Red |
| Warranty |

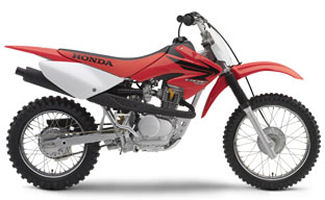

2007 CRF80F
OVERVIEW
- What’s great about the CRF line-up is that there’s a model for each step along a young rider’s learning curve. Take the CRF80F. Loaded with big-bike performance features, like a manual clutch and five-speed gearbox, it’s the perfect machine for the rider who’s ready to move up to a serious off-road bike, but perhaps still too small for a CRF100F.
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery | 20.0mm piston-valve |
| Spark plug | CR7HSA |
| Plug gap | .028 |
| Valve Train | SOHC; two-valve |
| Ignition | CD |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #420 chain x 110 |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.5-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | 28.02 degrees |
| Trail | 74.0mm (2.9 inches) |
| Wheelbase | 47.6 inches |
| Seat Height | 28.9 inches |
| Ground Clearance | 8.6 inches |
| Dry Weight | 154.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Model ID | CRF80F |
| Color | Red |
| Warranty |
2008 CRF80F
OVERVIEW
- Is your youngster ready to move up to the next level, where big-bike features — like five-speed shifting with a manual clutch — will help take them up to the next step of the off-road learning curve? Then check out the CRF80F, loaded with plenty of power, performance, and Honda’s legendary four-stroke reliability, making it the perfect tool for the young rider who’s ready to hone his or her off-road skills to a finer edge.
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery | 20.0mm piston-valve |
| Spark plug | CR7HSA |
| Plug gap | .028 |
| Valve Train | SOHC; two-valve |
| Ignition | CD |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #420 chain x 110 |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.5-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | 28.02 degrees |
| Trail | 74.0mm (2.9 inches) |
| Wheelbase | 47.6 inches |
| Seat Height | 28.9 inches |
| Ground Clearance | 8.6 inches |
| Curb Weight | N/A |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Model ID | CRF80F |
| Color | Red |
| Warranty | 6 months warranty: Coverage of defects in materials and workmanship |

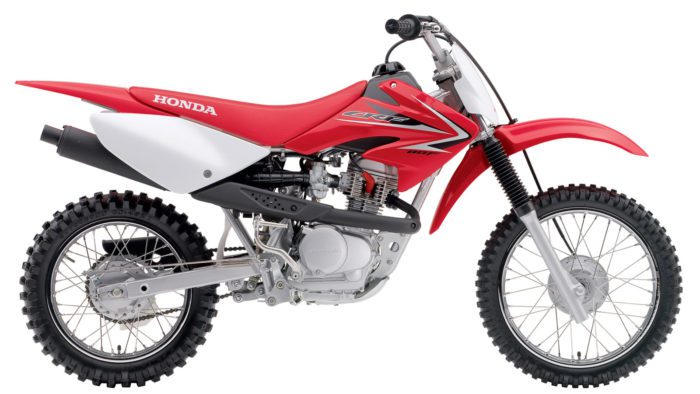

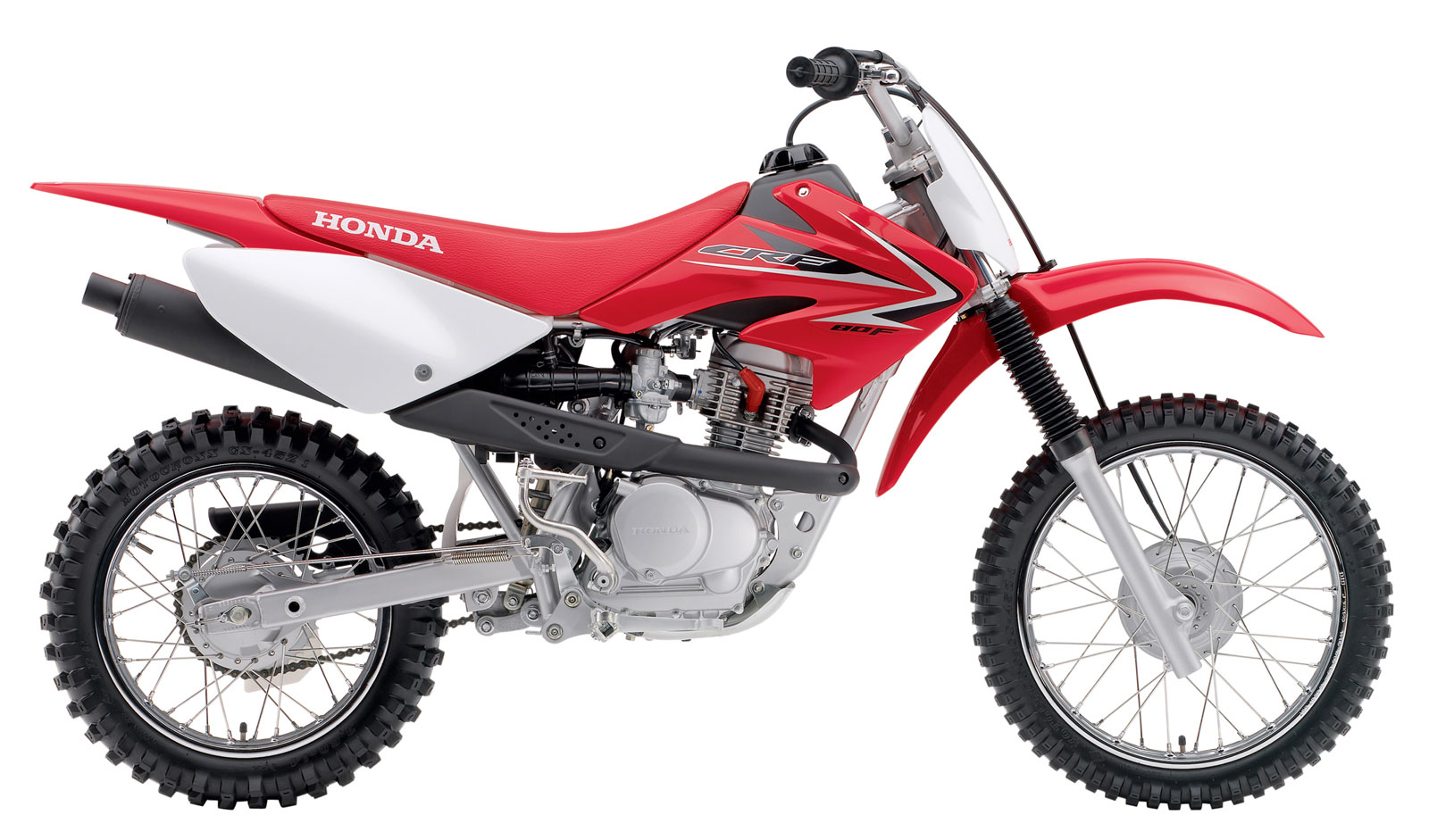

2009 CRF80F
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery | 20.0mm piston-valve |
| Spark plug | |
| Plug gap | |
| Valve Train | |
| Ignition | CD |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #420 chain x 110 |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.5-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | 47.6 inches |
| Seat Height | 28.9 inches |
| Ground Clearance | 8.6 inches |
| Curb Weight | 163 lbs. |
| Fuel Capacity | 1.5 gallons |
OTHER |
|
| Price | $2099 |
| Color | Red |
| Warranty | 6 months warranty: Coverage of defects in materials and workmanship |

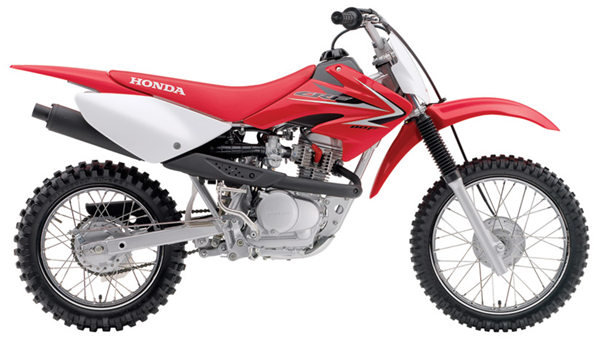

2010 CRF80F
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery | Single 18 mm piston-valve carb |
| Spark plug | |
| Plug gap | |
| Valve Train | SOHC, 2-valve |
| Ignition | CD |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed with manual clutch |
| Final Drive | #420 chain |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27 mm leading-axle Showa fork; 123 mm (5 in.) travel |
| Rear Suspension | Pro-Link Showa single shock; 110 mm (4.3 in.) travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | 47.6 inches |
| Seat Height | 28.9 inches |
| Ground Clearance | 8.6 inches |
| Curb Weight | 75 kg (165 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 5 litres, including 0.7-litre reserve |
OTHER |
|
| Price | $2,749 |
| Color | Red |
| Warranty | 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |

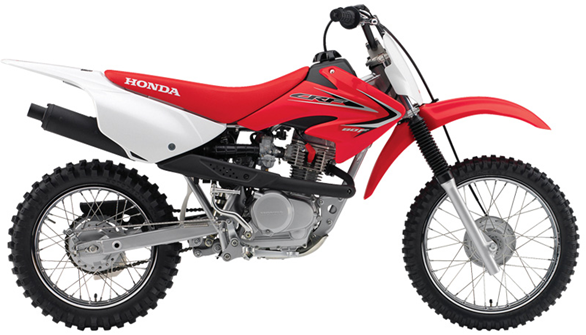

2011 CRF80F
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery |
|
| Spark plug | |
| Plug gap | |
| Valve Train | SOHC, 2-valve |
| Ignition | CD |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed with manual clutch |
| Final Drive | #420 chain |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27 mm leading-axle Showa fork; 123 mm (5 in.) travel |
| Rear Suspension | Pro-Link Showa single shock; 110 mm (4.3 in.) travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | 28.02 degrees |
| Trail | 74mm (2.9 inches) |
| Wheelbase | 1,209 mm (47.6 in.) |
| Seat Height | 734 mm (28.9 in.) |
| Ground Clearance | 218 mm (8.6 in.) |
| Curb Weight | 75 kg (165 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 5 litres (1.3 GalUS), including 0.7-litre (0.3 Gal) reserve |
OTHER |
|
| Emissions | Meets current CARB and EPA standards. |
| Price | $2,749 |
| Color | Extreme Red |
| Warranty | 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
2012 CRF80F
Engine |
|
| Engine Type | 80cc air-cooled single-cylinder four-stroke |
| Bore And Stroke | 47.5mm x 45.0mm |
| Compression Ratio | 9.7:1 |
| Fuel Delivery |
|
| Spark plug | |
| Plug gap | |
| Valve Train | SOHC, 2-valve |
| Ignition | CD |
| Max Torque | |
DRIVETRAIN |
|
| Transmission | Five-speed with manual clutch |
| Final Drive | #420 chain |
| Front sprocket | 14T |
| Rear sprocket | 46T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27 mm leading-axle Showa fork; 123 mm (5 in.) travel |
| Rear Suspension | Pro-Link Showa single shock; 110 mm (4.3 in.) travel |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 2.50-16 |
| Rear Tire | 3.60-14 |
DIMENSION |
|
| Rake | 28.02 degrees |
| Trail | 74mm (2.9 inches) |
| Wheelbase | 1,209 mm (47.6 in.) |
| Seat Height | 734 mm (28.9 in.) |
| Ground Clearance | 218 mm (8.6 in.) |
| Curb Weight | 75 kg (165 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 5 litres (1.3 GalUS), including 0.7-litre (0.3 Gal) reserve |
OTHER |
|
| Emissions | Meets current CARB and EPA standards. |
| Price | $2,749 |
| Color | Extreme Red |
| Warranty | 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |

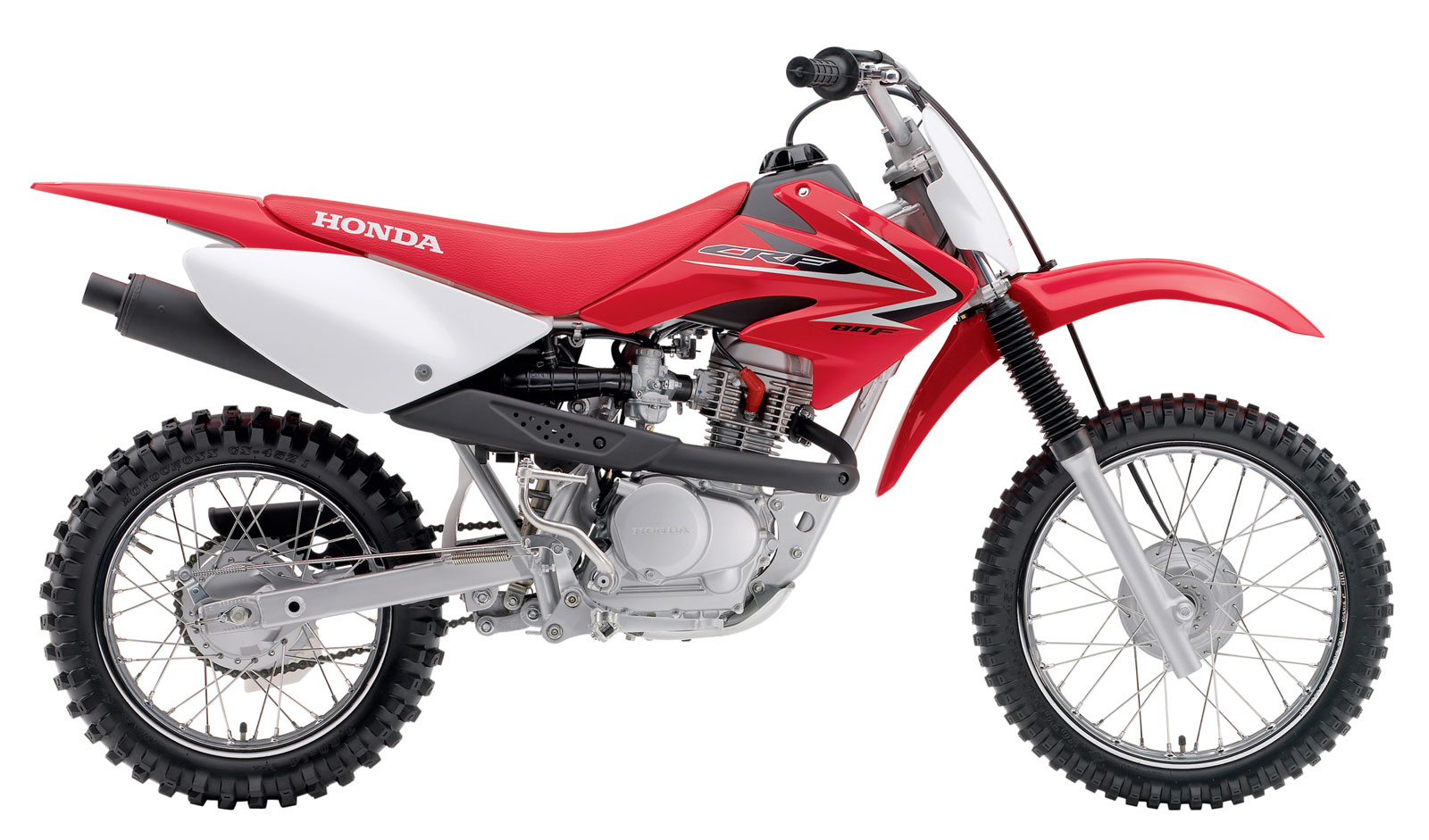

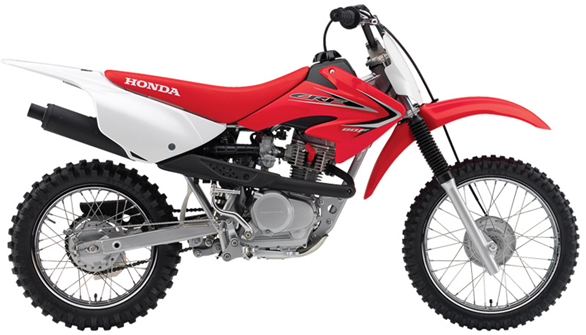

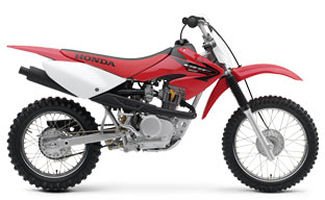

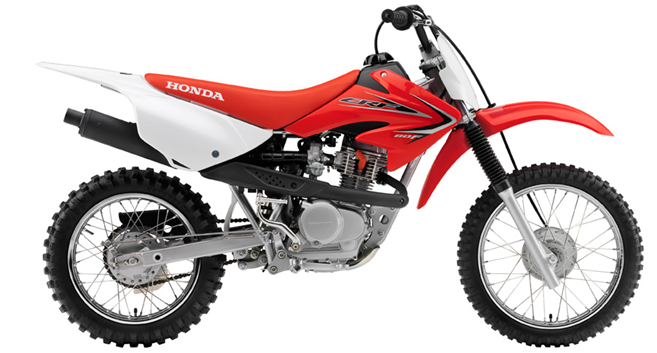

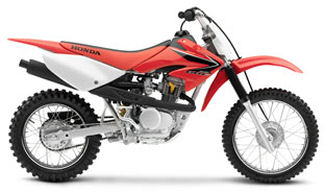

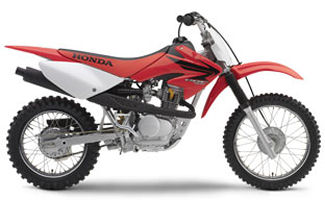

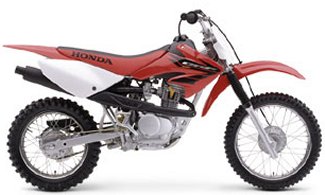

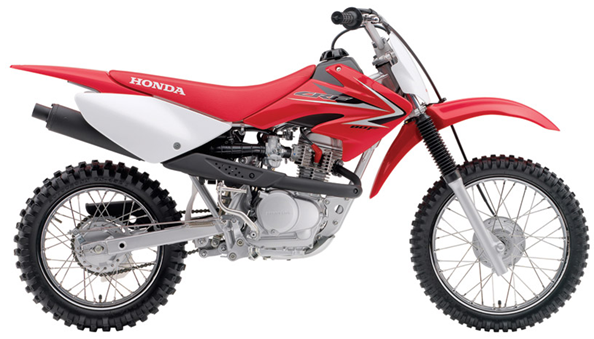

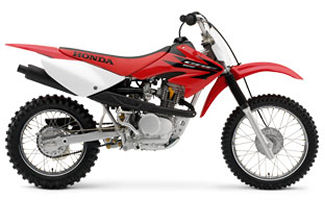

Honda CRF80F Photo Gallery
